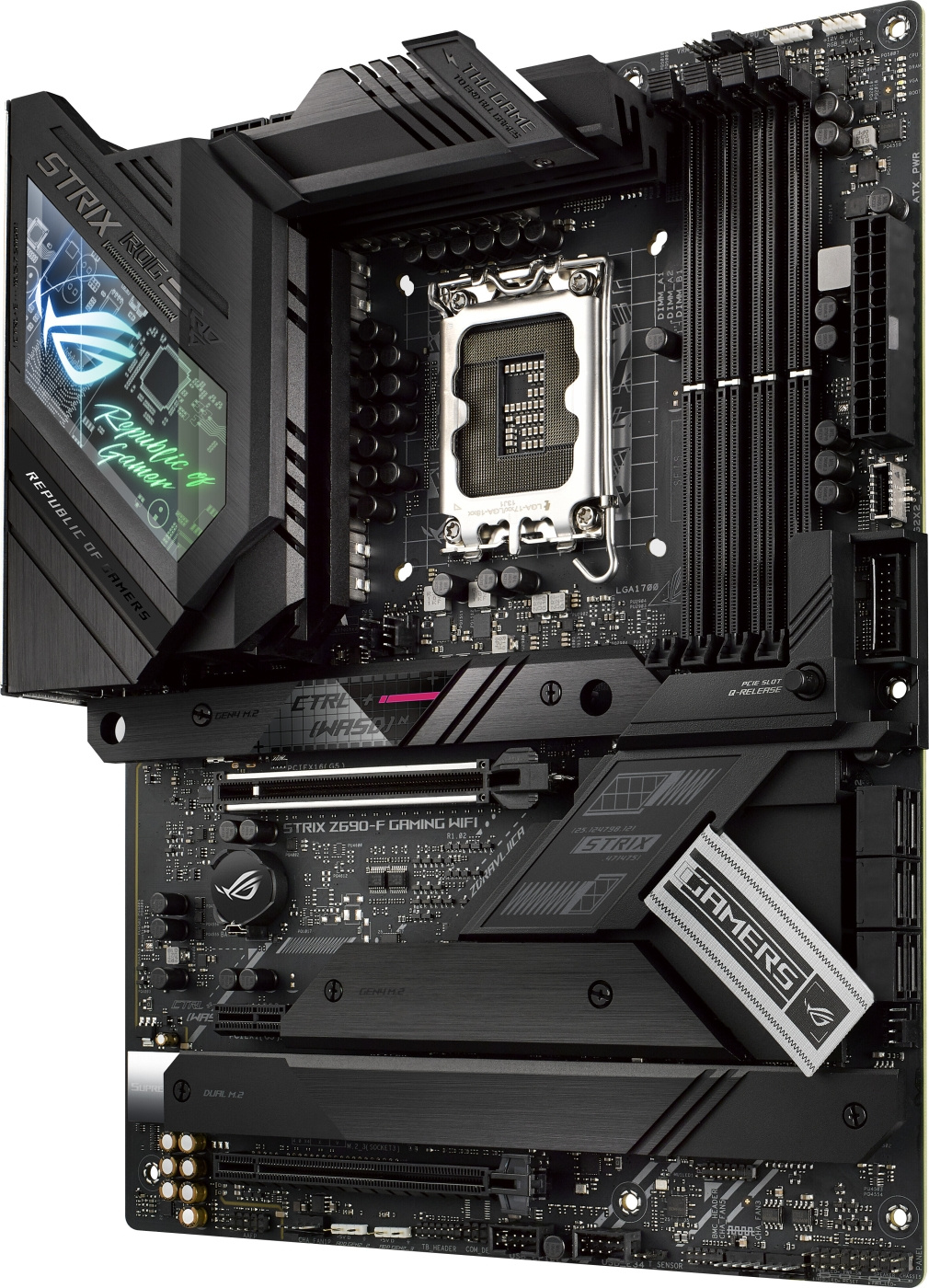

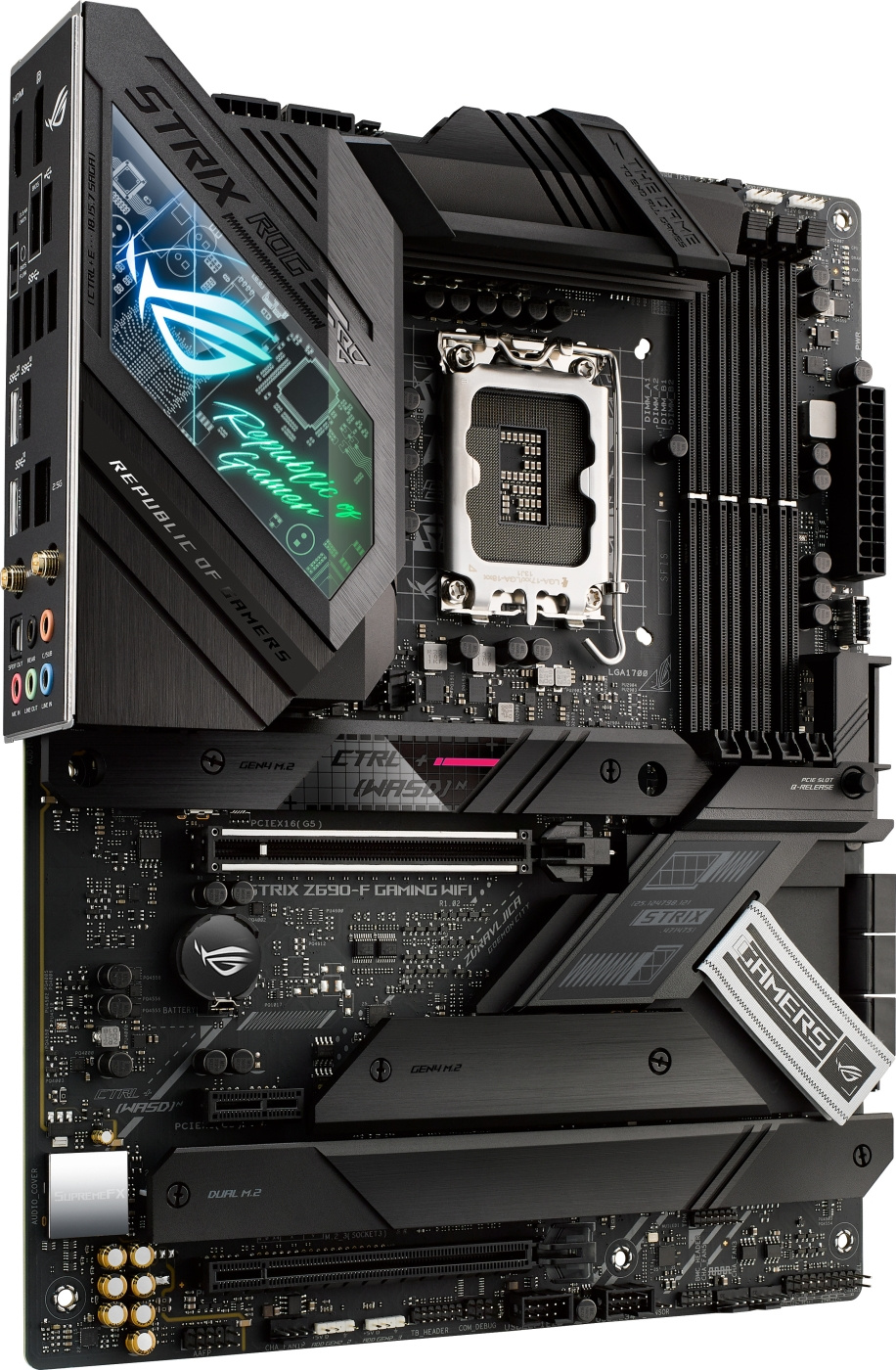

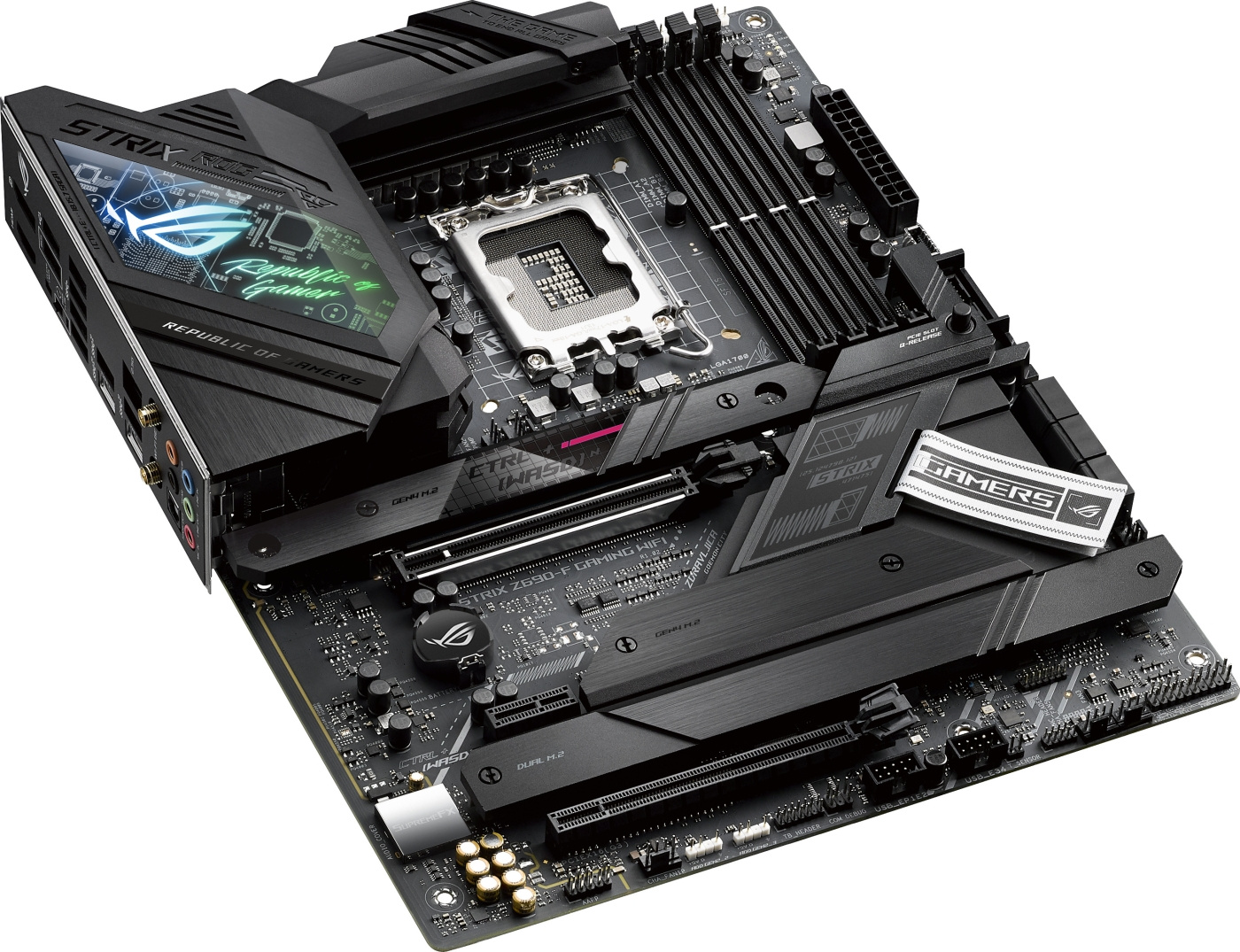

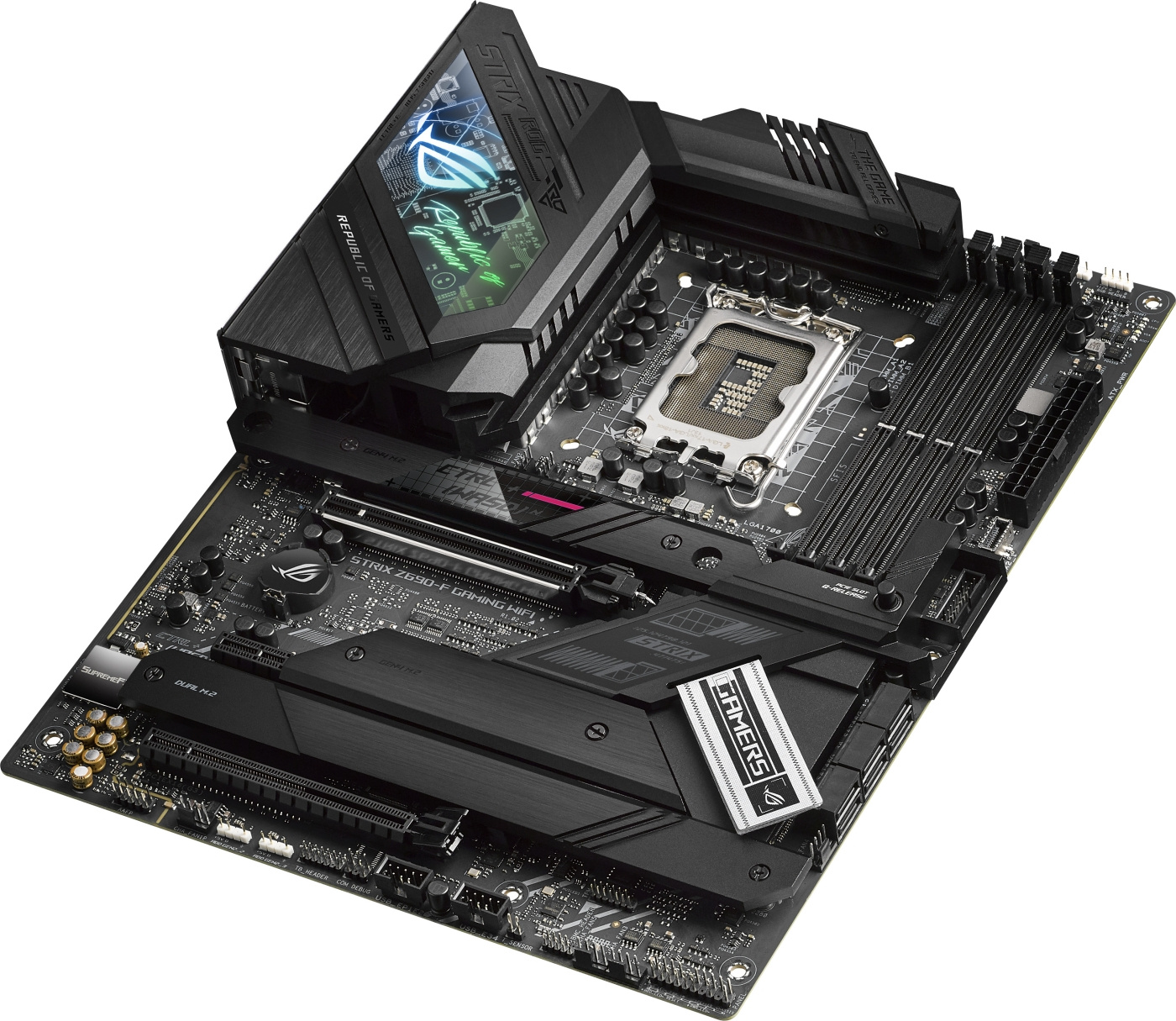

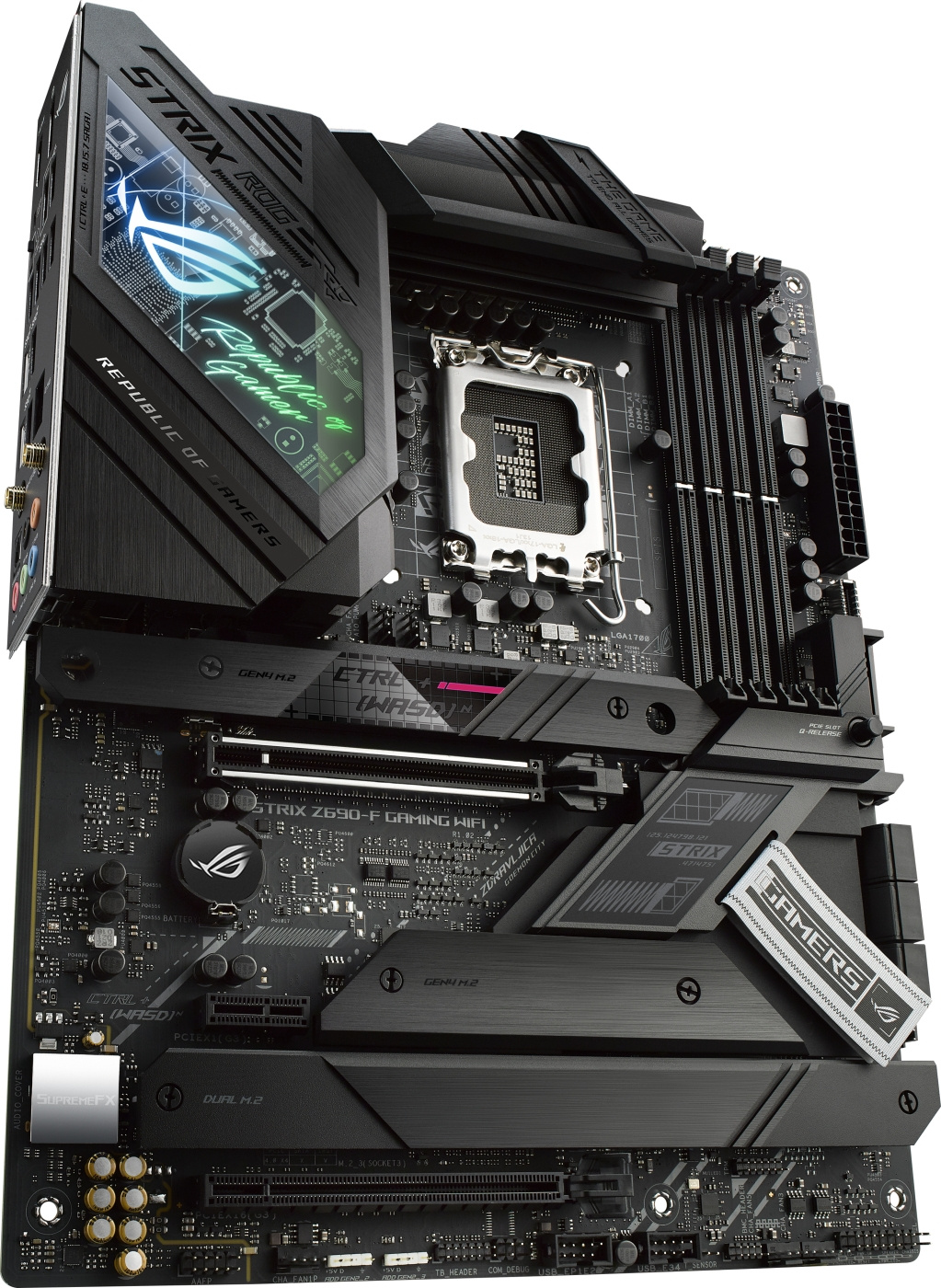

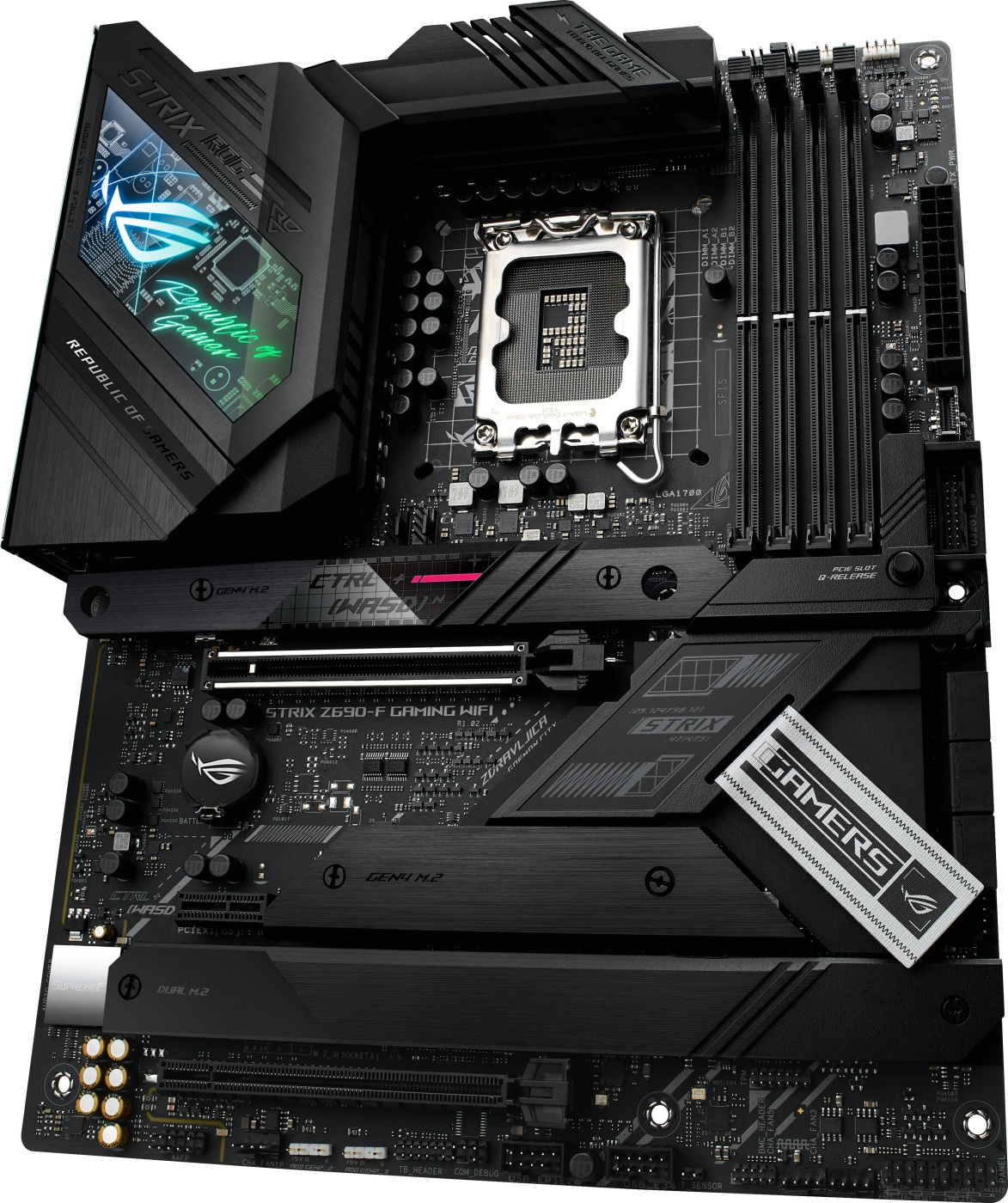

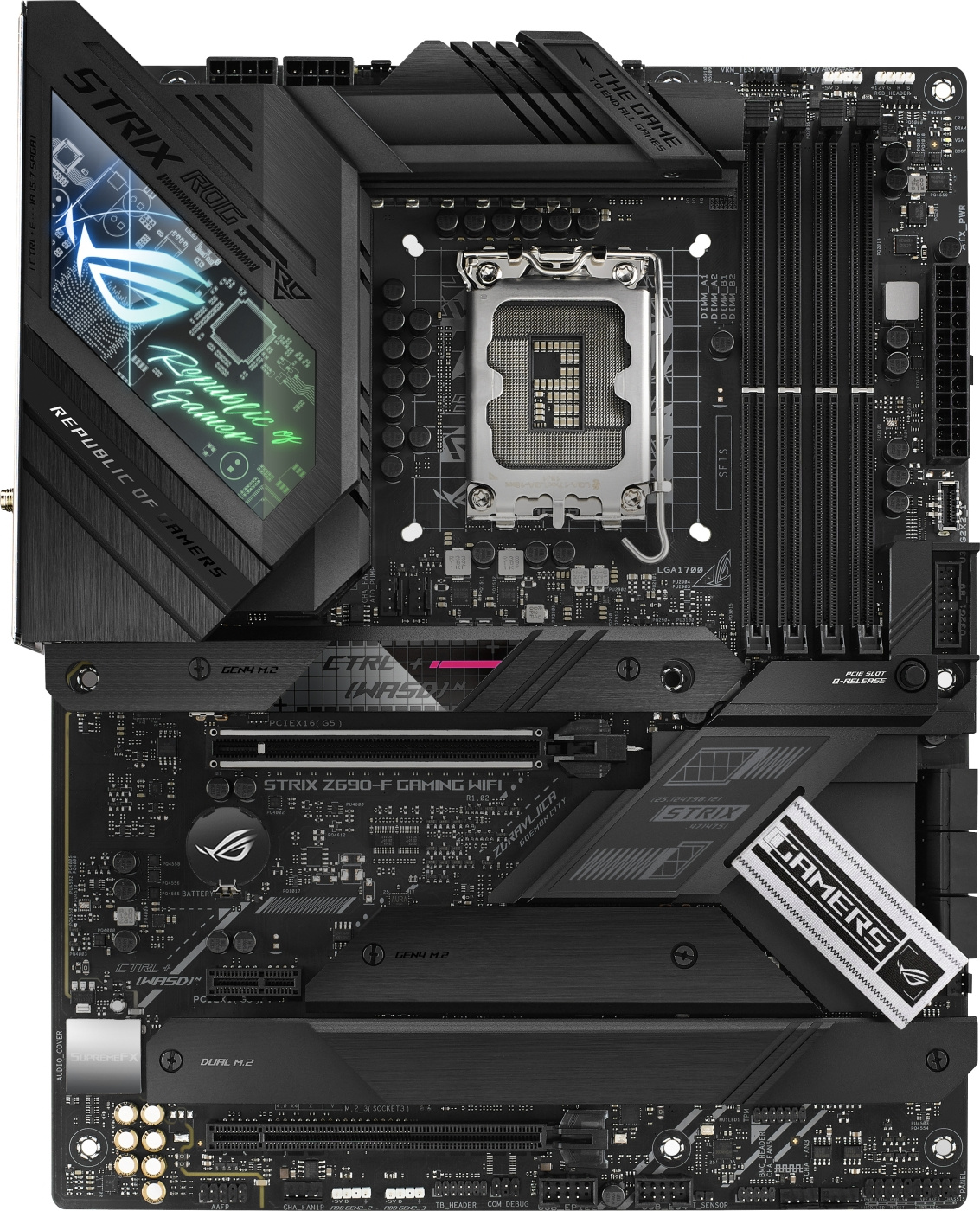

The ROG STRIX Z690-F GAMING WIFI motherboard is designed to meet the requirements of powerful 12th generation Intel Core Alder Lake processors with improved power delivery and optimized cooling. The latest Intel Wi-Fi 6E and PCI Express 4.0 M.2 provide ultra-fast data transfer and memory. The STRIX Z690-F GAMING WIFI motherboard is undeniably ROG with its futuristic design elements - the colourful ROG logo and Aura Sync lighting combined with a sleek black finish give your PC build a subtle yet vibrant look.
The Asus STRIX Z690 series has been updated to support 12th generation Intel Core processors and DDR5 memory.
Features:
- Chipset: Intel Z690
- Processor core: LGA 1700
- Processor support: 12th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: ATX
- Memory slots (pcs): 4
- Memory type: DDR5
- Maximum amount of memory (GB): 128
- Intel I225-V 2.5Gb Ethernet, ASUS LANGuard, Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2 hardware ready (v5.2 available for Windows 11)
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Expansion sites
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)
- 1 x PCIe 3.0 x1 slot
Hard disk interfaces
- 6 x SATA 6Gb/s ports
- 4 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

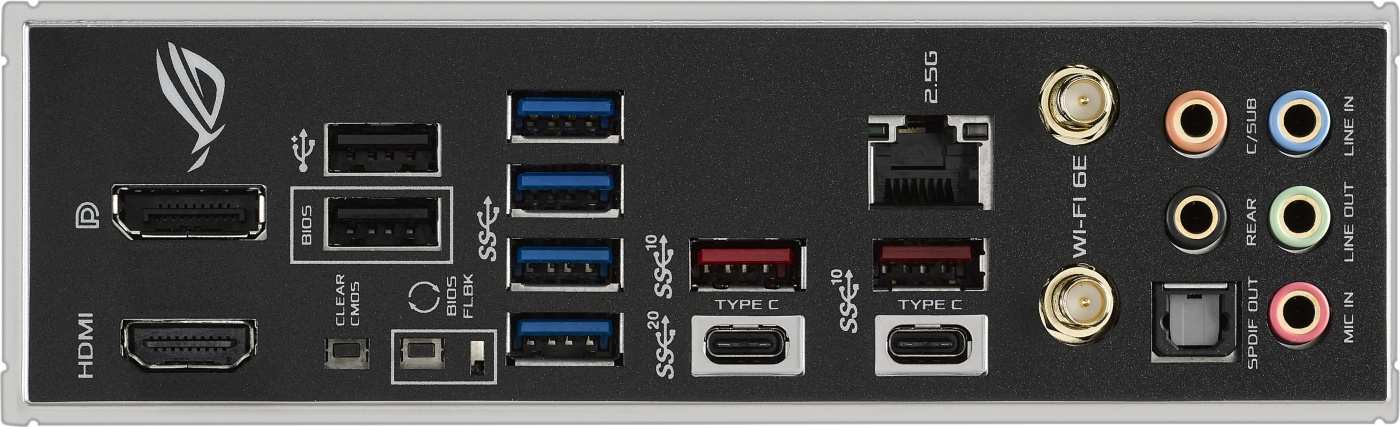

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x HDMI port
- 1 x DisplayPort

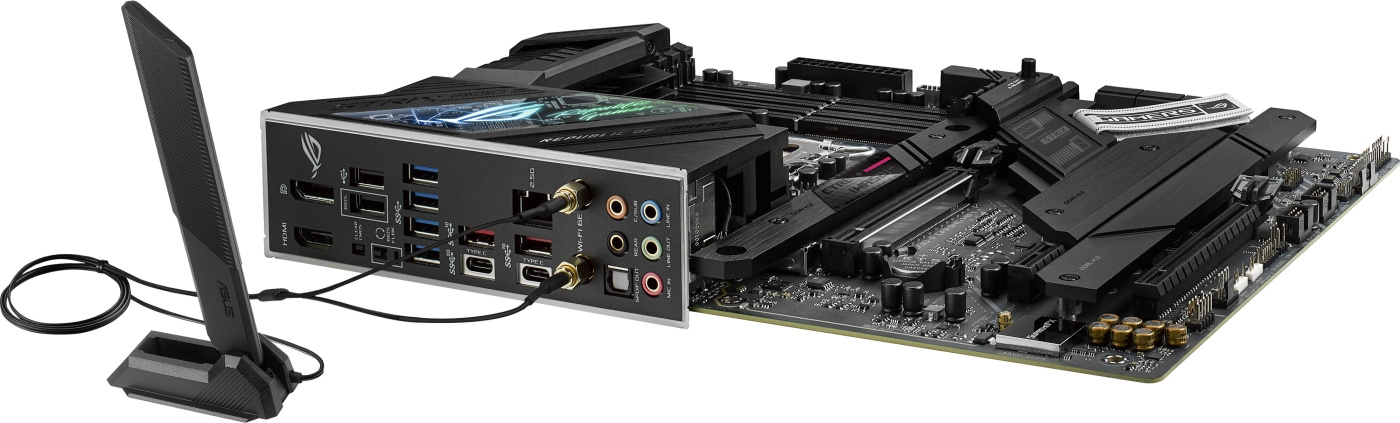

- 1 x Wi-Fi module
- 1 x Intel I225-V 2.5Gb Ethernet
- 5 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal interfaces
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x AURA Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x BMC header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
- LGA 1700 ATX motherboard
- Intel Z690 chipset
- Four M.2 interfaces
- Comprehensive connectivity options
- For Intel 12th generation CPUs
