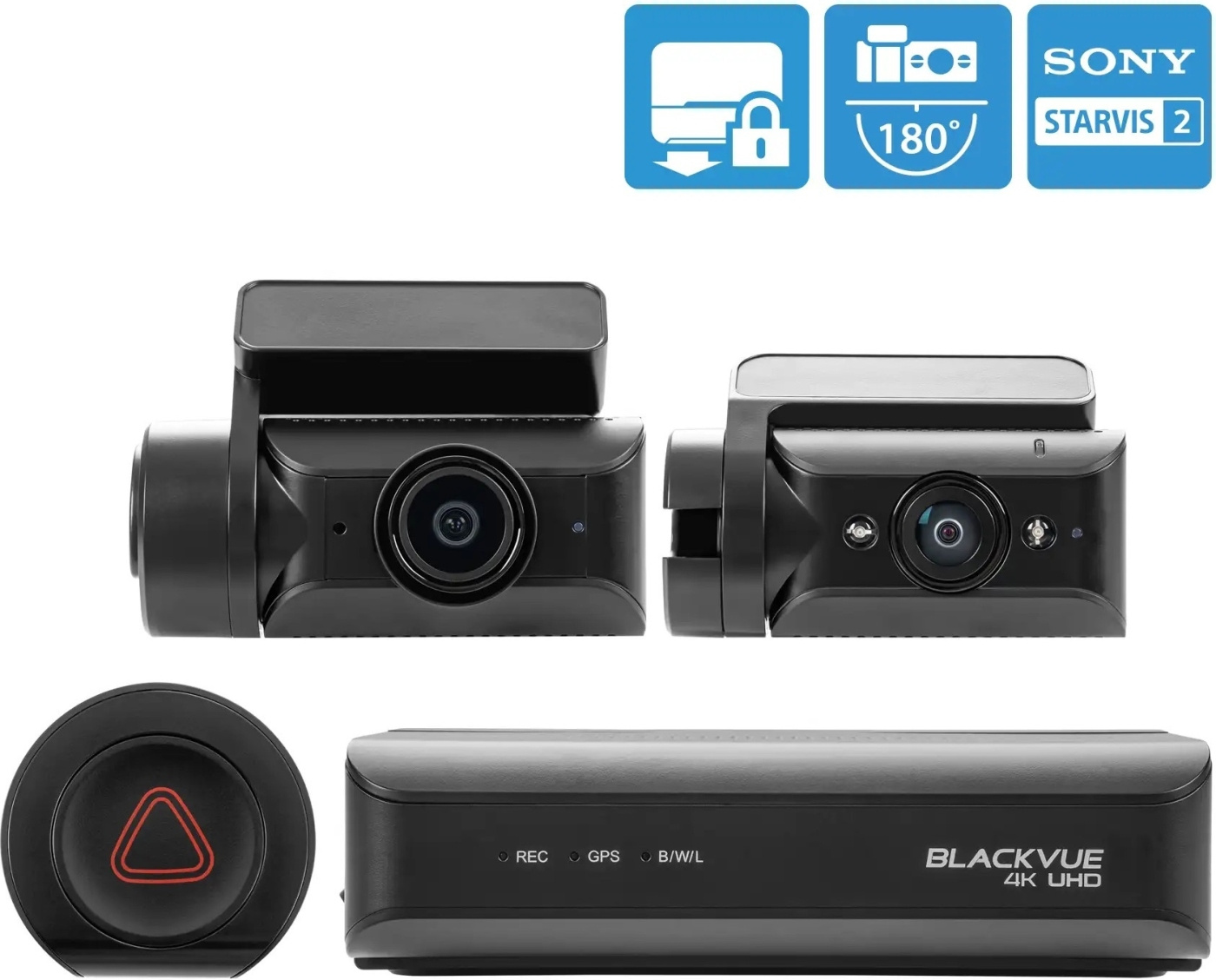

BlackVue The DR970X-2CH Box IR Plus car camera is designed to maximise safety and comfort while driving. The state-of-the-art car camera with recording unit offers 4K Ultra HD image quality and captures details with great clarity. This camera package is perfect for taxi drivers and anyone who wants to secure the interior of their vehicle. The driver-facing infrared ultra-wide angle camera captures the entire field of view from the driver's side to the passenger's side.
High resolution image quality
BlackVue The DR970X-2CH IR PLUS car camera offers an interior and rear camera for a wide viewing angle and an image full of fine detail. The interior camera captures events inside the car in 4K UHD resolution, so you can be sure that every tiny detail inside the car is captured. The rear camera, on the other hand, offers Full HD image quality.
Smart Wi-Fi, Cloud connectivity and GPS
This model also includes GPS and Wi-Fi functionality for quick and easy connection to other devices and real-time monitoring. The camera's built-in GPS allows you to track your vehicle's speed and route in real time. Wi-Fi allows you to connect the camera to your smartphone or tablet and watch recordings directly from the screen. In addition, the car camera offers a Cloud service that allows remote video viewing and backup. You can also receive notifications of movement or collisions directly to your smartphone, allowing you to react quickly to any problems.
Parking space monitoring
The car camera is equipped with intelligent parking space monitoring, which starts recording as soon as it detects movement or a collision while your vehicle is parked.
Separate recording unit
Box models have a lockable cover and hexagonal screws on the camera brackets for added security. What makes Box models safer than others, however, is their modular design. By taking the storage unit apart from the cameras, it can be installed hidden in the car. By having the main circuit board in the storage box and away from the front camera, the front camera can be further reduced in size. As a result, the front camera is almost as small as the rear camera.
Specifications:
- Front camera Sony STARVIS 2, 4K 30 fps UHD video, 8.3 megapixel sensor, IR indoor camera Sony STARVIS™ CMOS Sensor (approx. 2.1 megapixels) 1920x1080 30fps
- Video codec: H.265 (HEVC), H.264 (AVC), .mp4
- Video bit rates: highest (Extreme): 60+10 Mbps, highest: 25+10 Mbps, high: 12+8 Mbps, normal: 8+6 Mbps
- Protection of recorded video: yes, up to 50 clips
- Viewing angle: front camera 146° diagonal, horizontal 125°, vertical 68°, internal camera 180° diagonal, horizontal 150°, vertical 93°
- Recording modes: normal recording, event recording (due to shock in normal or parking recording), manual recording, parking recording (due to motion)
- Wi-Fi 802.11 b/g/n/ac
- Bluetooth V2.1+EDR/4.2
- LTE: optional, external
- GPS: yes, also GLONASS
- Microphone: yes, built-in
- Speakerphone: yes
- Shock sensor: yes, triaxial
- LED indicators: recording, GPS, Bluetooth/Wi-Fi/LTE on recording unit, security LED on internal and front camera
- Memory: microSD card slot, up to 512 GB (64 GB memory card included)
- Operating temperature: -20°C to 70°C
- Battery: none, supercapacitor
- Power consumption: Normal Mode (GPS On/2CH): 660 mA / 12V on average, Parking Mode (GPS Off/2CH): 520 mA / 12V on average
- Dimensions: front camera 77.5 x 41.9 x 55.3 mm, internal camera 63.5 x 32 x 32 mm, storage unit 130 x 101 x 33 mm
- Weight: front camera 68 g, indoor camera 33 g, recording unit 209 g

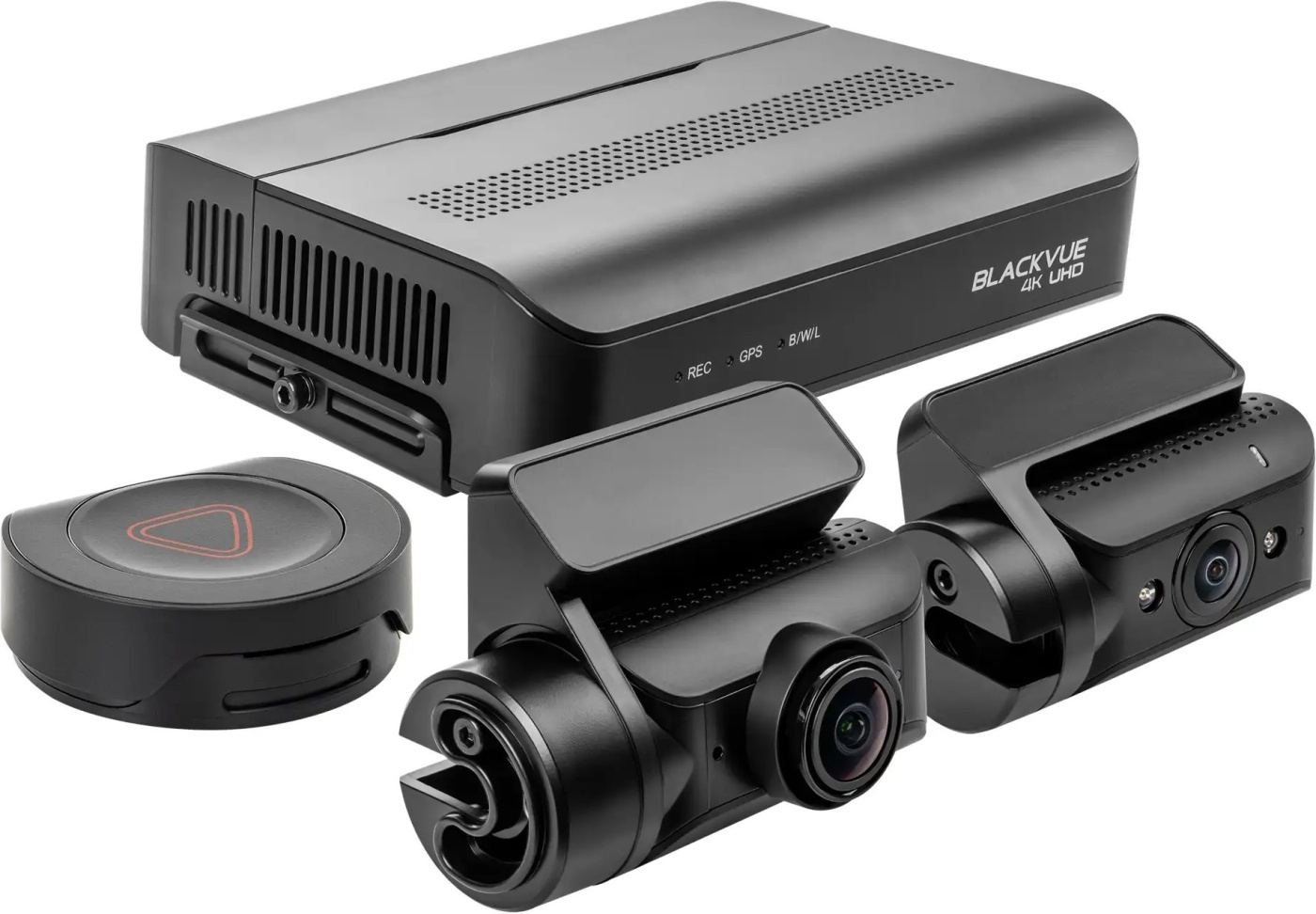

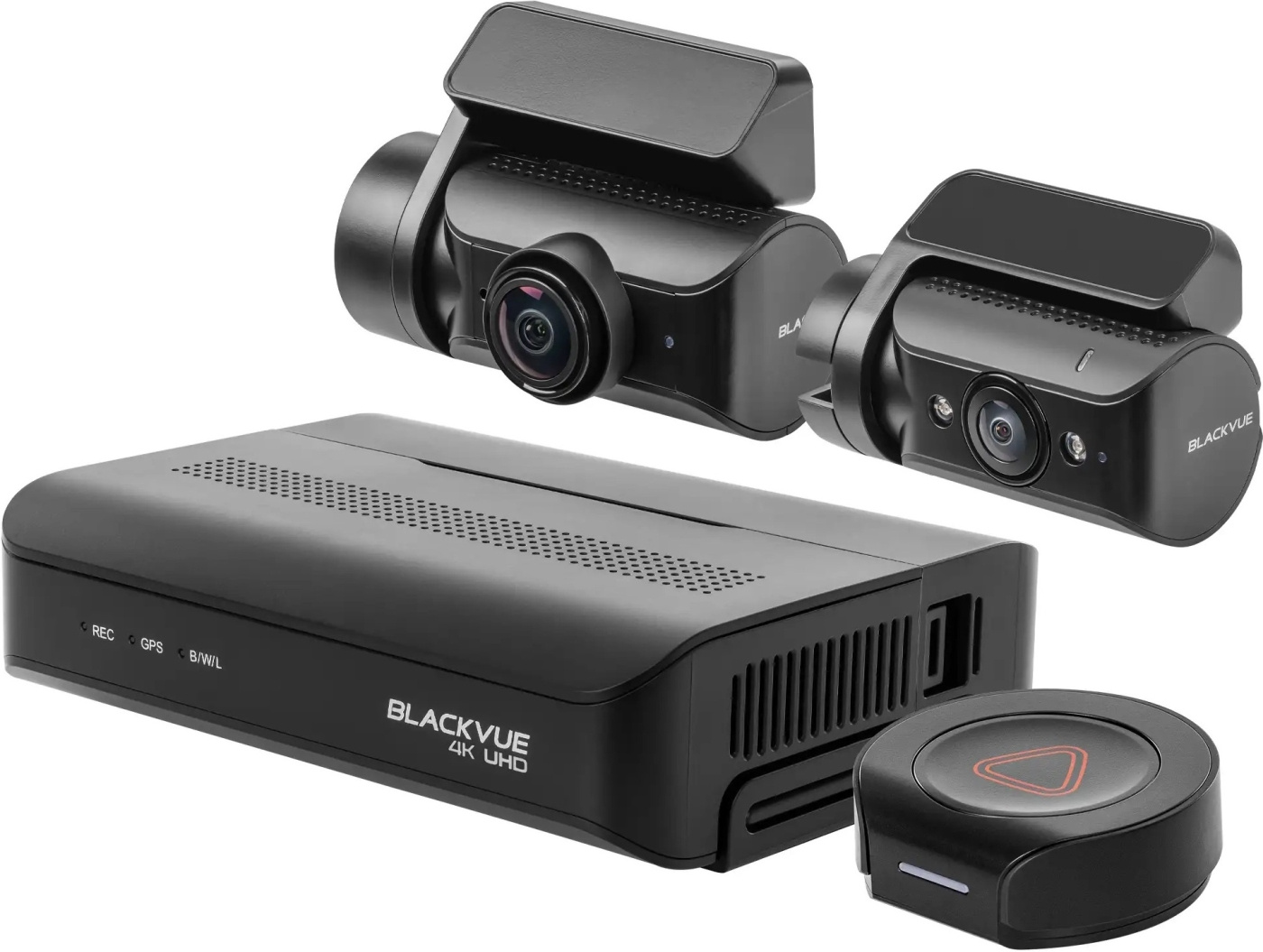

Contents of the product package:
- Front and indoor camera
- Recording unit

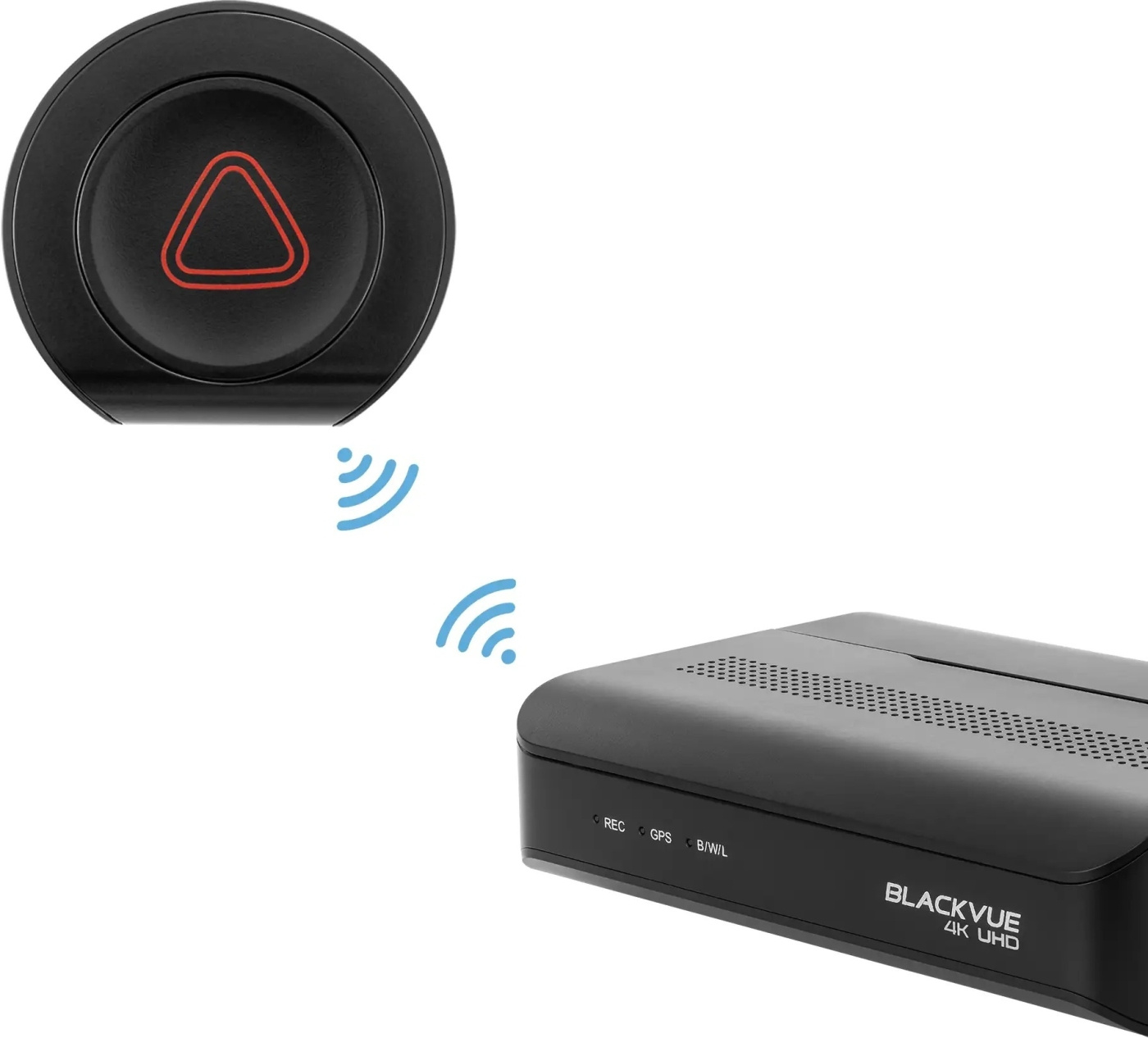

- SOS button (for manual recording)
- External GPS unit
- 64 GB microSD card with USB card reader
- 12 V cigarette lighter power cable to recording unit
- 12 V fixed parking power cable to recording unit
- Camera cable
- Cable clamps
- Auxiliary mounting labels
- Tools and screws
- Quick guide
- 4K / Full HD
- Sony STARVIS Cells
- 146 / 131 degree angle of view
- 2.4/5 GHz WiFi
- Indoor, rear camera and recording unit
