(5555934029) 20 A, 3 phases, for charging hybrid and electric cars with Type 2 connection Cable length 7 m
Förpackning: Retail Box
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
- Thanks to the 3-phase cable design, the cable charges particularly quickly and also supports 1-phase charging with 3.7 kW
- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability

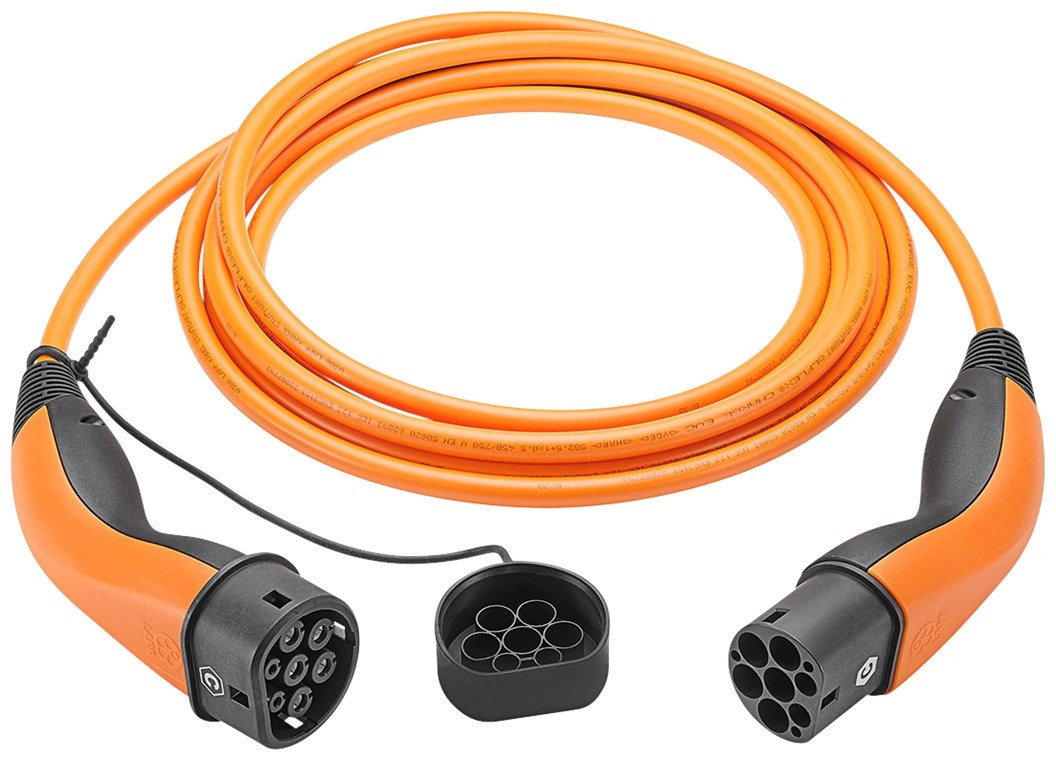

- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges.
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
max current capacity: 20 A
Markings: WEEE, CE
Operating temperature up to: 50 °C
Operating temperature from: -40 °C
protection class: IP55
Loading capacity up to: 11 kW
Charging mode: Mode 3
Rated voltage: 440 V (AC)
chemical substance: Pb
SCIP no.: 92ac866b-d201-4c6e-ac0a-f5f1b01570c7
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: type 2 female plug
Connection 2, type: type 2 male plug
4064727469744EAN:
