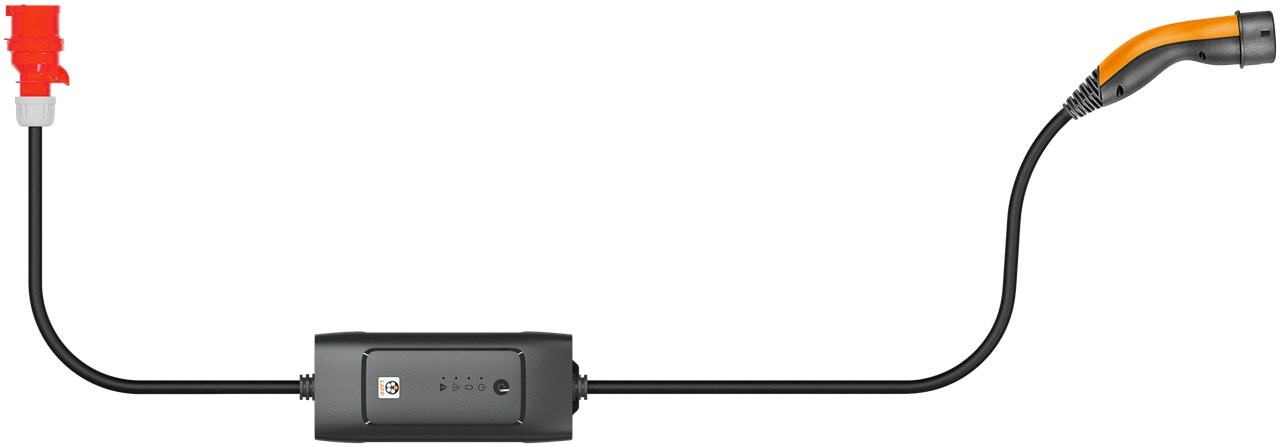

(5555921000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box
- The LAPP Mode 2 charger provides simple, mobile charging via CEE sockets and is ideal in the garage at home or on the road
- Ideal for charging with up to 22 kW from 3-phase CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector

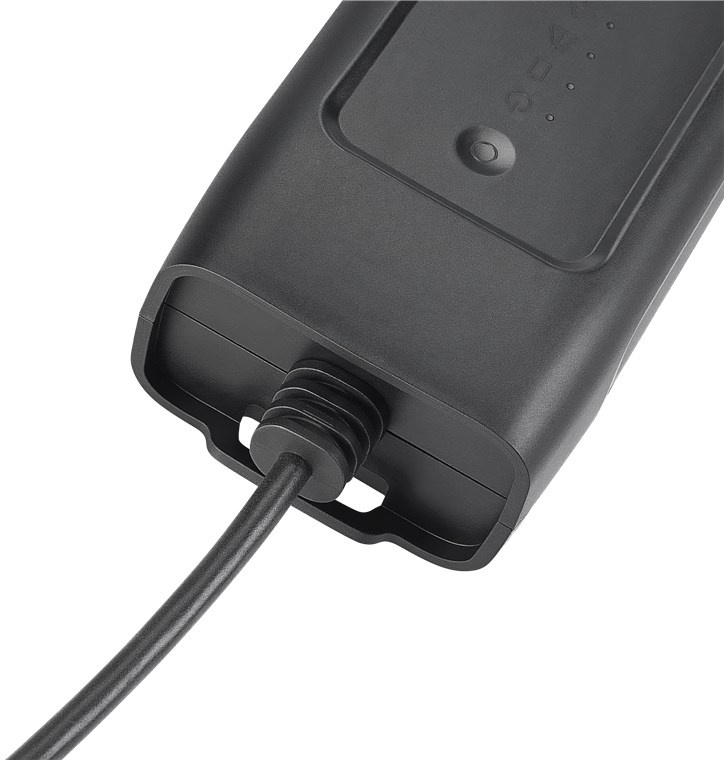

- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on the plug and coupling protect against the ingress of dust, dirt and water in between charges
- Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C

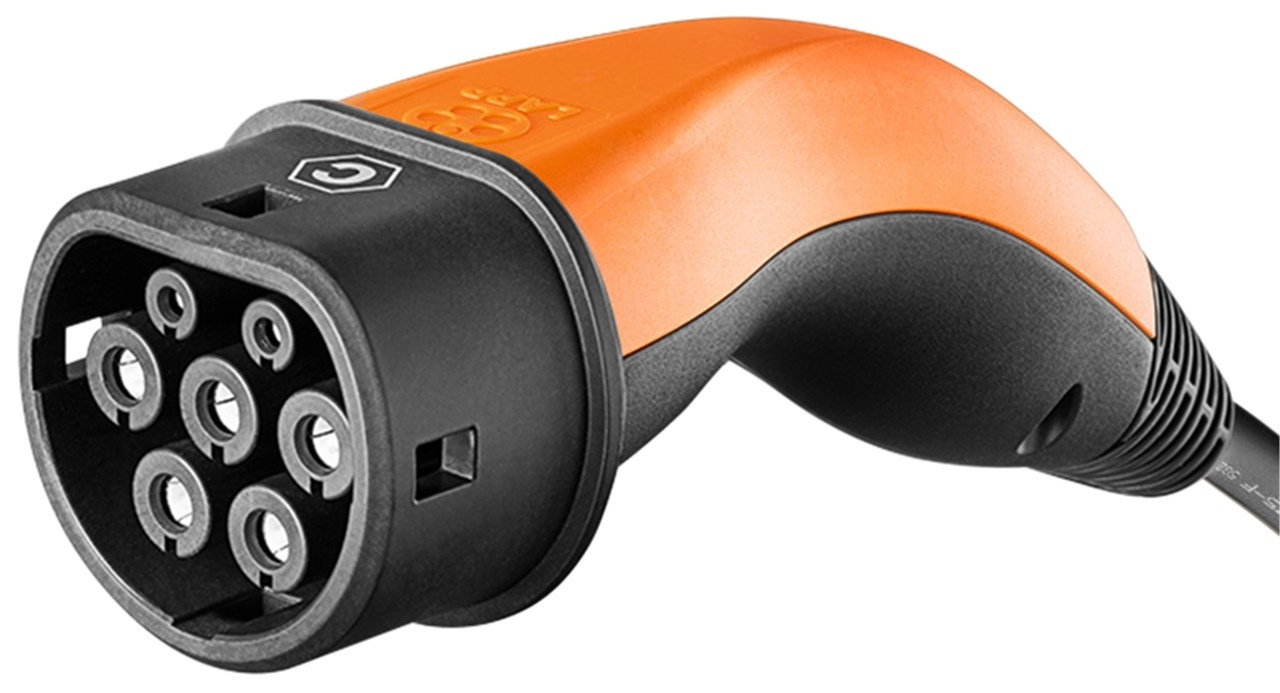

- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Inner conductor cross-section: 6 mm²
max current capacity: 32 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555921000
Model designation: 5555921000
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
Loading capacity up to: 22 kW
Charging mode: Mode 2
Rated voltage: 440 V (AC)
CAS no.: 7439-92-1 | 13560-89-9
chemical substance: Pb, Dechlorane Plus
SCIP no.: 3a4e482d-e540-4f53-809f-2c47435e56ba
4056158850871EAN:
