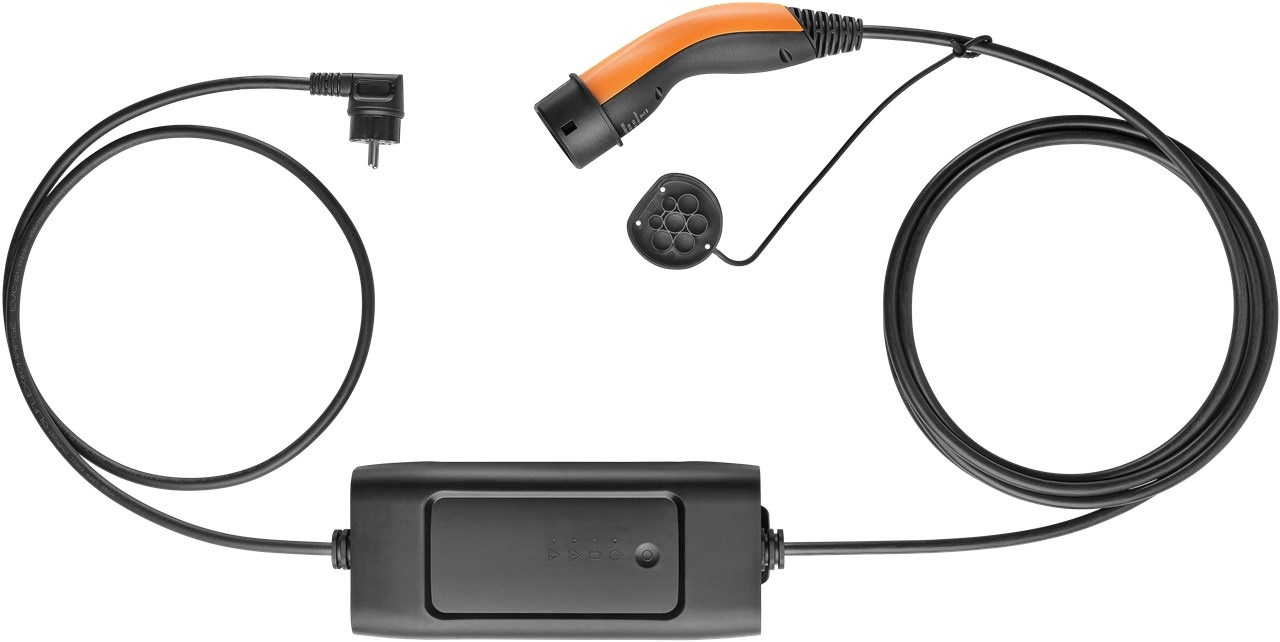

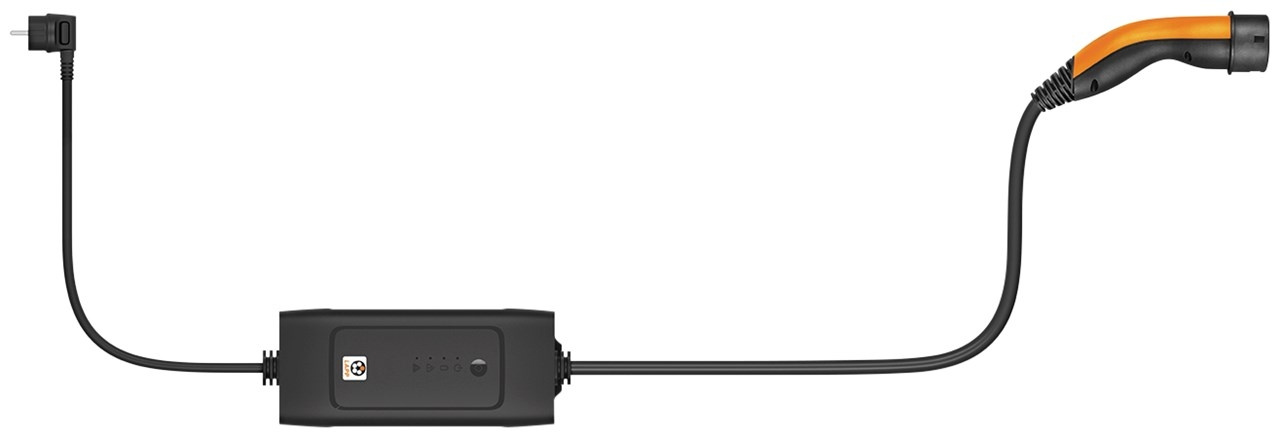

(5555921002) 8 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

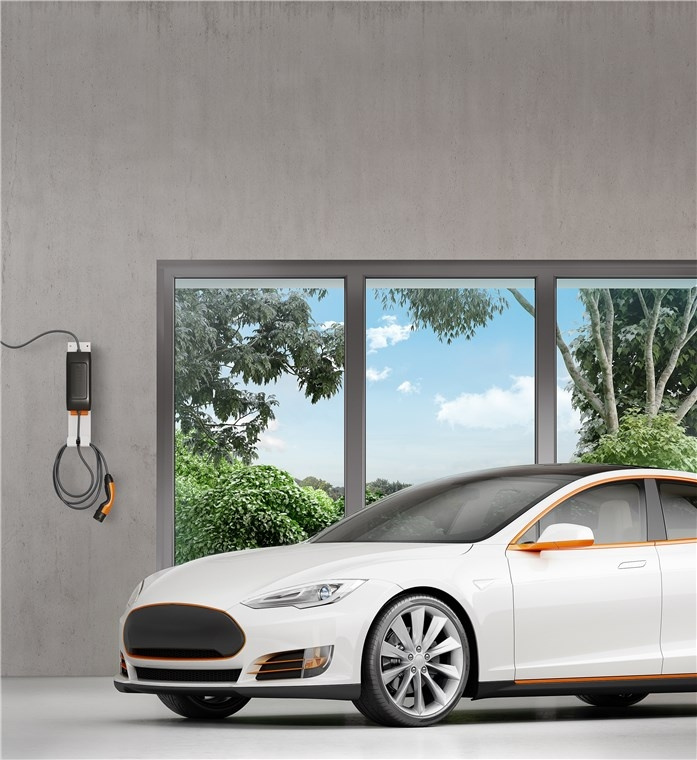

- The LAPP Mode 2 charger provides simple, mobile charging via standard mains sockets (safety socket CEE 7/3, plug type E/F) and is ideal in the garage at home or as an emergency charging cable on the road
- Ideal solution for safe, stable charging at up to 1.8 kW and a nominal voltage of 240 V (AC) with an interconnected control box

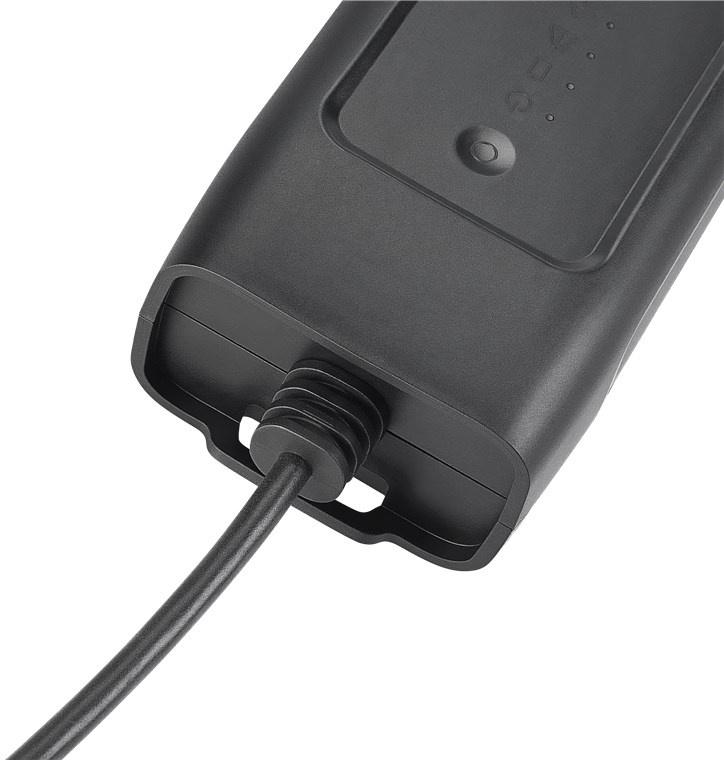

- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability

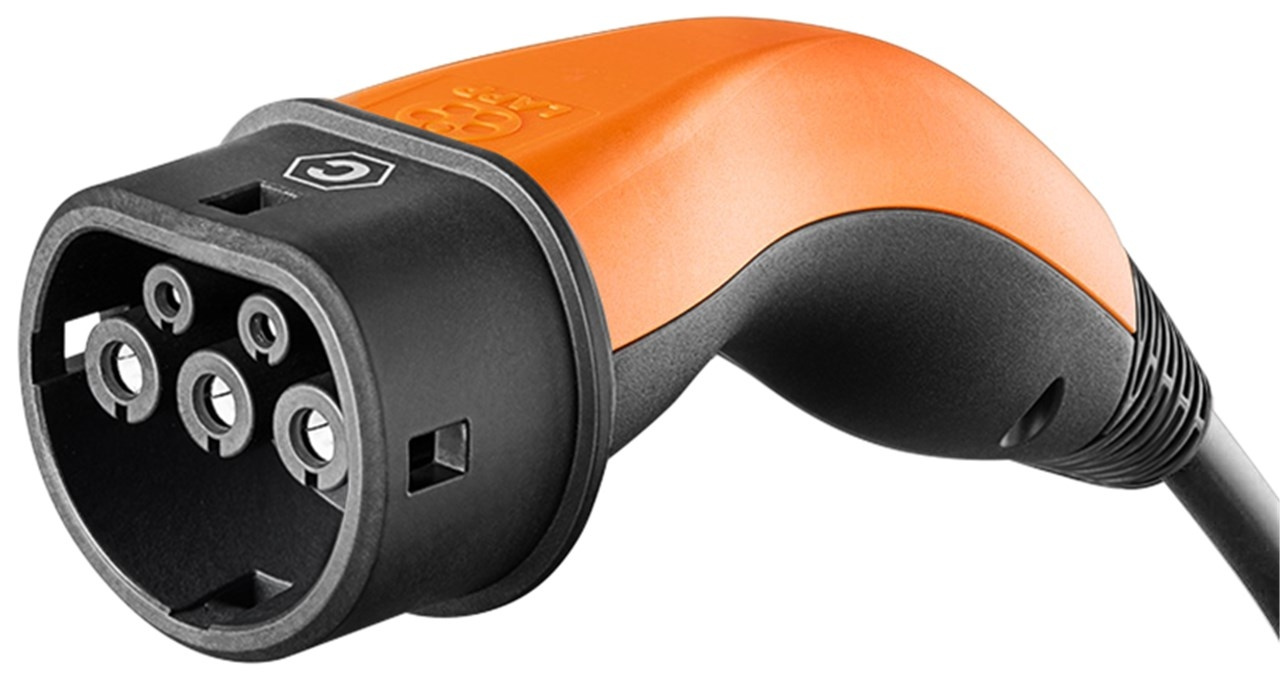

- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges
- EV charging cable with high moisture protection according to IP55, operating temperature -25 °C to 45 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Inner conductor cross-section: 2.5 mm²
max current capacity: 8 A
Number of phases: 1
Markings: WEEE, CE
Manufacturer designation: 5555921002
Model designation: 5555921002
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
Loading capacity up to: 1.8 kW
Charging mode: Mode 2
Rated voltage: 230 V (AC)
CAS no.: 7439-92-1 | 13560-89-9
chemical substance: Pb, Dechlorane Plus
SCIP no.: 3a4e482d-e540-4f53-809f-2c47435e56ba
4056158850895EAN:
