(5555922000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

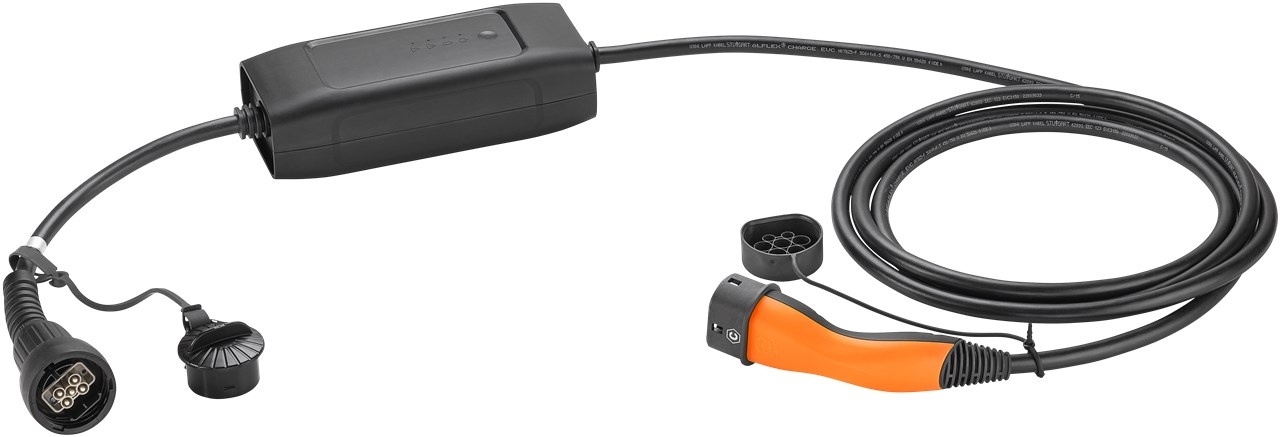

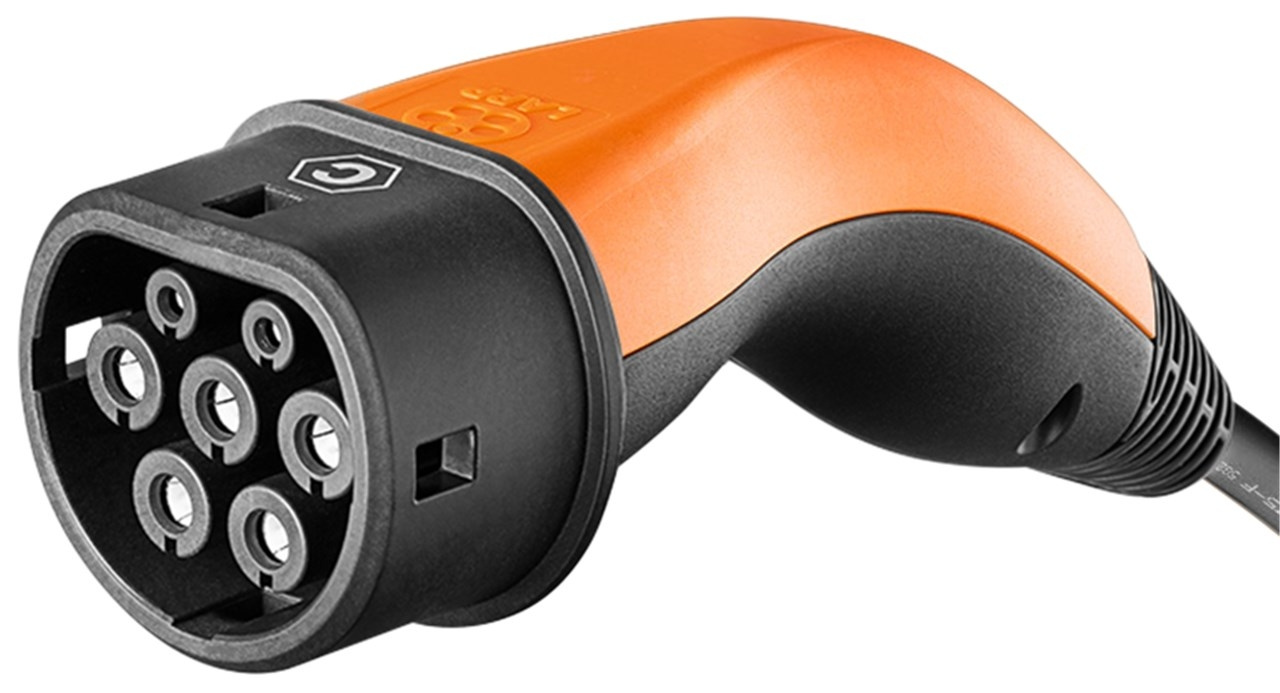

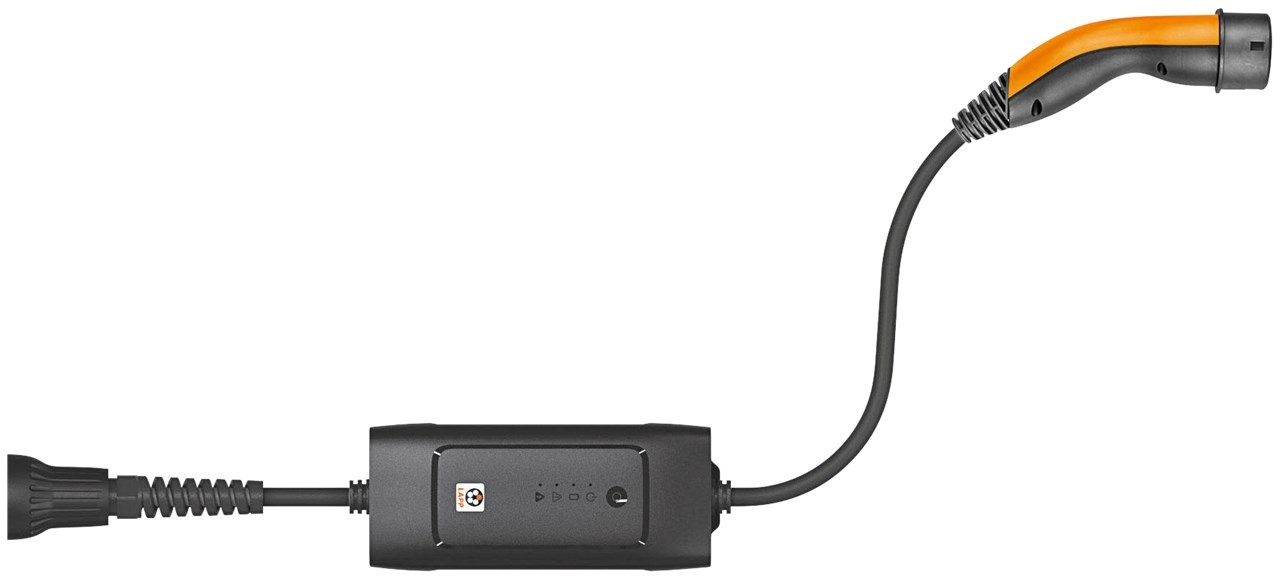

- The LAPP Mode 2 charger with Type 2 coupling and a socket for separately available LAPP mains adapters provides highly flexible mobile charging - in the garage at home, on the campsite or as an emergency charging cable on the road
- The mains-side port is connected to the mains with individual adapter cables, e.g. with a household plug (type E/F, safety plug CEE 7/4) or a CEE industrial plug
- The electronics recognises the adapter and adjusts up to the possible maximum charging power between 1.2 and 22 kW
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on the sockets protect against the ingress of dust, dirt and water in between charges
- Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C

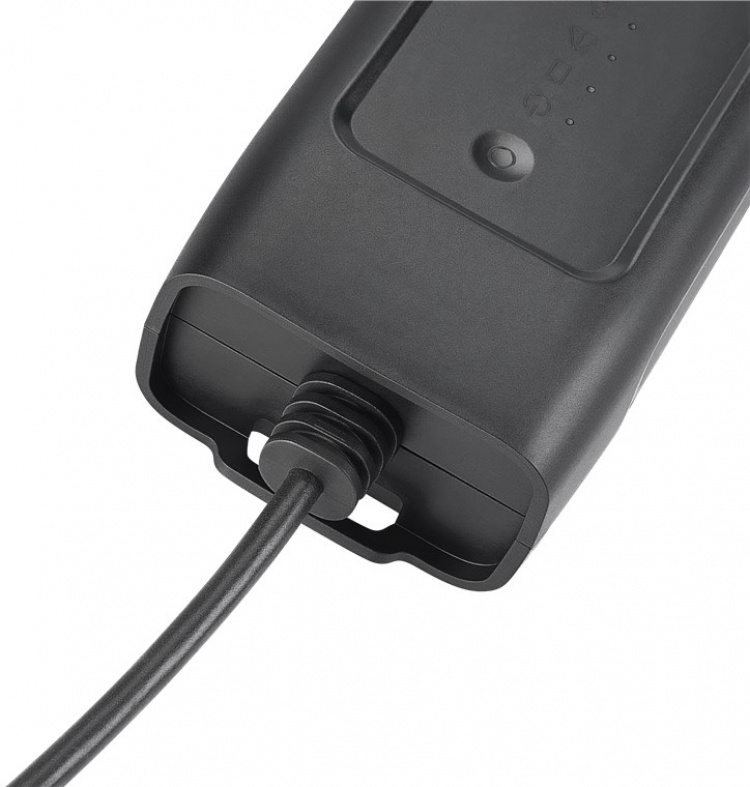

- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Inner conductor cross-section: 6 mm²
max current capacity: 32 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555922000
Model designation: 5555922000
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
Loading capacity up to: 22 kW
Charging mode: Mode 2
Rated voltage: 440 V (AC)
CAS no.: 7439-92-1 | 13560-89-9
chemical substance: Pb, Dechlorane Plus
SCIP no.: 3a4e482d-e540-4f53-809f-2c47435e56ba
4056158850918EAN:
