(5555924002) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection, incl. 2 adapters
Förpackning: Retail Box

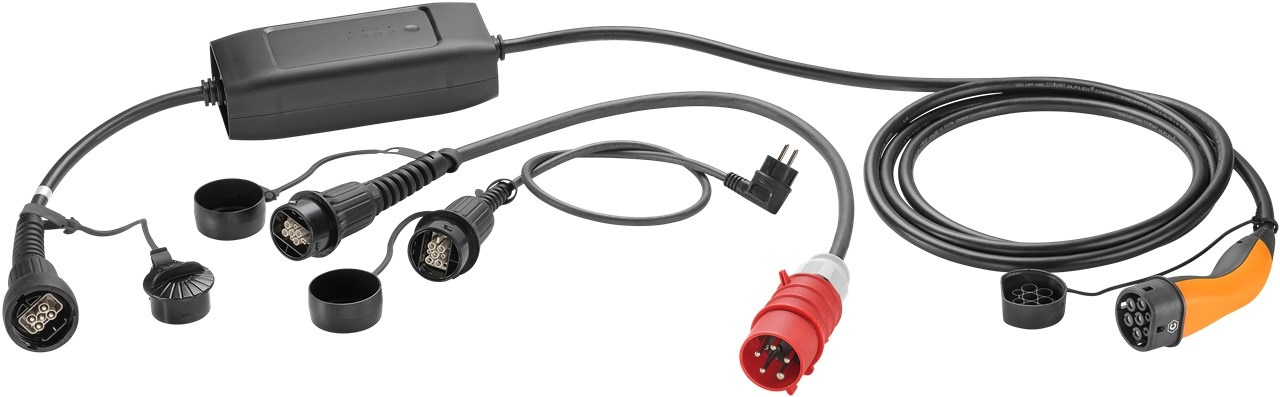

- The LAPP Mode 2 charger with vehicle-side Type 2 coupling and interchangeable mains adapters provides highly flexible mobile charging - in the garage at home and on the road
- Ideal for charging with up to 22 kW from household sockets (type E/F, CEE 7/3) or at CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector.

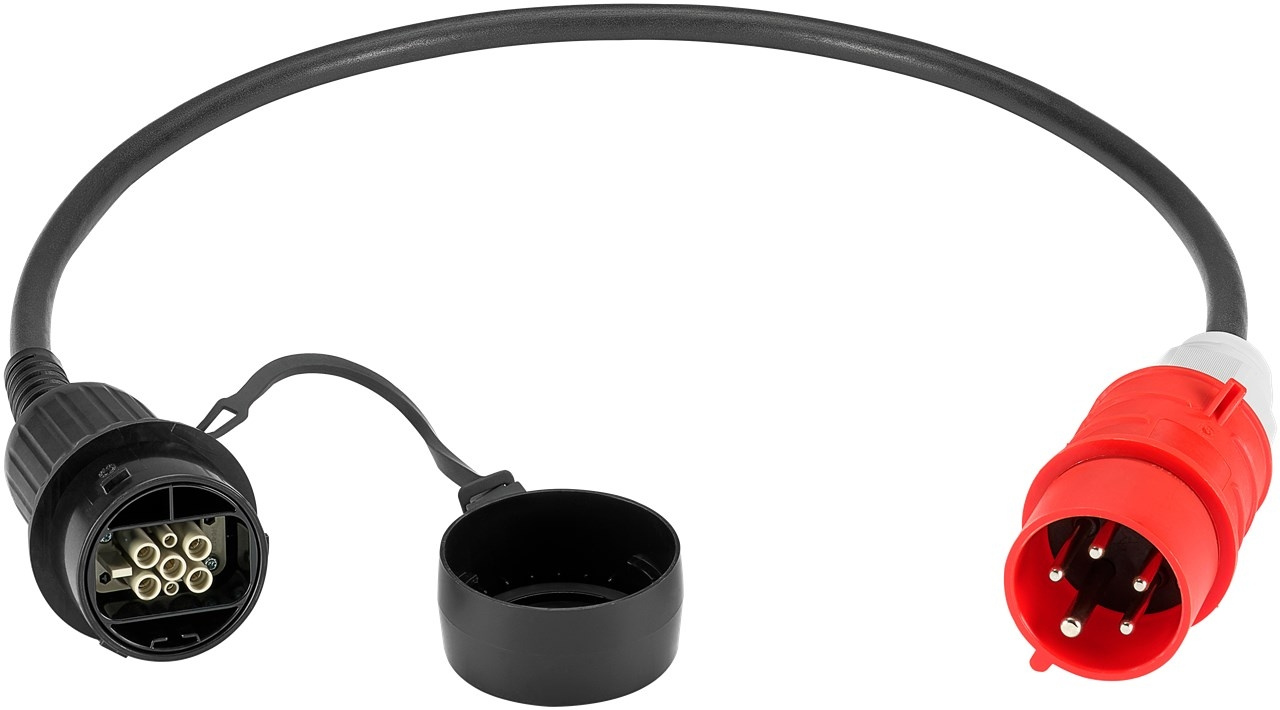

- On the mains side, the multi-function cable terminates in a CEE socket for connecting the two enclosed adapter cables with safety plug Type E/F and 3-phase CEE plug (1-phase CEE plug available separately)
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on all couplings protect against the ingress of dust, dirt and water in between charges
- EV charging cable for safe, stable charging at a nominal voltage of 110-400 V, operating temperature -25 °C to 45 °C
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Inner conductor cross-section: 6 mm²
max current capacity: 32 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555924002
Model designation: 5555924002
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
Loading capacity up to: 22 kW
Charging mode: Mode 2
Rated voltage: 440 V (AC)
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: type 2 female plug
4064727255354EAN:
