Professional instrument used even in workshops!
This tool saves time, money and is easy to use. Most workshops charge 600-1500 SEK for this work which you can do yourself and as many times as you want, at a lower price !

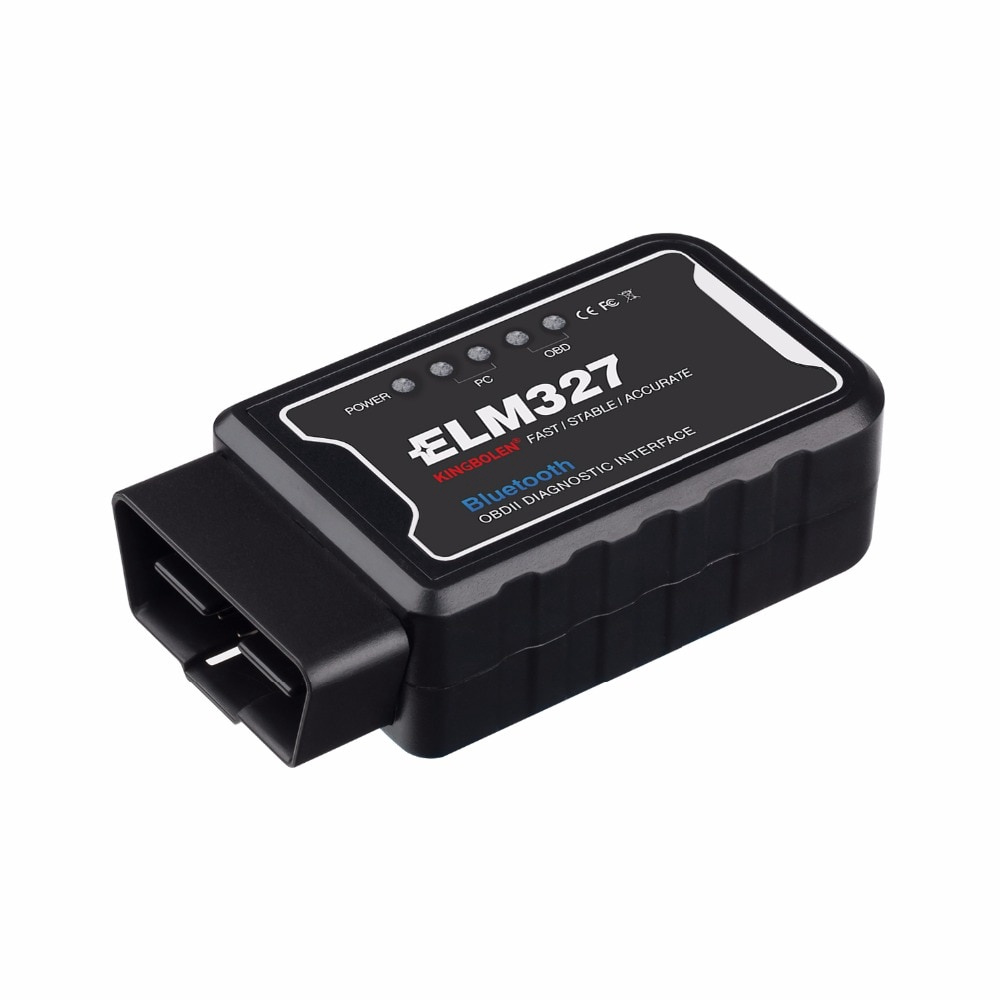

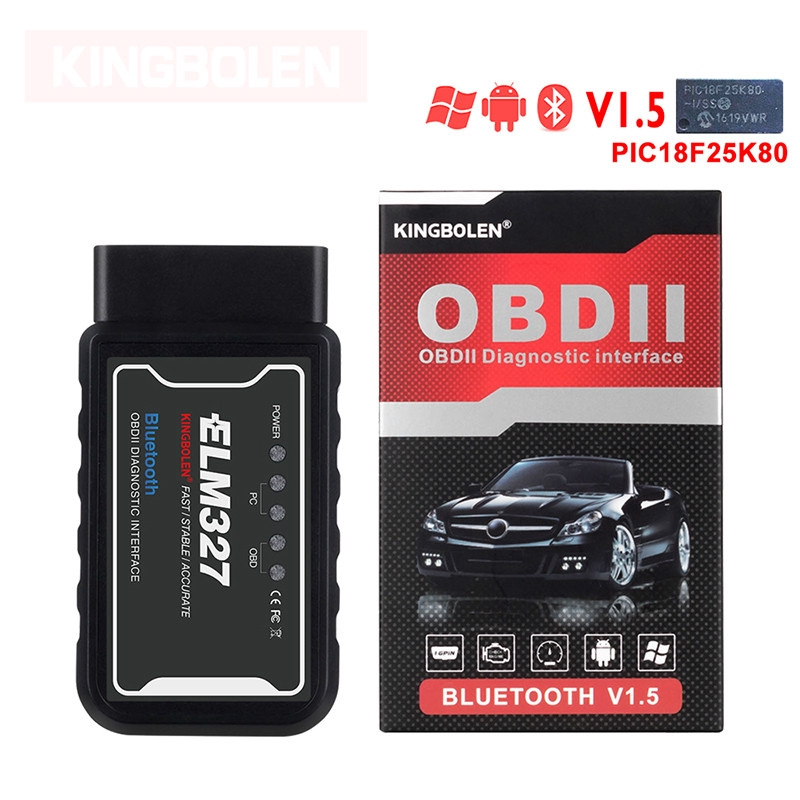

Bluetooth connected, no batteries, cables or anything else required!

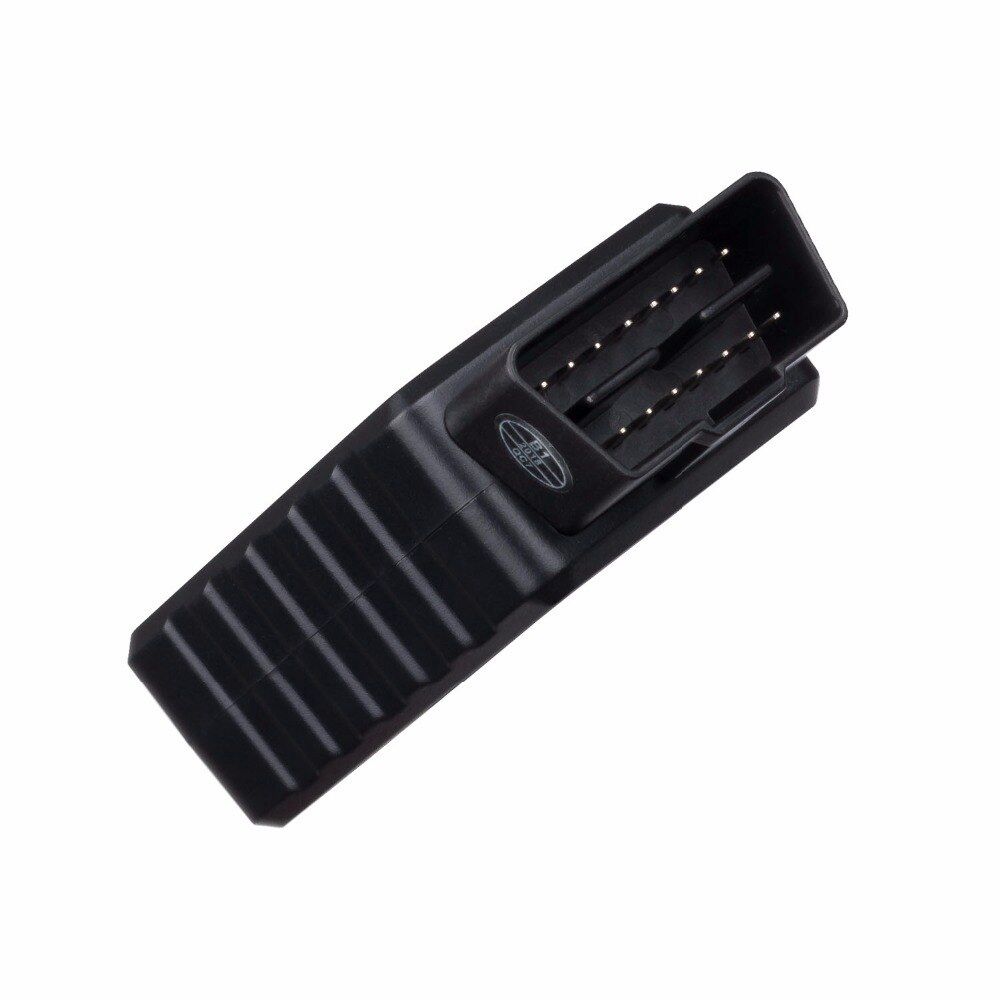

View live data directly on your Android phone - Connect to your car's OBD2 socket
Displays fault codes (DTCs) and turns off engine lights.
Can also be used with a computer with built-in Bluetooth or Bluetooth adapter.

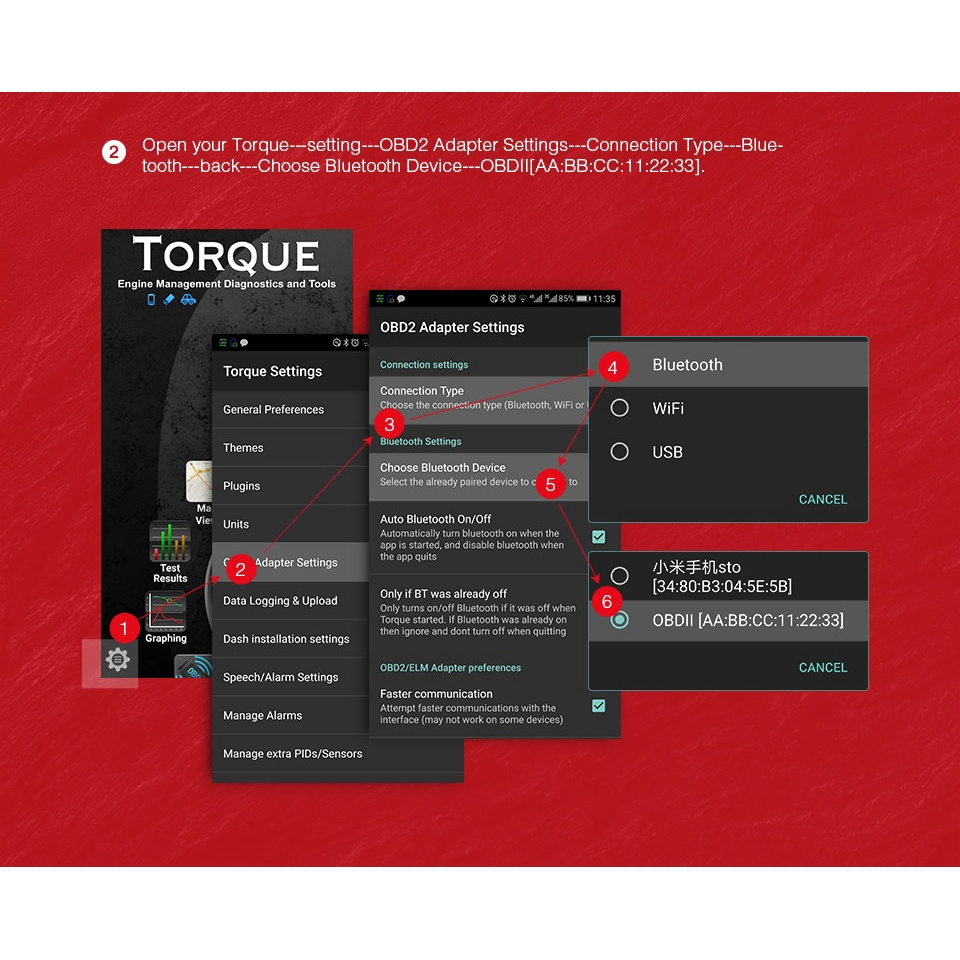

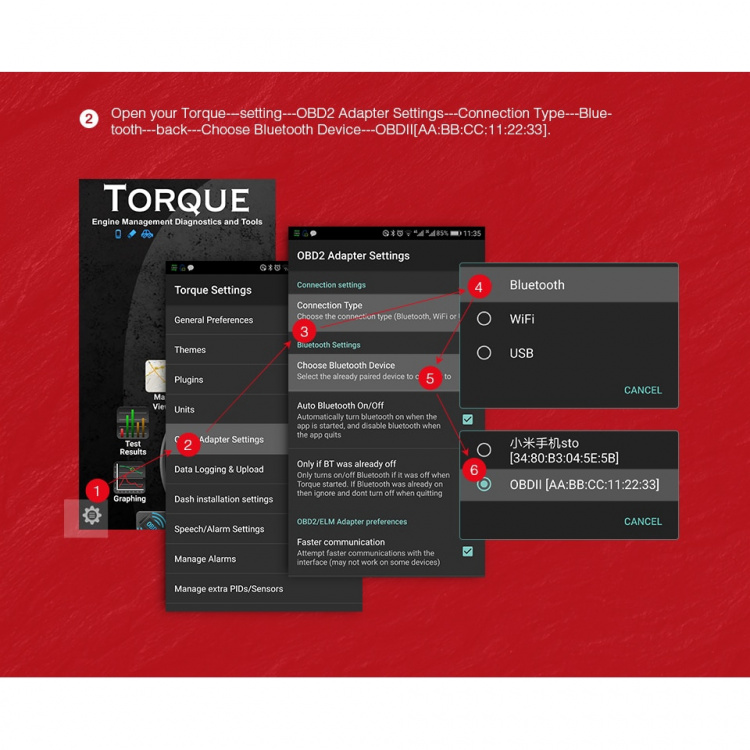

Manual for use with Android devices available for download.
Computer software (Windows XP or Vista recommended for ease of use) in limited version is included. Full versions of software are available for download and purchase on the internet.
Suitable for most cars with OBD2 port, but not all. Different systems are accessed on different cars and not all functions are supported for all car models.
Bluetooth pairing code: 1234
Supports the following protocols:
ISO15765-4 (CANBUS)
ISO14230-4 (KWP2000)
ISO9141-2
Compatible with:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init 10.4Kbaud)
ISO14230-4 KWP (5 baud init 10.4Kbaud)
ISO14230-4 KWP (fast init 10.4Kbaud)
ISO15765-4 CAN (11bit ID 500Kbaud)
ISO15765-4 CAN (29bit ID 500Kbaud)
ISO15765-4 CAN (11bit ID 250Kbaud)
ISO15765-4 CAN (29bit ID 250Kbaud)
Features:
Works with most cars from 1996 to now. Also EOBD cars from 2001
Reads and erases fault codes (DTCs) on engine, ABS, airbag, transmission, radio, air conditioning, electrical functions, steering wheel, instruments, immobilizer, etc. (18 Systems)
Turns off certain types of lights in engine, airbag, ABS and several other systems
Displays live data such as: Engine speed, Radiator temperature, Fuel system status, Speed, Air temperature, Air flow, Volt.
Size: 70 x 45 x 25 mm
NOTE! All use of car diagnostic tools is at your own risk, no support is provided.
