Simple but good fault code reader for cars with OBD2, supports all protocols.
WIFI connected, no batteries, cables or anything else required!
Connect to your car's OBD2 socket
Displays fault codes (DTCs) and turns off engine lights.
Used wirelessly to computer with WIFI.
Can also be used for Android with various software available on Google Play.
Software for computer (Windows XP or Vista recommended for easiest use) in limited version included. Full versions of software are available for download and purchase on the internet.
Suitable for most cars with OBD2 port, but not all. Different systems are accessed on different cars and not all functions are supported for all car models. On early obd2 (before 2001) you have to test to know if it works.
Works i.a. on: Acura, Asuna, Bentley, Buick, BMW, Cadillac, Chevrolet, Chevy, Chrysler, Citroen, Daewoo, Dodge, Fiat, Ford, Geo, GM, GMC, Honda, Hummer, Hyundai, Infinity, Isuzu, Jaguar, Jeep, Kia, Land Rover, Lexus, Lincoln, Mazda, Mercury, Mercedes Benz, Mini, Nissan, Oldsmobile, Opel, Peugeot, Plymouth, Pontiac, Porsch, Renault, Rover, Saab, Saturn, Scion, Volvo, VW, Audi, Skoda, Seat and others.others.
Supports the following protocols:
- ISO15765-4 (CANBUS)
- ISO14230-4 (KWP2000)
- ISO9141-2
Compatible with:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init 10.4Kbaud)
- ISO14230-4 KWP (5 baud init 10.4Kbaud)
- ISO14230-4 KWP (fast init 10.4Kbaud)
- ISO15765-4 CAN (11bit ID 500Kbaud)
- ISO15765-4 CAN (29bit ID 500Kbaud)
- ISO15765-4 CAN (11bit ID 250Kbaud)
- ISO15765-4 CAN (29bit ID 250Kbaud)
In the package:

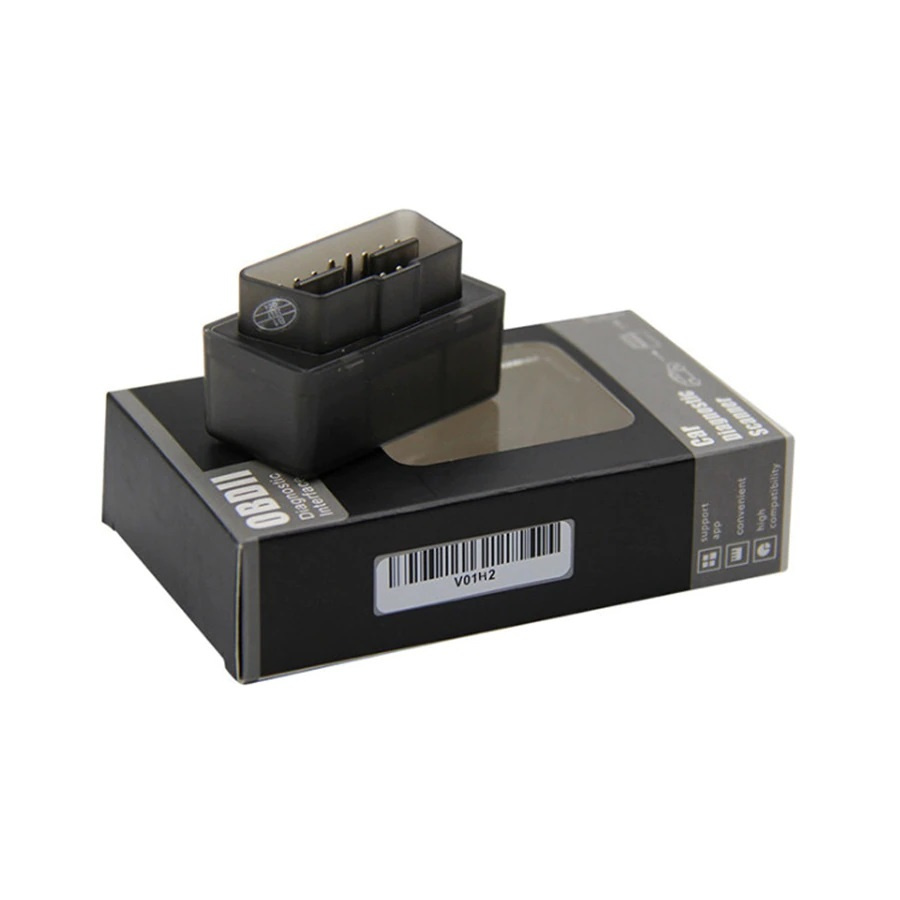

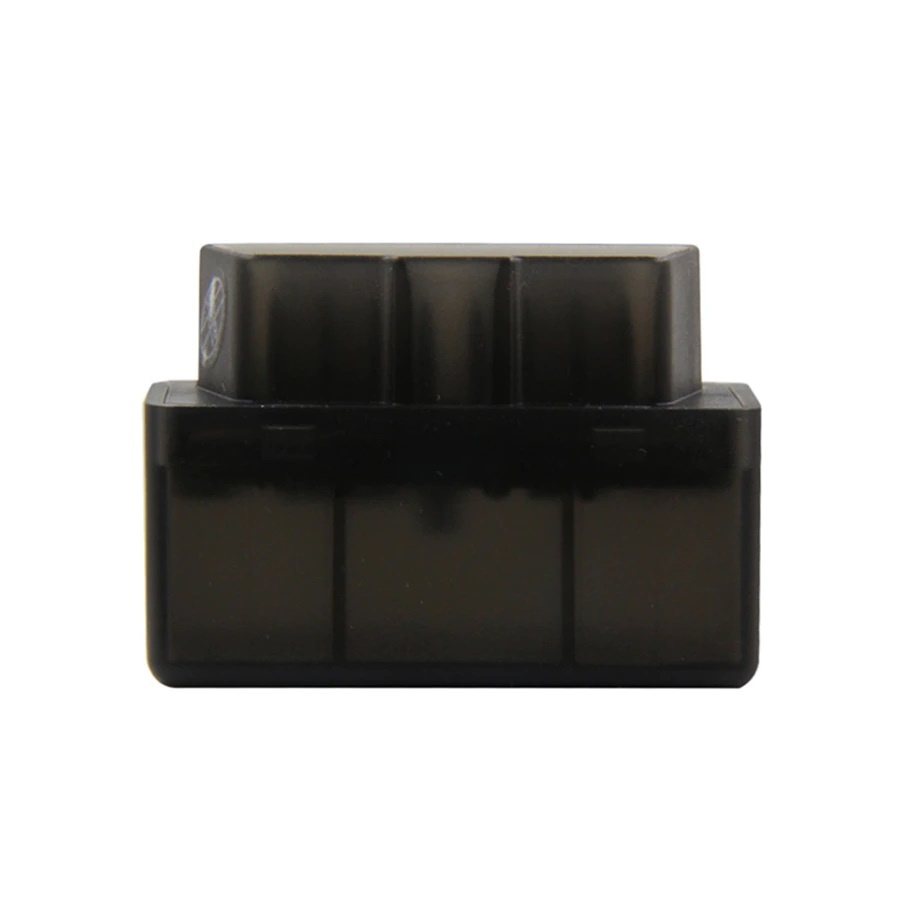

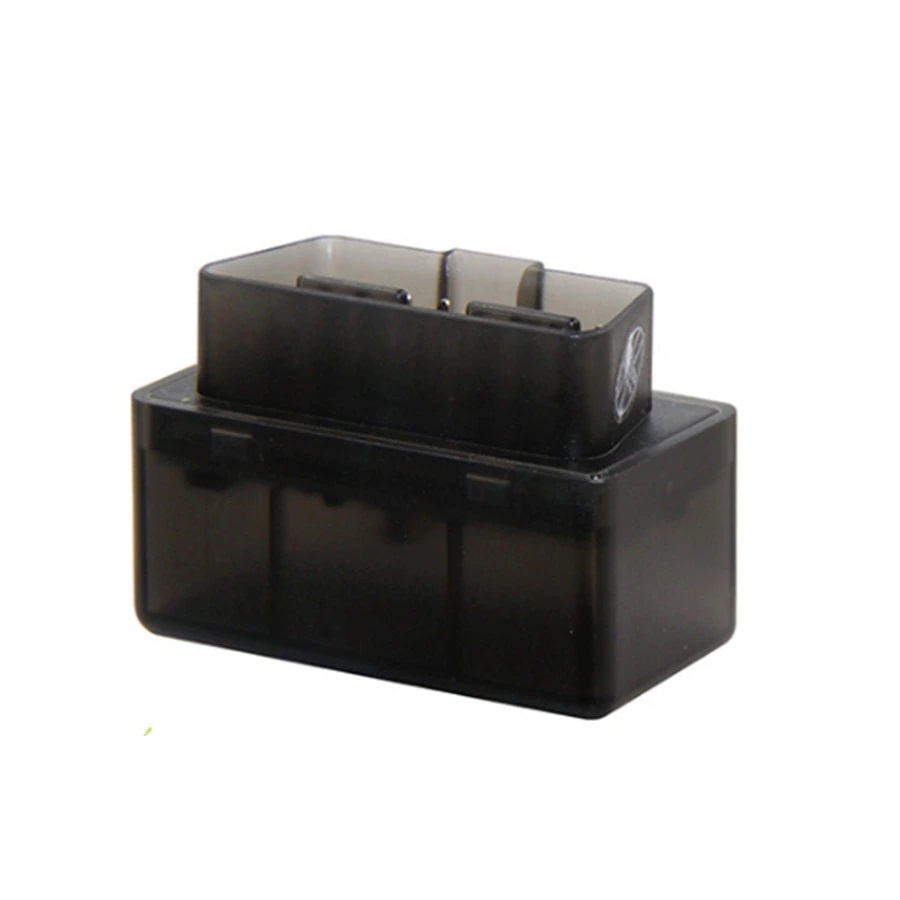

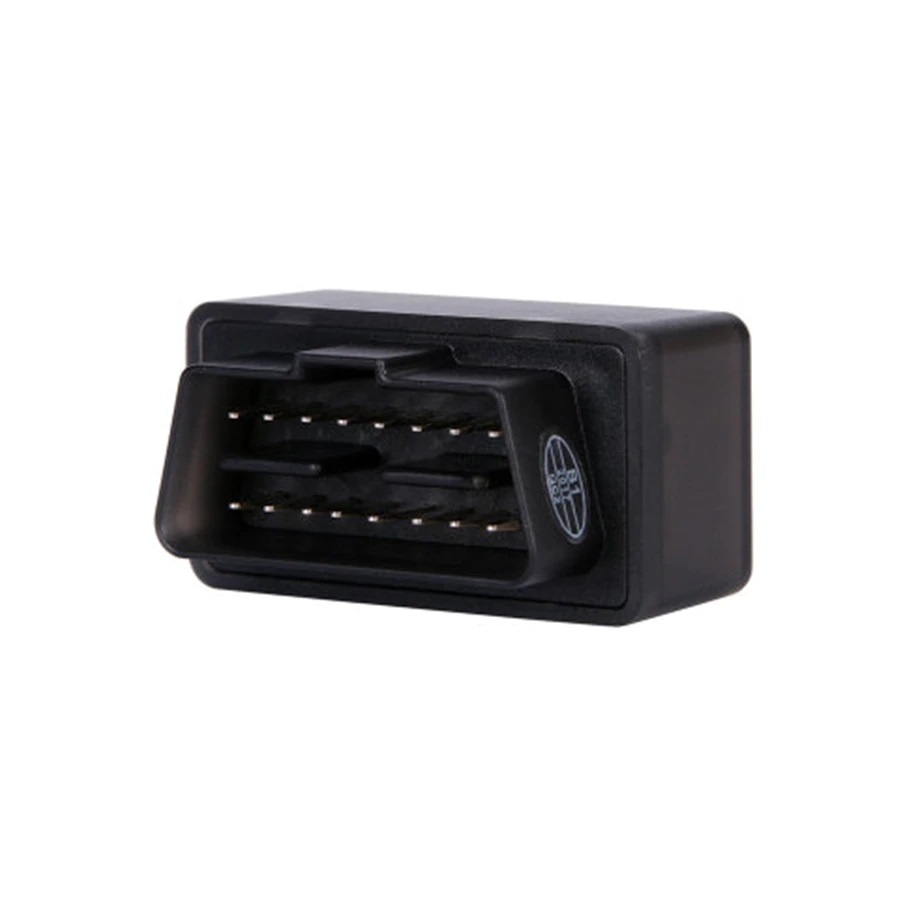

ELM327 WIFI OBD2 reader
Software CD (for use with computer)
For computers we recommend using "scantool_net113win", this device also works with many other software that is free to download on the internet for the knowledgeable.
The device also works with Android via the TORQUE Lite app, OBD Car Doctor and others which are free, but also works with many paid apps.
Features:
Works with most cars from 1996 to now. Also EOBD cars from 2001
Reads and deletes fault codes (DTCs) on engine, ABS, airbag, gearbox, radio, air conditioning, electrical functions, steering wheel, instruments, immobilizer, etc. (18 Systems)
Turns off certain types of lights in engine, airbag, ABS and several other systems
Displays live data such as: Engine speed, Radiator temperature, Fuel system status, Speed, Air temperature, Air flow, Volt.
Size: 70 x 45 x 25 mm
NOTE! All use of car diagnostic tools is at your own risk, no support is provided.
