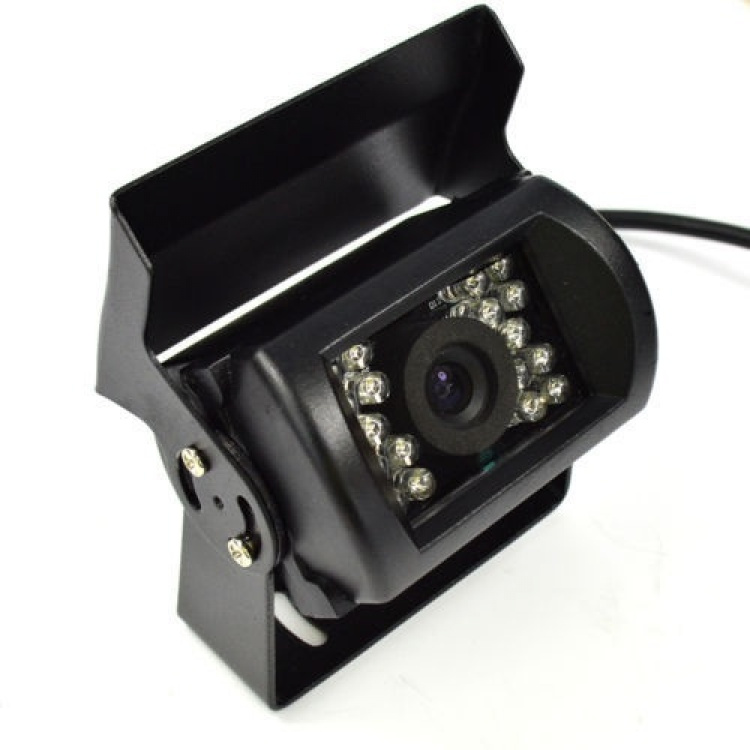

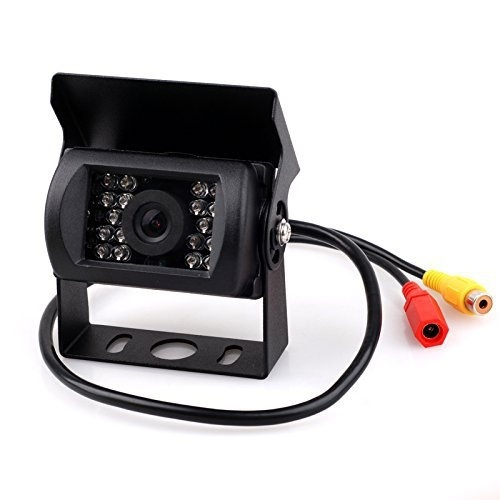

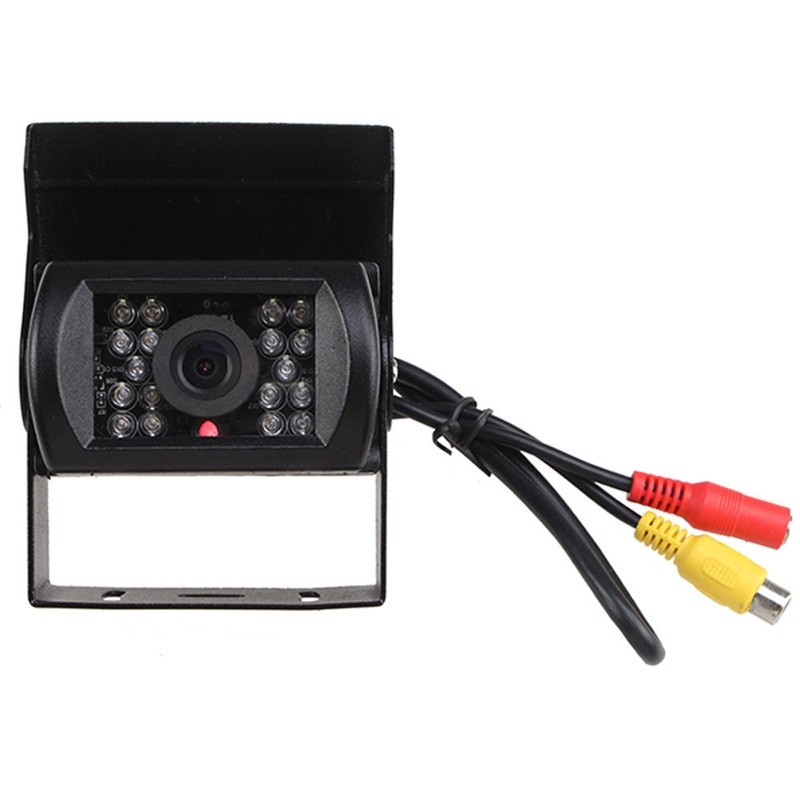

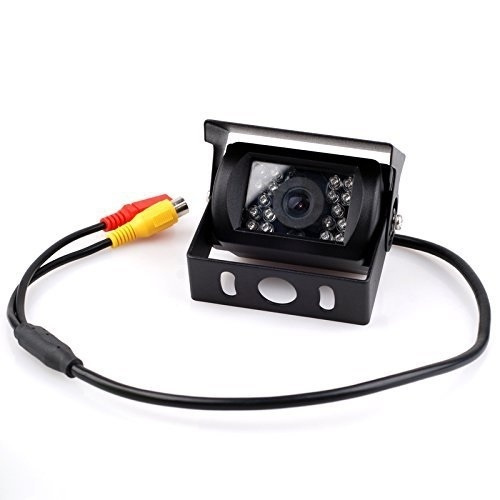

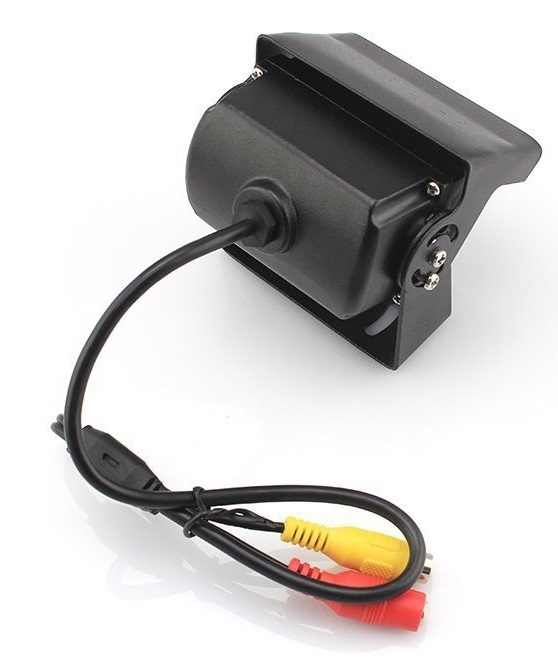

A reversing camera that you can put on your truck, horsebox or van. The reversing camera can be easily attached to trucks and transports and serve as an extra aid when reversing.
The reversing camera can be connected to the existing monitor in the vehicle or to a separate monitor if there is no standard monitor. The receiver plugs into the composite video screen via a male RCA connector.
The transmitter can be connected to the car's reversing light, so that it automatically starts the system when you put the car in reverse and then switches the system off when the car is put out of reverse.
NOTE! Screen not included.
Features:
- DC 12V input for 12V cars
- 18 IR lights up to 10-15 meters (Night Vision Automatic)
- IP67/IP68 Waterproof Rating
- 120 degree wide angle view helps to avoid accidents and injuries
- Easy to adjust the device angle and easy to mount
- Works at night/darkness
- Water resistant
Specifications:
- Effective pixels: 648x488
- Vertical synchronization: NTSC 60HZ Scanning system: 2:1 Interlace
- Synchronization system: Internal
- AGC: Auto
- BLC: Auto
- Resolution: 480 TV lines
- S/N Radio: More than 48dB
- Current consumption: Not more than 150mA
- Power supply: DC12V
- Operating temperature: -20 ? ~ 70 ? RH95% MAX;
- Storage temperature: -30 ~ 85° RH95% MAX;
- Horizontal angle: 92° / 110°
- Lens angle: 92° / 120°
- Waterproof: IP67 / IP68
- Minimum illumination: 0.5Lux / F 1.2 (0Lux with Led)
Included in set:
- Camera
- Assembly manual in English
