LTE Connectivity Module
- USB Plug-in Connectivity Module (CM100LTE) for DR900X and DR750X dashcams.
- Empower your BlackVue dashcam with 4G LTE connectivity.

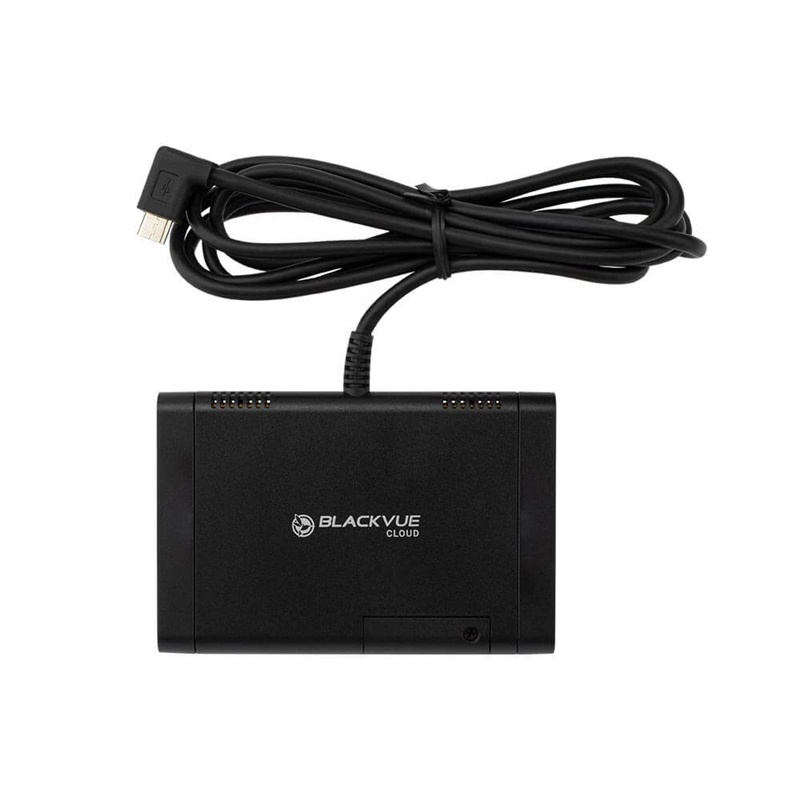

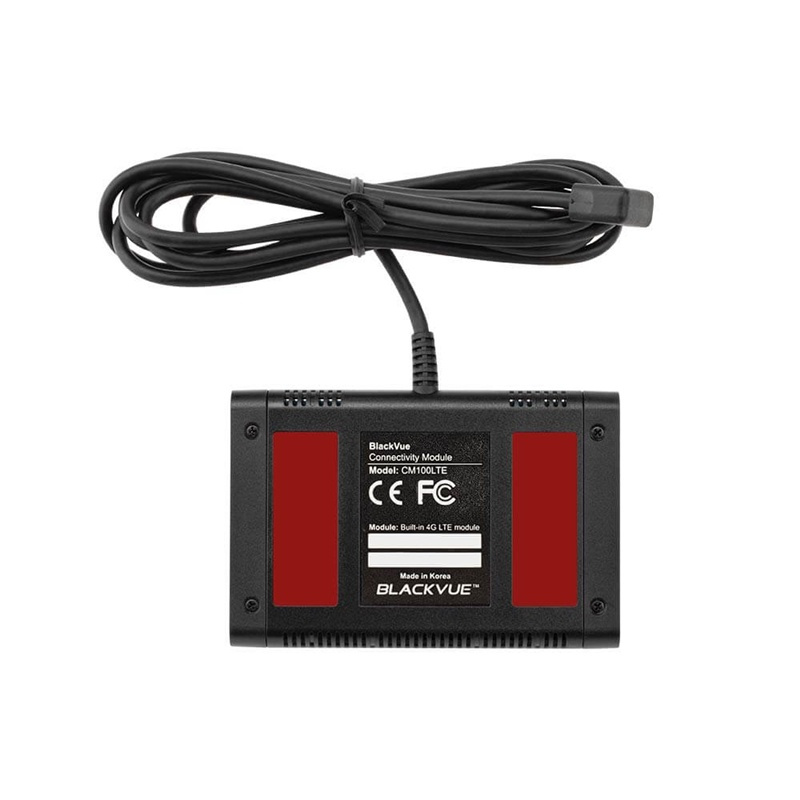

LTE Connectivity Module
With DR900X and DR750X, you can connect an LTE Connectivity Module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100LTE running out of power like you might with a self-powered router.
Technical Specifications
Model Name CM100 LTE
Color/Size/Weight: Black / Length 90 mm x Width 60 mm x Height 10 mm / 74g
LTE Module: CM100LTE [GL]
LTE Supported Band: EC25-E : B1/B3/B5/B7/B8/B20 EC25-A : B2/B4/B12 EC25-J : B1/B3/B8/B18/B19/B26 EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28
LTE Features: Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) LTE-TDD : Max 130Mbps(DL) / Max 30Mbps(UL)
Transmitting Power: Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands

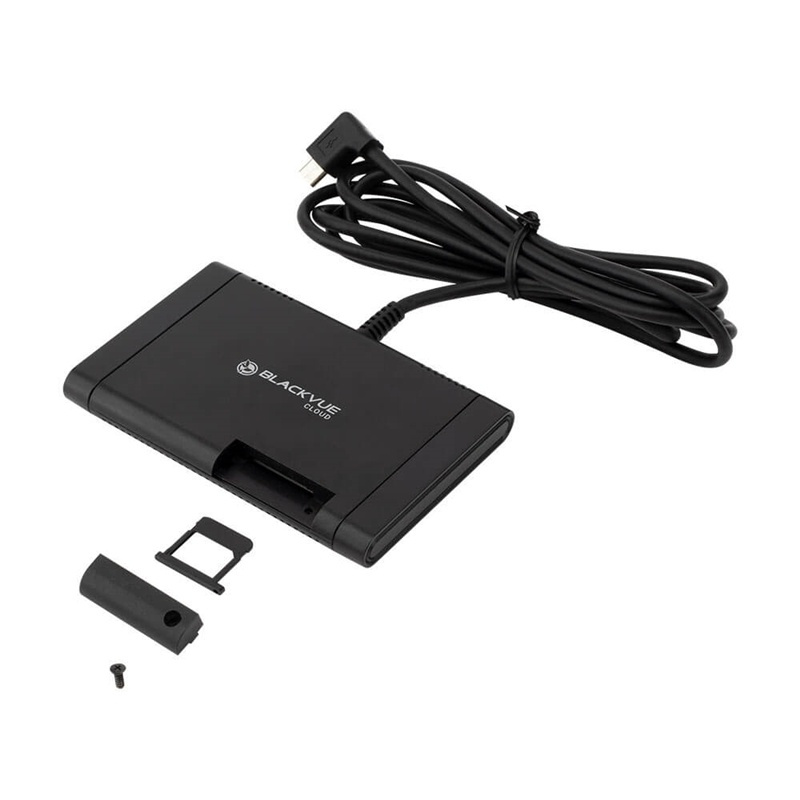

SIM Type: Support Nano SIM Card / 3.0V
Connector Type: Micro USB Type-B Connector with Harness Cable
USB Interface: Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate
Antenna Type: Fixed / Intenna (Main, Diversity)
Power Supply: USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A
Power Consumption: Idle Mode : 20mA / Traffic Mode : 570mA @ Max. Power (23dBm)
Temperature Range: Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C
Certifications: PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS
