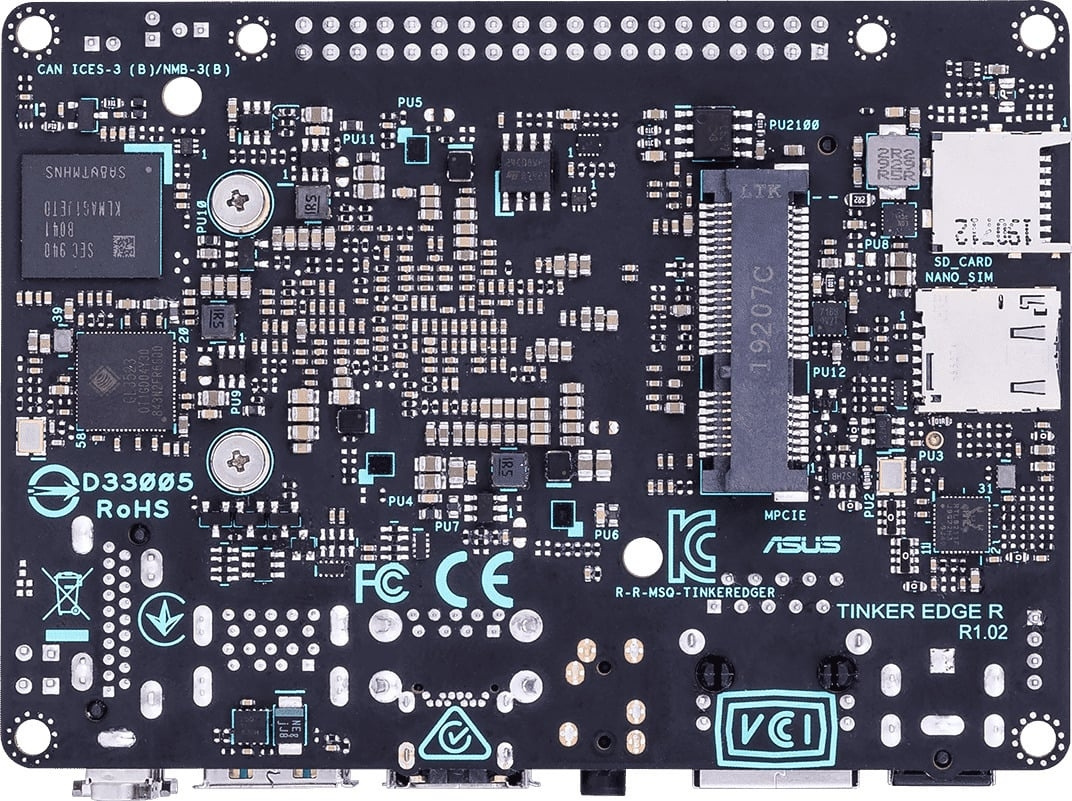

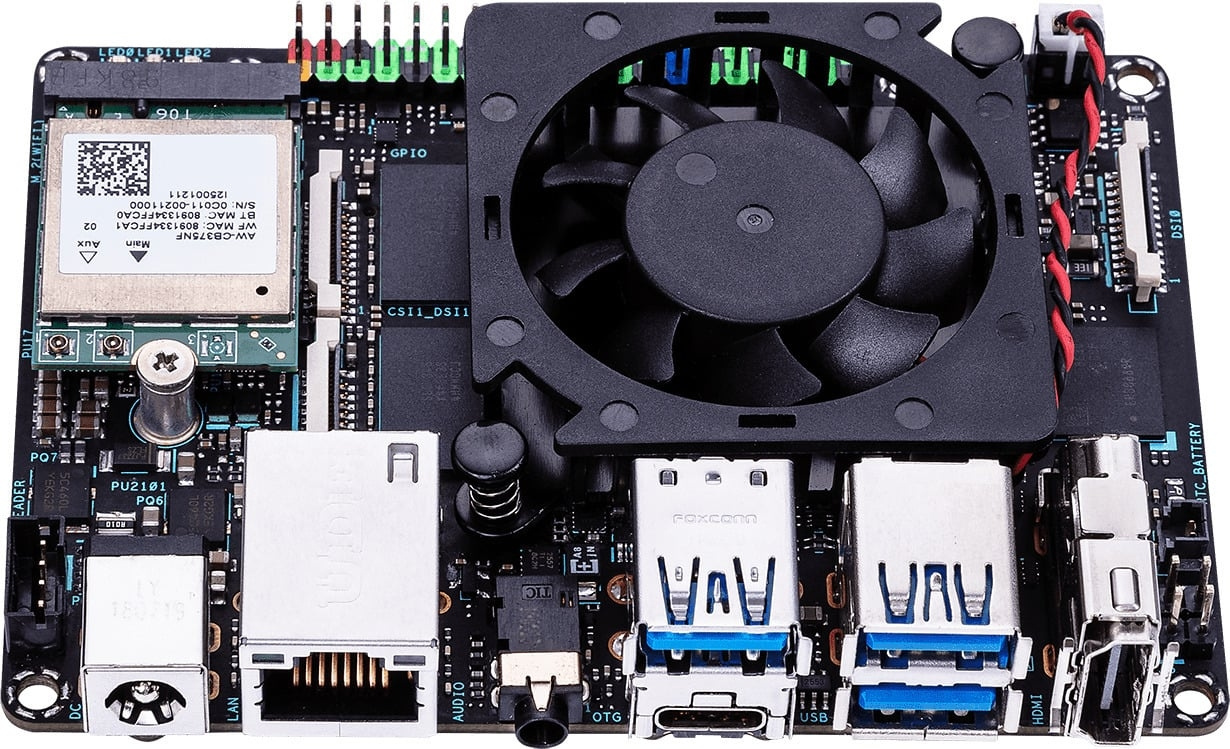

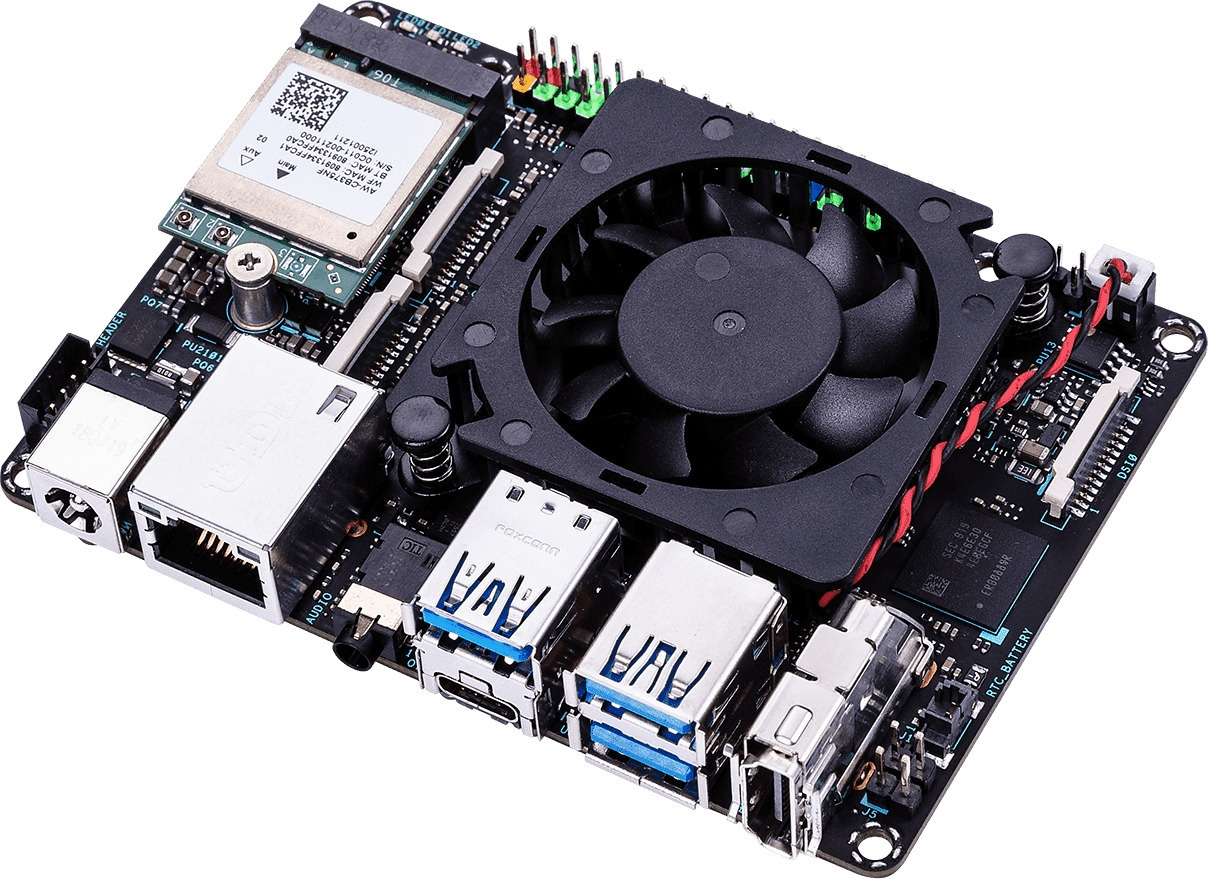

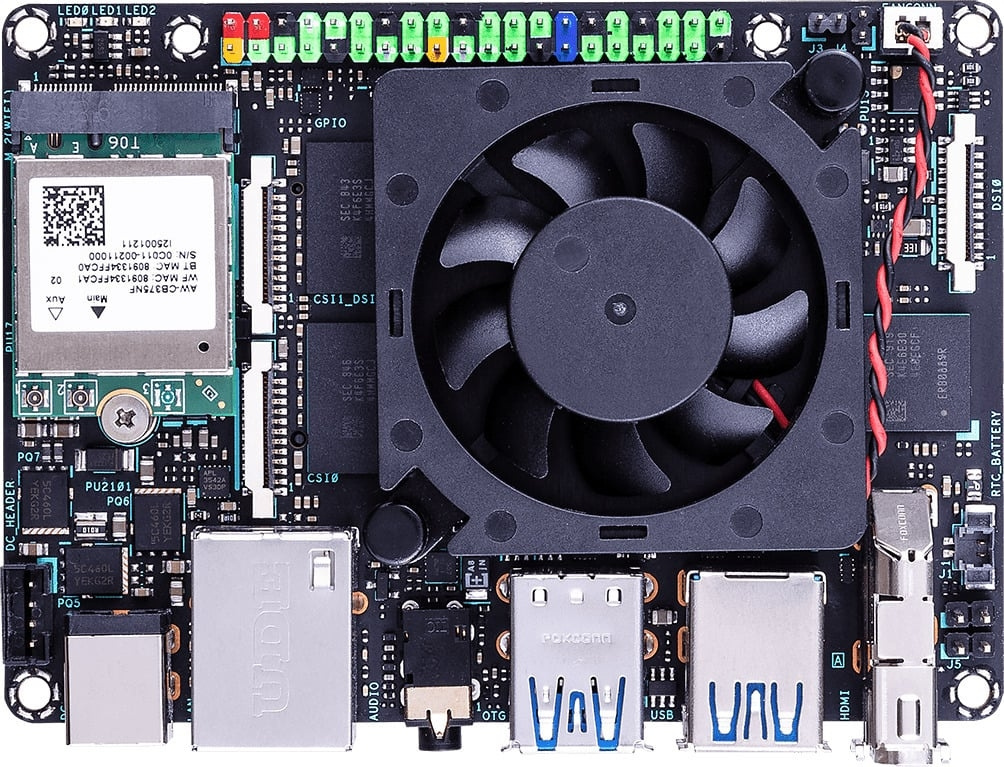

The Asus Tinker Edge R is a single-board computer (SBC) specifically designed for AI applications. It features Rockchip NPU, a machine learning (ML) accelerator that speeds up processing efficiency, reduces power consumption and makes it easier to build connected devices and intelligent applications. With this built-in machine learning accelerator, the Tinker Edge R can perform three blade operations per second (TOPS) using minimal power. It is also optimized for neural network (NN) architecture, which means that Tinker Edge R can support multiple machine learning frameworks and provides the ability to compile many common machine learning models.
The Tinker Edge R features a special power structure that, together with a DC power supply, delivers up to 65 watts of power, enabling stable system operation and full I/O performance even with multiple connected devices.
A powerful and modern, six-core ARM-based Rockchip RK3399 Pro A72+A53 processor powers the Tinker Edge R. It also features 4GB of LPDDR4 memory and 16GB of eMMC storage. Storage can be expanded with a fast micro SD card slot.
Features:
- SoC: Rockchip RK3399Pro, 2-core ARM Cortex A-72 @ 1.8 GHz and 4-core ARM Cortex-A53 1.4 GHz
- Memory: 4GB Dual Channel LPDDR4
- Graphics: ARM Mali-T860 MP4 @ 800 MHz
- Storage: 16 GB eMMC, Micro SD card slot
- Network connectivity: RTL8211F-CG Gigabit LAN, 802.11 a/b/g/n/ac Wi-Fi, Bluetooth v5.0 (2T2R)

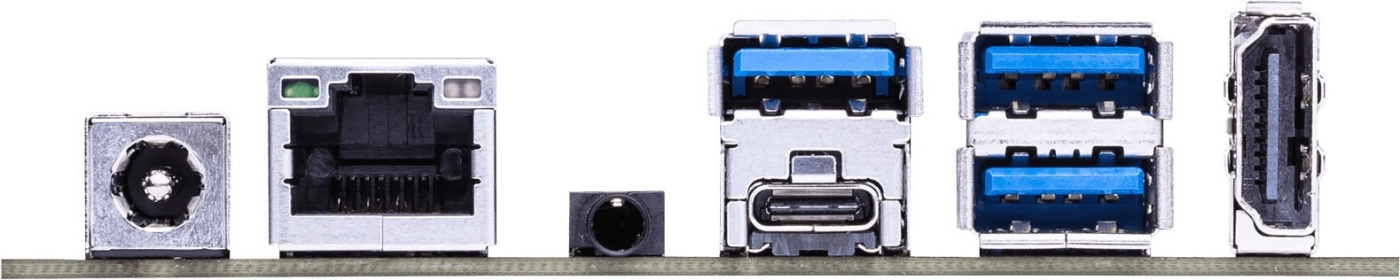

- HDMI, USB Type-C (DP), 22-pin MIPI DSI (4 lane), 3 x USB Type-A (USB 3.2 Gen 1), USB Type-C (USB 3.2 Gen 1, OTG), Mini PCIe (full-size), 3.5 mm audio interface
- Internal I/O ports: 1 x 40-pin (up to 28 x GPIO, up to 2 x SPI, up to 2 x I2C, up to 2 x UART, up to 3 x PWM, up to 1 x PCM/I2S, up to 1 x S/PDIF TX, 2 x 5V power, 2 x 3.3V power, 8 x ground, 1 x 2-pin Recovery header, 1 x 2-pin Power-on header, 1 x 2-pin Reset header, 1 x 2-pin DC Fan header, 1 x 2-pin RTC Battery header, 1 x 2-pin NPU UART header
- Power: 1 x 12~19V DC Power Input Jack (5.5/2.5mm), 1 x 12~19V 4-pin DC Power Input Header
- Operating system support: Debian 9 / Android 9
- Dimensions: 100 x 72 mm (Pico-ITX)
- Small size computer
- Designed for artificial intelligence applications
- PCU (Windows XP, Windows XP, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC, Windows PC
- Produces up to 65W of power
- 4 GB RAM, 16 GB eMMC
