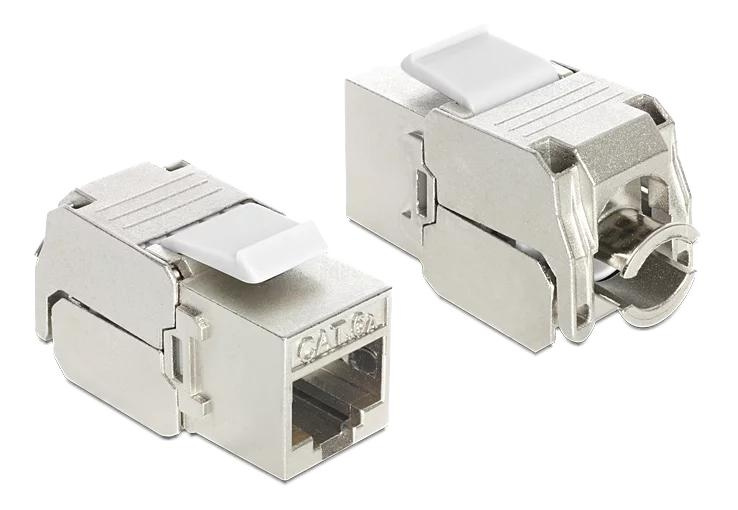

DeLOCK Keystone Module RJ45 jack > LSA Cat.6A STP

Article nr: C70738

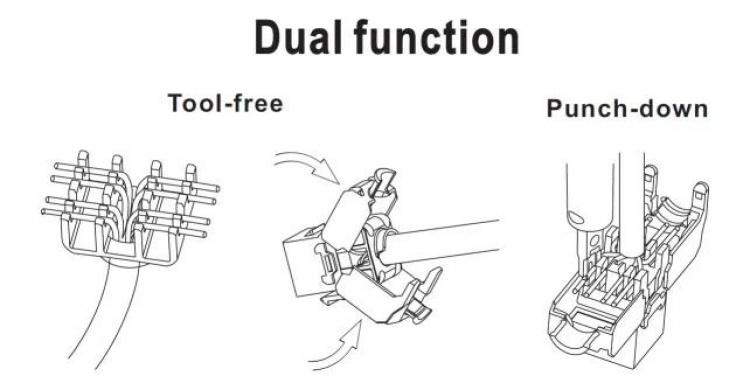

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout

€11.99

Qliro Checkout
50.000+ products
Great service

Information

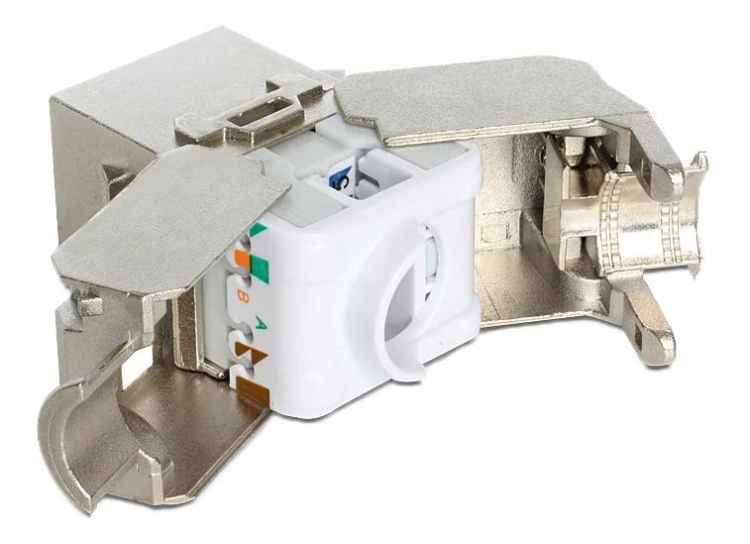

This module by Delock can be used to connect twisted pair cable to an RJ45 jack. With its standardised dimensions it can be used for easy snap-in mounting in e.g. a Keystone patch panel, face plate or surface-mount box.

Connectors: external: 1 x RJ45 jack (8P/8C) > internal: LSA (toolfree)
Cat.6A specification
Shielded (STP)
Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011 and EN 60603-7-51, and ANSI/TIA 568-C.2
Material: zinc die cast
TIA-568A/B pinout
For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
For cable diameter from 6.0 - 8.5 mm
For Keystone ports with 19.2 x 14.9 mm
Dimensions (LxWxH): ca. 37.8 x 16.0 x 22.5 mm

Cable length:	0.03m
Cable standard:	Cat 6a
Cable type:	Network
Color:	Silver
Connector 1:	RJ45-shielded-female
Connector 2:	Open end network
Gross weight:	0.024 kg
