The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

18.11 mm wide, for IDC connection, Snap-In system

Förpackning: Bulk

RJ45 female connector with robust plastic housing (ABS) for a perfect transmission of electrical signals
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Commonly used in network installations and for the assembly of permanently installed network cables
CAT 5e RJ45 jack sockets are TIA 568A/B colour-coded

Specification: CAT 5e
Shielding class: UTP
Width: 18.11 mm
max. bandwidth: 100 MHz
construction form: Keystone grid (14,9 x 17,0 mm)
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection
Consumption Unit: 1 pc. in polybag

4040849957390EAN:

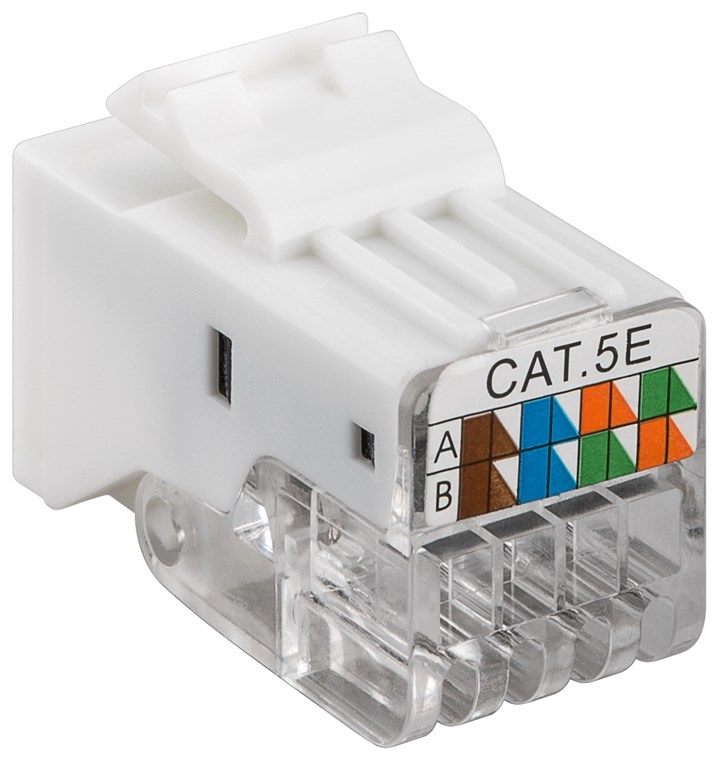

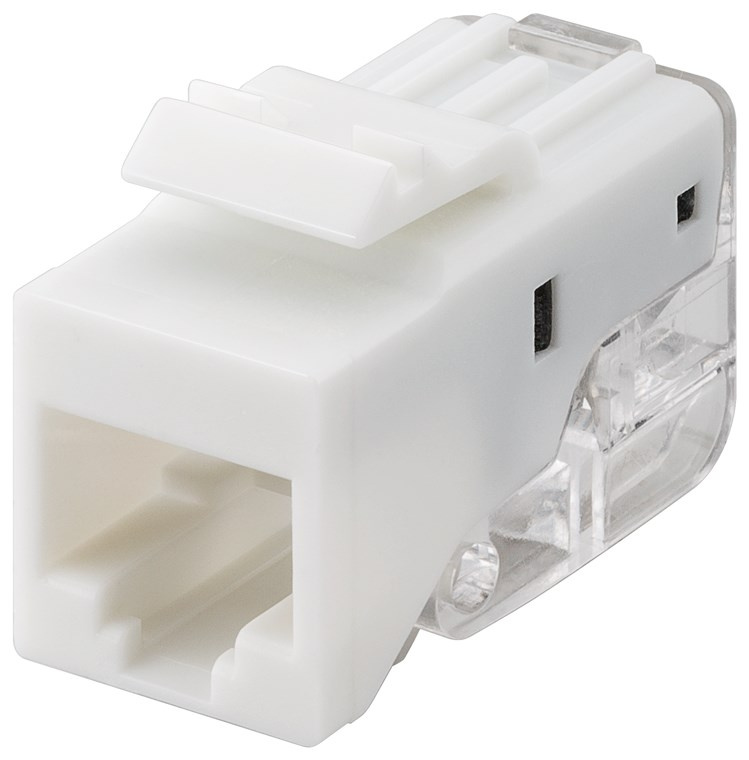

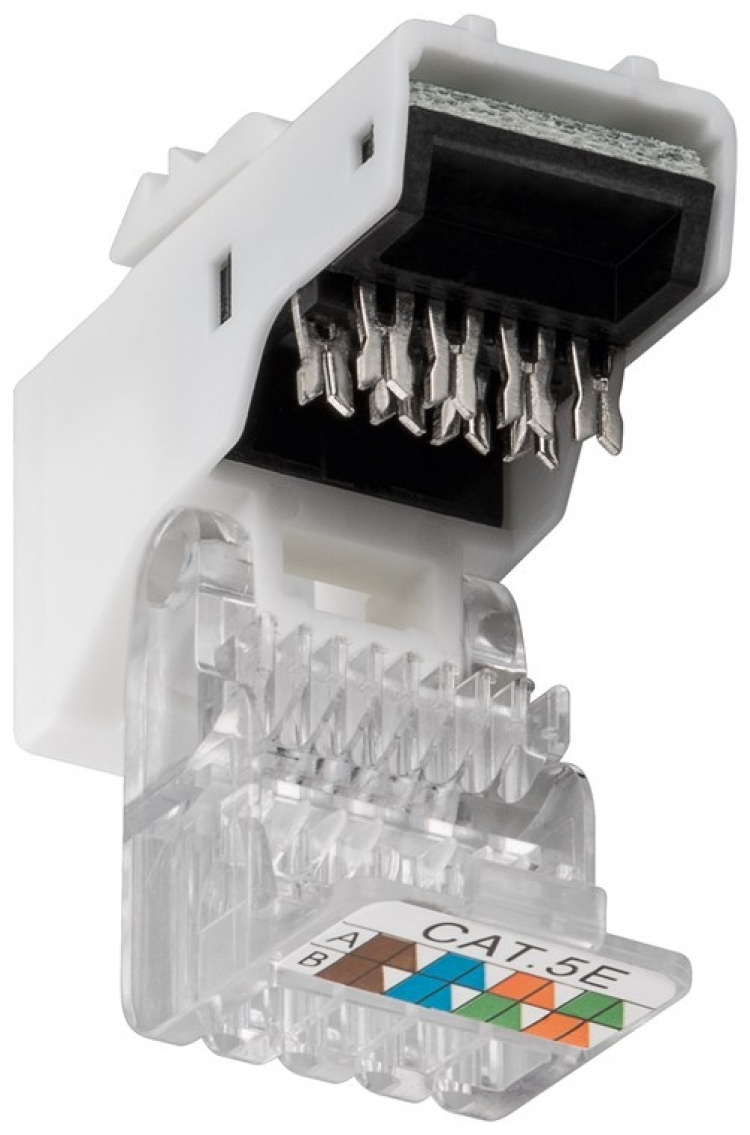

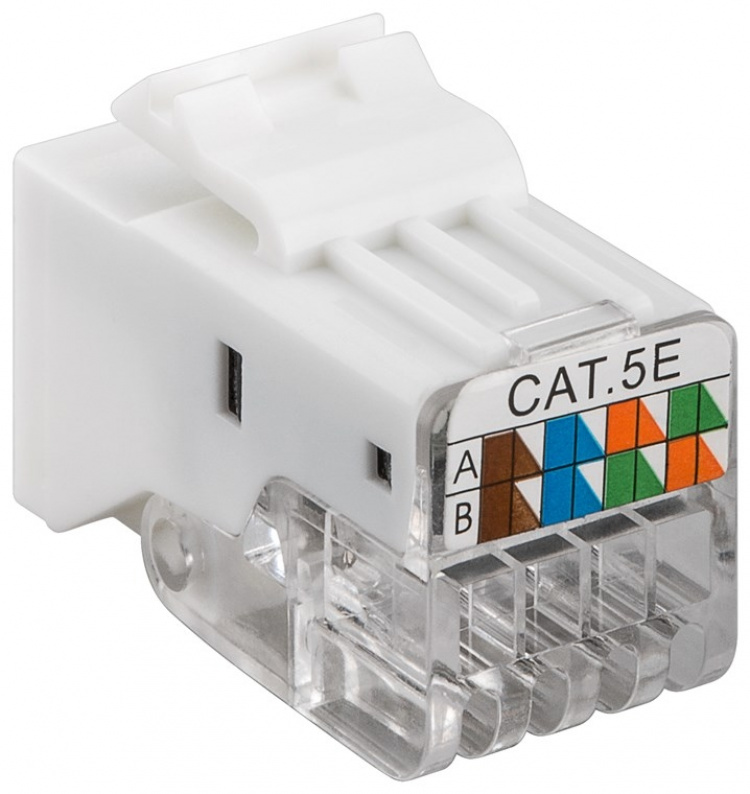

Goobay Keystone Module RJ45 CAT 5e, UTP, 100 MHz 18.11 mm wide, for IDC connection (toolless), Snap-In system
