The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

20 mm wide, for IDC connection (toolless)

Förpackning: Bulk

RJ45 female connector with robust plastic housing (PC) for a perfect transmission of electrical signals
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Commonly used in network installations and for the assembly of permanently installed network cables
CAT 5e jack socket with 3µ gold-plated contacts for an ideal transmission speed
RJ45 connections are TIA 568A/B colour-coded.

Specification: CAT 5e
Shielding class: UTP
Width: 20 mm
max. bandwidth: 100 MHz
construction form: Keystone grid (14,9 x 17,0 mm)
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag

4040849957383EAN:

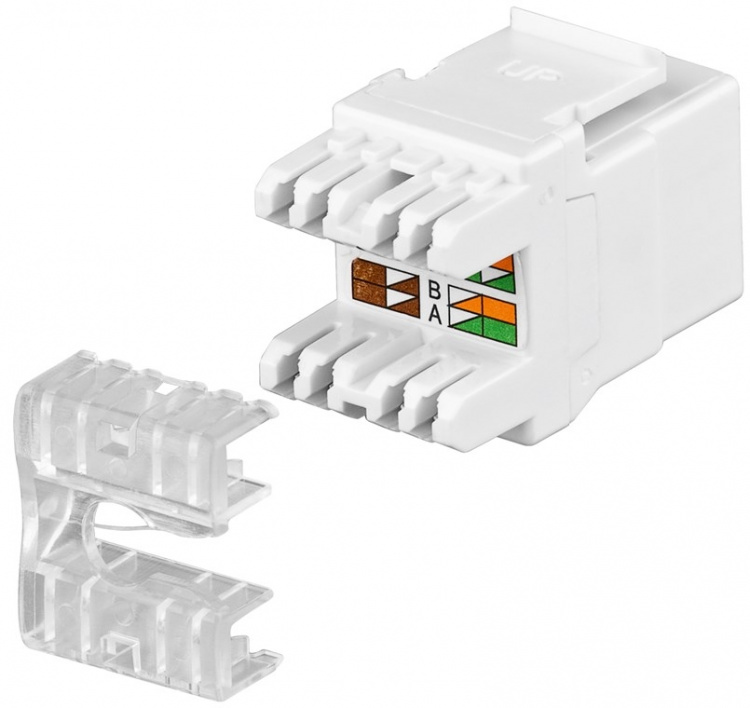

Goobay Keystone Module RJ45 CAT 5e, UTP, 100 MHz 20 mm wide, for IDC connection (toolless)
