The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

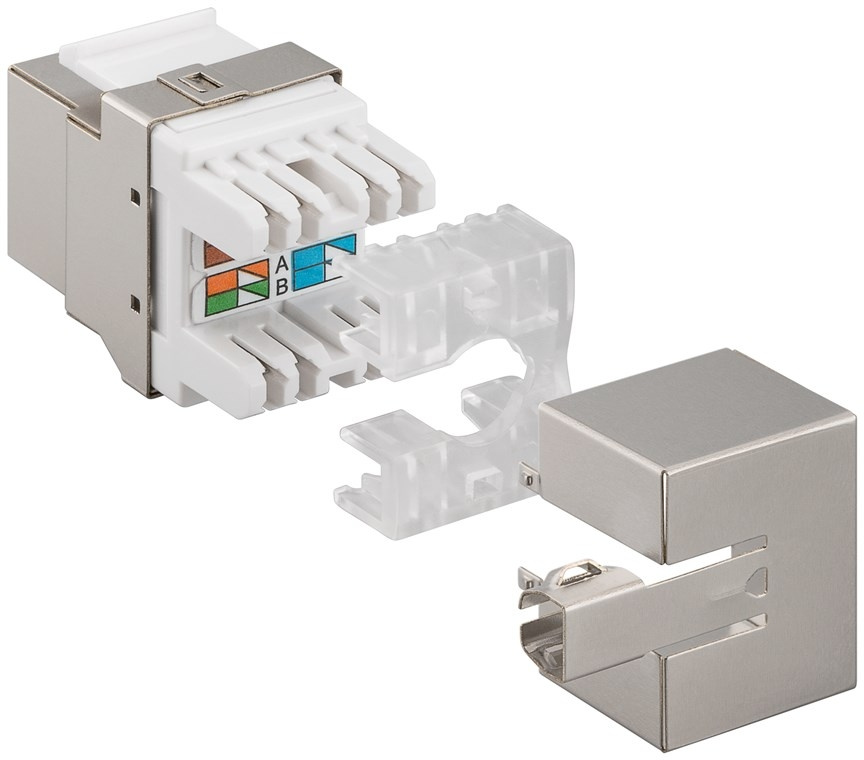

17.4 mm wide, for IDC connection (toolless), 90° angled output

Förpackning: Bulk

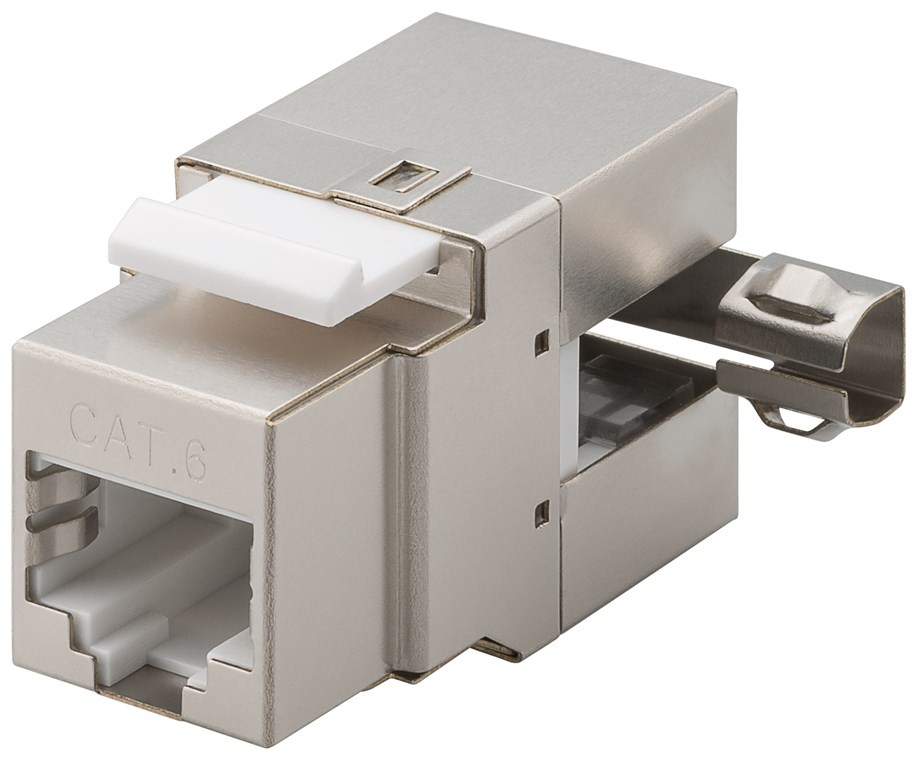

RJ45 female connector with robust metal housing for a perfect transmission of electrical signals
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
LAN jack socket with STP shield for interference-free signal transmission
Commonly used in network installations and for the assembly of permanently installed network cables
RJ45 jack for installation in Keystone patch panels with 24 ports and Ethernet wall sockets
RJ45 jack socket for termination with CAT 6 cables
RJ45 connections are TIA 568A/B colour-coded

Specification: CAT 6
Shielding class: STP
Width: 17.4 mm
max. bandwidth: 250 MHz
construction form: Keystone grid (14,9 x 17,0 mm)
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag

4040849959011EAN:

Goobay Keystone Module RJ45 CAT 6, STP, 250 MHz 17.4 mm wide, for IDC connection (toolless), 90° angled output
