The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

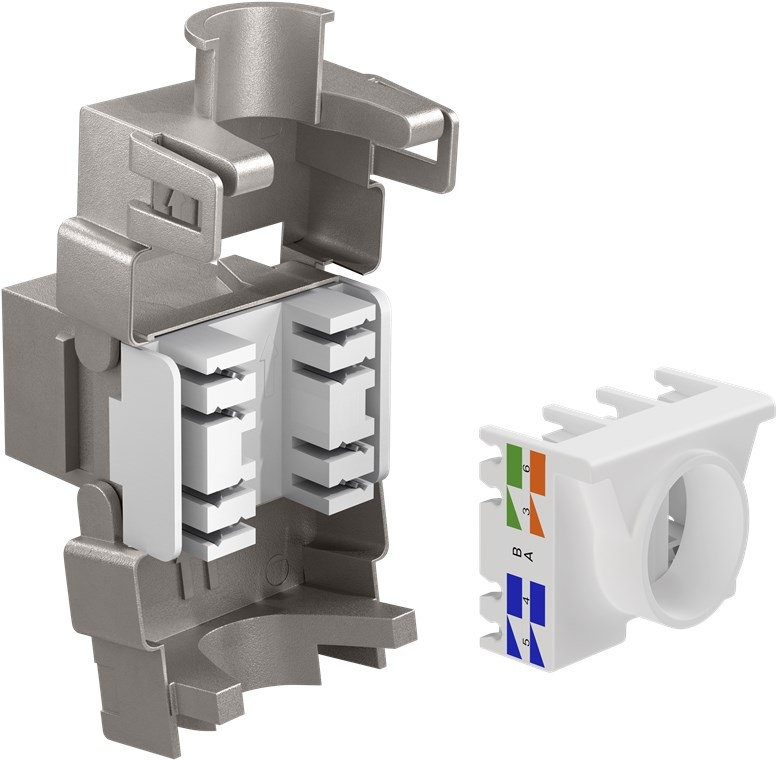

17.1 mm wide, 180° cable outlet, butterfly type, for IDC connection (toolless)

Förpackning: Bulk

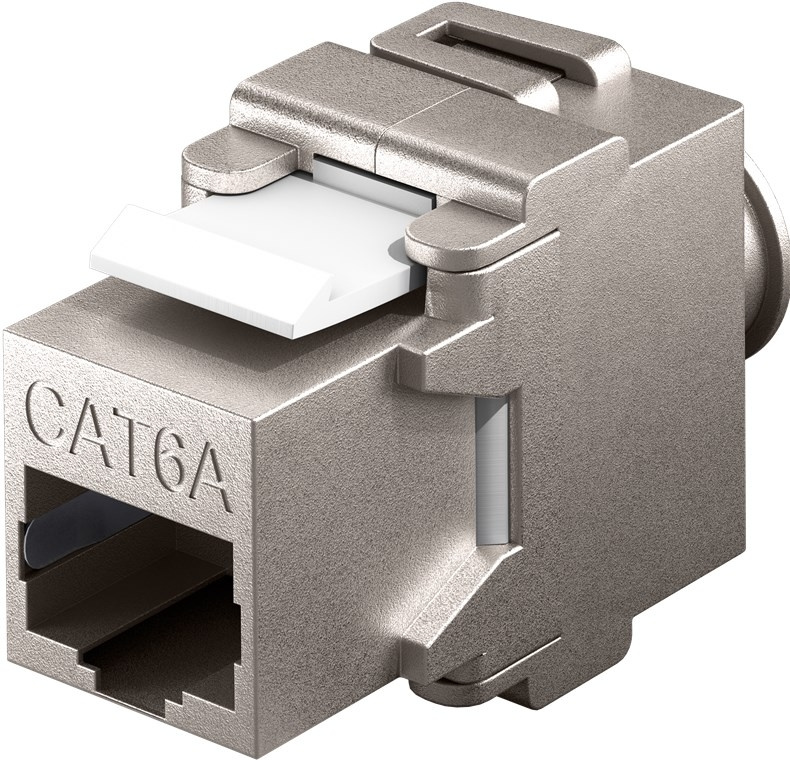

RJ45 female connector with robust zinc-alloy housing for a perfect transmission of electrical signals
Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings. Not suitable for Keystone empty cases 79355, 79366, 79376, 79379 and 79426.
RJ45 socket for termination with CAT 6A cables
Commonly used in network installations and for the assembly of permanently installed network cables
LAN jack socket with strain relief by cable tie
RJ45 connections are TIA 568A/B colour-coded

Specification: CAT 6A
Shielding class: STP
Contacting: EIA/TIA-568 A/B
Height: 26.5 mm
Length: 41.7 mm
Width: 17.1 mm
max. bandwidth: 500 MHz

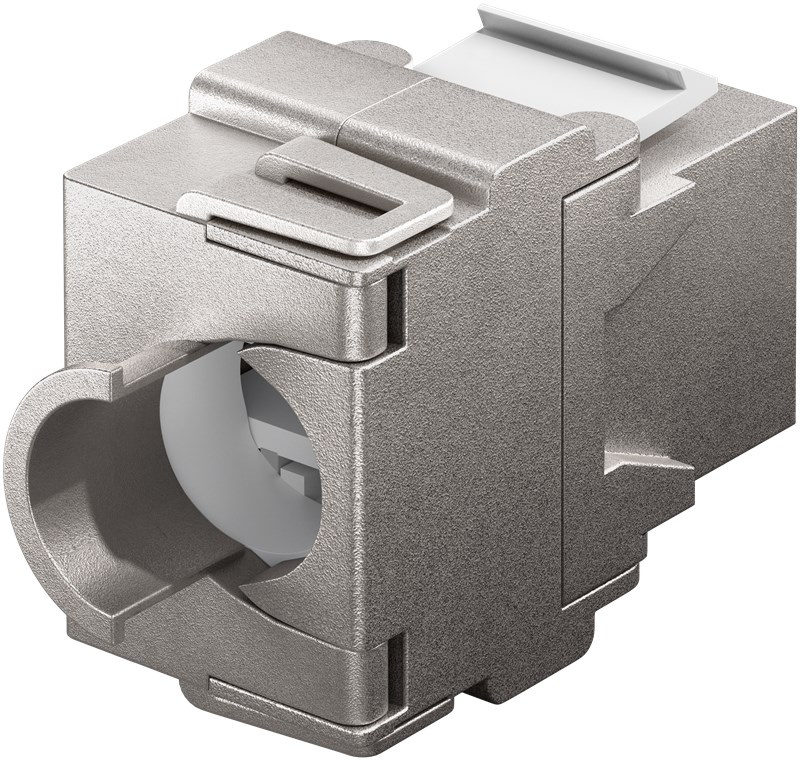

construction form: 180° cable outlet, butterfly type
Cable type: for solid or stranded wire
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag
Operation manual: de, en

4040849959004EAN:

Goobay Keystone Module RJ45 CAT 6A, STP 17.1 mm wide, butterfly type, for IDC connection (toolless)
