The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

16.3 mm wide, crocodile type, for tool-free IDC mounting

Förpackning: Bulk

RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at, supports 10 Gigabit Ethernet applications
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Commonly used in network installations and for the assembly of permanently installed network cables
The Ethernet connector is only suitable for solid wire with a diameter of 0.45 - 0.65 mm. Not suitable for stranded wire.

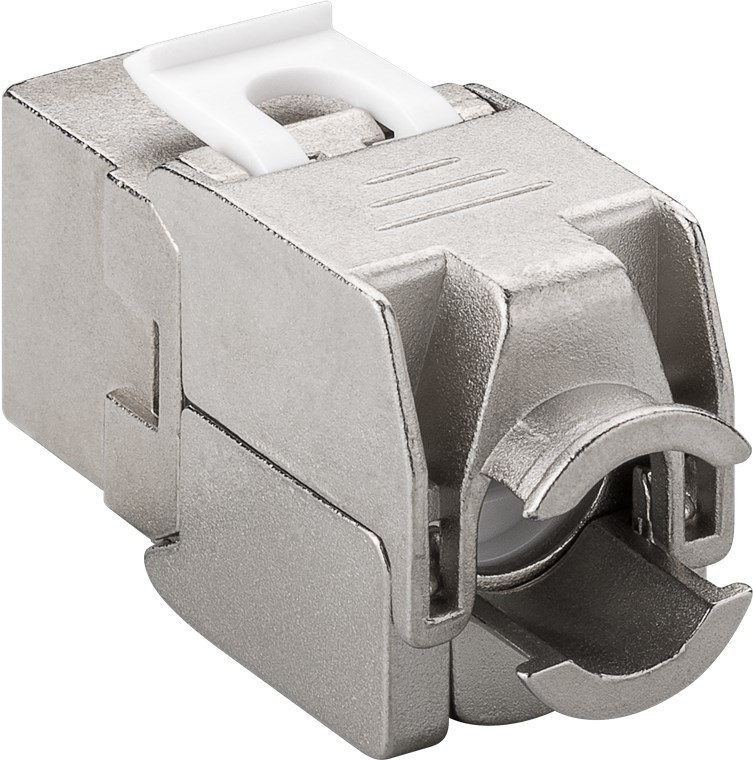

CAT 6A socket with strain relief by cable tie
RJ45 connections are TIA 568A/B colour-coded

Specification: CAT 6A
Shielding class: STP
Width: 16.3 mm
max. bandwidth: 500 MHz
construction form: 180° cable outlet, crocodile type
Connection, type: RJ45 female (8P8C)

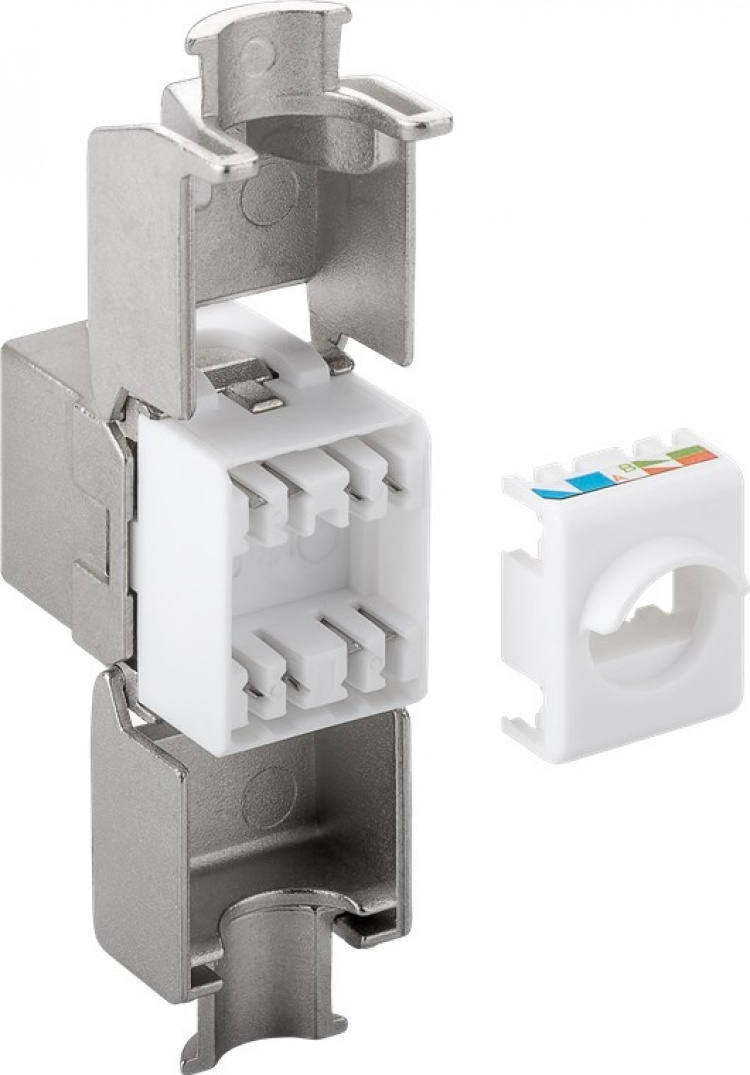

Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag
Operation manual: de, en

4040849908644EAN:

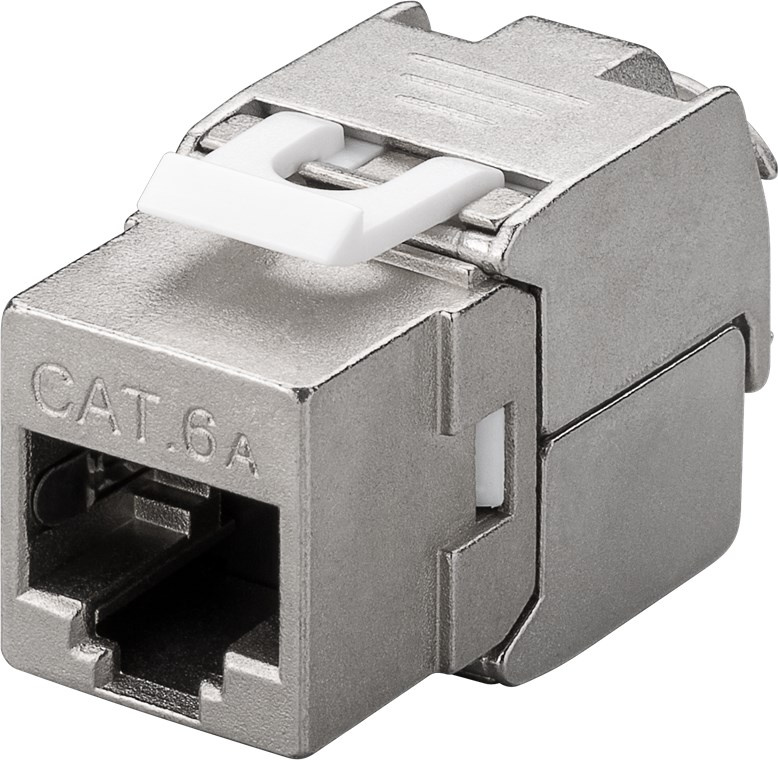

Goobay Keystone Module RJ45 CAT 6A, STP, 500 MHz, Slim-Line 16.3 mm wide, crocodile type, for tool-free IDC mounting
