The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

16.5 mm wide, crocodile type, terminal strip for tool-free IDC mounting Color version light gray

Förpackning: Bulk

RJ45 jack socket with robust plastic housing for a perfect transmission of electrical or optical signals
CAT 6A jack socket for Ethernet cables with an outer diameter of 5.0 - 9.0 mm
Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
Commonly used in laboratories, workshops, home entertainment and network installations

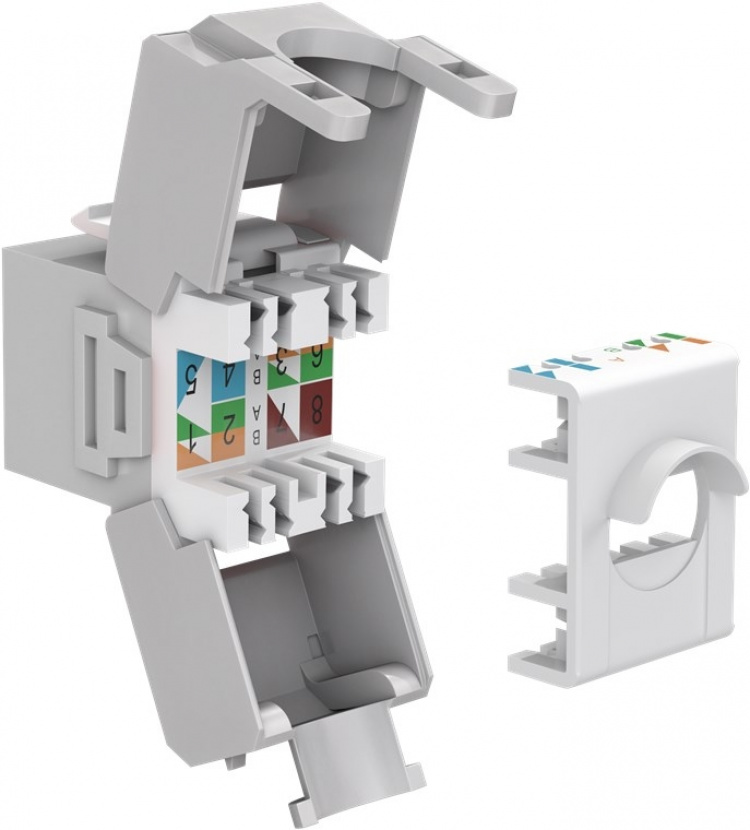

Ethernet connector for termination of solid wires of 0.48 - 0.65 mm (AWG 22 - 26)
RJ45 connections are TIA 568A/B colour-coded

Specification: CAT 6A
Shielding class: UTP
Width: 16.5 mm
max. bandwidth: 500 MHz
construction form: 180° cable outlet, crocodile type
Connection, type: RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag
Operation manual: de, en
Color version: light gray
Color: light gray

4040849906930EAN:

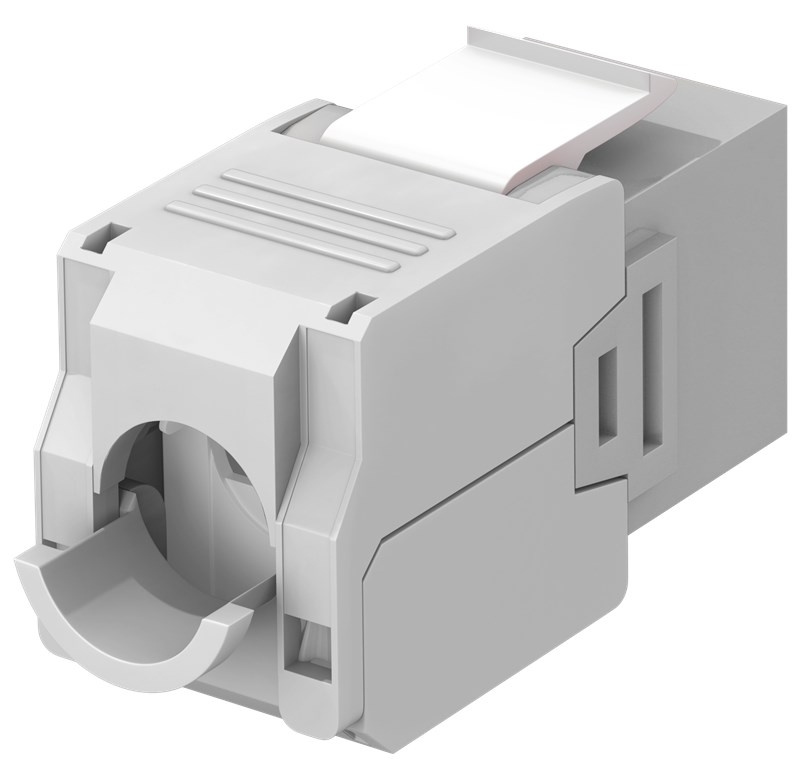

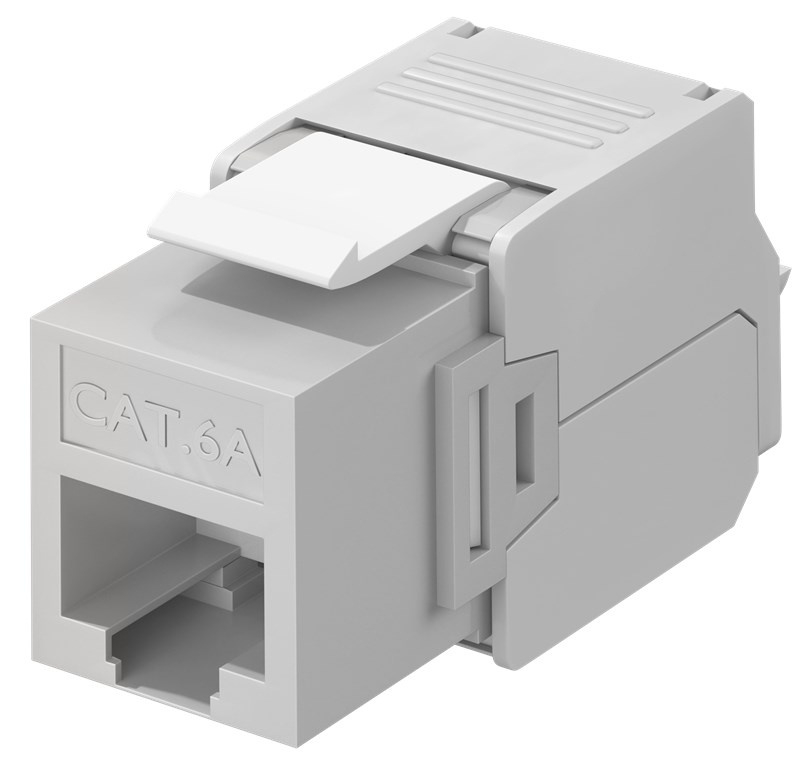

Goobay Keystone Module RJ45 CAT 6A, UTP 16.5 mm wide, crocodile type, terminal strip for tool-free IDC mounting
