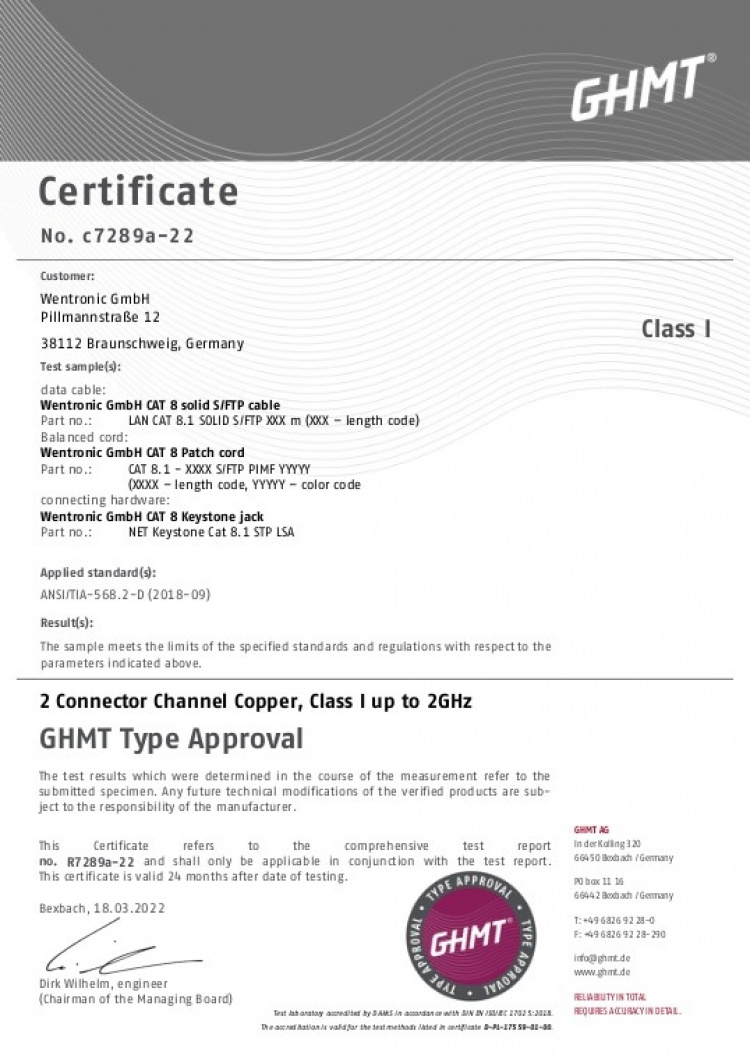

Reliable performance of the Keystone module in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHzGHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cordPart no.: CAT 8.1 - m S/FTP PiMF Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117Certified installation cables: 61126, 61127, 61128Certified Keystone coupler: 61146

15.8 mm wide, 180° cable outlet, crocodile type, for IDC connection (toolless)

Förpackning: Bulk

Ideally suited as a connector for setting up a CAT 8.1 channel
GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
For round cables with 5.0-8.5 mm diameter and a solid conductor (AWG 22/1 - 26/1) or stranded conductor (AWG 22/7 - 26/7)
For quick, tool-free mounting in patch panels, network sockets or housings
The RJ45 coupler is suitable for Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt and supports 25GBase-T and 40GBase-T (downward compatible).
The RJ45 Keystone is suitable for top-of-rack and middle-of-row architectures in data centres.
The 3 μin gold-plated contacts and STP screen of the zinc die-cast housing ensure durability and perfect signal transmission.

AWG: 22 - 26
Specification: CAT 8.1
Shielding class: STP
Markings: GHMT Premium Verification Programm
Height: 21.4 mm
Length: 37.8 mm
Width: 15.8 mm
max. bandwidth: 2000 MHz

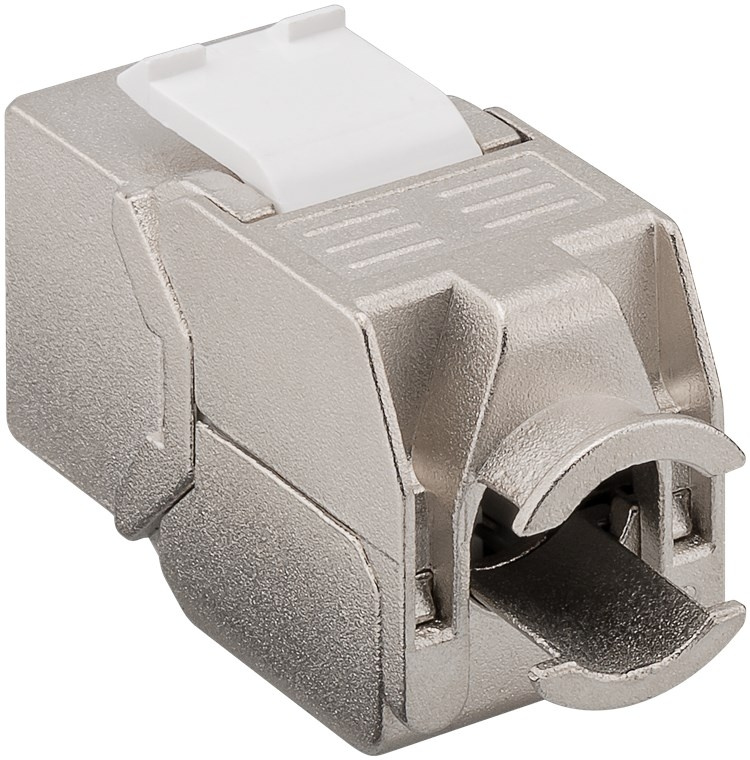

construction form: 180° cable outlet, crocodile type
Connection, contact material: gold-plated 3µm

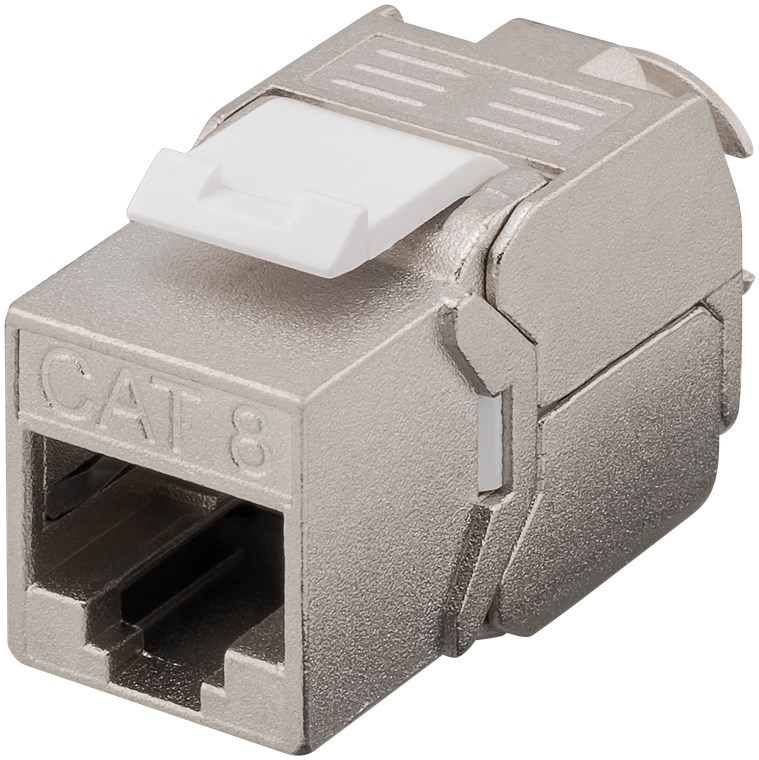

Connection, type: RJ45 female (8P8C)

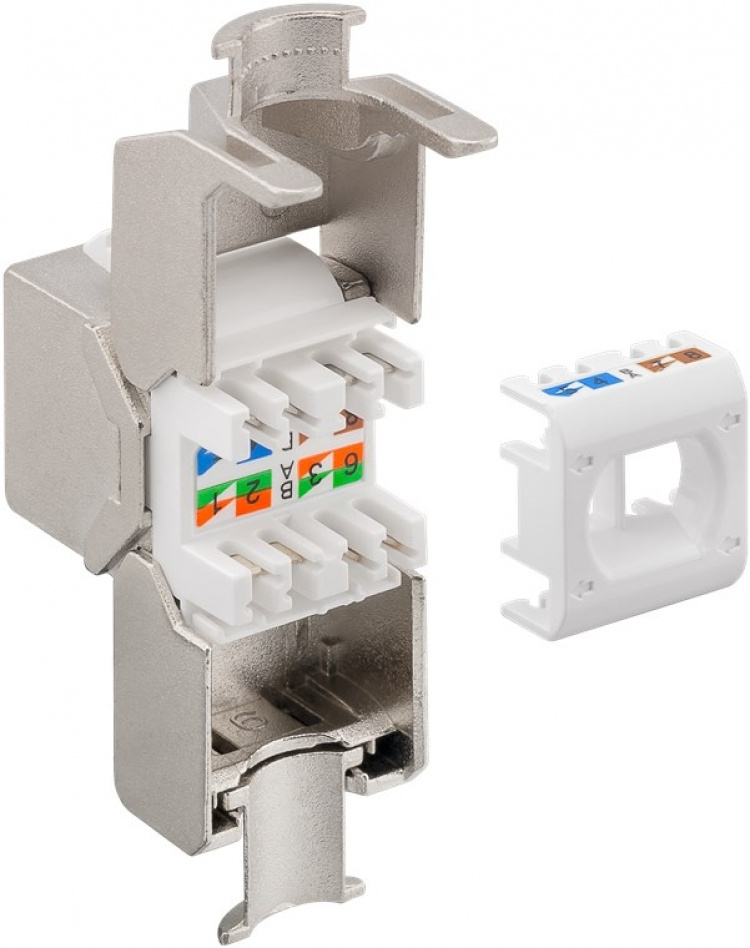

Connection 2, type: for IDC connection (toolless)
Consumption Unit: 1 pc. in polybag

4040849611292EAN:

Goobay Keystone Module RJ45 CAT 8.1, STP, GHMT-certified 15.8 mm wide, crocodile type, for IDC connection (toolless)
