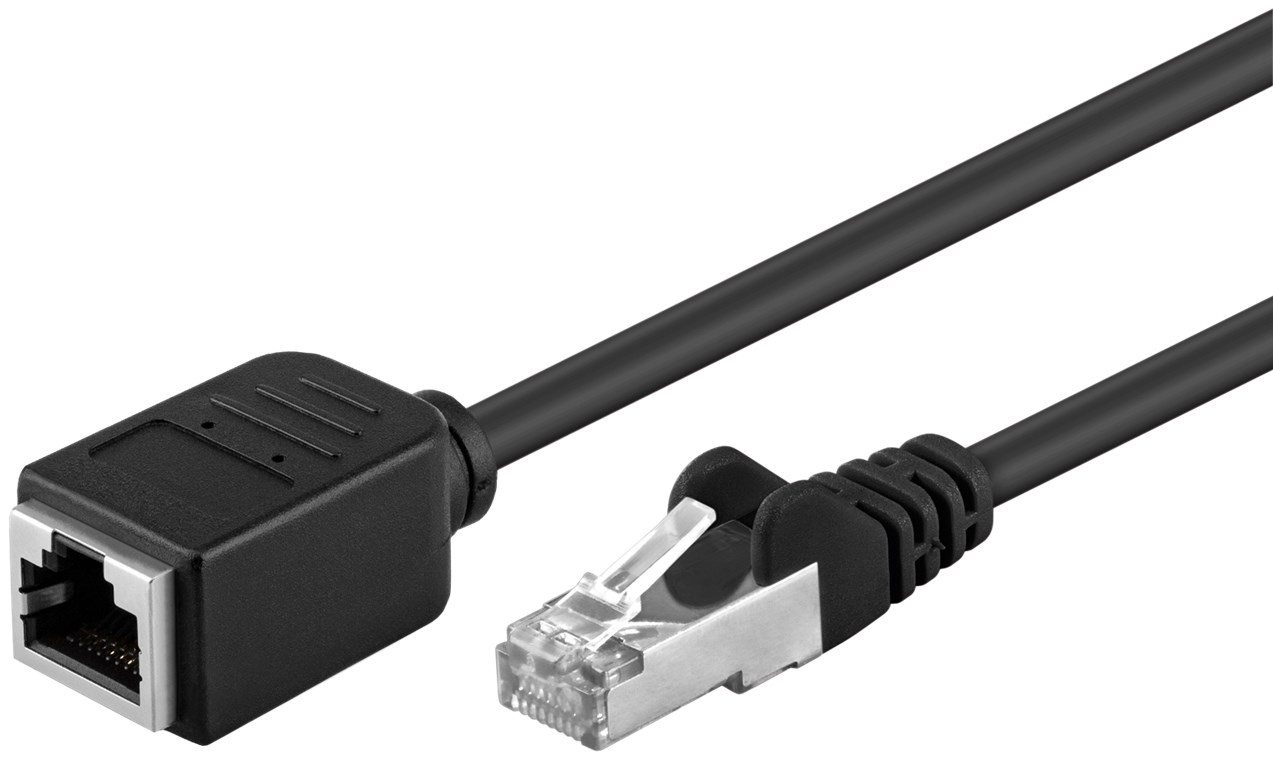

copper conductor (CU), RJ45 male (8P8C) > RJ45 female (8P8C) Cable length 0.5 m
Förpackning: Bulk
- Prewired, shielded LAN cable extension with RJ45 plugs for connecting network components
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
- Length of the extension cable indicated on the overmoulded slimline strain relief.
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1
bending radius >: 41.6 mm
Specification: CAT 5e
Shielding class: F/UTP
Number of shieldings: 1 x
Contacting: EIA/TIA-568 B
Operating temperature up to: 60 °C
Operating temperature from: -20 °C
max. bandwidth: 100 MHz
Kink protection: both sides
Cable type: round cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Connection, shielding: yes
4040849733864EAN:
