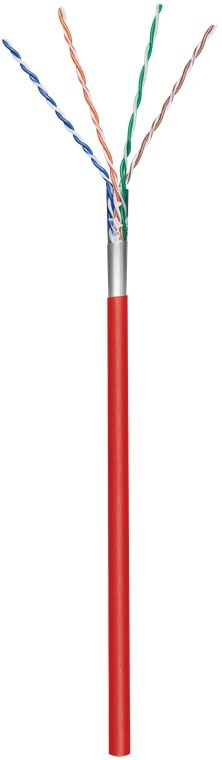

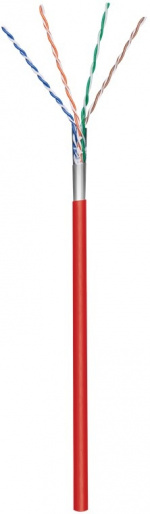

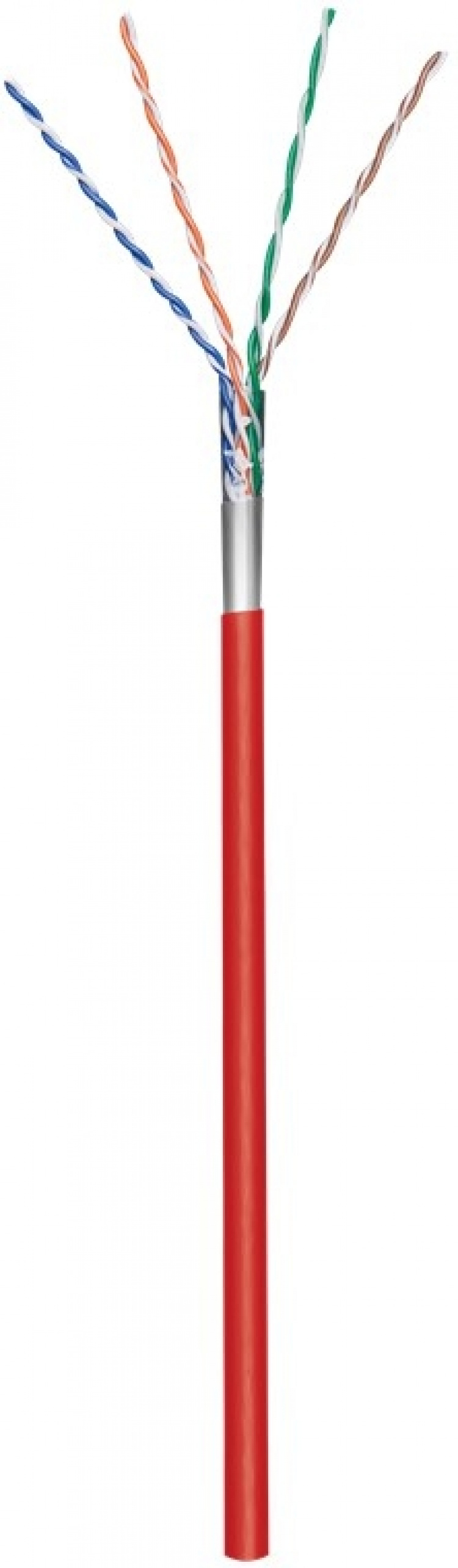

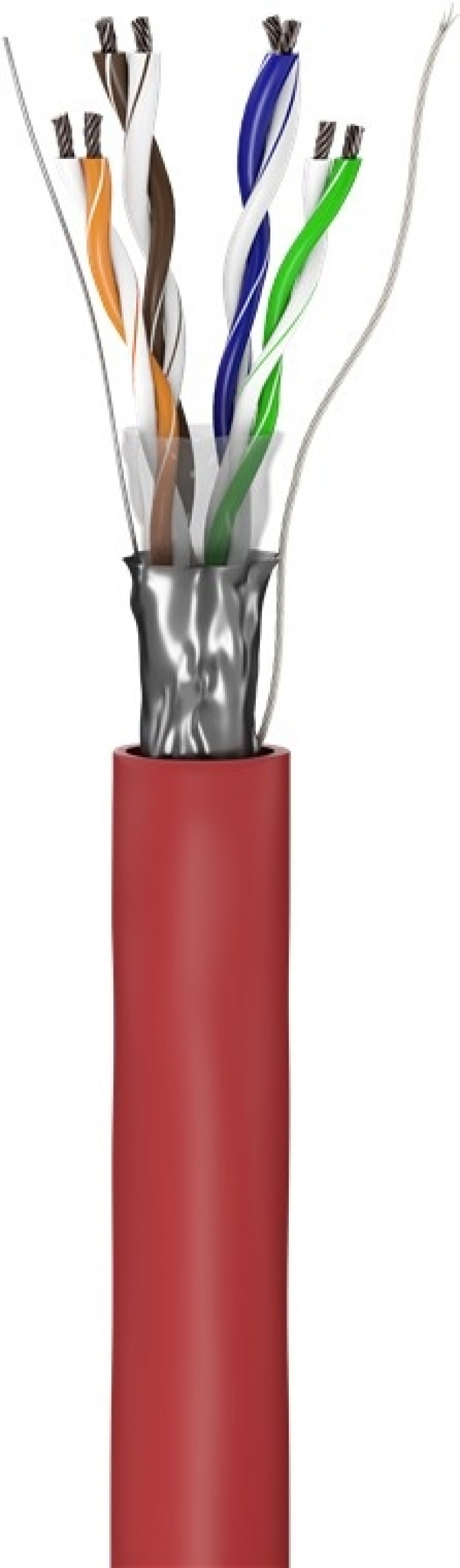

Copper-clad aluminium wire (CCA), AWG 26/7 (stranded), PVC cable sheath Color version red

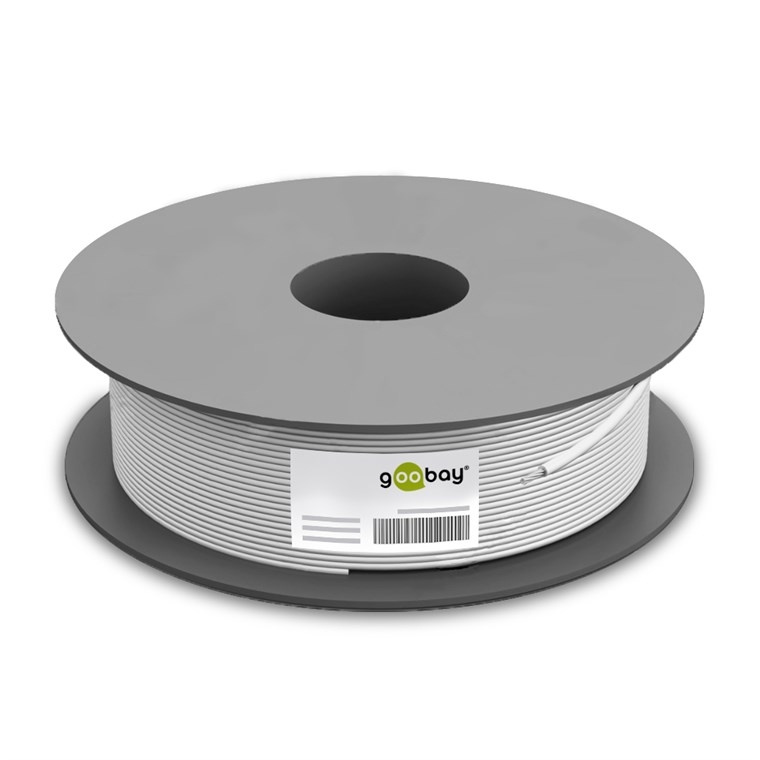

Förpackning: Cable spool-drum
- Shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible cable for indoor assembly with a maximum transmission length of 40 m

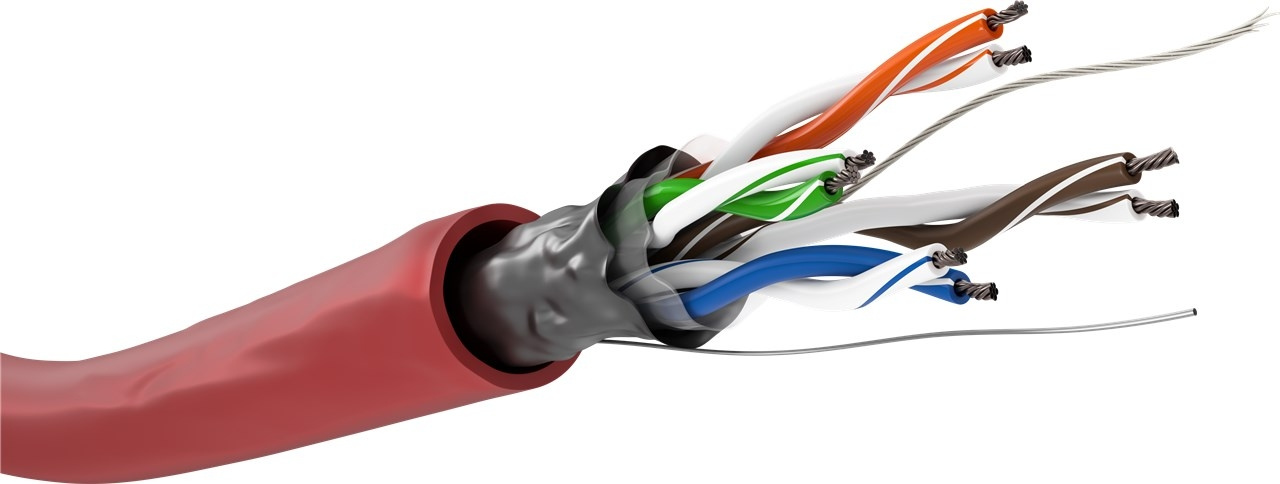

- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides an ideal signal distribution with minimal losses
- High-quality copper-clad aluminium wire (CCA) guarantees an excellent and powerful network connection.
- Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Cable length: 100 m
Specification: CAT 5e

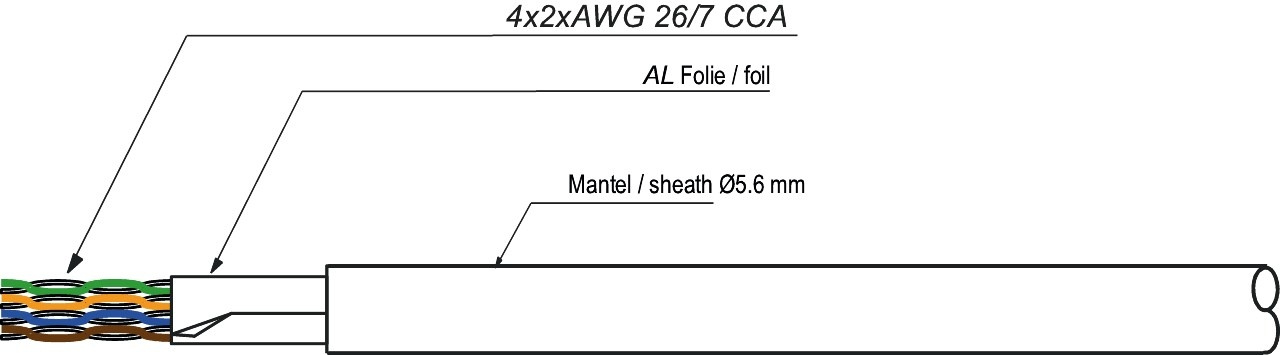

Cable sheath diameter (approx.): 5.6 mm
Diameter of insulated conductor: 0.9 mm (+/-0.05)

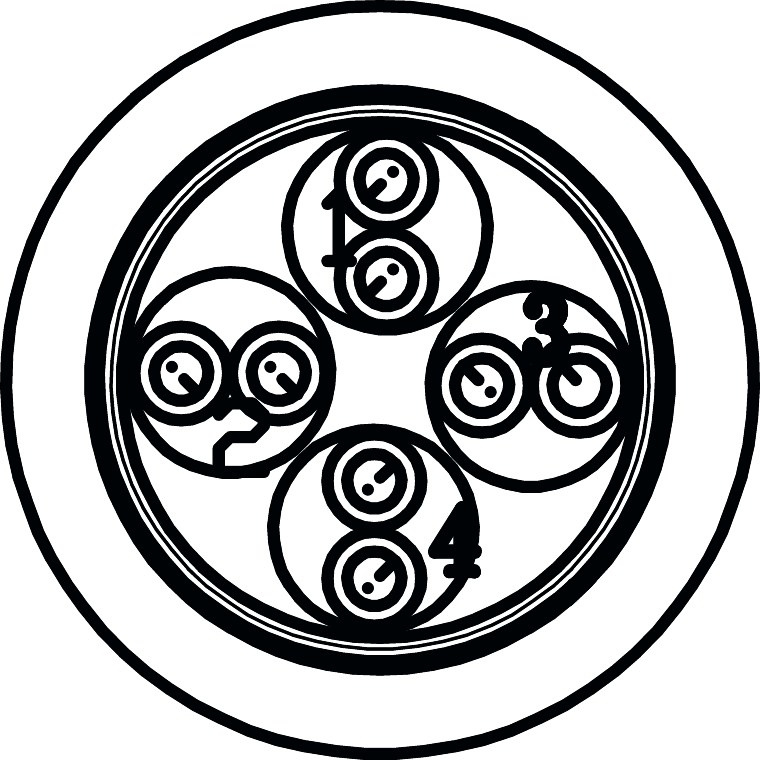

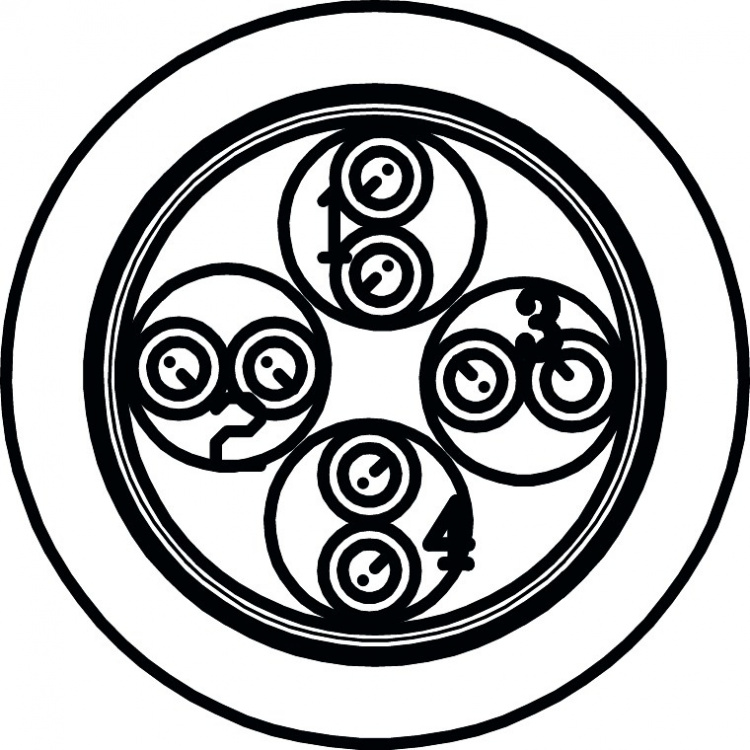

Shielding class: F/UTP
Number of shieldings: 1 x
Markings: ECA_CPR, CE, SOHO
Impedance: 100 Ω
max. bandwidth: 100 MHz
usable up to cable length: 40 m
Cable type: round cable
Material cable sheath: PVC
Inner conductor material: CCA (copper-clad aluminium)
Type 1, shielding: foil (aluminium)
4040849932694EAN:
