copper-clad aluminium wire (CCA), 2x RJ45 male 90° (8P8C) Cable length 3 m
Förpackning: Bulk
- Prewired, shielded CAT 5e LAN cable with 2x RJ45 plugs for connecting network components
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.

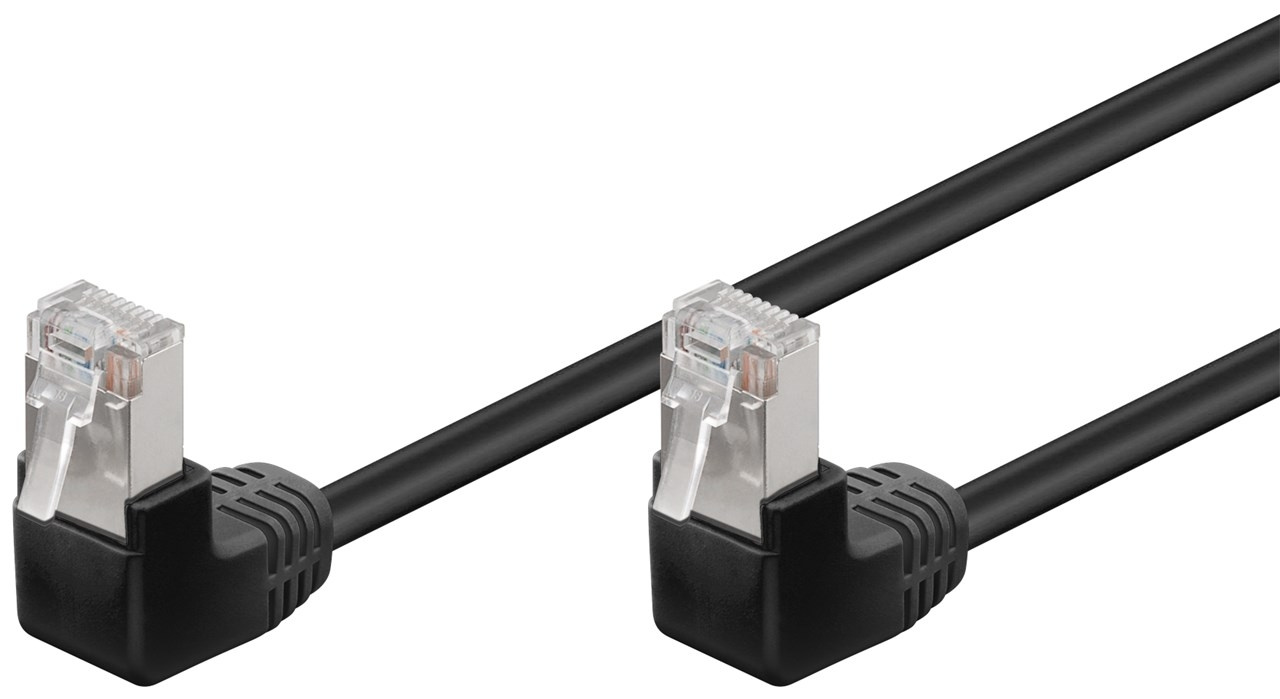

- The CAT 5e network cable with 90° right angle RJ45 connectors (without latch protection) is an ideal solution in confined spaces.
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Patch cable with overmoulded slimline bend protection
- Network connector: pair sequence according to EIA/TIA 568B
- Cable construction: twisted pair cable
bending radius >: 54 mm
Specification: CAT 5e
Cable sheath diameter (approx.): 5.4 mm
Shielding class: F/UTP
Number of shieldings: 1 x
Contacting: EIA/TIA-568 B
Operating temperature up to: 60 °C
Operating temperature from: -20 °C
max. bandwidth: 100 MHz
Kink protection: both sides
Cable type: round cable
Material cable sheath: PVC
Inner conductor material: CCA (copper-clad aluminium)
Type 1, shielding: foil (aluminium)
4040849960802EAN:
