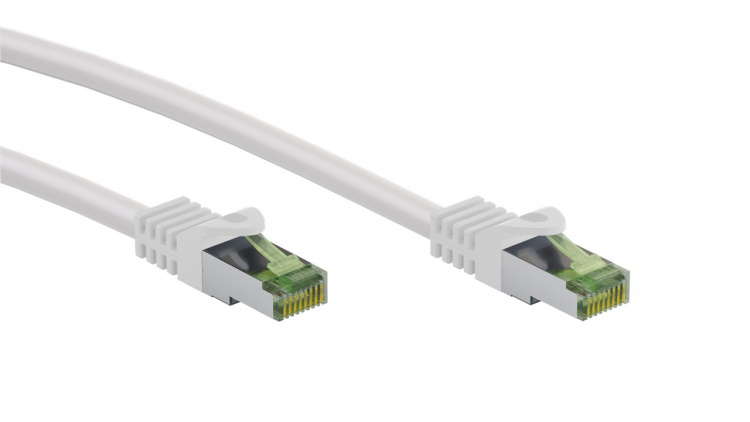

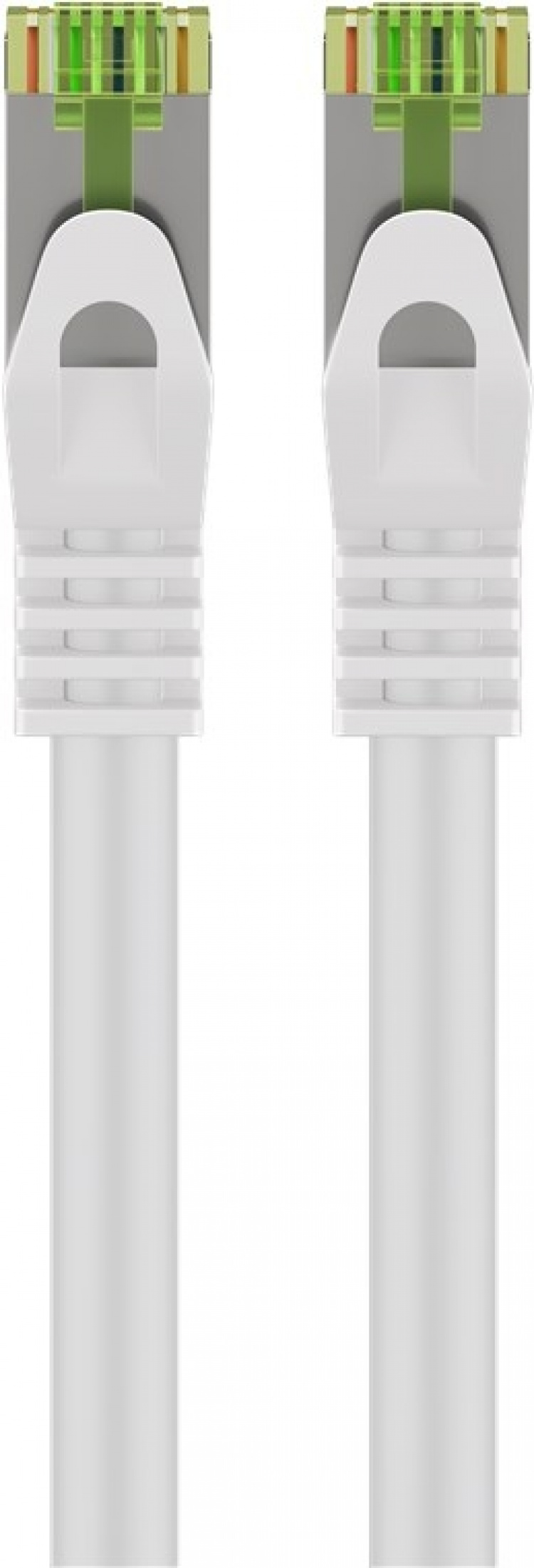

copper conductor, LSZH halogen-free cable sheat Cable length 3 m

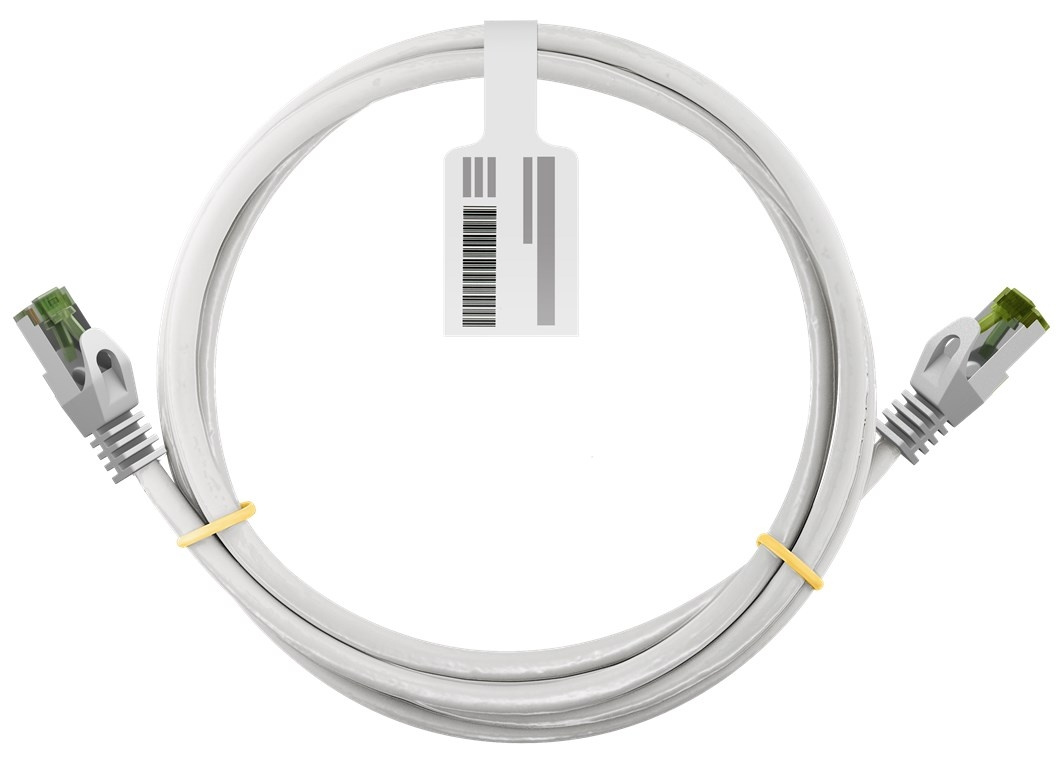

Förpackning: Cable Tag
- The 3 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.

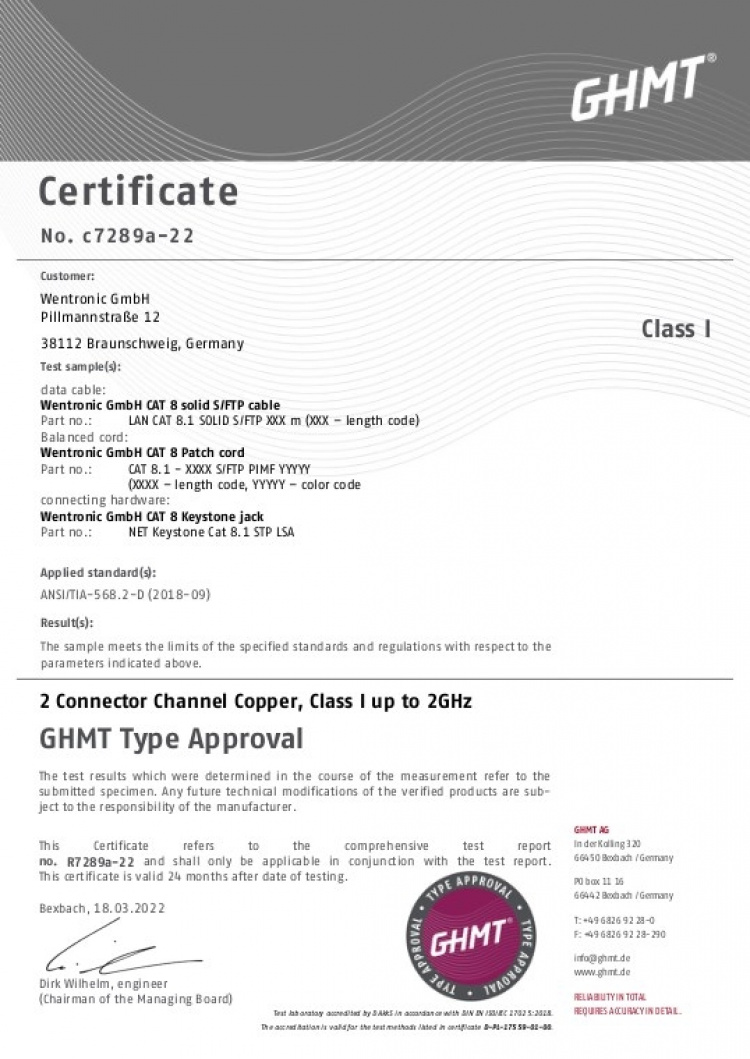

- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath

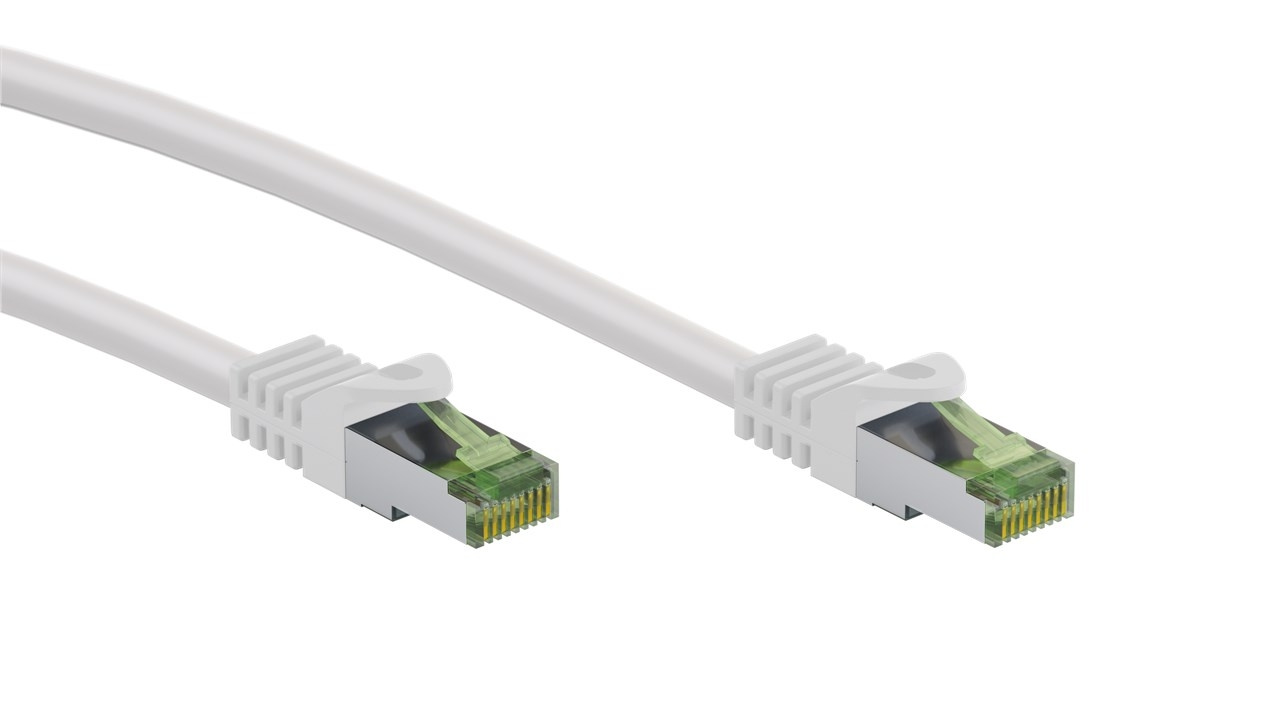

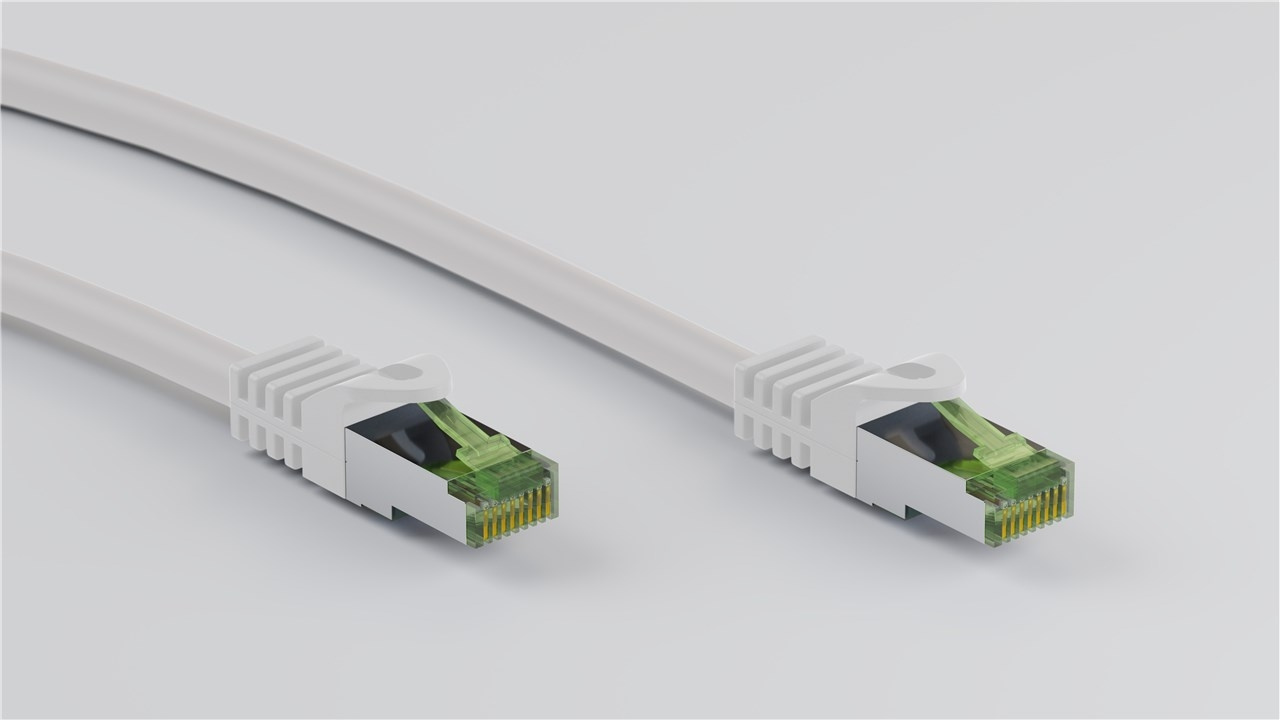

- Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
- CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
- Low-smoke and halogen-free LSZH cable sheath
Specification: CAT 8.1
Cable sheath diameter (approx.): 6.2 mm
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Contacting: EIA/TIA-568 B
max. bandwidth: 2000 MHz

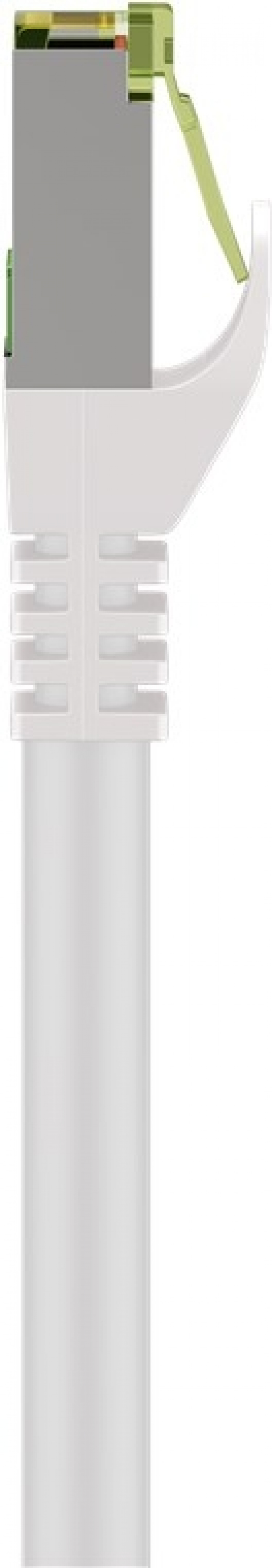

Kink protection: both sides
Cable type: Cat 8.1 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Connection, housing material: PVC
4040849611063EAN:
