The CAT 8.1 system supports high data rates of up to 40 GBit/s even without switching to fibre optics. Combined with CAT 8.1-enabled RJ45 couplers and installation cables, the patch cable can be integrated into a high-quality, high-speed data link.

copper conductor, LSZH halogen-free cable sheat, RJ45 (CAT 6A) plug Cable length 10 m

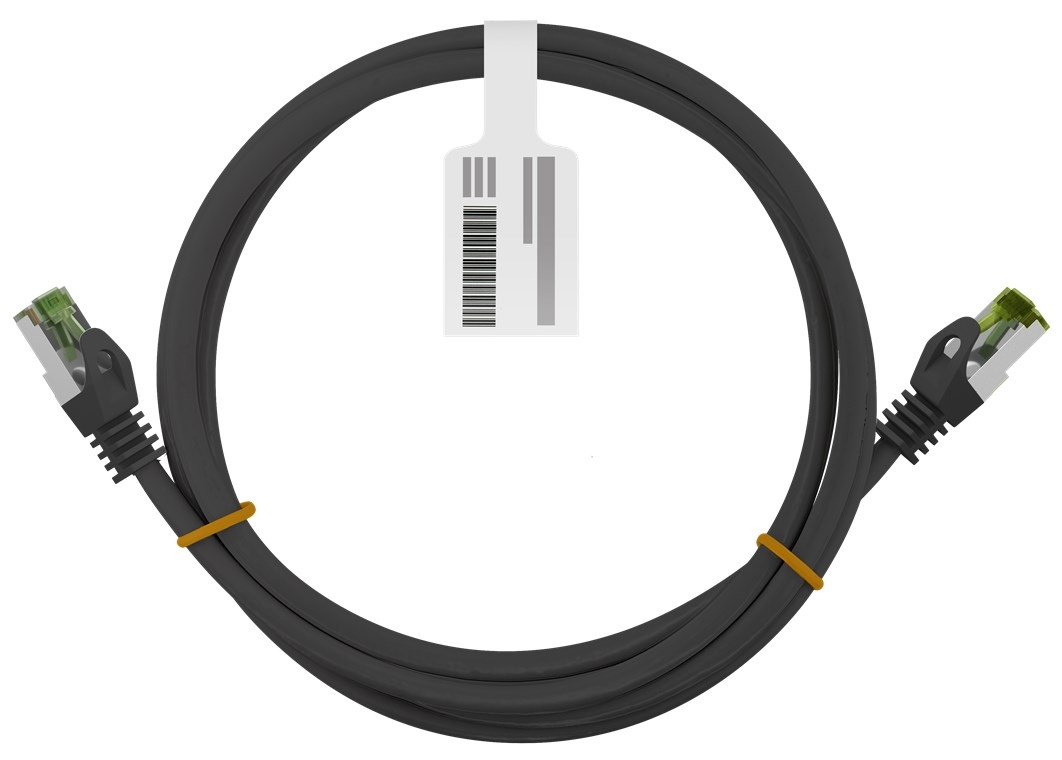

Förpackning: Cable Tag

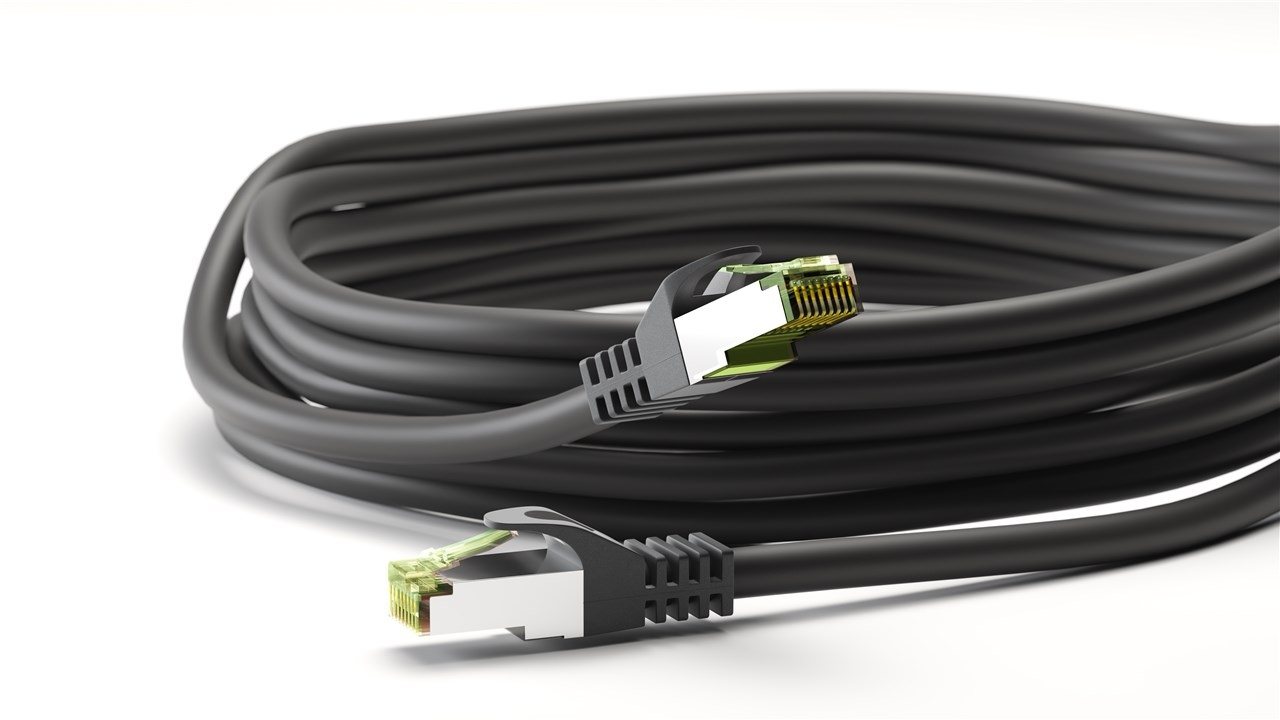

The 10 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.
S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath

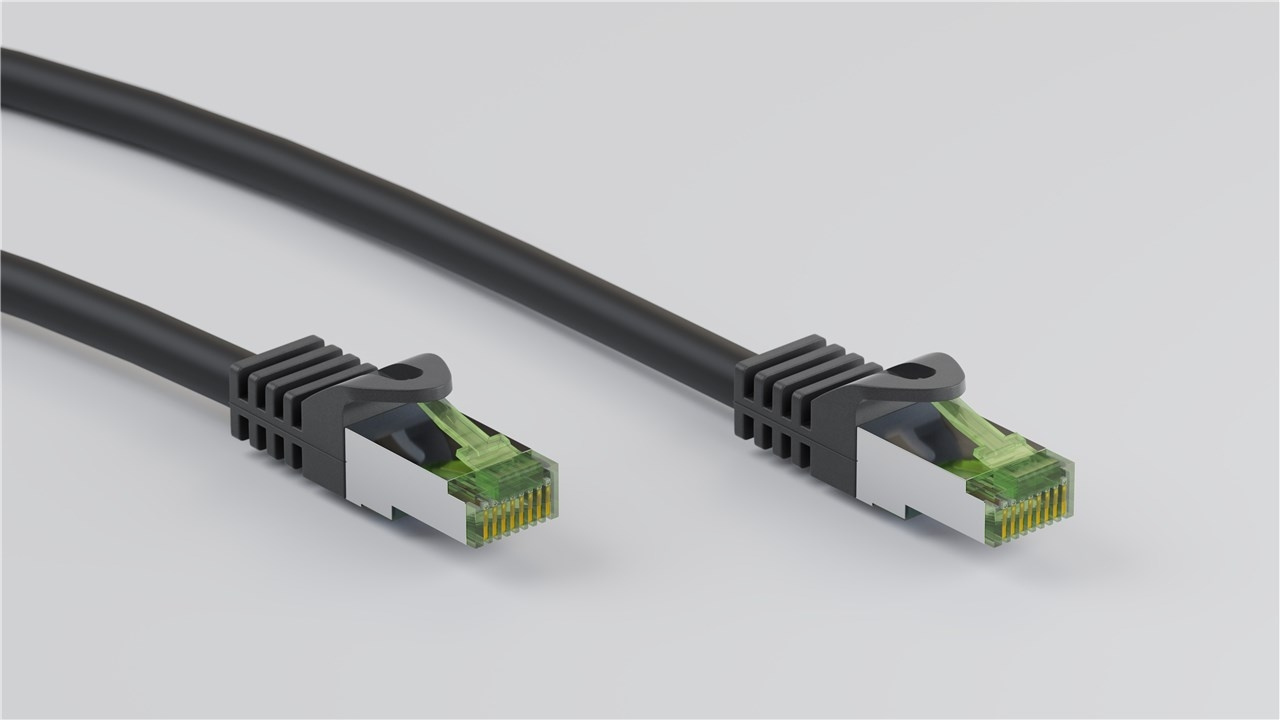

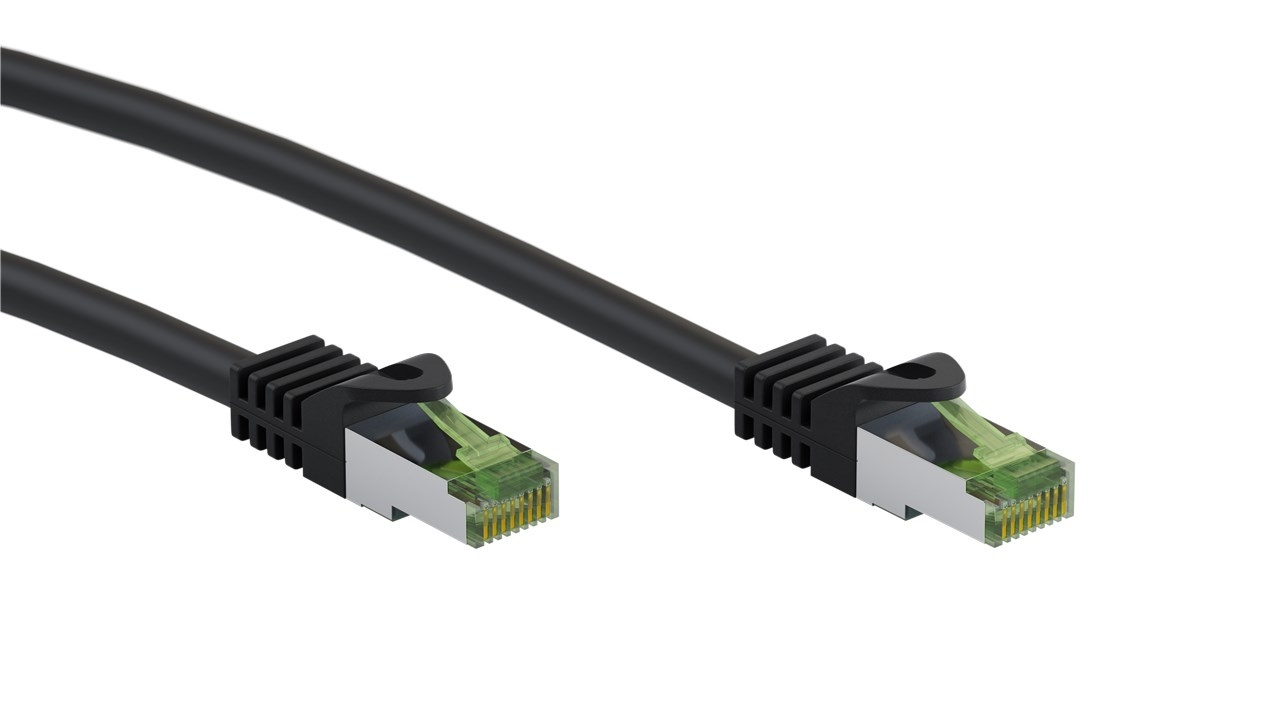

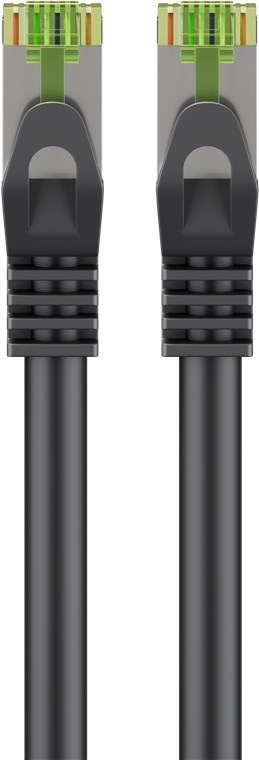

Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
Low-smoke and halogen-free LSZH cable sheath

AWG: 26/7 (stranded)
Specification: CAT 8.1
Cable sheath diameter (approx.): 6.2 mm
Shielding class: S/FTP (PiMF)
Contacting: EIA/TIA-568 B
Kink protection: both sides
Cable type: Cat 8.1 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Connection, housing material: PVC
Connection, contact material: gold-plated 50µm
Connection, shielding: yes

4040849610981EAN:

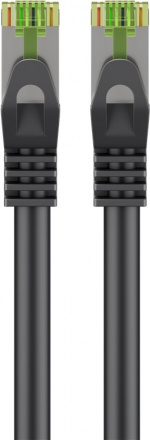

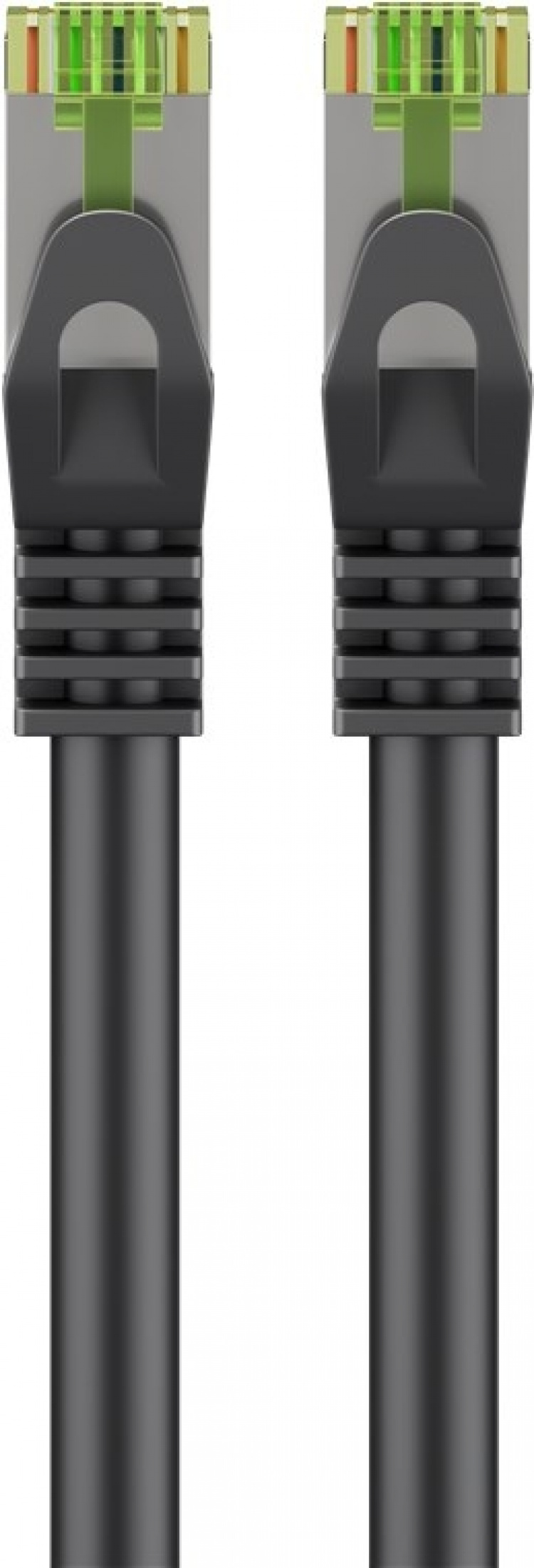

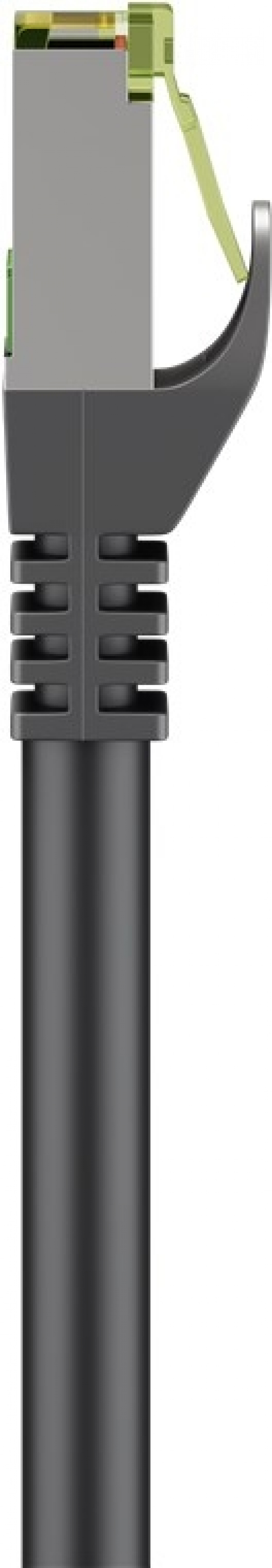

Goobay RJ45 Patch Cord with CAT 8.1 S/FTP Raw Cable, AWG 26, black copper conductor, LSZH halogen-free cable sheat, RJ45 (CAT 6A) plug, 10 m
