The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference.

optical fibre (FOC), SC-APC (8°) male > SC-UPC male, halogen-free cable sheath (LSZH) Cable length 10 m

Förpackning: Bulk

mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc.
the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors
optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static)
LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034
strain relief reinforced with aramid yarn provides extra stability
equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU T G.657
individual test protocol with measurement of return loss and insertion loss

bending radius >: 30 mm
Specification: Singlemode (OS2) White
Cable sheath diameter (approx.): 3 mm
Optical fiber core diameter: 9 µ
Optical fiber sheath diameter: 125 µ
Wavelength: 1310 nm
Contacting: Ceramic Ferrule
Operating temperature up to: 85 °C
Operating temperature from: -40 °C
CAS no.: 7439-92-1
chemical substance: Pb
Kink protection: yes
Cable type: simplex cable
Cable fiber type: Glass Fibre G657.A2
Material cable sheath: LSZH

4040849596223EAN:

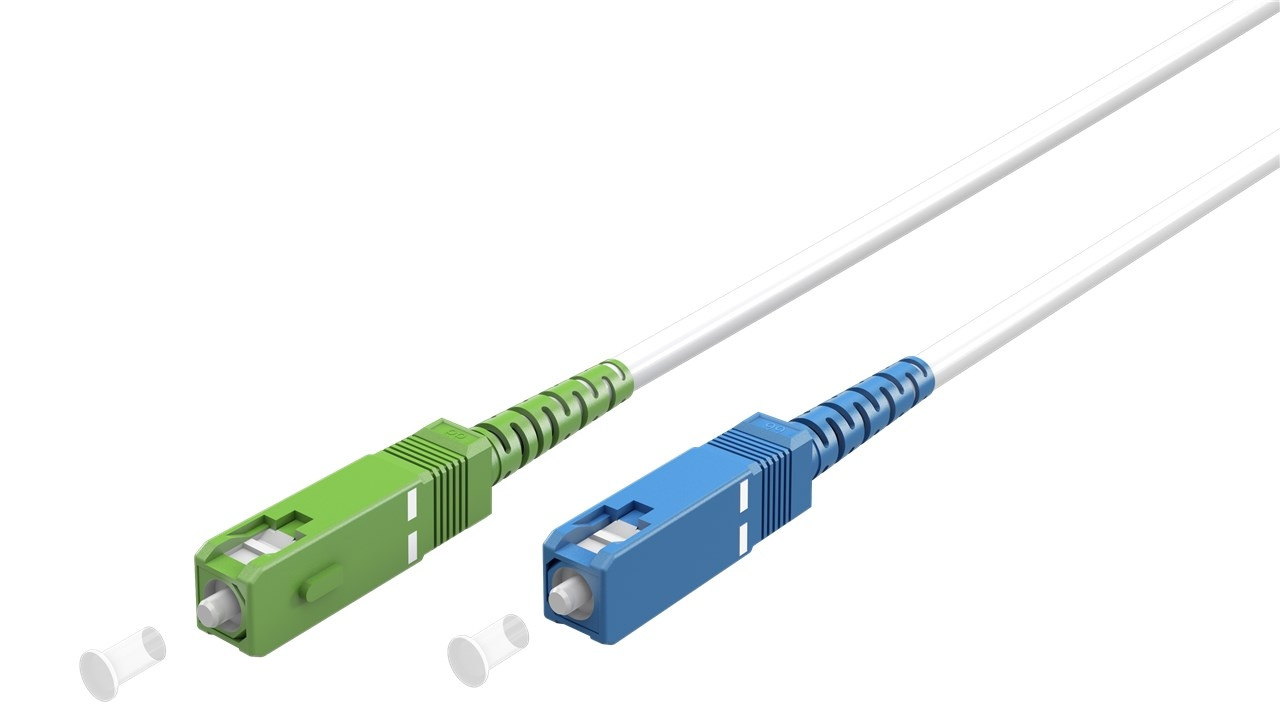

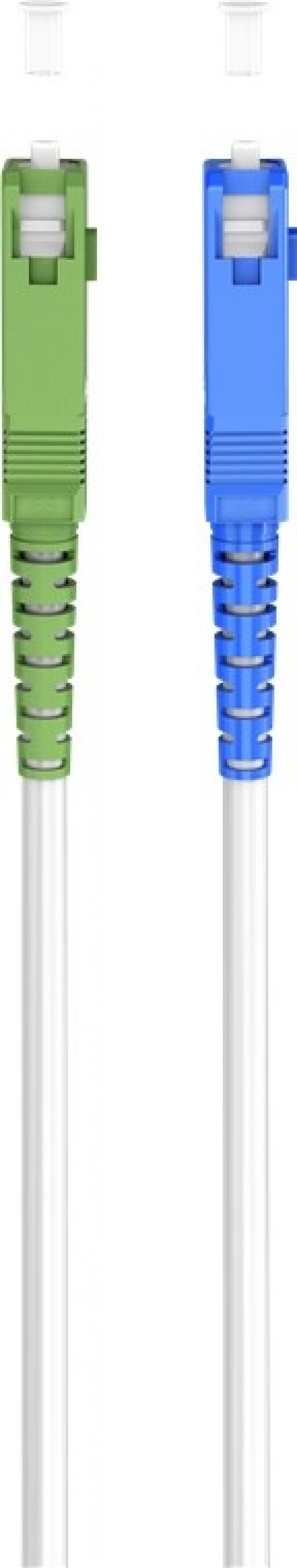

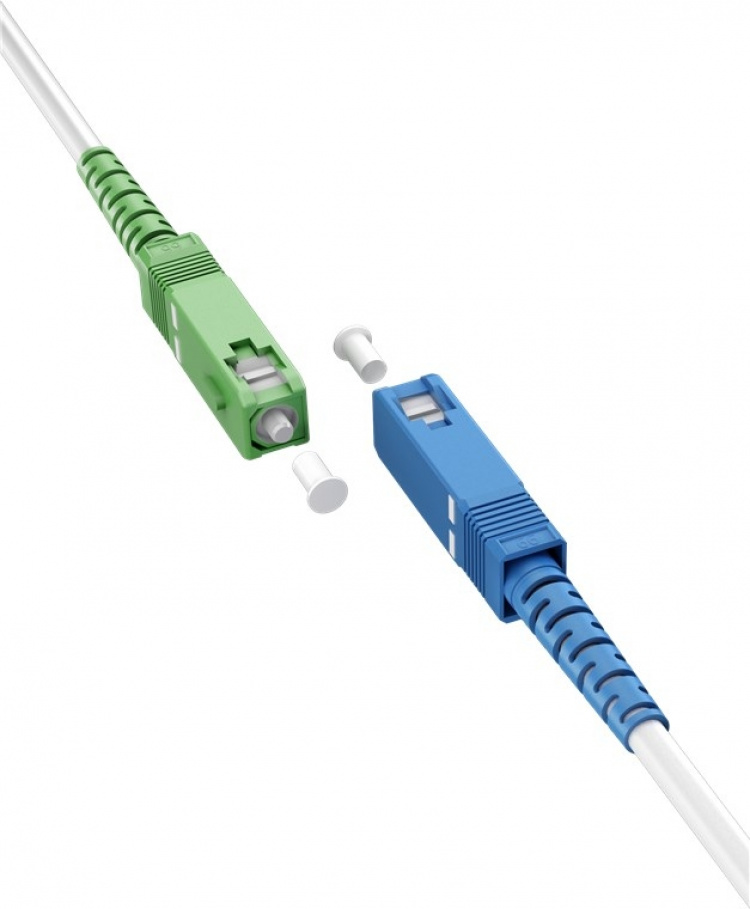

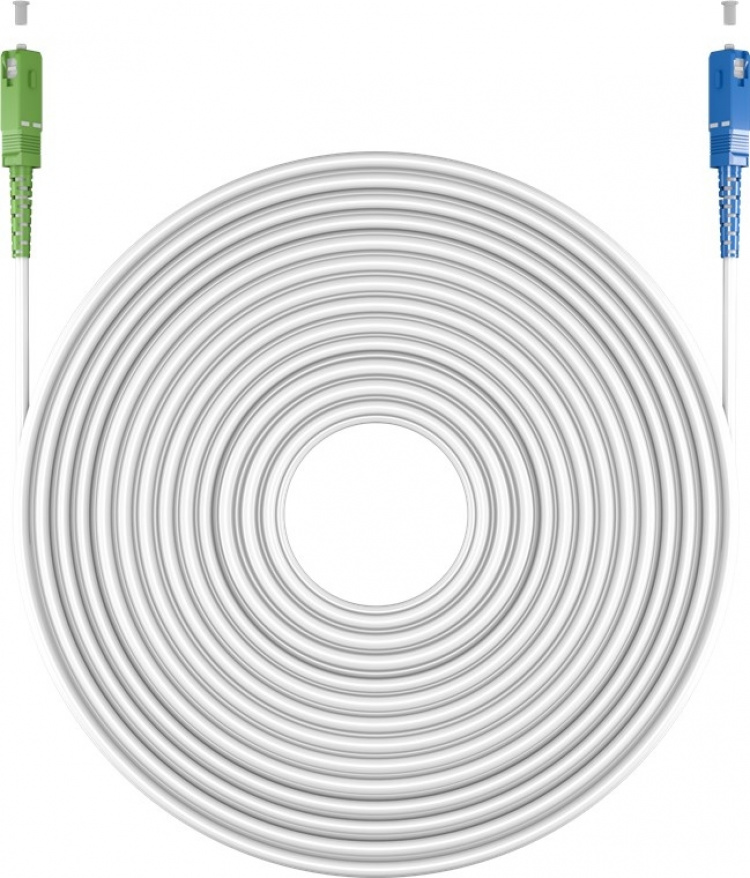

Goobay Fibre-optic Cable (FTTH), Singlemode (OS2) White,(Simplex) optical fibre (FOC), SC-APC (8°) male > SC-UPC male, halogen-free cable sheath (LSZH)
