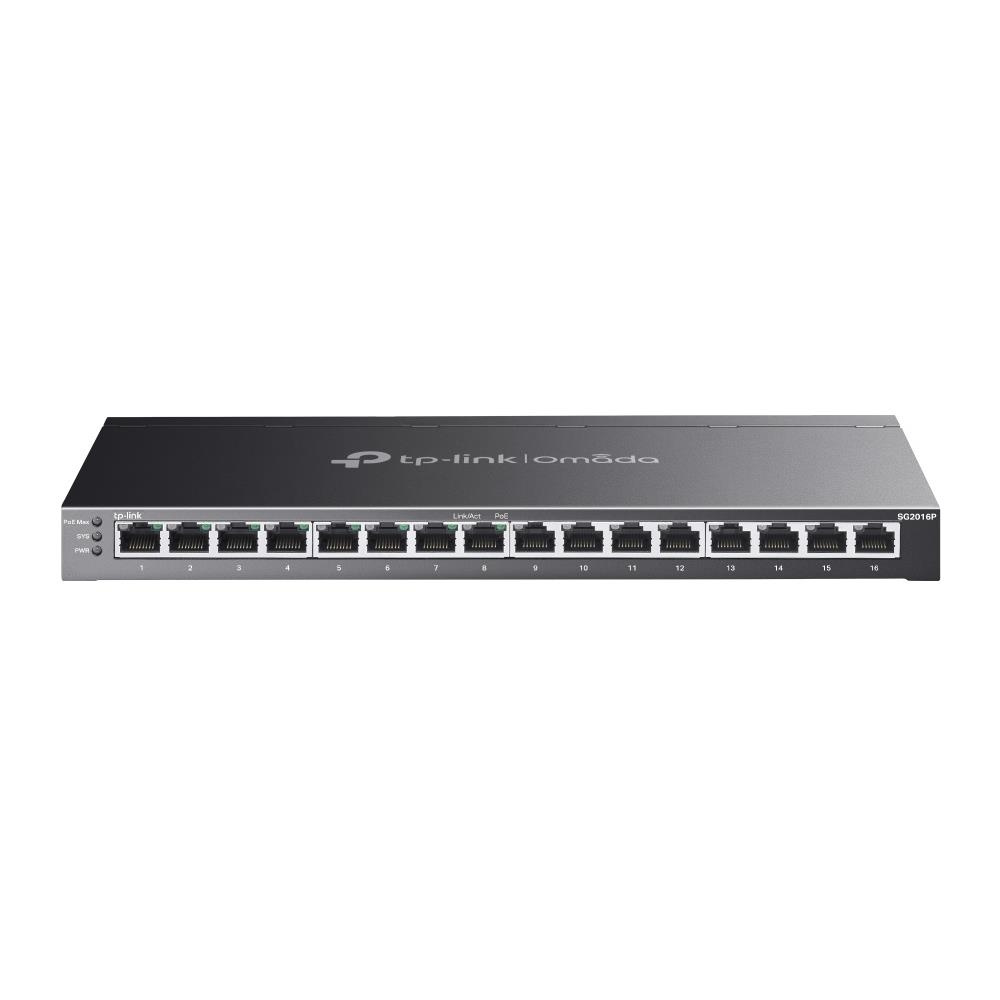

Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ SG2016P
- 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
- 120 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
General
- Switch Class
- Smart Managed
- Form factor
- Desktop
- Switching capacity
- 32 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 16 x 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
Features
- PoE
- Yes
- PoE Ports
- 8 x
- PoE Effect/Port
- 30 W
- PoE Budget
- 120 W
- Manageable
- Cloud Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Manageable
- Standalone, Webmanaged
Additional Information
- Power consumption
- 146.5 W (with 120 W PD connected)
- Included Accessories
- Power Adapter, Installation Guide, Rubber Feet
Packaging info
- Packaging size
- 444 x 230 x 73 mm
- Packaging weight
- 2.00 kg
4897098689493EAN:
