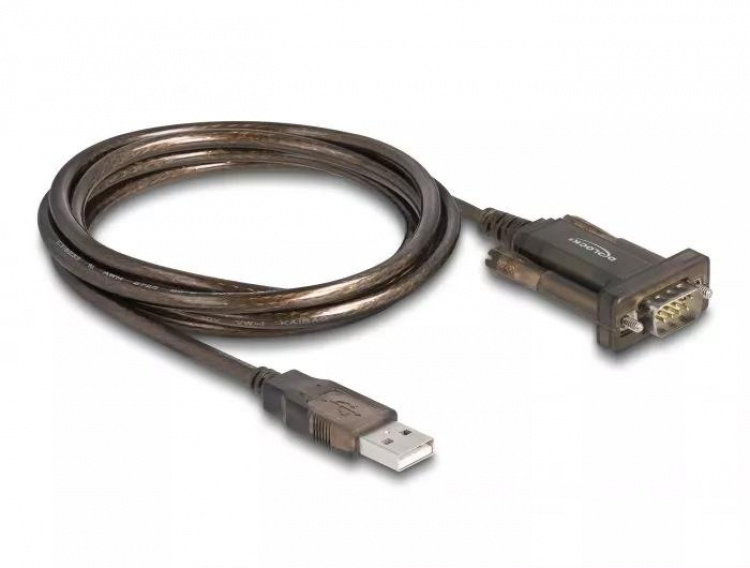

DeLOCK Adapter USB 2.0 Type-A > 1 x Serial DB9 RS-232

Article nr: C70512

Connectors: 1 x USB 2.0 Type-A male 1 x serial RS-232 DB9 male
Chipset: Prolific 2503
Data transfer rate up to 1 Mbps
Parity: even, odd, none, mark, space
Stop bit: 1, 1.5, 2
Data bit: 5, 6, 7, 8

€30.99

Qliro Checkout
50.000+ products
Great service

Information

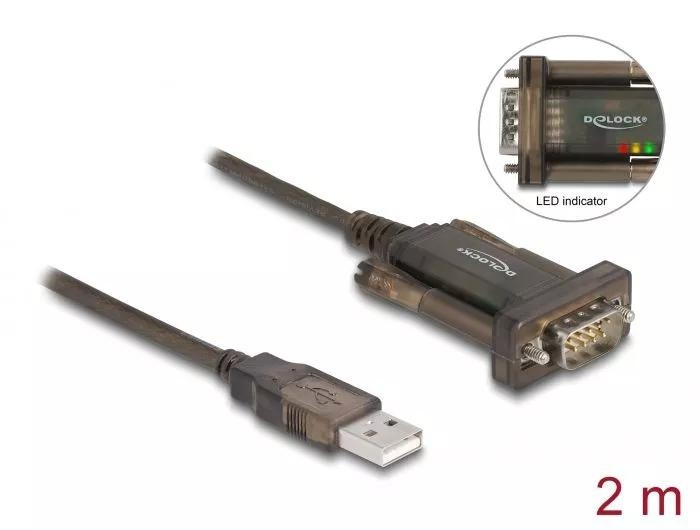

This USB Type-A to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices, etc.LED indicatorThree LEDs indicate at the RS-232 port the current transmission and reception status as well as the USB power supply.Easy installationThe integrated driver software makes the adapter quick and easy to install on the computer.

Connectors: 1 x USB 2.0 Type-A male 1 x serial RS-232 DB9 male
Chipset: Prolific 2503
Data transfer rate up to 1 Mbps
Parity: even, odd, none, mark, space
Stop bit: 1, 1.5, 2
Data bit: 5, 6, 7, 8
FIFO: 512 byte
LED colour: red, yellow, green

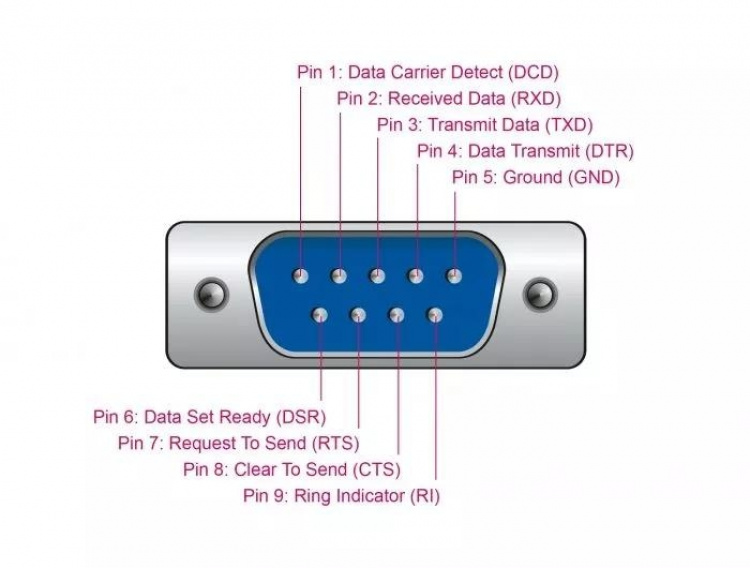

Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Length incl. connectors (L): ca. 2 m
