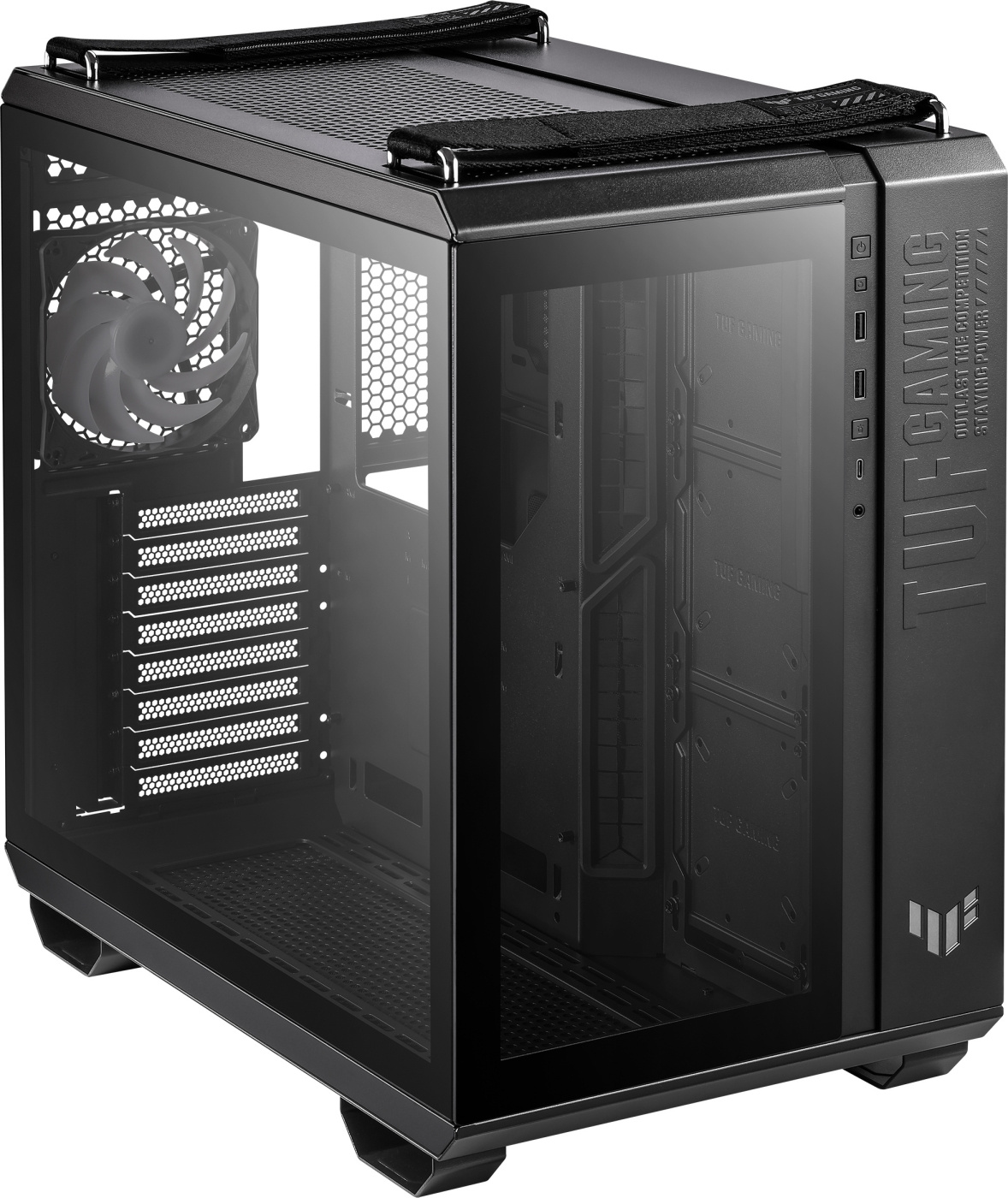

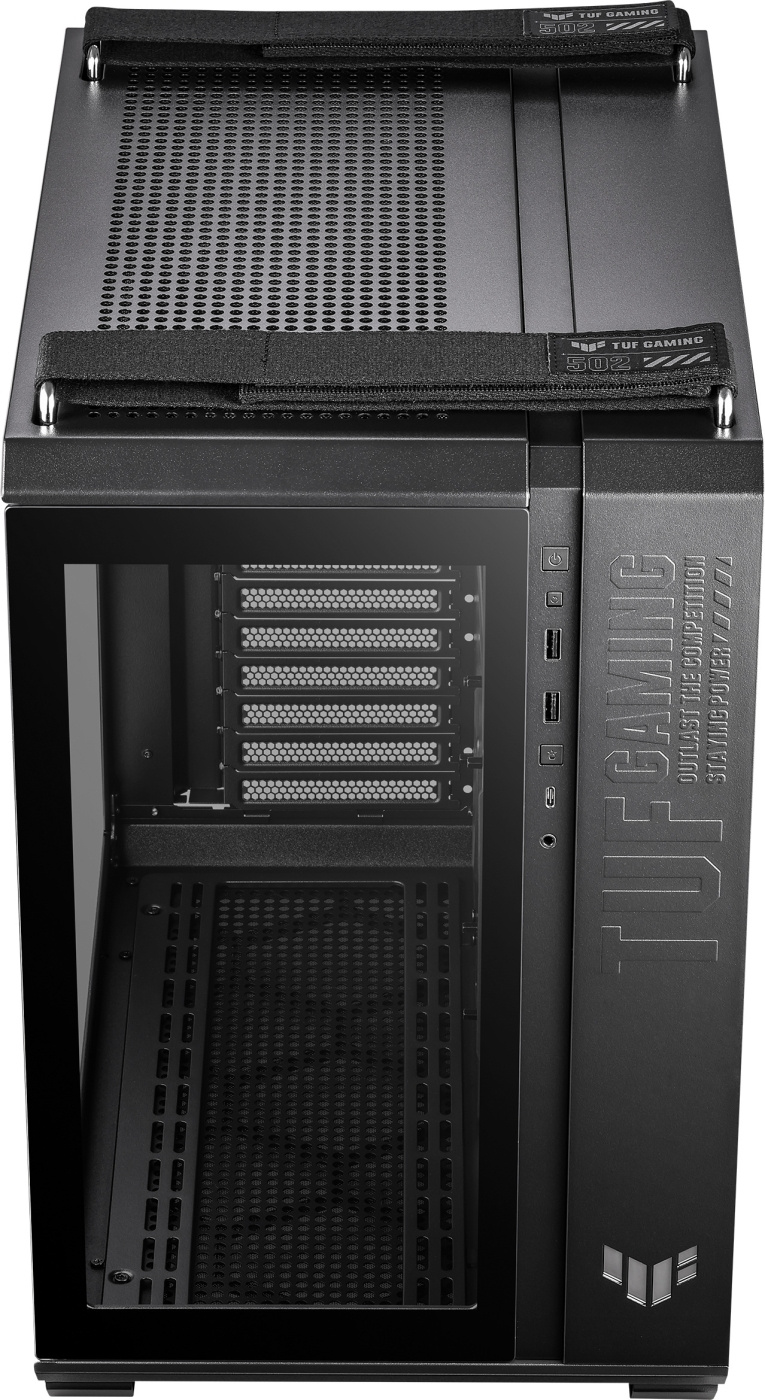

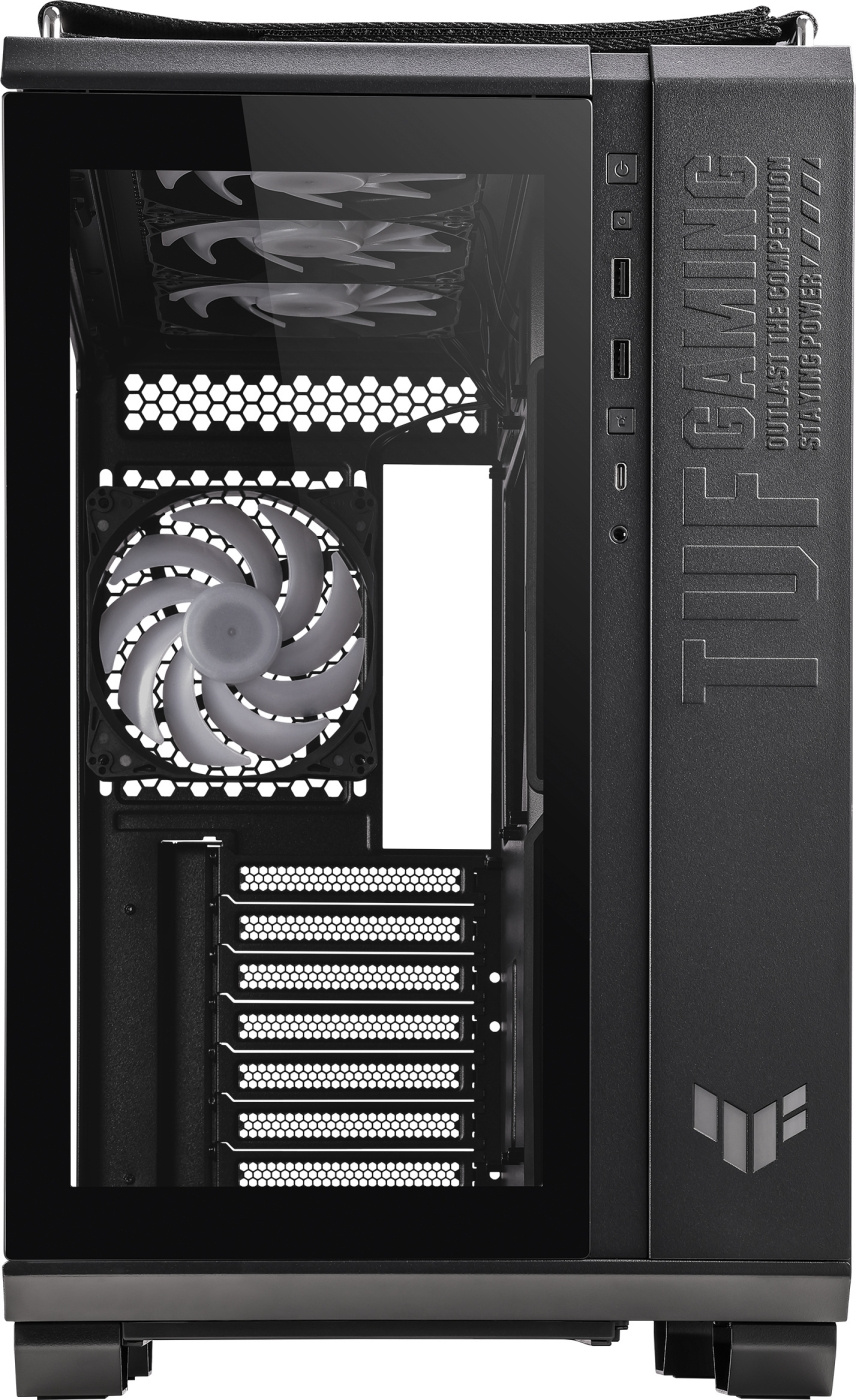

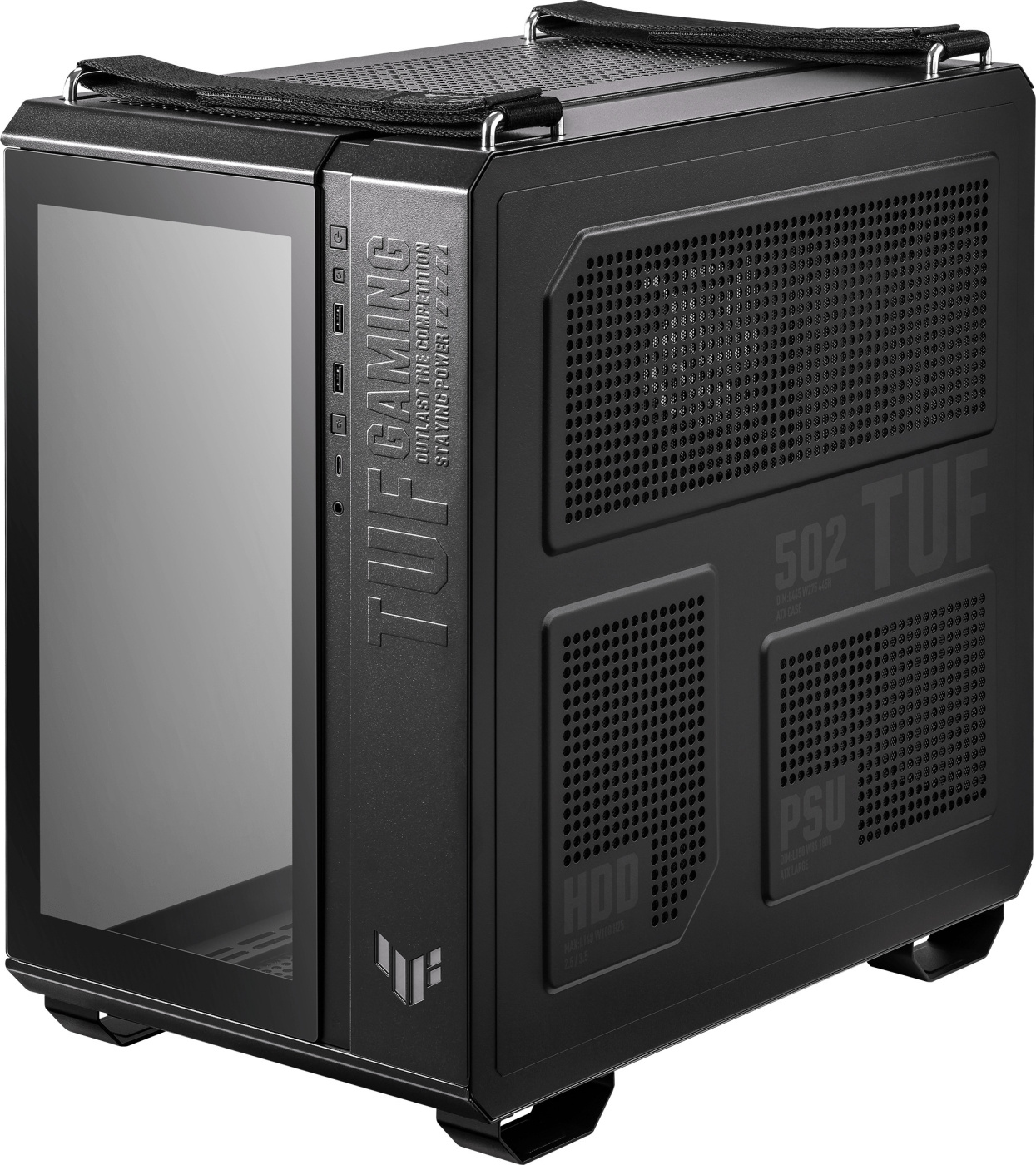

The TUF Gaming GT502 is a transformable case that offers flexibility in component placement and puts components in the foreground. A wide range of cooling options help keep the heat out and deliver extreme performance.

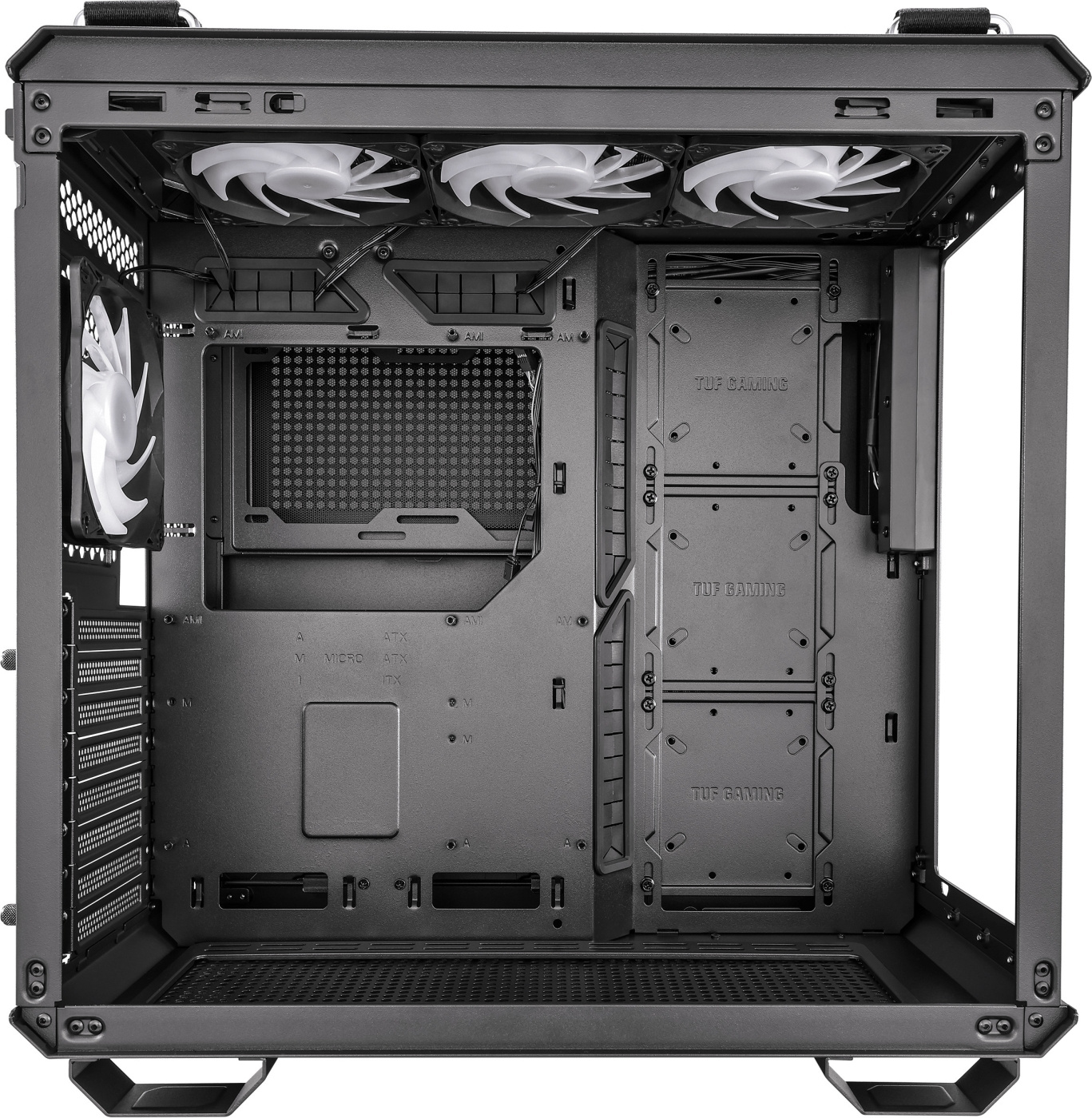

Dual-chamber design
GT502 chassis features dedicated cooling zones for the CPU and graphics card.

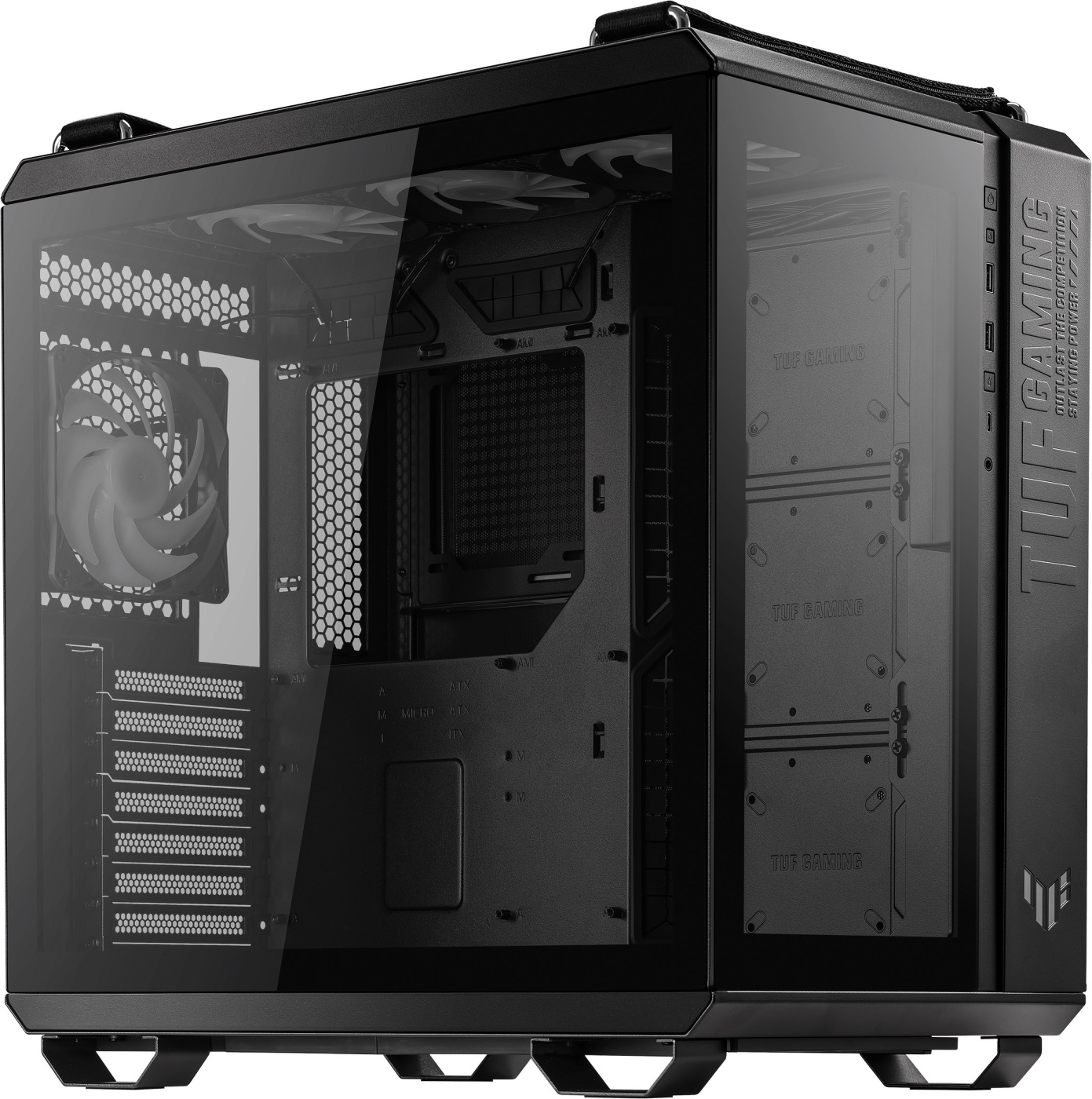

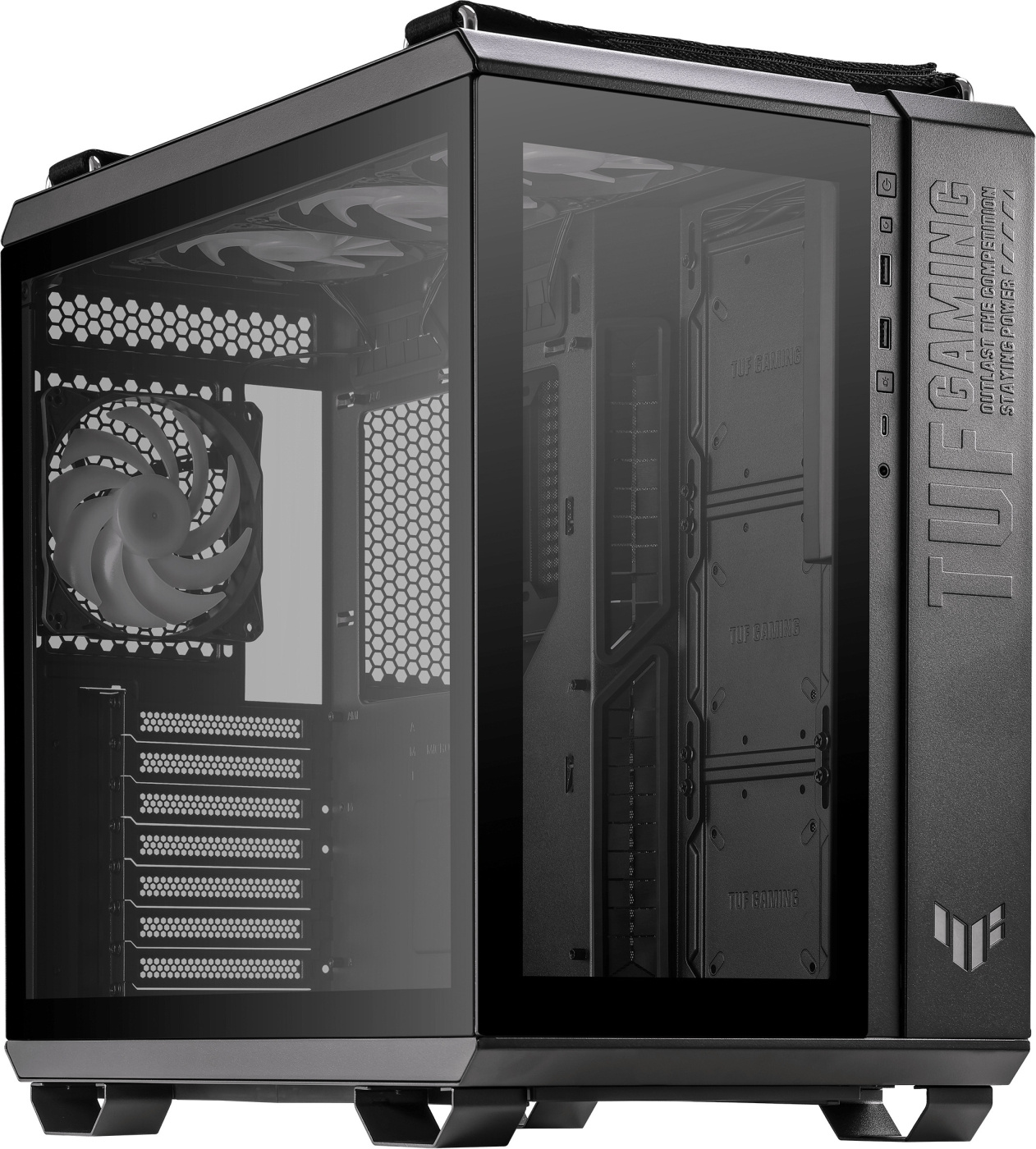

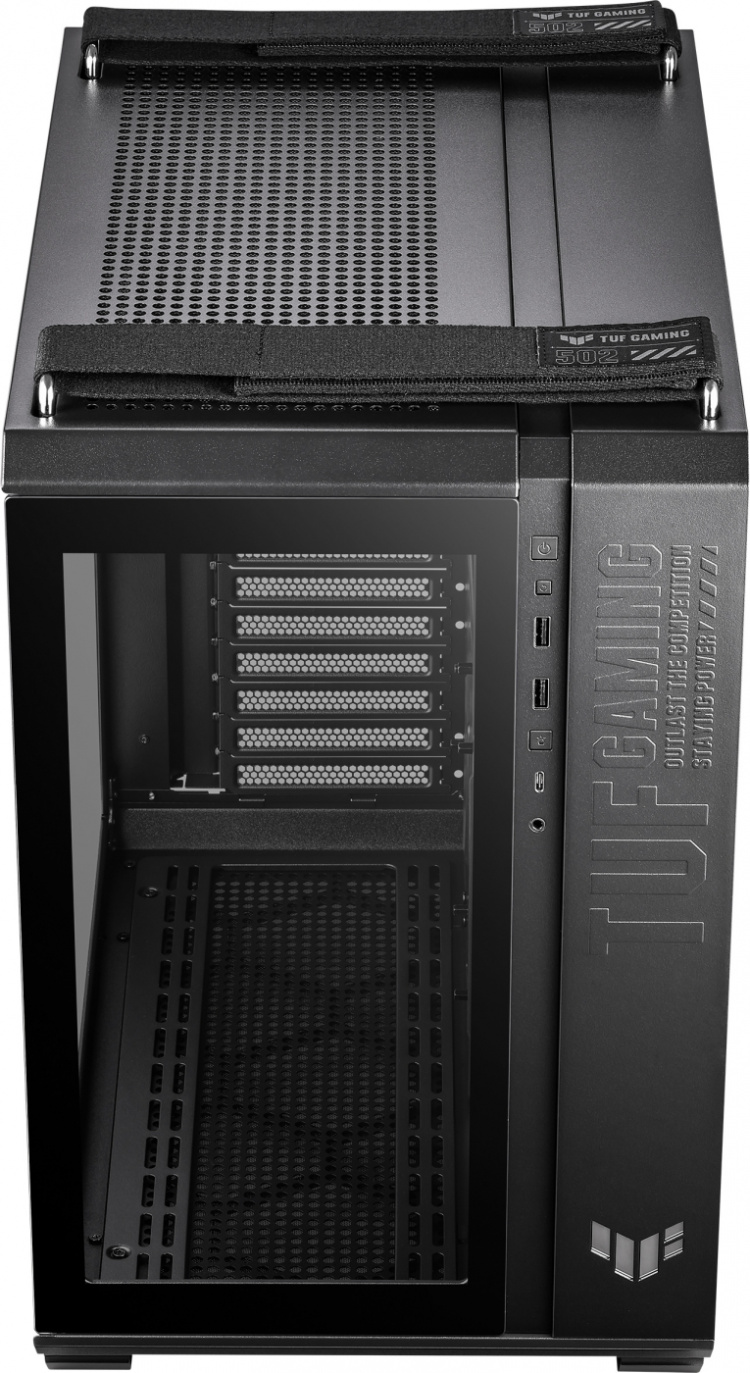

Panoramic view
Tempered and tinted glass panels provide a wide view to showcase your configuration.
Integrated ARGB hub
The ARGB hub supports up to six Aura Sync components and is neatly hidden under a stylish cover.
Fully modular design
Most panels and brackets are removable for easy component installation.

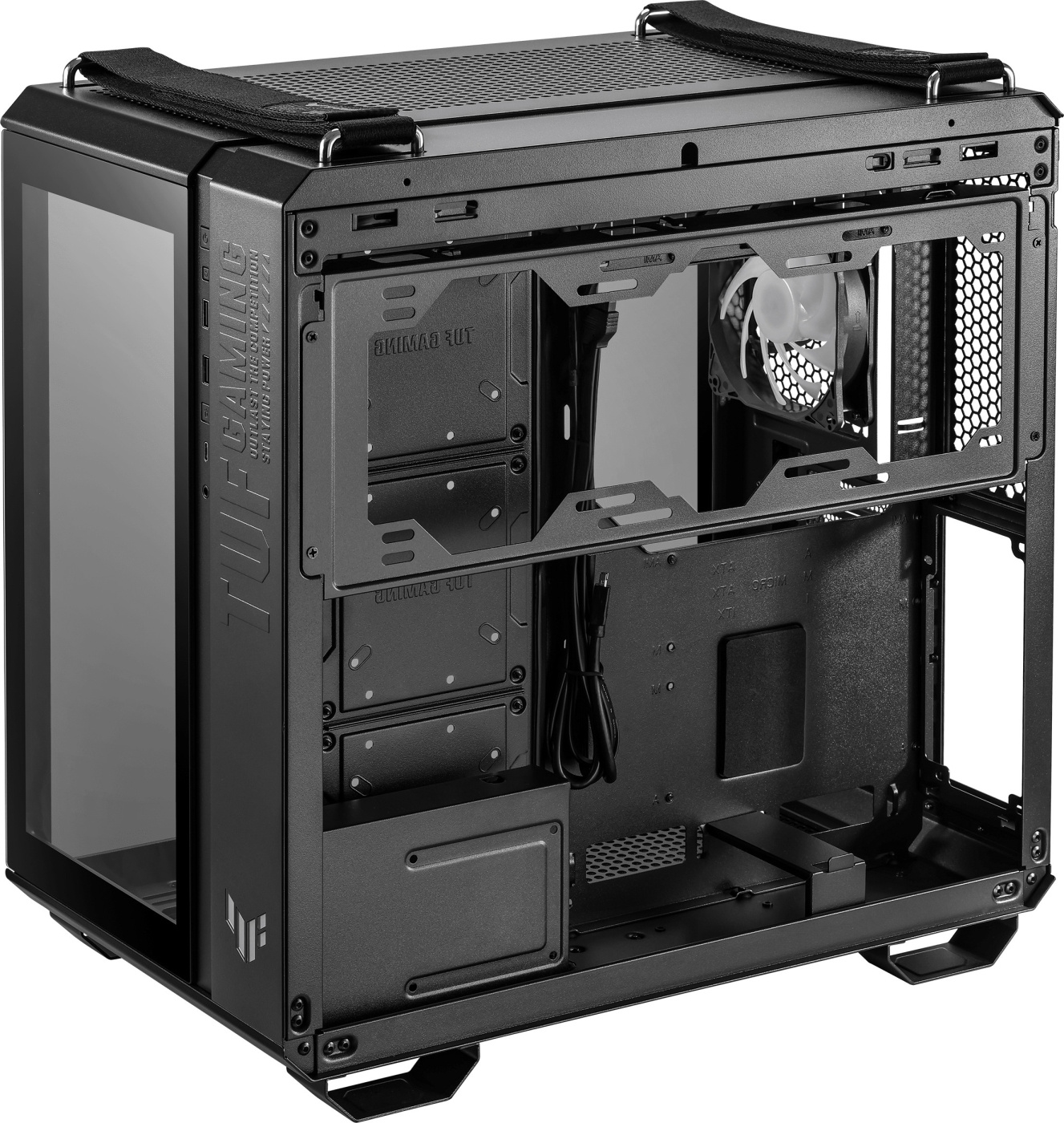

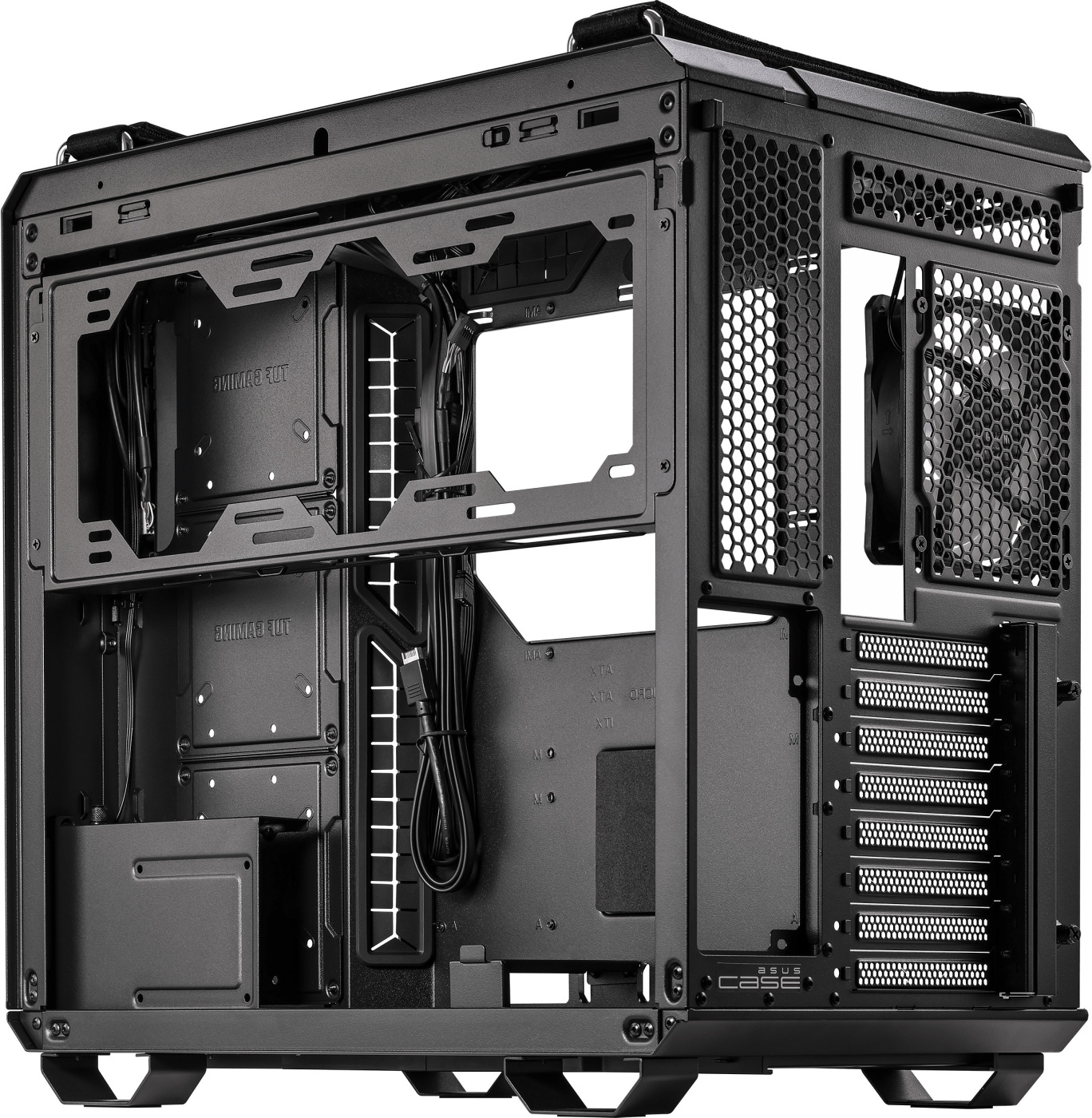

Hybrid function bracket
The 360 mm bracket in the rear chamber can support a combination of cooler and fan or three storage devices.
Monitor bracket for vertical mounting
Place your monitor in an upright position with the included vertical bracket* or place it directly on the motherboard and prevent it from hanging with the included support bracket. *PCIe extension cable not included.
- USB Type-C interface on front panel
- Tool-free side panels
Features:
- Motherboard support: ATX, Micro-ATX, Mini-ITX
- Size: Mid Tower
- Material: steel, plastic, tempered glass
- Internal 2.5"/3.5" slots: 4
- Internal 5.25" slots: -

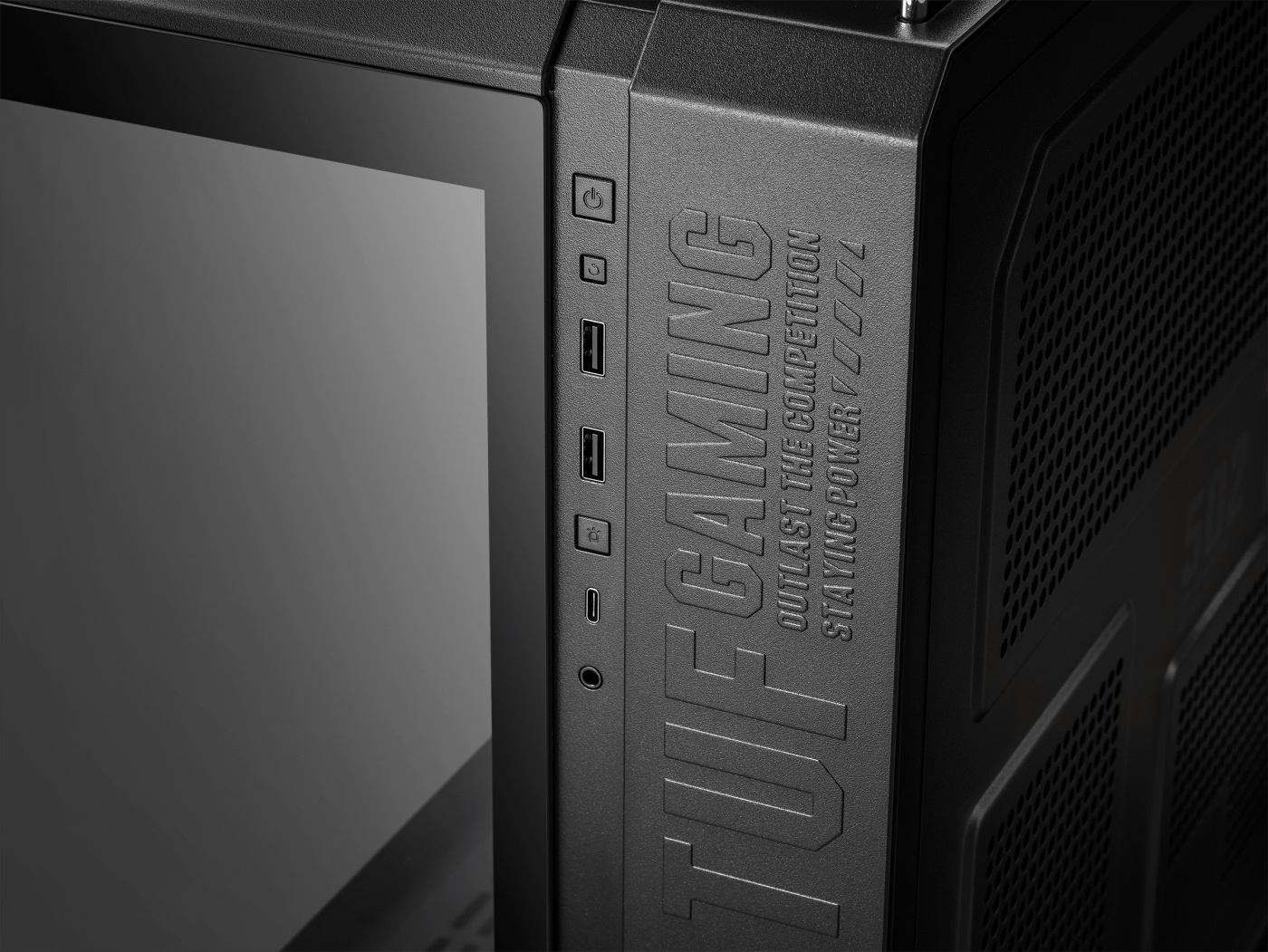

- Front panel: 2 x USB 3.1 (Gen. 1), 1 x USB 3.2 Gen2 Type C, 1 x headphone/microphone, LED control button
- Expansion slots: 8 (+3 vertical)
- Maximum height of processor cooler: 163 mm
- Maximum length of the display driver: 400 mm
- Maximum power supply length: 200 mm
- Dimensions: 285 x 450 x 446 mm
- Weight: 11 kg
- Dust filters: side, top and bottom
- Includes ARGB hub, graphics card support bracket and vertical mounting bracket
Fan slots:
- Ceiling: 3 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm
120 120 x 120 x 120 x 120 x 120 x 120 mm:
- Ceiling: 120 mm / 140 mm / 240 mm / 280 mm / 360 mm
- Rear: 120 mm
- ATX enclosure
- Panoramic view with glass panels
- Double chamber design, ARGB-hub
- Fully modular design
- Includes graphics card brackets
