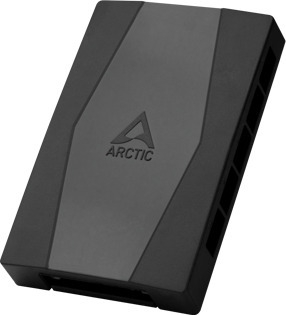

The Arctic Fan Hub has 10 4-pin PWM ports that make it easy to synchronize fans. The hub can be freely positioned in the case with the included stickers or magnets and connects to the motherboard with a single SATA cable.
The set PWM signal is transmitted to all fans connected to the fan hub. The RPM of the first fan position is read and returned to the system. Even if there are not enough fan slots on the motherboard, the hub expands the system by nine fan slots. The fans are powered directly from the power supply via a SATA connector which results in no voltage drop to the fan speeds.
- Size: 55.6 x 86.3 x 14.3 mm
- Weight: 50 g
- Connections: 10 x 4-pin PWM, SATA power

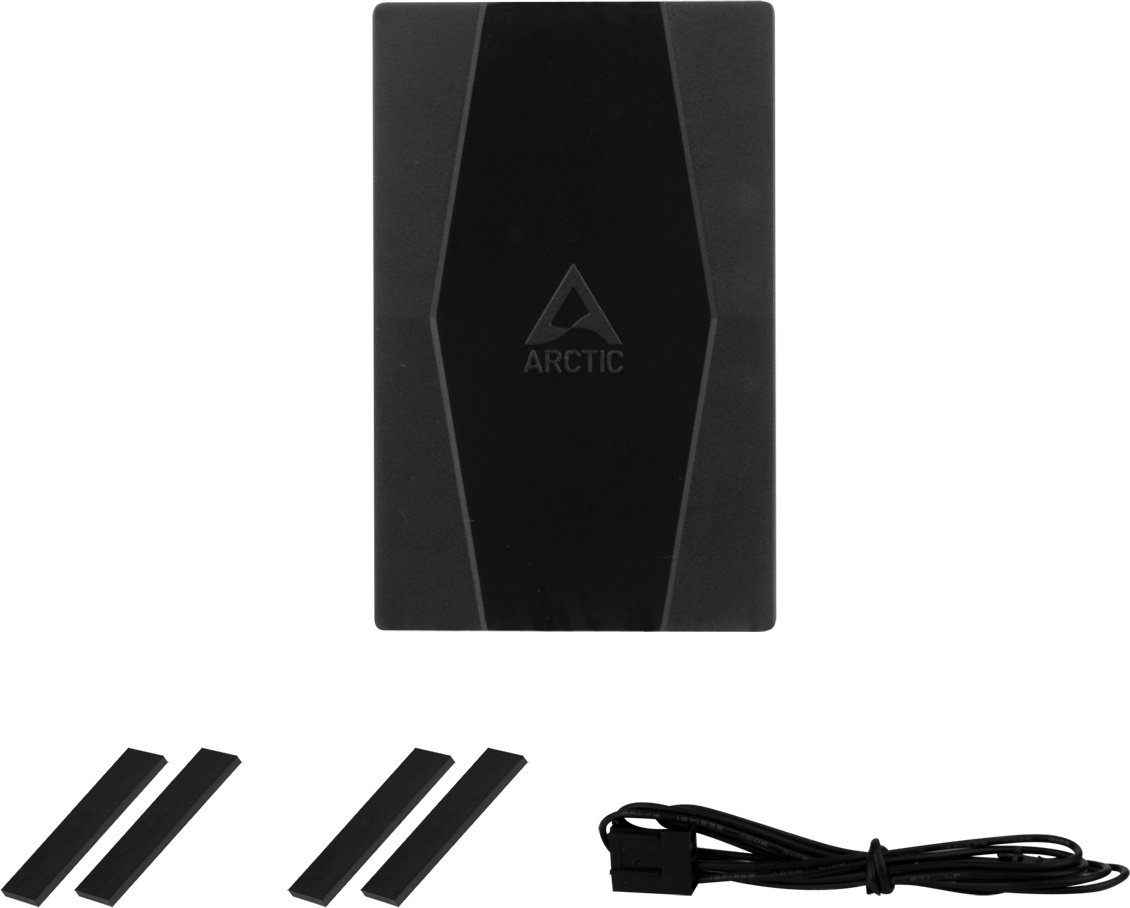

Accessories in the package: SATA cable, 2 x magnetic clamp, 2 x Velcro fasteners

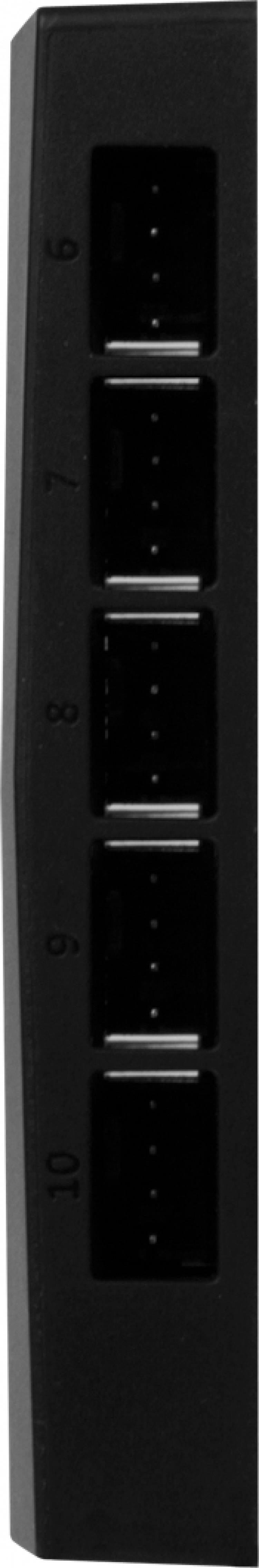

- 10 ports, 4-pin PWM

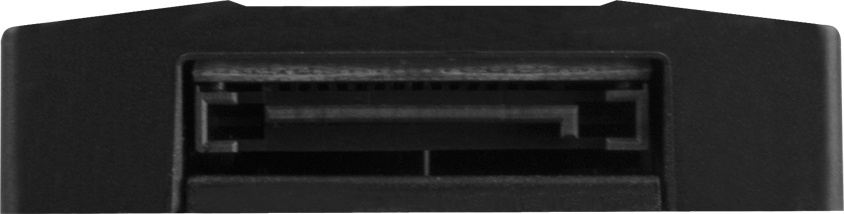

- SATA power connector
- Mounting with magnets and stickers
- Extra fan slots
