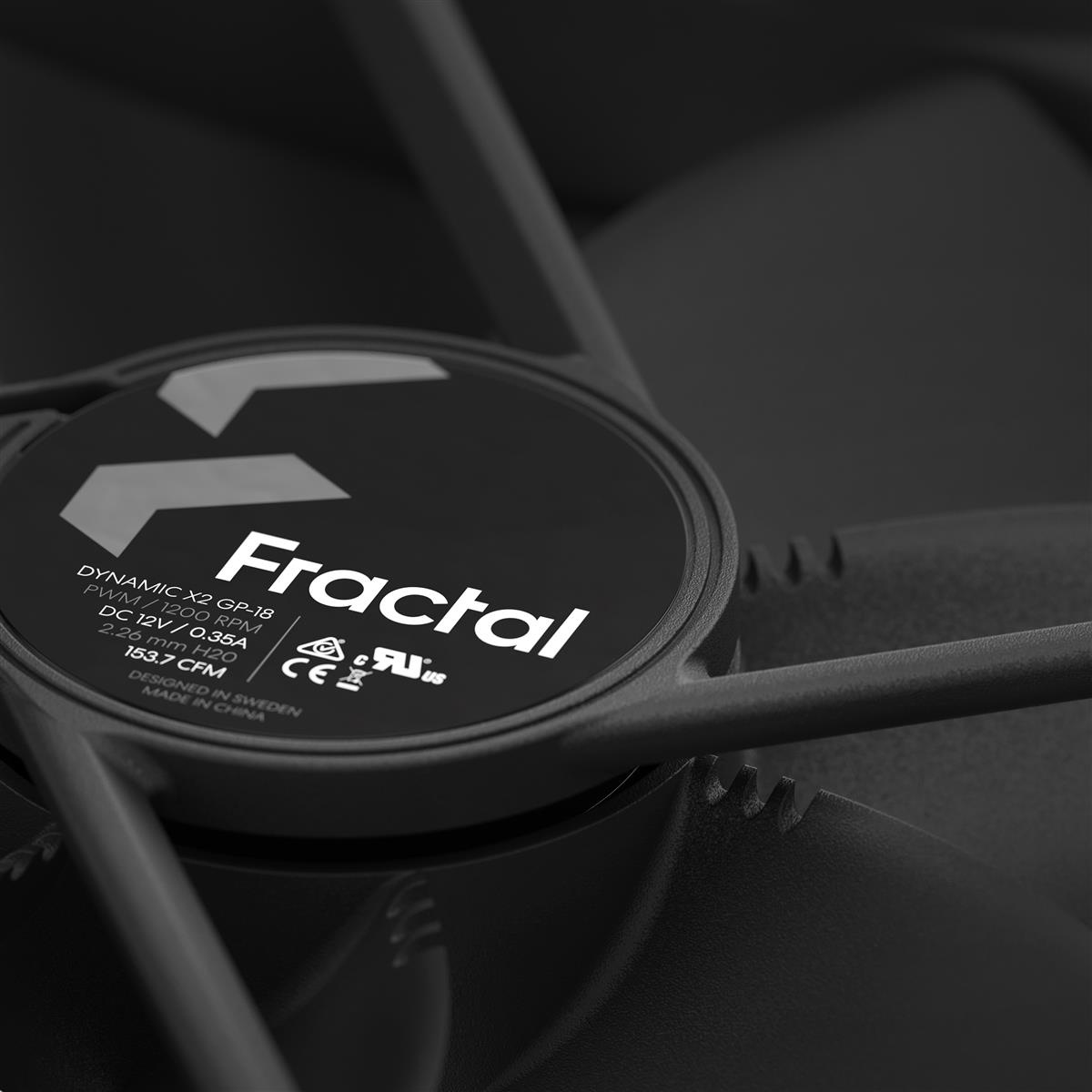

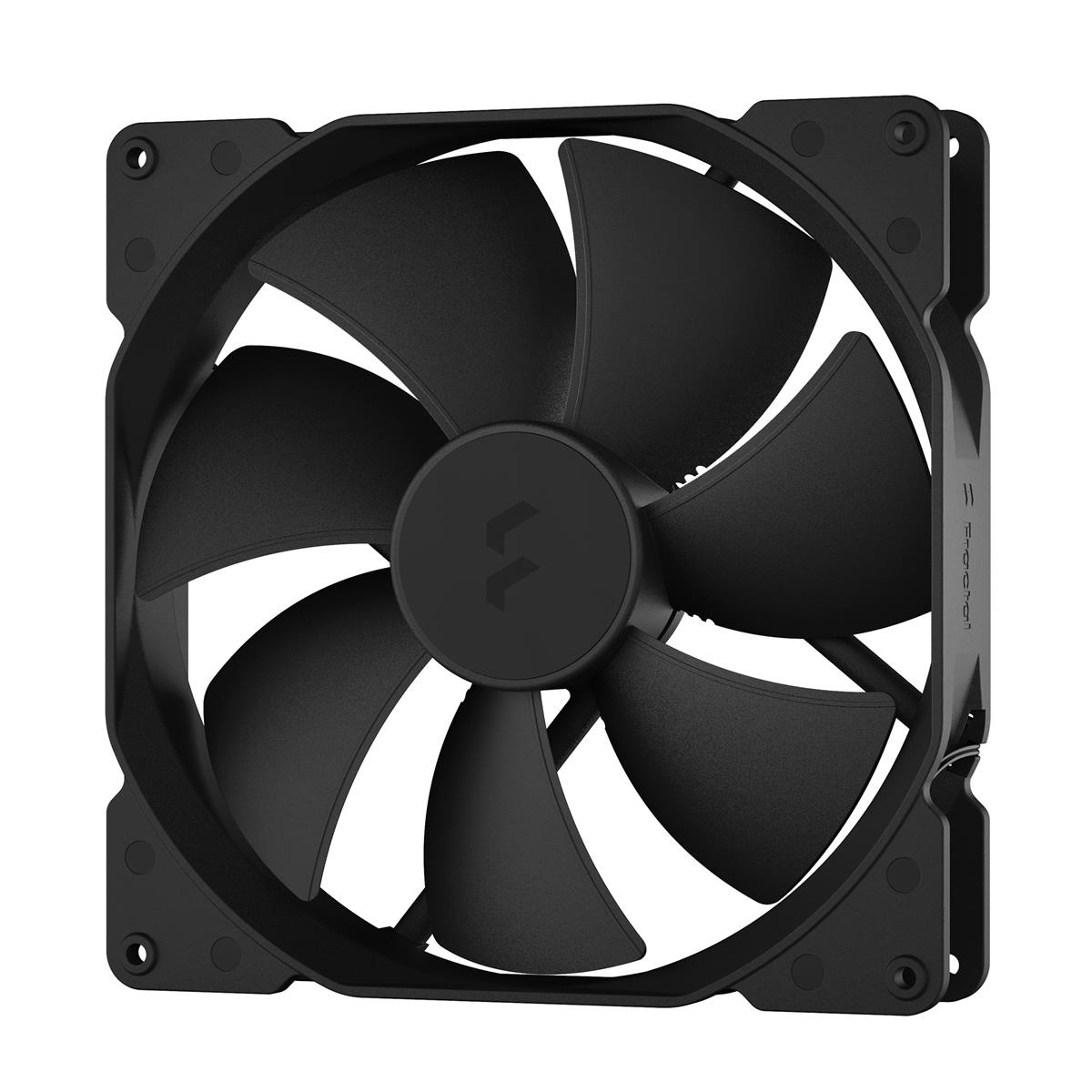

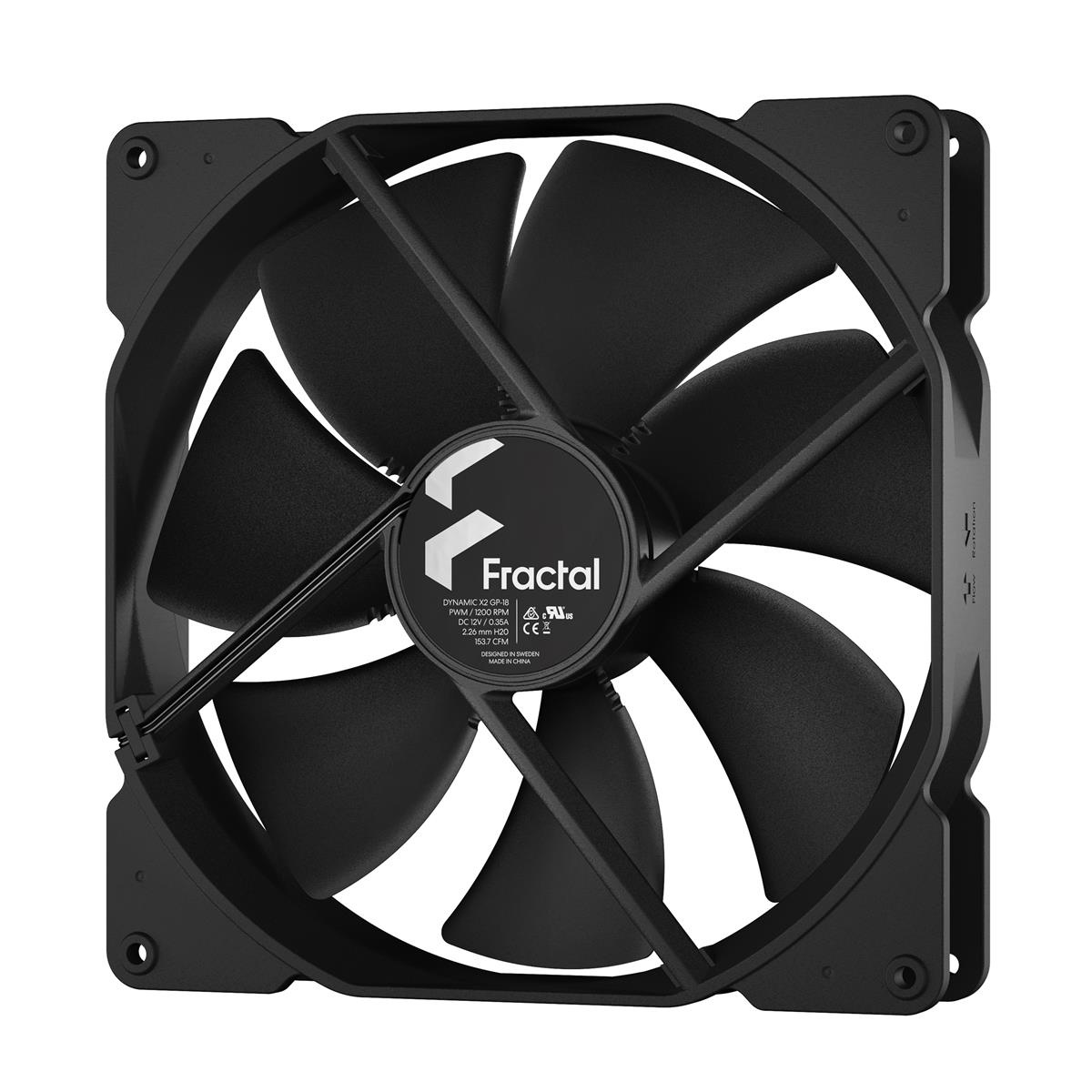

The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
Optimized fan geometry
- Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
- Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability

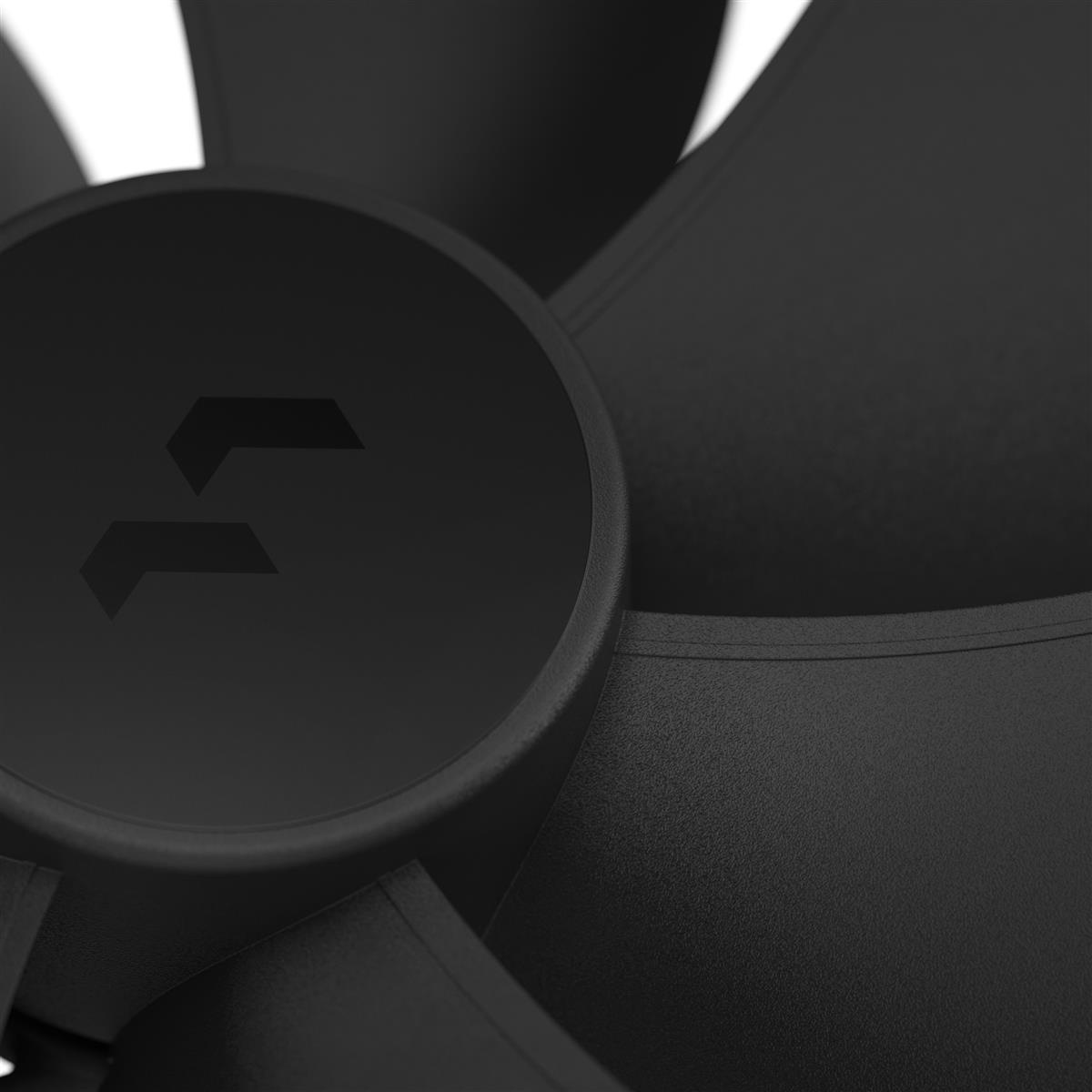

Notched blade design
- Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
- Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
General
- Fan size
- 180 mm
- Noise level
- 35.4 dB (hög hastighet)
- Air flow
- 153.7 cfm (max)
- Static pressure
- 2.26 mmH2O (max)
- RPM
- 1,200 rpm
- Units per package
- 1 pcs.
Packaging info
- Packaging size
- 180 x 182 x 38 mm
- Packaging weight
- 538 g
7340172702573EAN:
