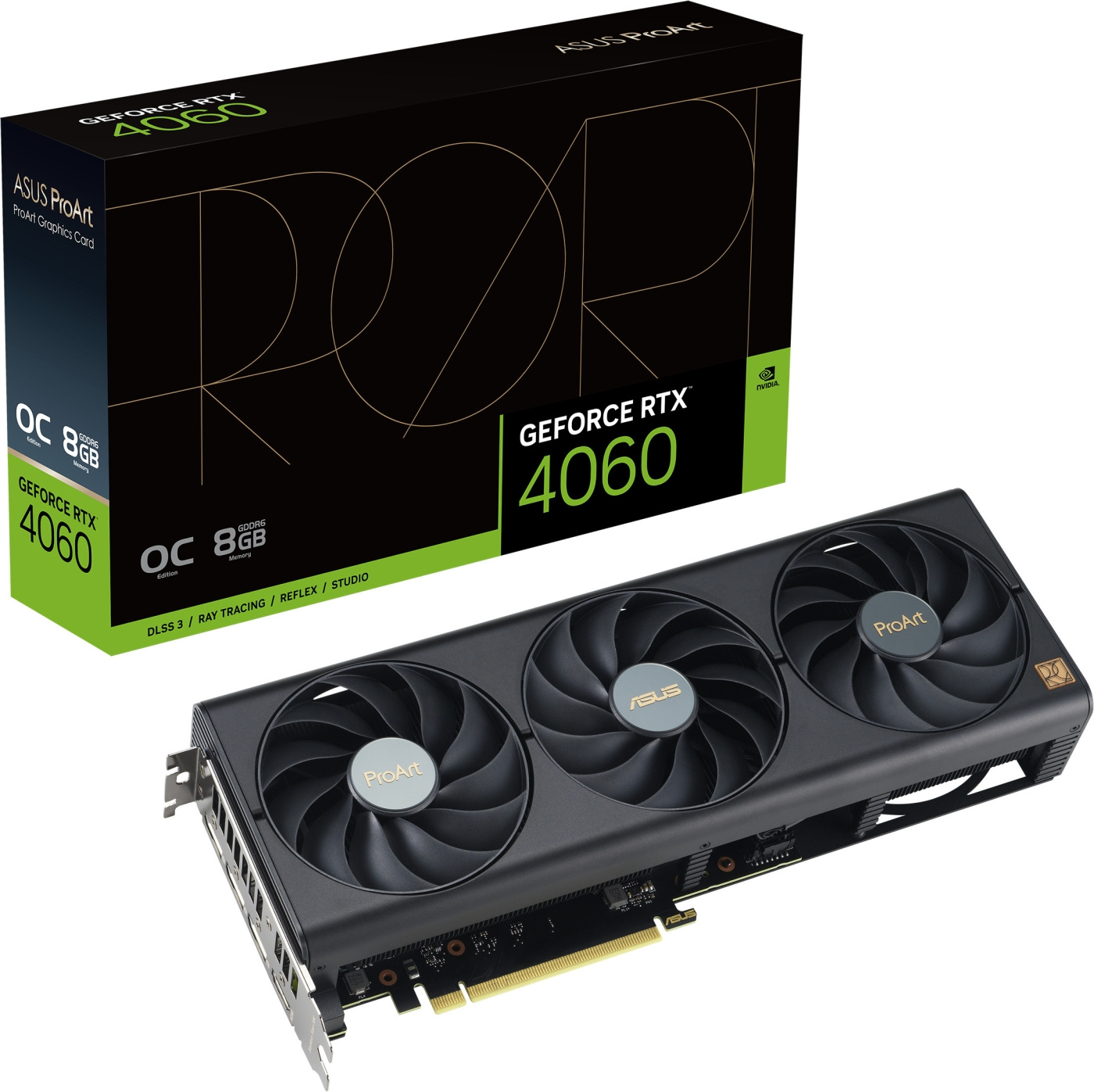

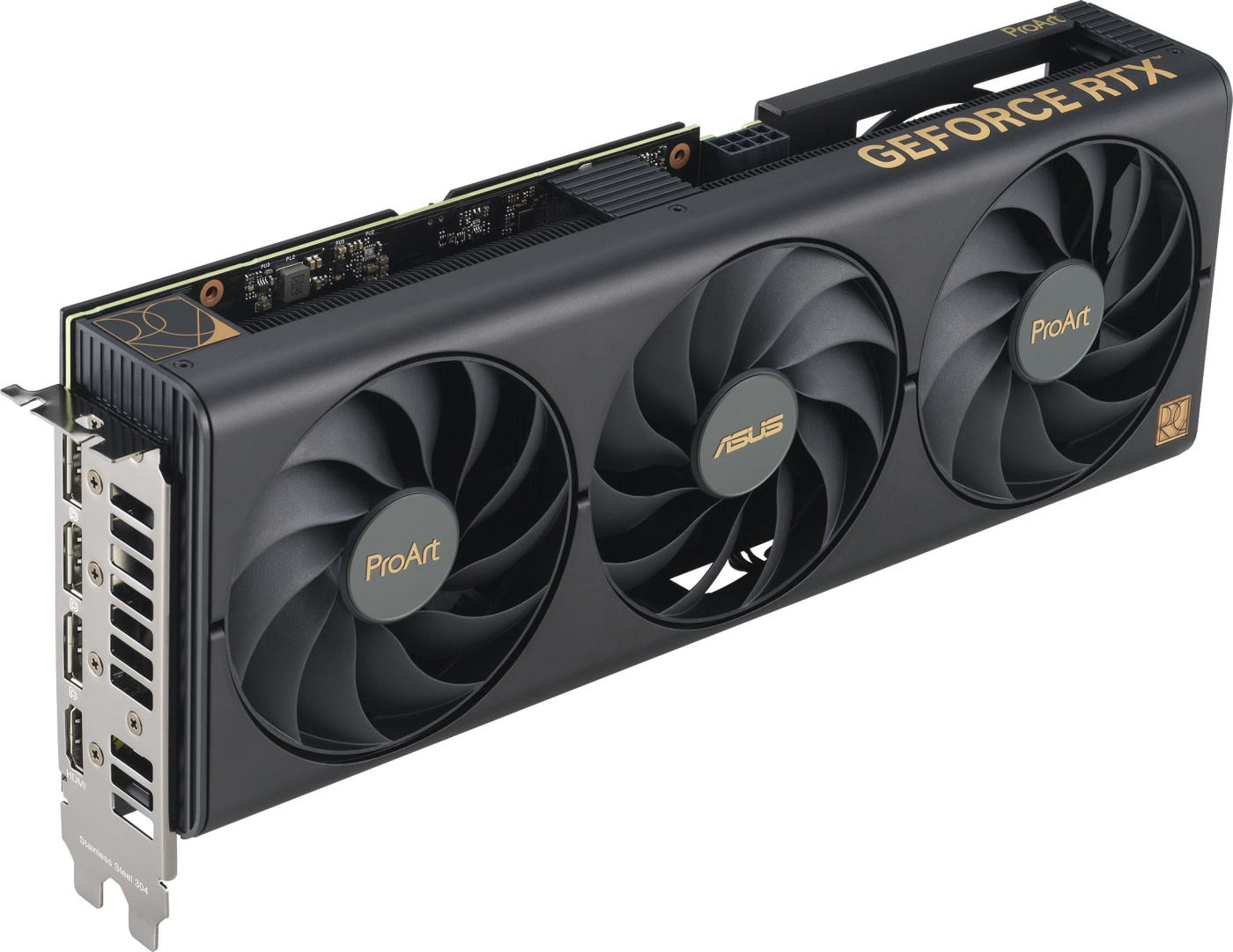

Compact. Creative. Powerful.
Blur the boundaries between imagination, the digital world and reality. The ProArt GeForce RTX™ 4060 wraps impressive Ada Lovelace architecture and high-performance cooling in a 2.5 slot form factor to deliver awesome creative power in both compact configurations and full-size workstations.

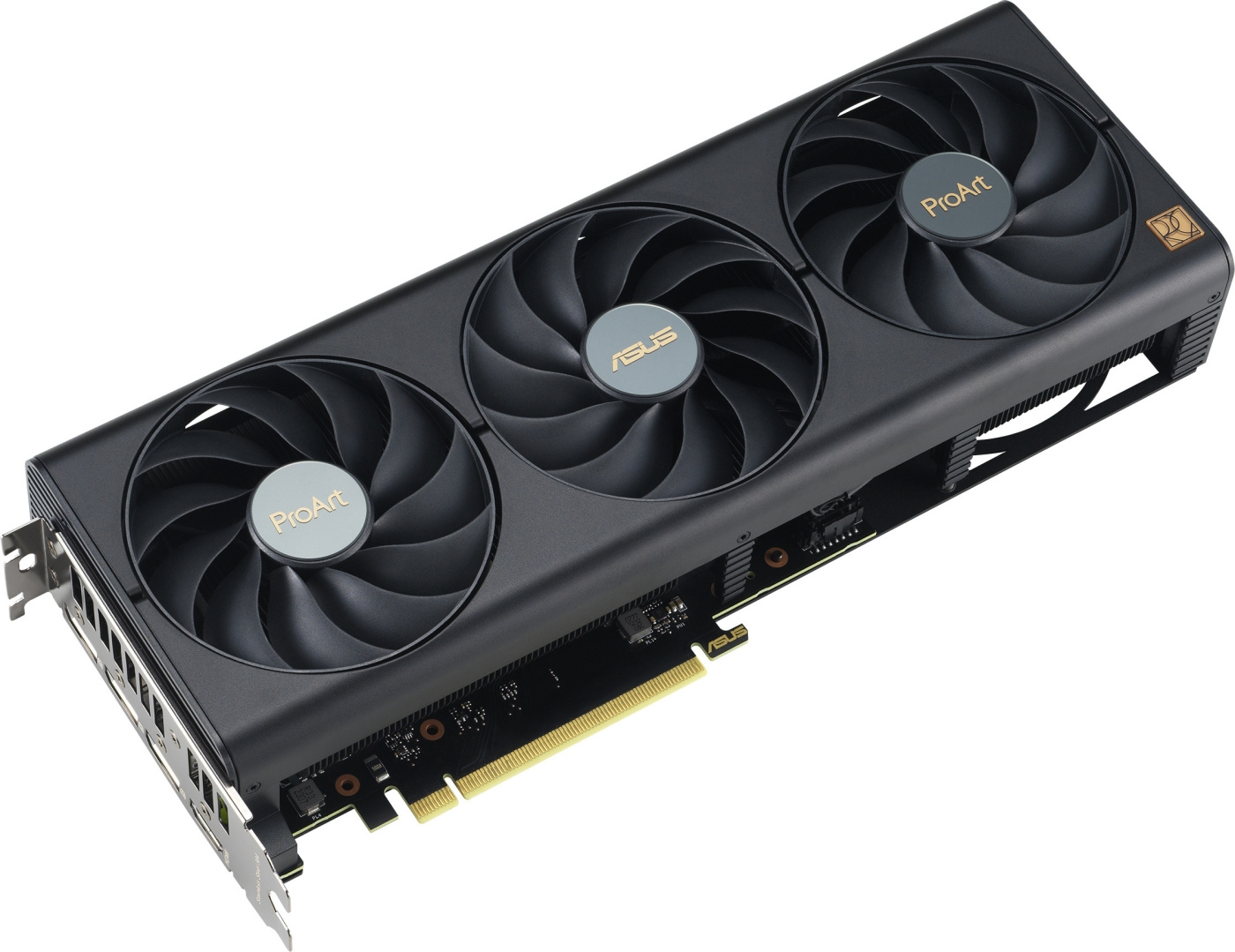

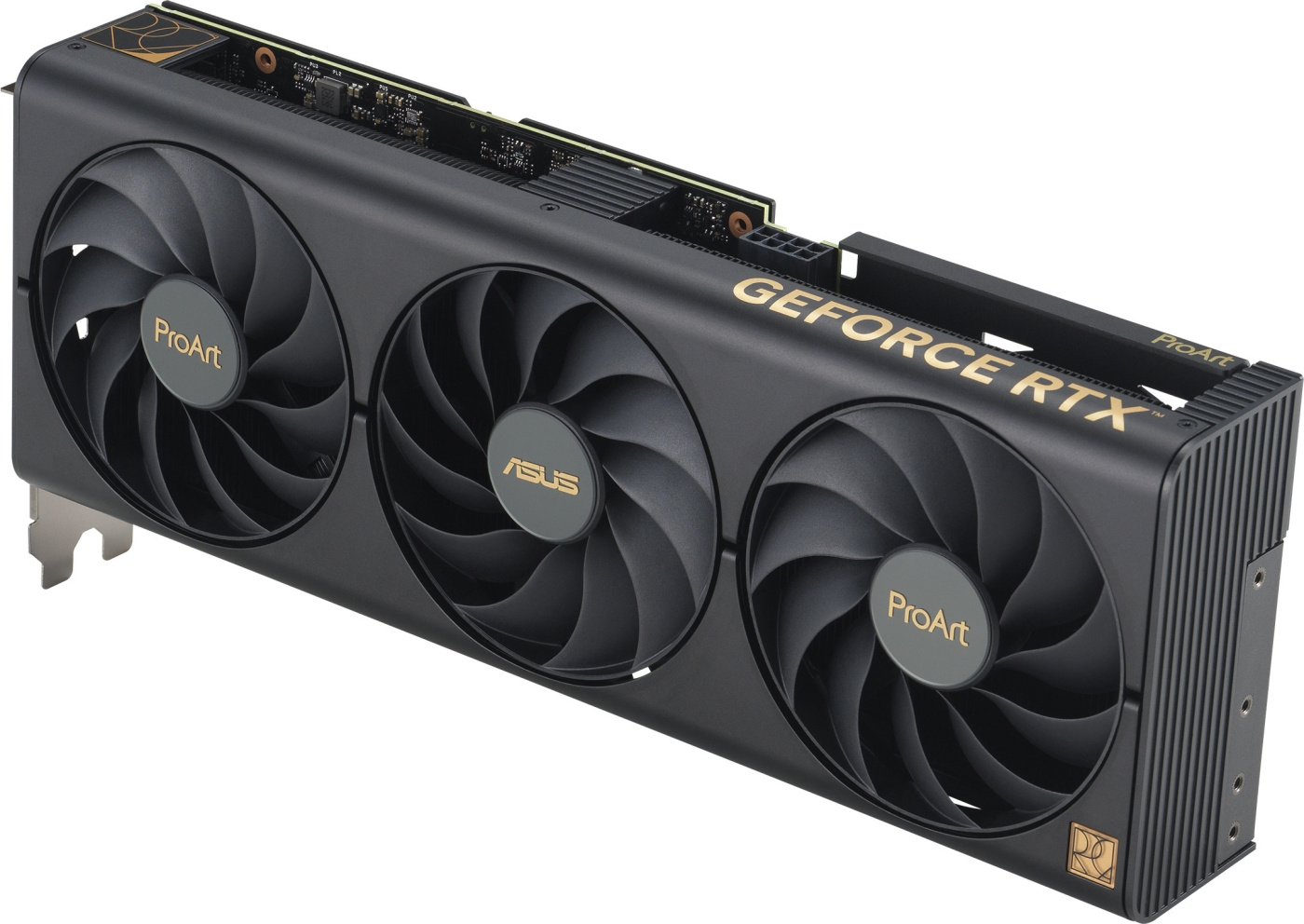

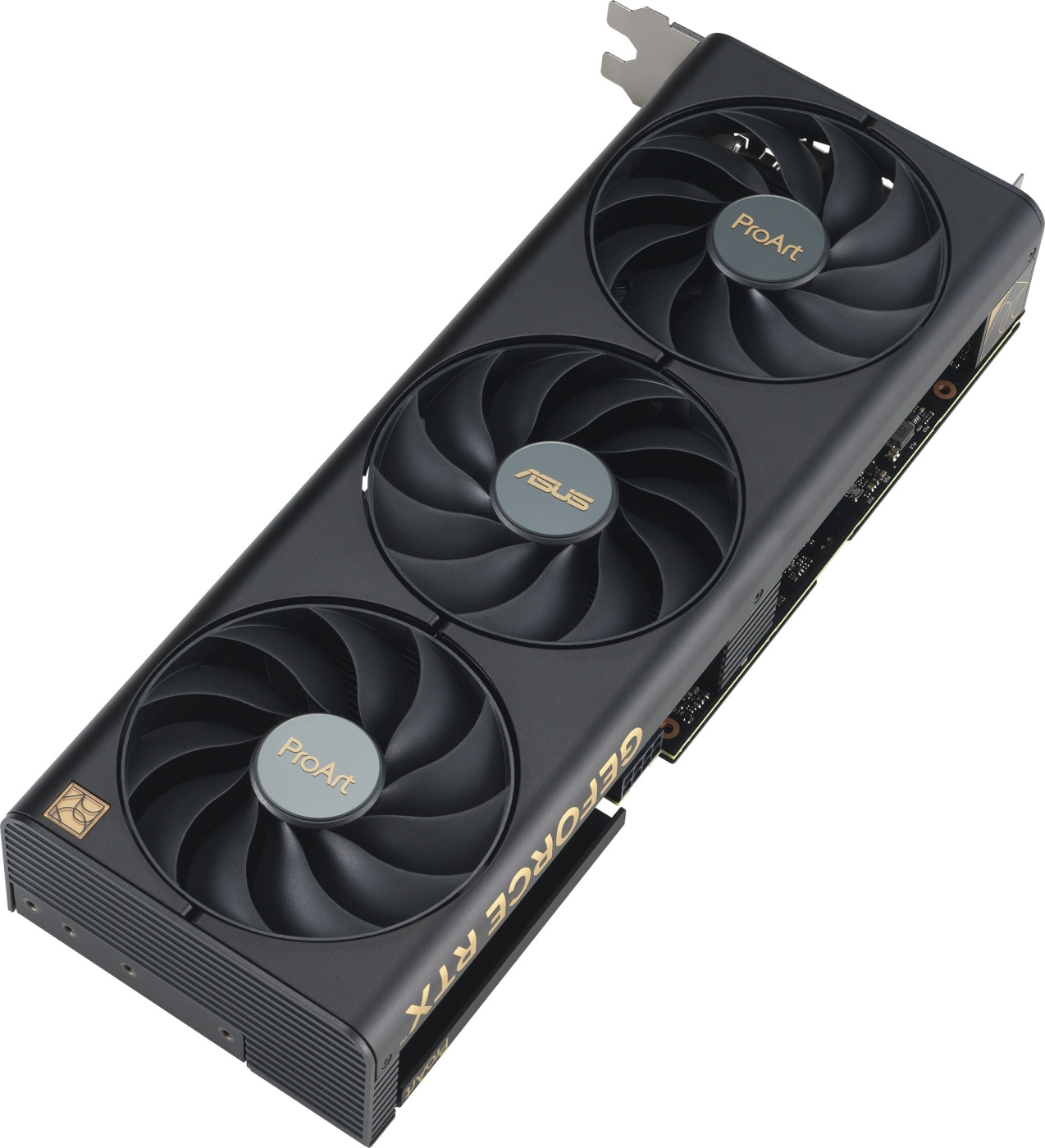

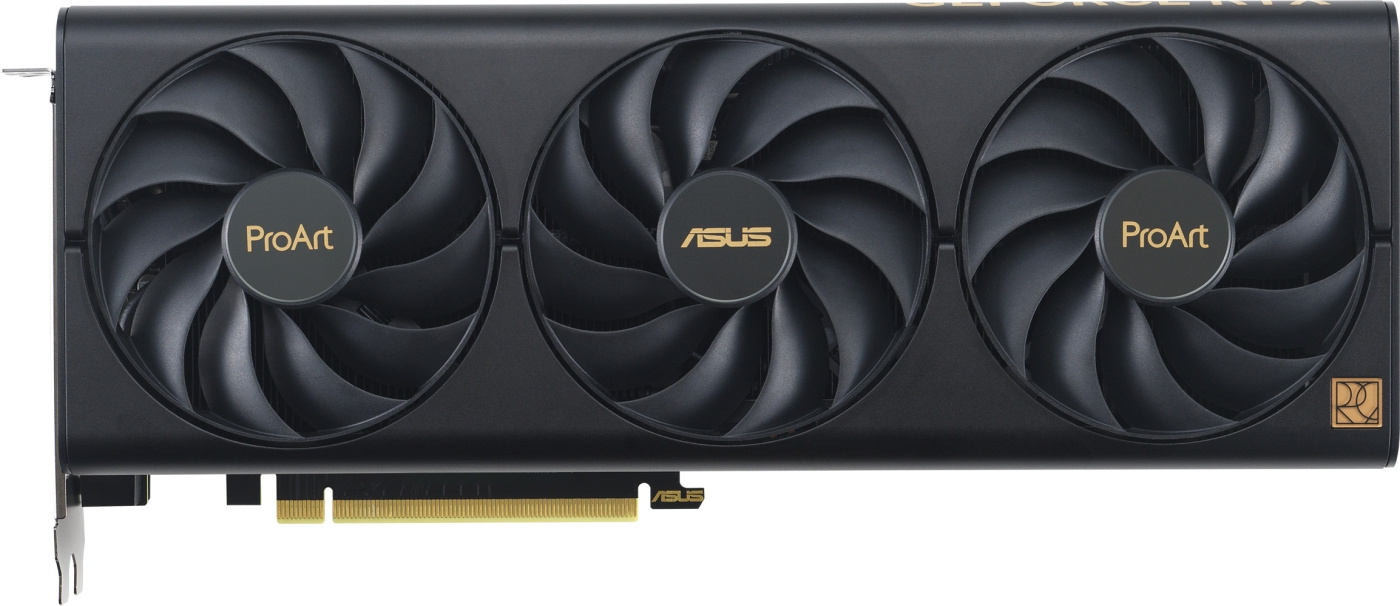

Axial-tech fan design
Bigger and better. Axial-tech fans are double-bearing and designed to move 21% more air through the card, supporting lower temperatures, quieter noise and better performance.
Reverse rotation and silent technology
The two peripheral fans rotate counterclockwise, minimizing turbulence and maximizing airflow through the heat sink. All three fans stop when the GPU temperature is below 50 degrees, allowing for relatively quiet operation of lighter games or tasks. The fans restart when the temperature exceeds 55 degrees. This balances performance and noise levels according to the demands of work and gaming.

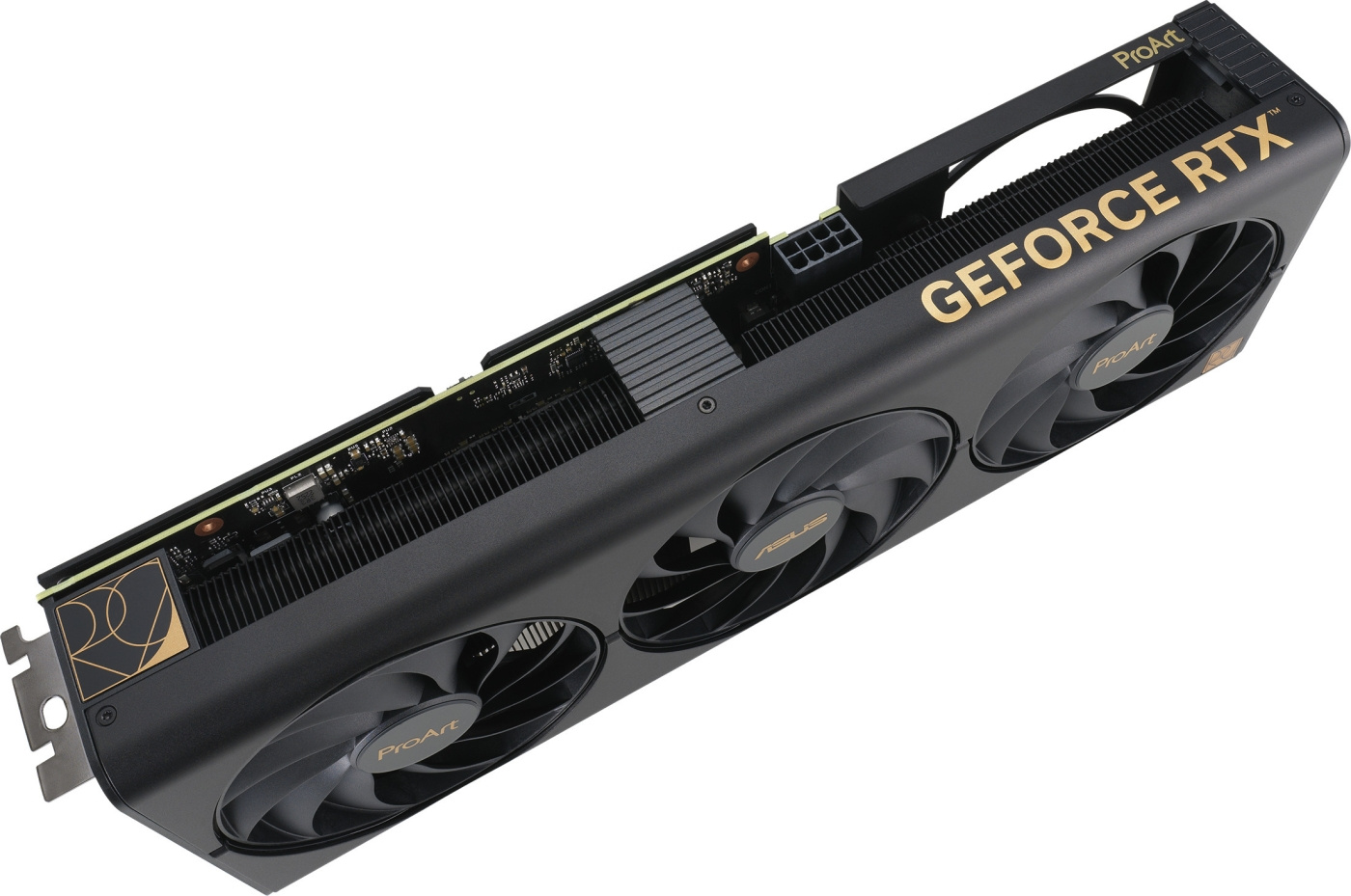

2.5-seat design
Heat pipes efficiently absorb heat into the silo, which is optimised for the airflow of Axial-tech fans. The entire setup is wrapped in black, in keeping with the ProArt theme.
Premium power supply
Digital power control, high current power ratings and capacitors rated for 15,000 hours of operation allow performance to be taken to the extreme.
Compact circuit board

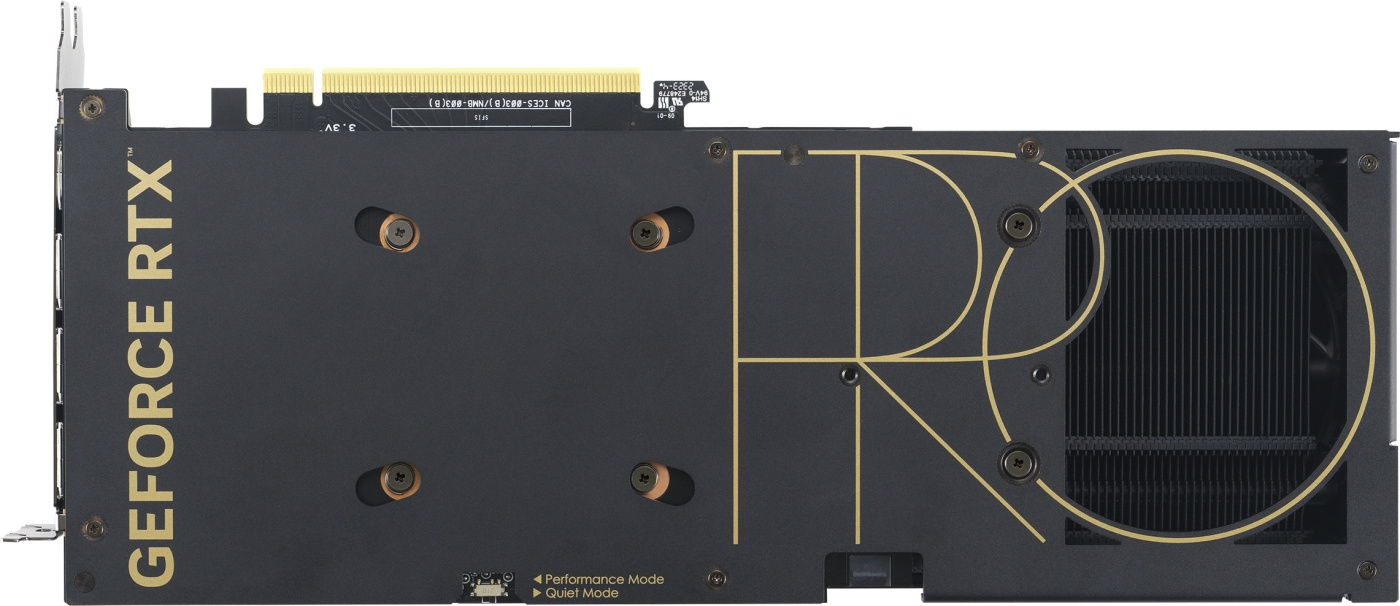

The layout of components and conductors is optimised for a short PCB, reducing power dissipation and allowing heat to escape through the large aperture in the backplane.
Auto-Extreme technology
Auto-Extreme technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be done in one go. This reduces the thermal load on components and eliminates the need to use harsh cleaning chemicals, resulting in lower environmental impact, lower manufacturing power requirements and an overall more reliable product.
Software package
The hardware works in perfect harmony with the software, so you can customise the experience to your liking and get the most out of your graphics card. GPU Tweak III software lets you tweak and monitor hardware performance, and QuantumCloud uses your unused GPU power as an input source.
Let NVIDIA Studio accelerate your ideas
Put your creativity to the test. NVIDIA Studio provides RTX and AI acceleration for the best creative applications, NVIDIA Studio drivers for the best stability, and a suite of exclusive tools to bring your next great idea to life.
Features:
- Chip: GeForce RTX 4060
- Model: ProArt GeForce RTX 4060 8GB OC Edition GDDR6 Graphics Card
- Number of CUDA cores: 3072
- Clock speed OC mode: 2580 MHz
- Clock speed Default mode: 2550 MHz
- Memory: 8GB, 128-bit GDDR6
- Memory clock speed: 18 Gbps
- Bus: PCI-Express 4.0 x16

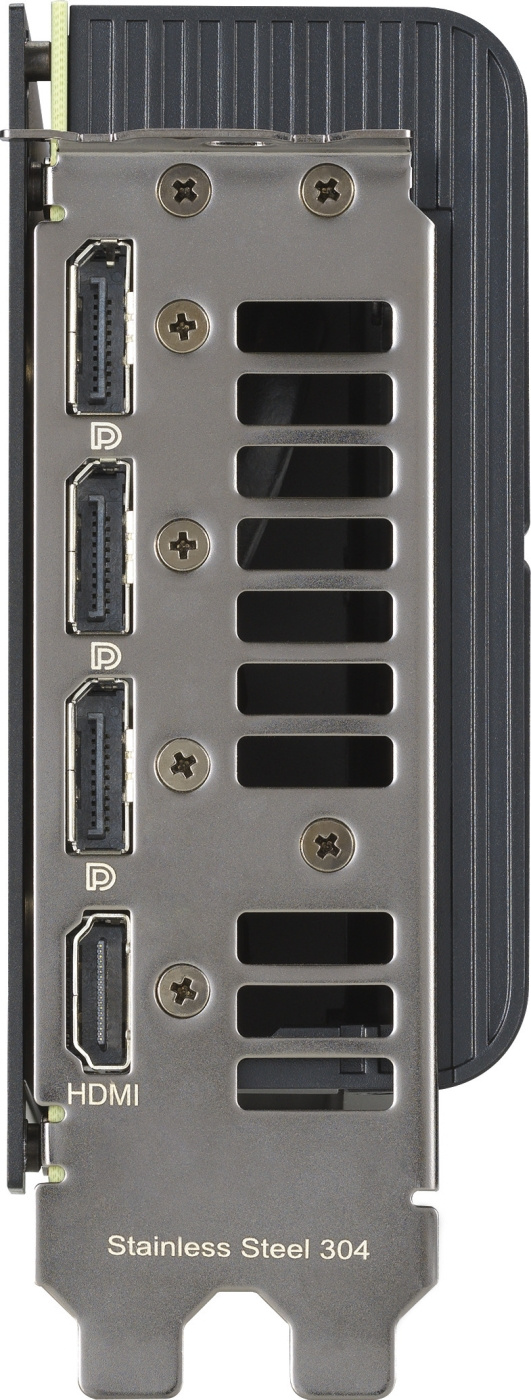

- 1 x HDMI 2.1a, 3 x Display Port 1.4a
- Maximum resolution: 7680 x 4320
- Maximum number of displays: 4
- HDCP 2.3
- NVIDIA DLSS 3
- NVIDIA PhysX, CUDA
- Adaptive V-Sync support
- G-SYNC support
- OpenGL 4.6
- Dimensions: 300 x 120 x 50 mm / 2.5 slot
- Power connectors: 1 x 8-pin
- Power supply recommendation: 550 W
- NVIDIA GeForce RTX 4060
- 8 GB GDDR6
- High-end performance for gaming
- 1 x HDMI, 3 x DisplayPort
- Overclocked OC model
