Airflow ahead
NVIDIA's Ada Lovelace architecture is backed by efficient cooling and power delivery, plus performance-boosting boosts. Charge, secure and prepare to win with the TUF Gaming GeForce RTX™ 4060 Ti.

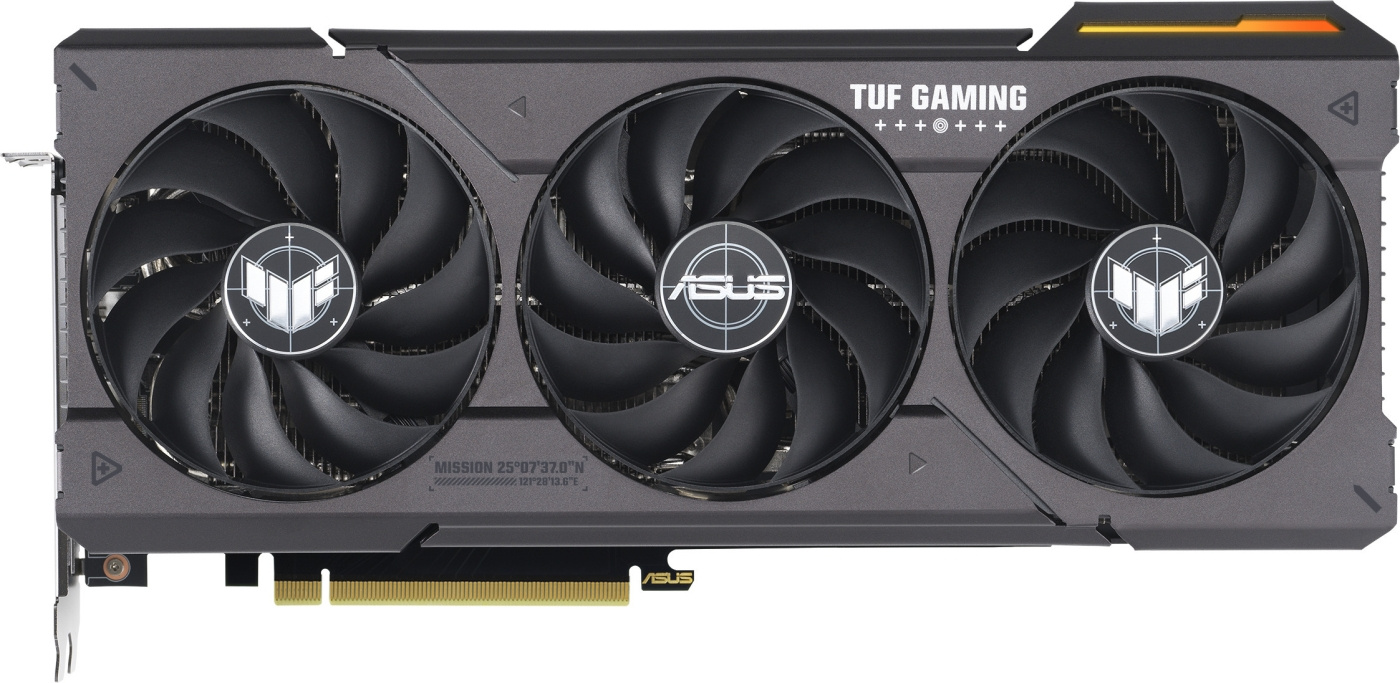

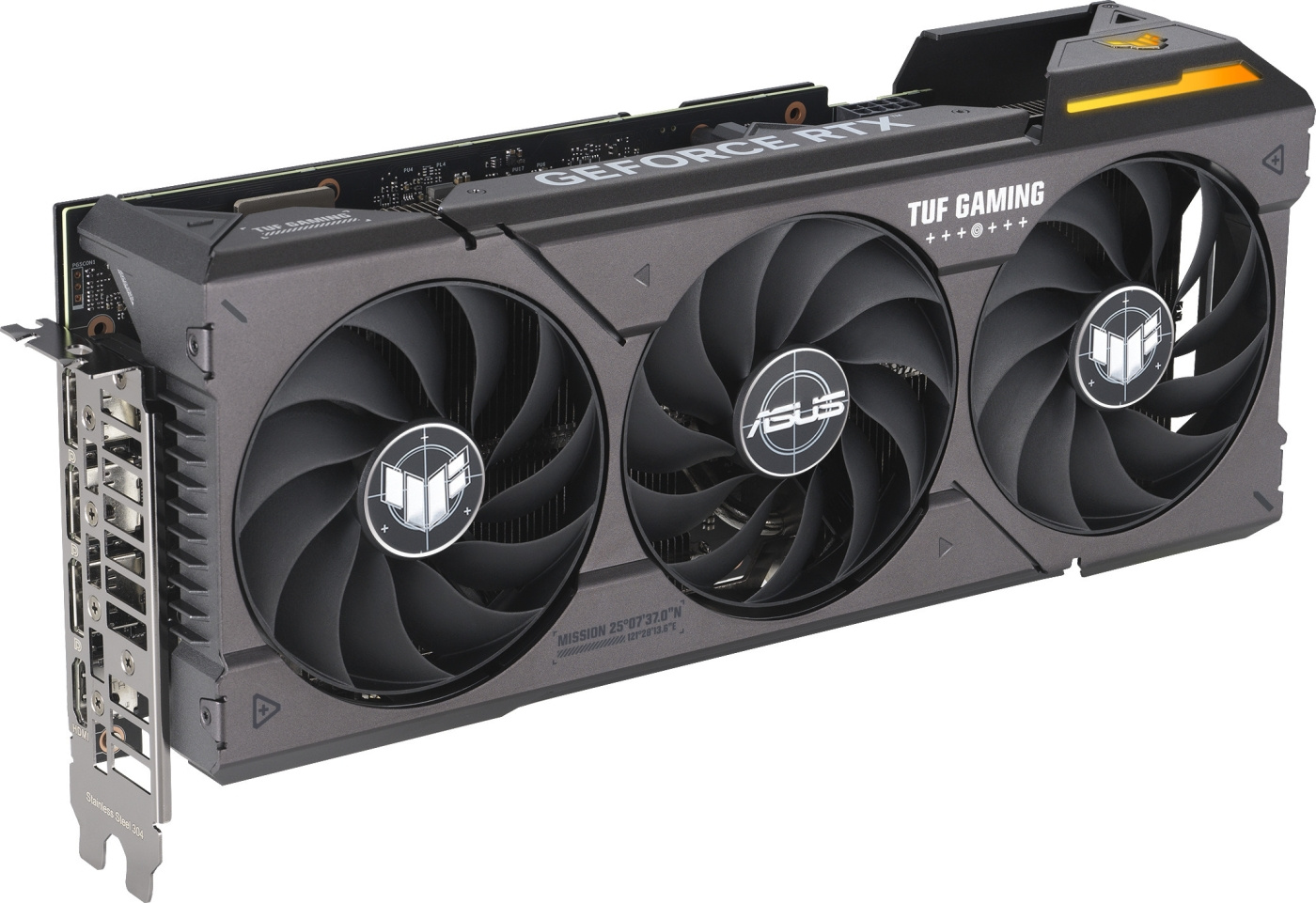

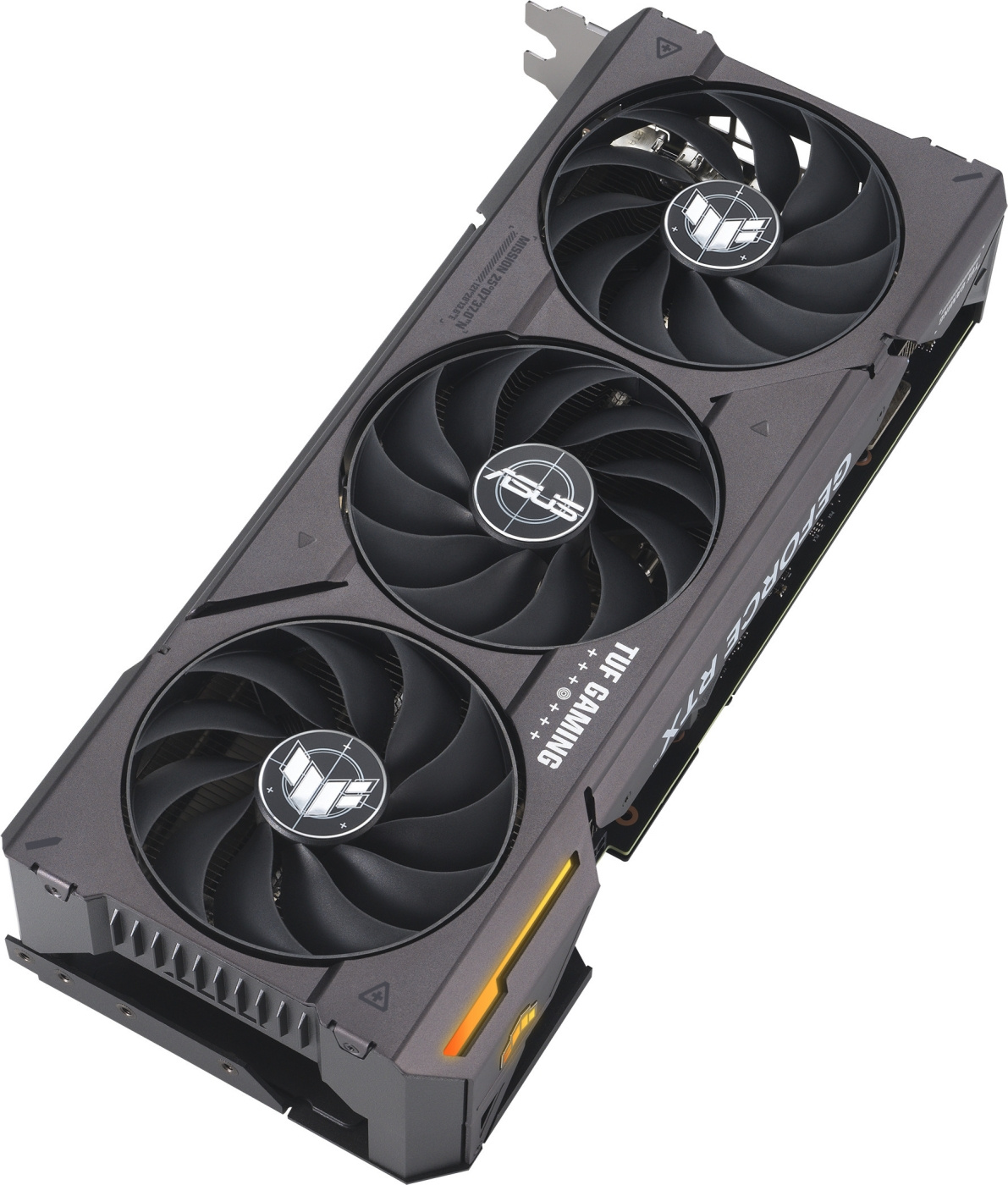

Axial-tech updates
Bigger and better. Axial-tech fans are double-bearing and designed to move 21% more air through the card, supporting lower temperatures, quieter sound and better performance.
New directions
The two edge-most fans rotate counterclockwise, minimizing turbulence and maximizing airflow through the heat sink. All three fans stop when the GPU temperature is below 50 degrees, allowing you to run lighter games or tasks in relative silence. The fans restart when the temperature exceeds 55 degrees. This balances performance and noise levels according to the demands of work and gaming.

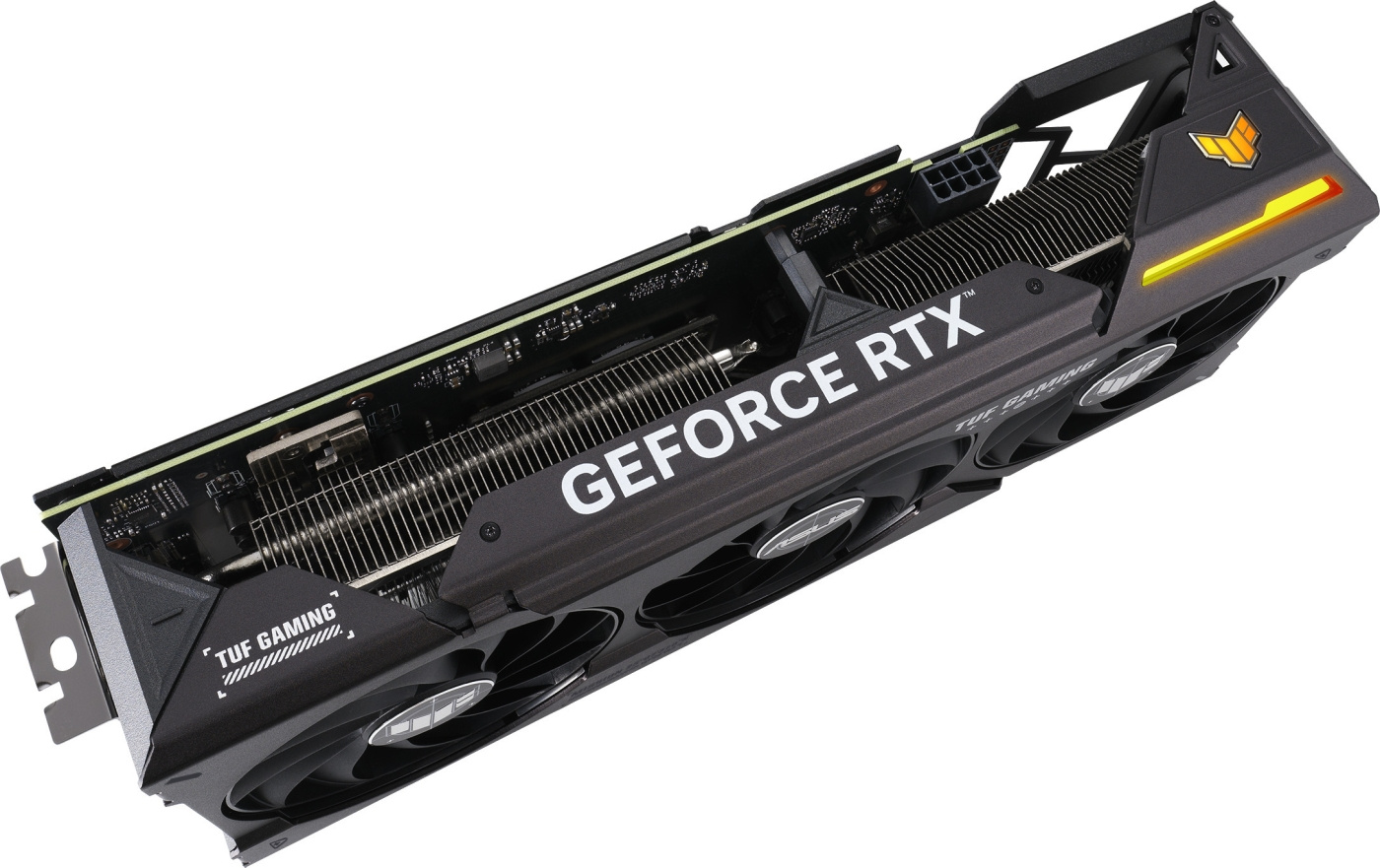

3,12-seat design

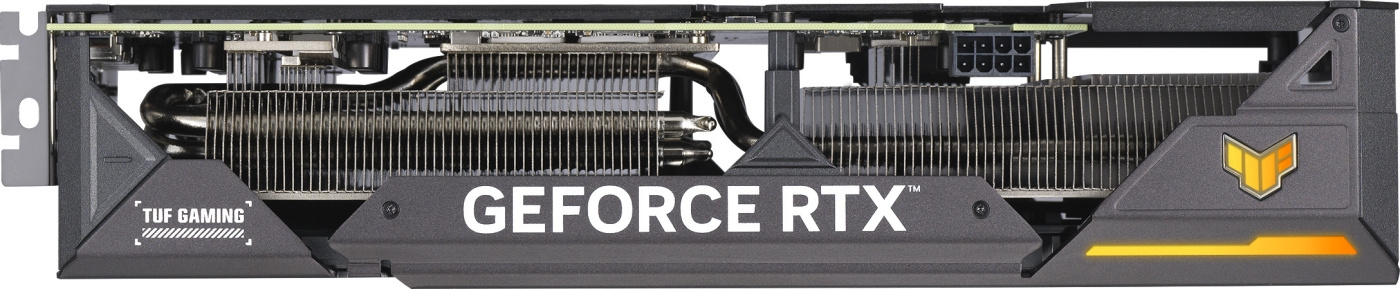

A large heat sink efficiently dissipates heat from the GeForce RTX 4060 Ti GPU so that three Axial-tech fans can remove it.
Military-grade capacitors
The capacitors are rated for 20,000 hours of operation at 105 degrees Celsius. They enable the GPU power supply to withstand higher temperatures and surges, making the card ready to perform long-duration tasks in demanding environments.
Compact circuit board
The layout of components and conductors is optimized for a short PCB, reducing power dissipation and allowing heat to escape through the large aperture in the backplane.

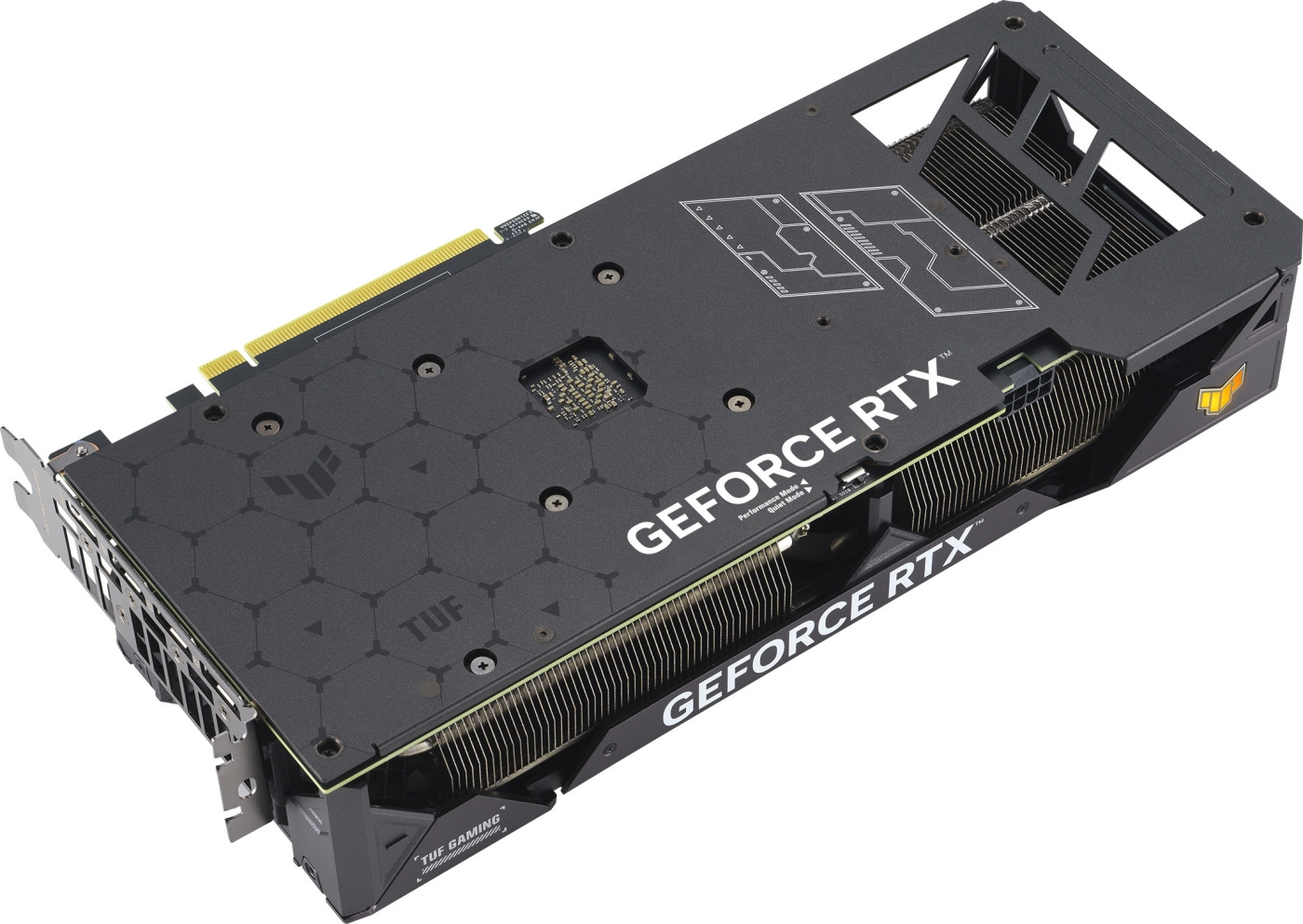

Ventilated design
The backplane is made of sturdy aluminium, which supports the PCB and directs heat away from its components.
Auto-Extreme technology
Auto-Extreme technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be done in one go. This reduces the heat load on components and eliminates the need for harsh cleaning chemicals, resulting in a lower environmental impact, lower manufacturing power requirements and an overall more reliable product.
Aura Sync
With Aura Sync ARGB illumination of the envelope, a customisable colour fade or functional effects can be added to the assembly. By selecting from a wide range of other compatible system components, it is possible to achieve a coordinated, individual colour scheme that represents the user.
Use the equipment efficiently
The hardware works in perfect harmony with the software, so you can customise the experience to your liking and get the most out of your graphics card. GPU Tweak II software lets you tweak and monitor hardware performance, and QuantumCloud uses your unused GPU power as an input source.
Features:
- Chip: GeForce RTX 4060 Ti

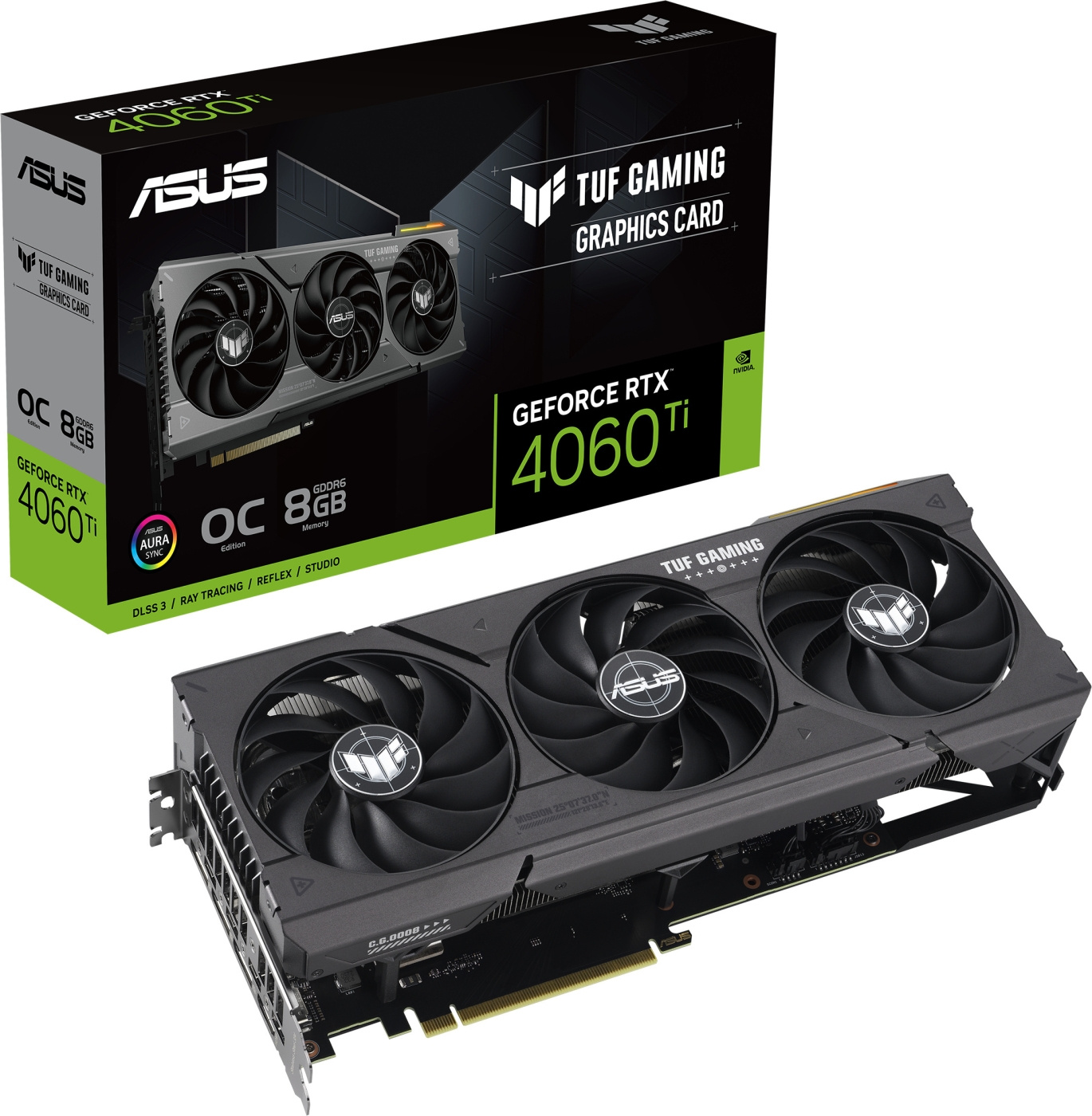

- Model:TUF Gaming GeForce RTX 4060 Ti 8GB GDDR6 OC Edition
- Number of CUDA cores: 4352
- Clock speed OC mode: 2655 MHz
- Clock speed Default mode: 2625 MHz
- Memory: 8GB, 128-bit GDDR6
- Memory clock speed: 18 Gbps
- Bus: PCI-Express 4.0 x16

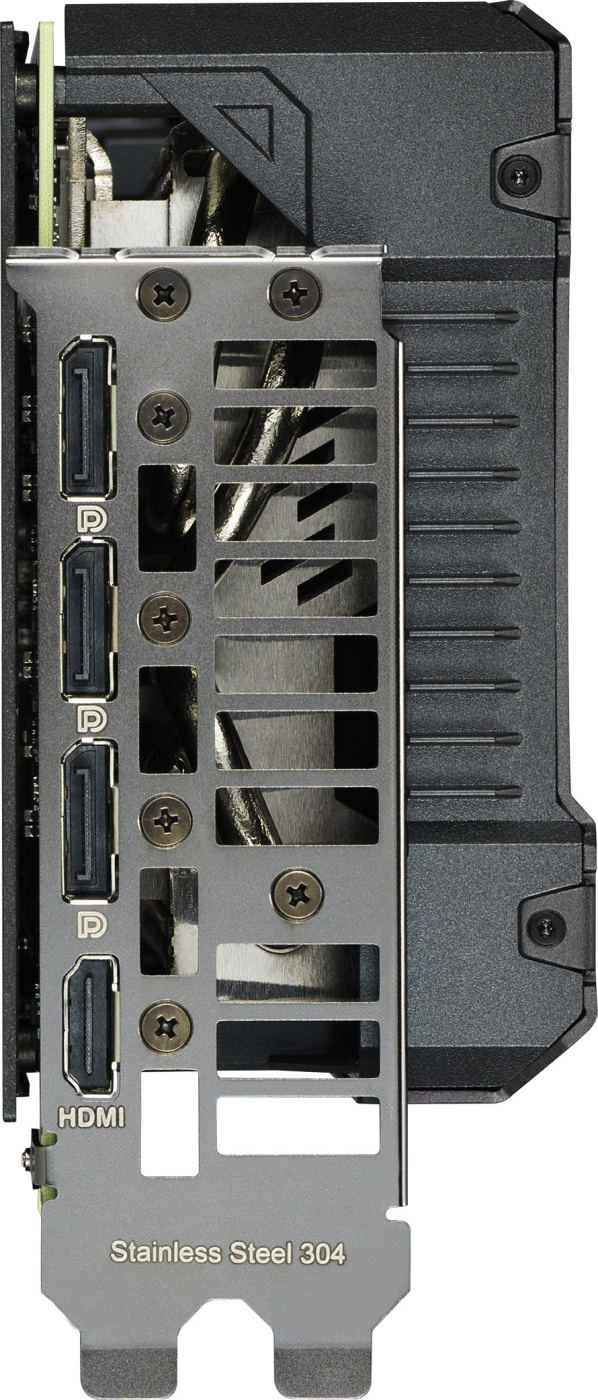

- 1 x HDMI 2.1, 3 x Display Port 1.4a
- Maximum resolution: 7680 x 4320
- Maximum number of displays: 4
- NVIDIA DLSS 3
- NVIDIA PhysX, CUDA
- Adaptive V-Sync support
- G-SYNC support
- OpenGL 4.6
- AURA Sync ARGB
- Dimensions: 300 x 139 x 62.4 mm, 3.12 slot
- Power connectors: 1 x 8-pin
- Power supply recommendation: 650 W

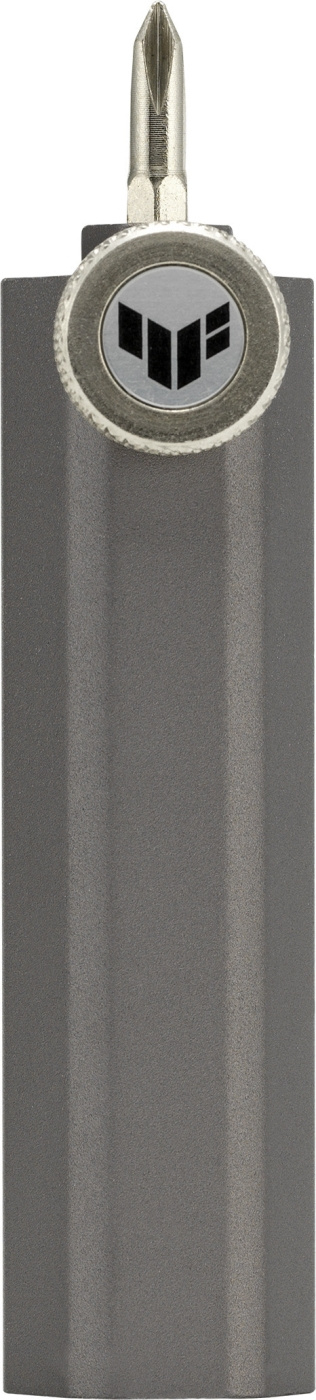

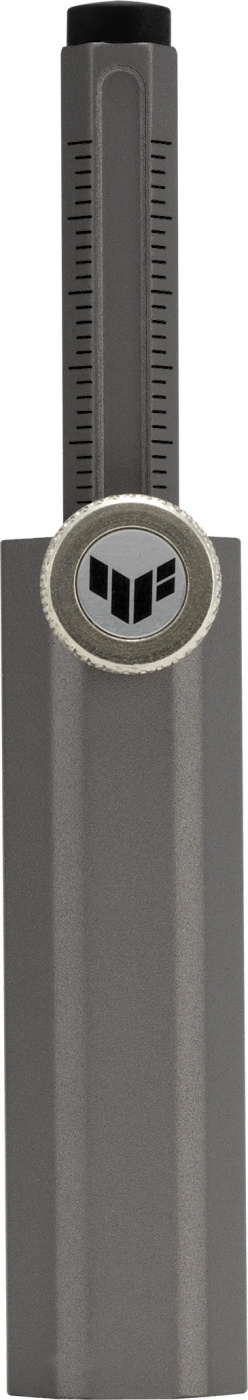

- Package content: graphics card, quick guide, thank you card, TUF Graphics Card Holder, TUF Gaming certificate, TUF Velcro Hook & Loop
- NVIDIA GeForce RTX 4060 Ti
- 8GB GDDR6
- State-of-the-art performance for gaming
- 1 x HDMI, 3 x DisplayPort
- Overclocked OC model
