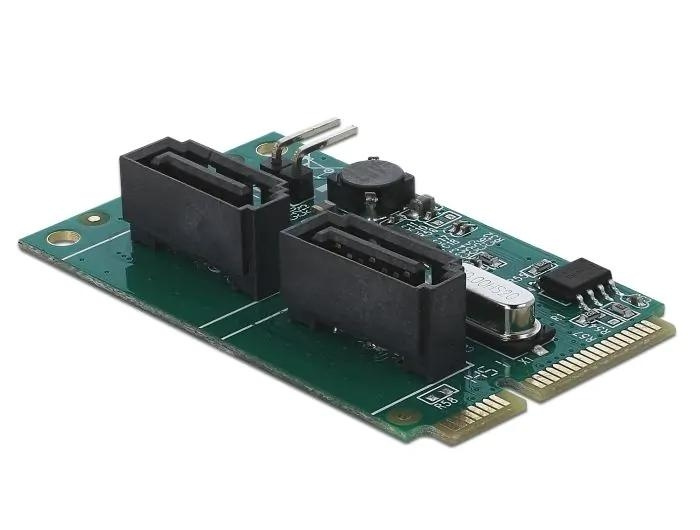

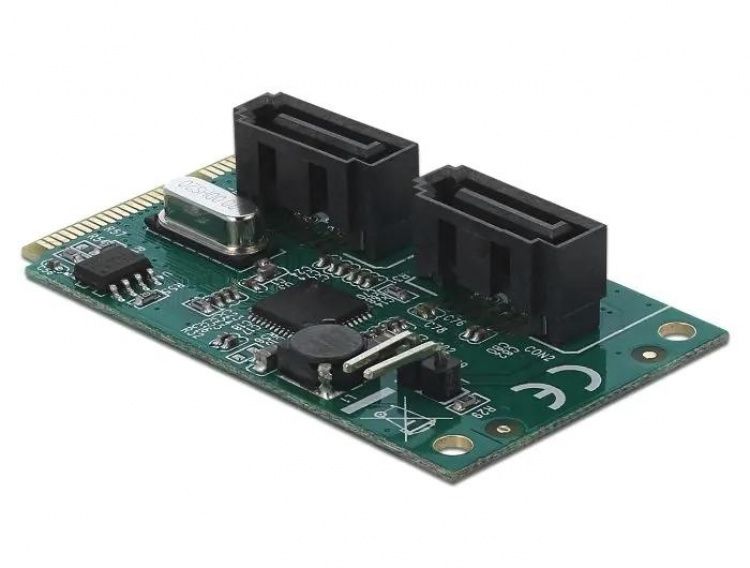

DeLOCK Mini PCIe Converter to 2 x SATA with RAID

Article nr: C70524

Connectors: 1 x Mini PCIe male 2 x SATA 6 Gb/s 7 pin plug 1 x 2 pin pin header for LED
Chipset: Asmedia ASM1061R
Interface: PCI Express revision 2.0
Data transfer rate: SATA up to 6 Gb/s PCI Express up to 5 Gb/s
Supports RAID 0, 1, SPAN
Supports hard drive with Native Command Queue (NCQ) feature

€37.99

Qliro Checkout
50.000+ products
Great service

Information

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.NoteThis product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.

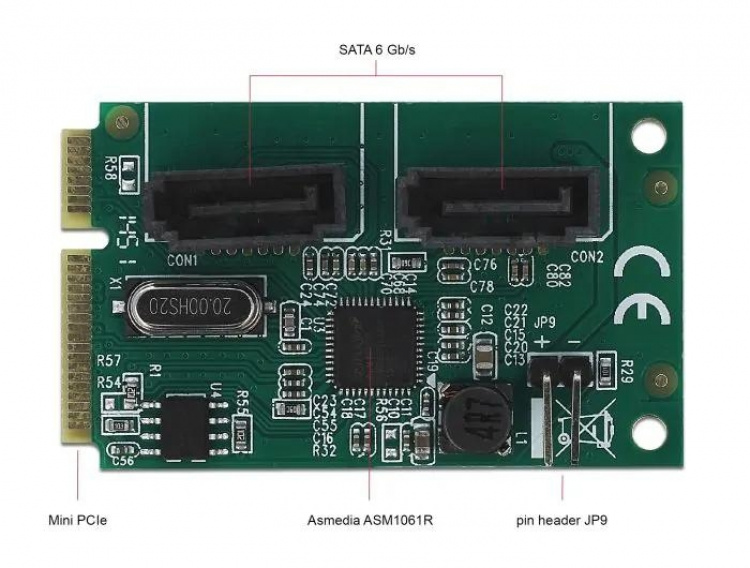

Connectors: 1 x Mini PCIe male 2 x SATA 6 Gb/s 7 pin plug 1 x 2 pin pin header for LED
Chipset: Asmedia ASM1061R
Interface: PCI Express revision 2.0
Data transfer rate: SATA up to 6 Gb/s PCI Express up to 5 Gb/s
Supports RAID 0, 1, SPAN
Supports hard drive with Native Command Queue (NCQ) feature
Supports SATA Port Multiplier
Supports S.M.A.R.T.
Supports TRIM

Gross weight:

0.075 kg

4043619952649EAN:
