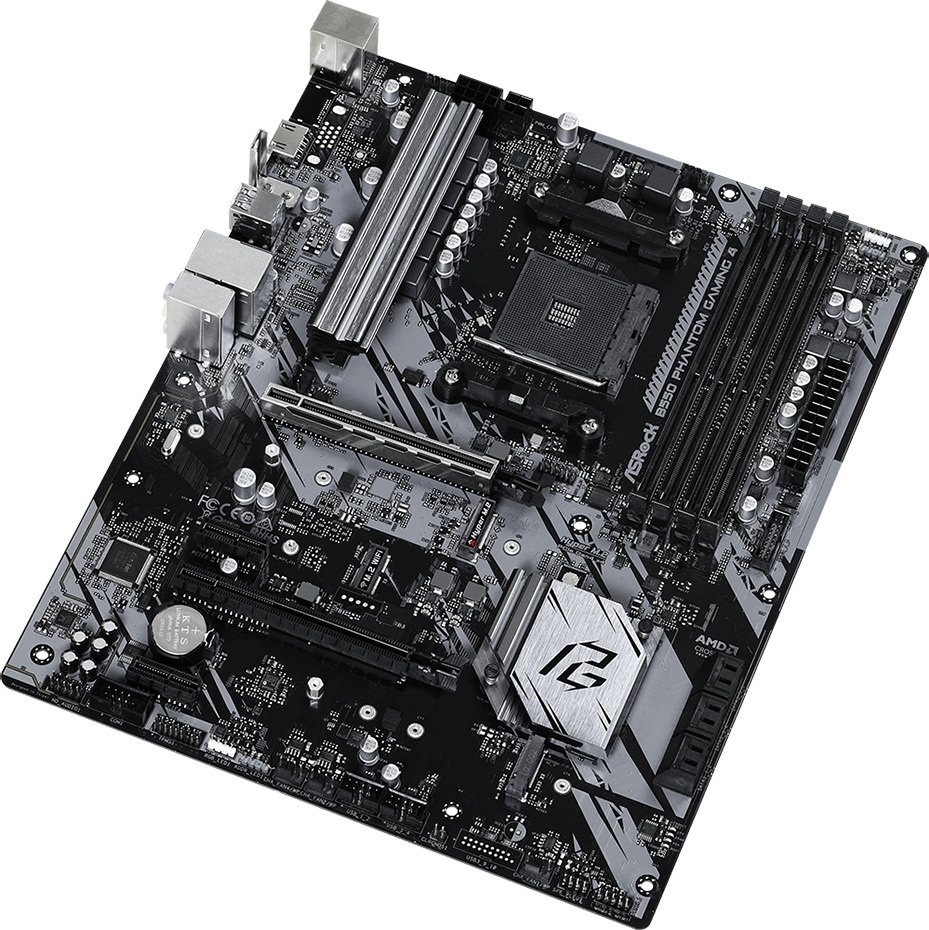

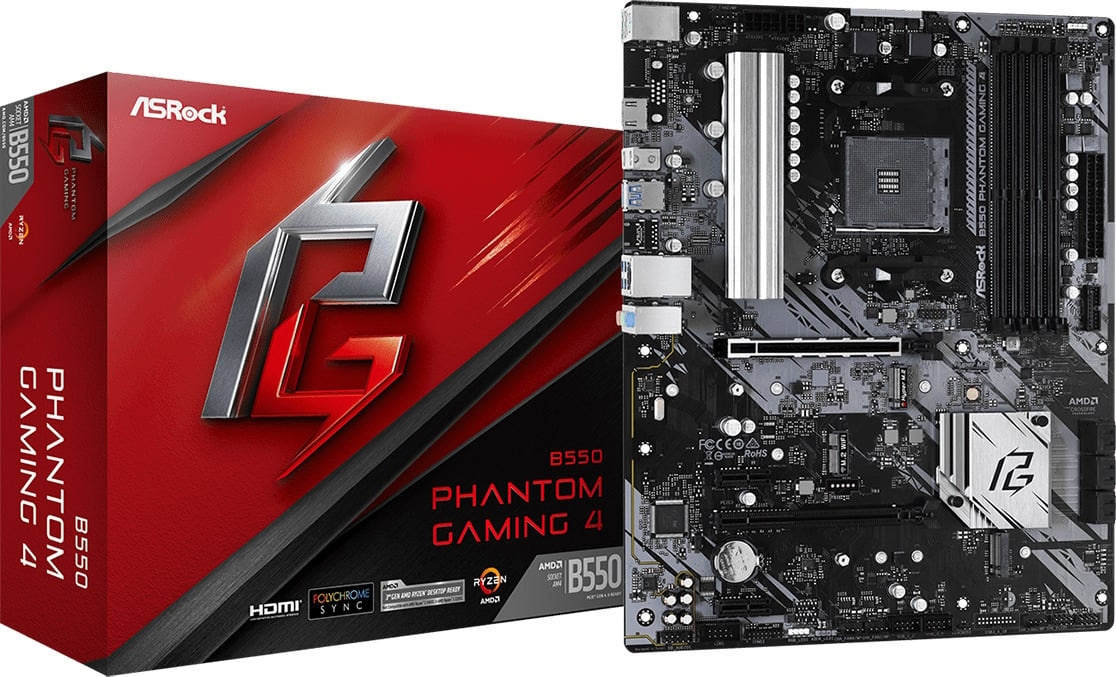

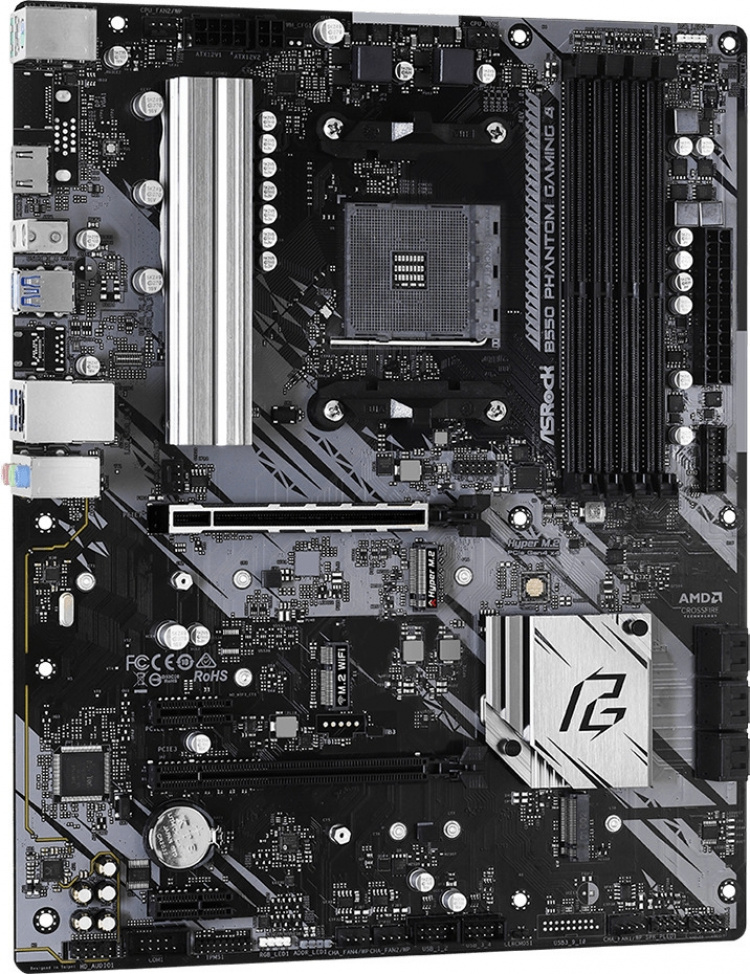

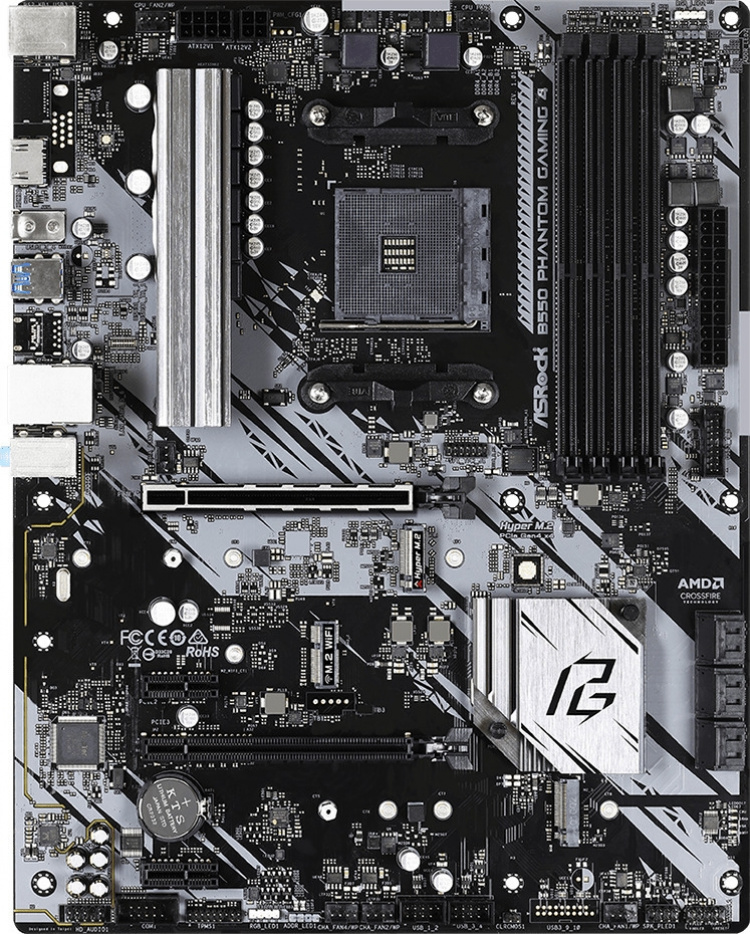

The ASRock B550M PHANTOM GAMING 4 AM4 mATX motherboard is the manufacturer's high-end AM4 motherboard for the new Ryzen processors. The high-quality eight-stage power supply provides a stable substrate for even the most powerful Ryzen models.
ASRock Polychrome RGB Sync
Manage all the LED accessories in your configuration via Asrock's proprietary app. Four RGB headers are available on the motherboard to connect LED products and synchronise their operation into a spectacular piece of light art. Asrock's app is Razer Chroma compatible, so you can also control supported peripherals through the same software.
Features:
- Chipset: AMD B550
- Processor core: AM4
- Processor support: Supports 2000, 3000, 4000 G, 5000 and 5000 G series Ryzen processors.
- Motherboard size: mATX
- Memory slots(s): 4
- Memory type: DDR4
- Maximum memory capacity(GB): 128
- PCIe 4.0 x16: 1
- PCIe 3.0 x16(@ x4): 1
- PCIe 3.0 x1: 1
- SATA 6 Gb/s: 4
- M.2: 1 x 2280 PCIe 4.0 x4, 1 x 2280 PCIe 3.0 x2 / SATA3
- USB 3.2 Gen.1: 4 external, 4 internal
- USB 2.0: 2 external, 4 internal
- Network interfaces: Gigabit LAN
- Audio card: 7.1 CH HD Audio (Realtek ALC887/897)
- CrossFireX support: yes

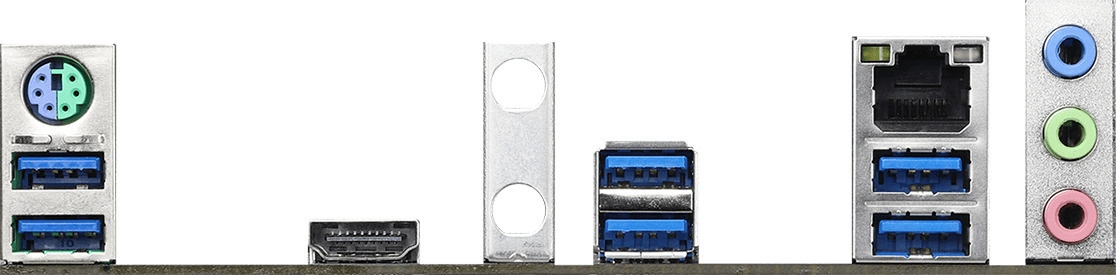

- 1 x HDMI 2.1, DisplayPort 1.4
- PS/2, shared for mouse and keyboard
- AM4 mATX motherboard
- AMD B550 chipset
- 8-phase power supply
- Two M.2 slots
- DDR4 support
This text was automatically translated, errors may be present.
4710483932755EAN:
