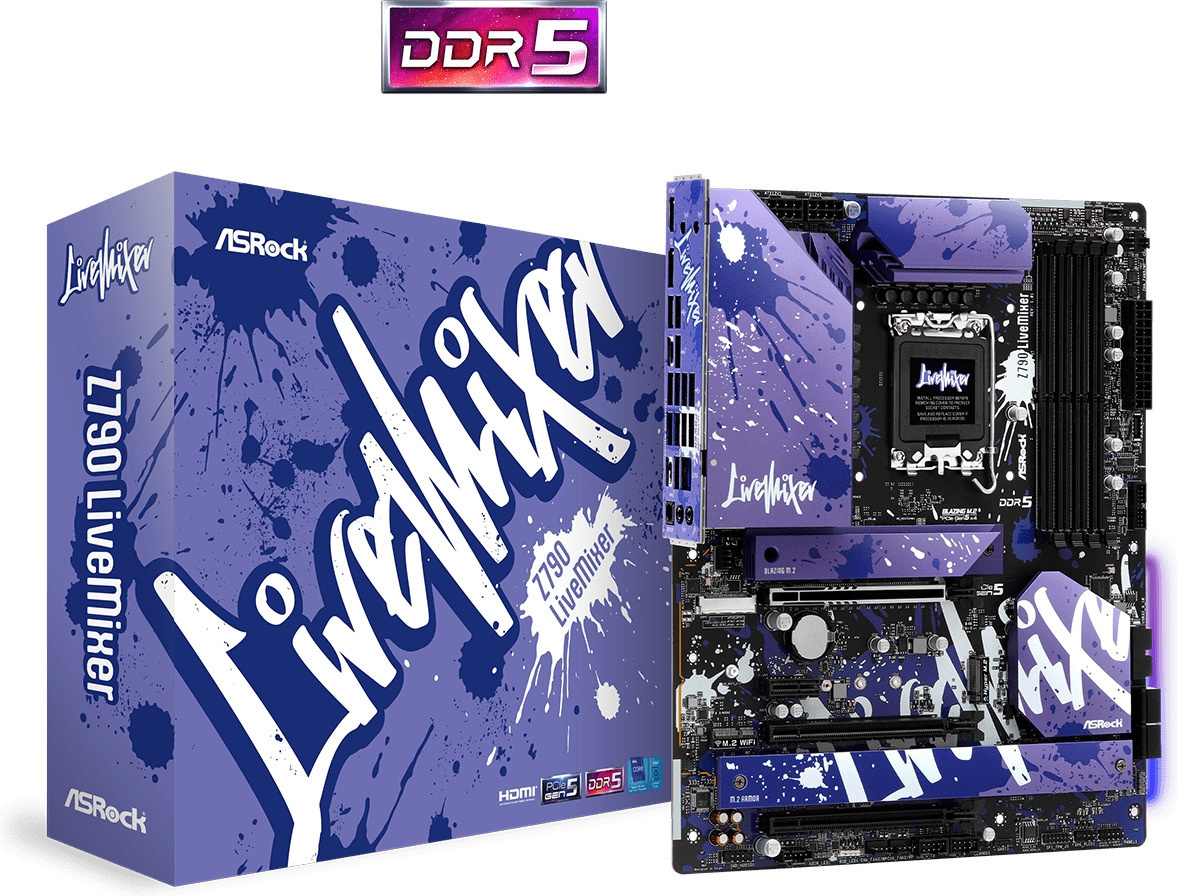

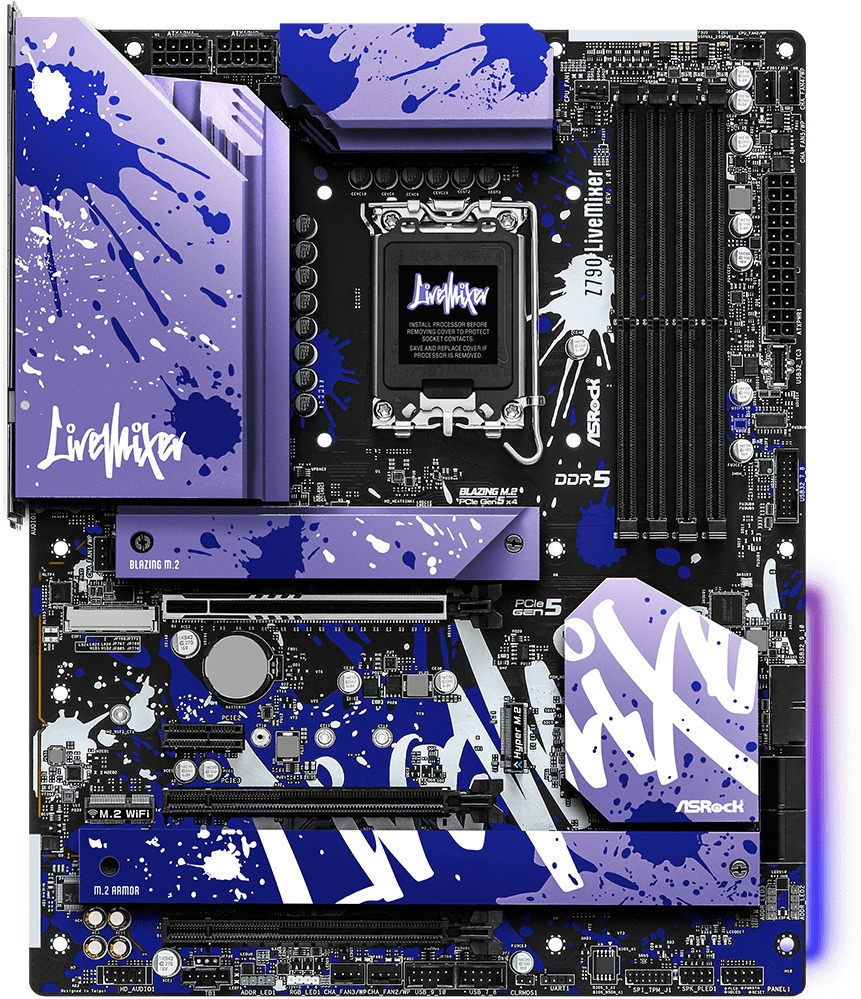

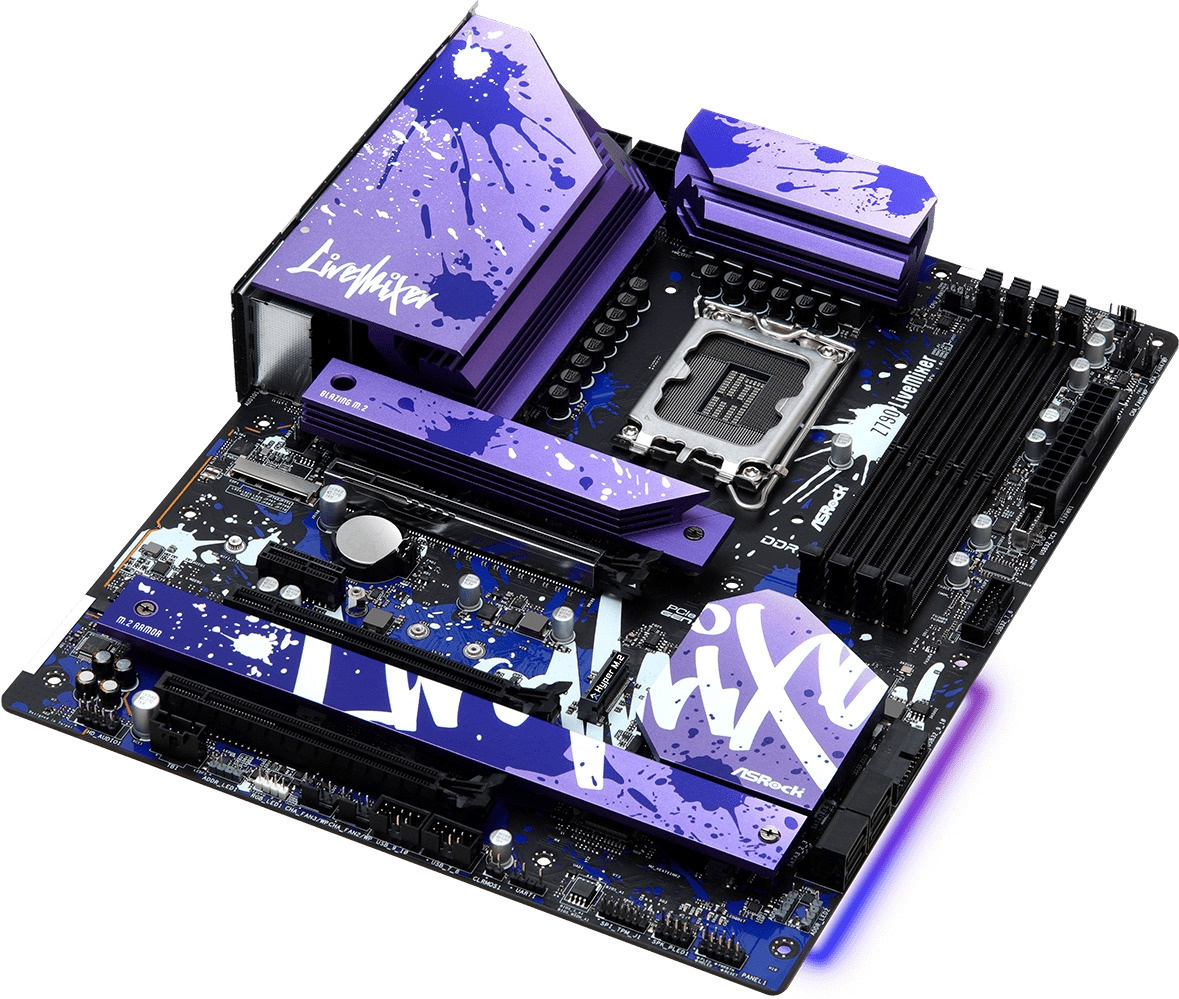

The ASRock Z790 LiveMixer motherboard is designed for content creators who need reliability and versatile connectivity for streaming and other peripherals. Whatever your device - mouse, keyboard, microphone, headset microphone, multiple cameras, lights, etc. - this motherboard has it all.
The Z790 LiveMixer supports 13th or 12th generation Intel processors, includes 4 DDR5 DIMM slots and 1 PCIe 5.0 x16 slot and a high-speed M.2 PCIe Gen5x4 slot. The Dragon RTL8125BG 2.5G LAN ensures lightning-fast, latency-free network connectivity.
High-quality 14+1+1-phase Dr.MOS power supply enables overclocking of even the most powerful CPUs. Asrock Polychrome SYNC RGB lighting lets you create your own lighting effects.
Features:
- Chipset: Intel Z790
- Processor core: LGA1700
- Processor support: 12th or 13th generation Intel Core processors
- Motherboard size: ATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- 1 x PCIe 5.0 x16
- 2 x PCIe 4.0 x16
- 1 x PCIe 3.0 x1
- 4 x SATA3 6 Gb/s
- 1 x M.2 2260/2280 PCIe Gen 5x4, 3 x M.2 2260/2280 PCIe Gen 4x4, 1 x M.2 2242/2260/2280 PCIe Gen 4x4, 1 x M.2 2230 WiFi/BT

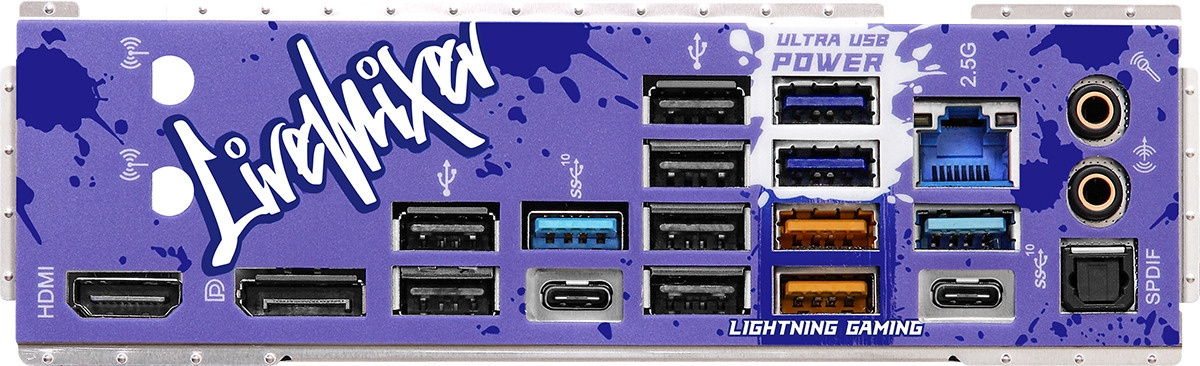

- 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen2 Type-A, 8 x USB 3.2 Gen 1, 10 x USB 2.0
- Network interfaces: 1 x Dragon RTL8125BG 2.5G LAN
- Sound card: 7.1-channel Realtek ALC897
- CrossFireX support: yes
- 1 x HDMI 2.1, 1 x DisplayPort 1.4

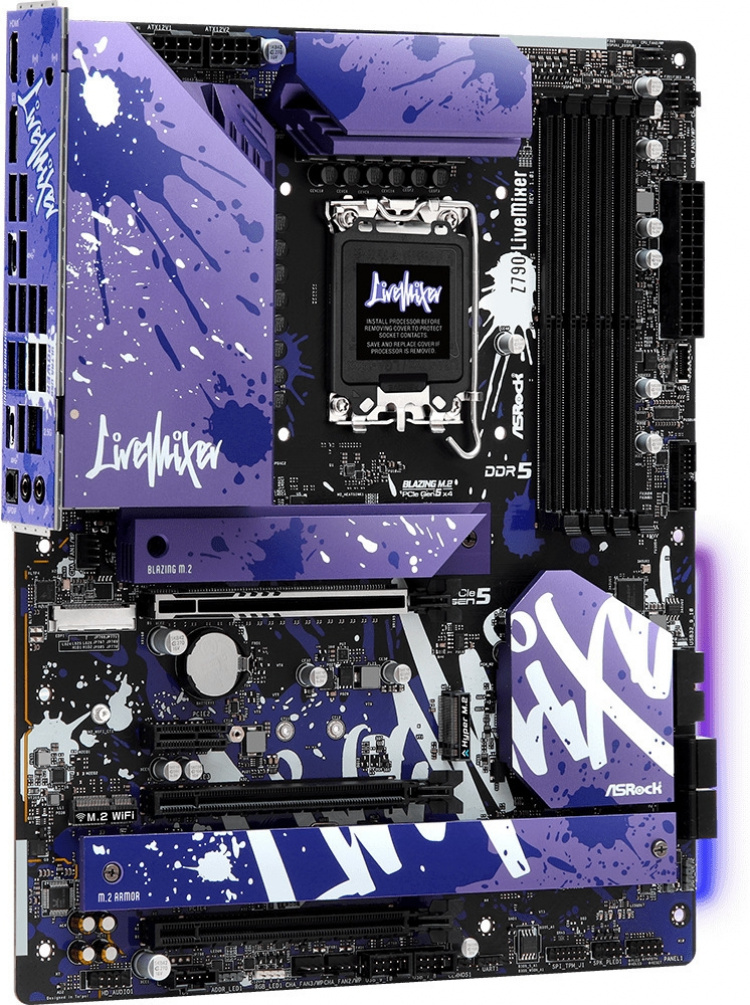

- LGA1700 ATX motherboard
- Intel Z790 chipset
- 1 x PCIe 5.0 x16
- M.2 PCIe Gen5x4
- 2.5G LAN
