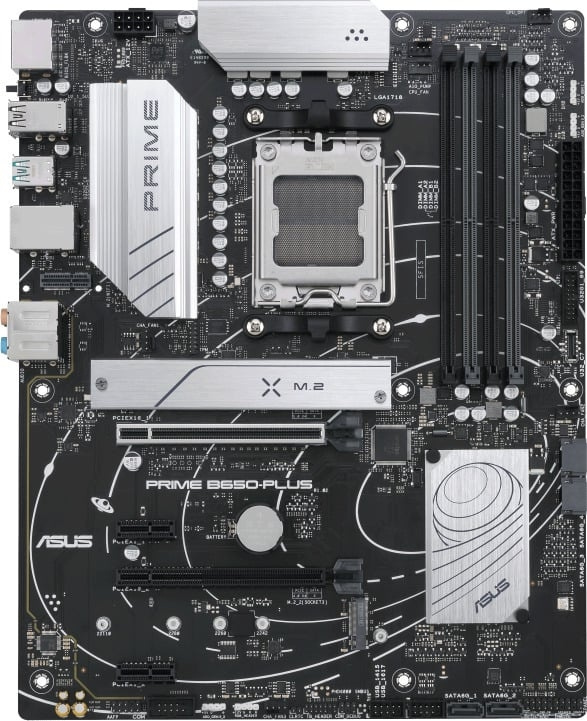

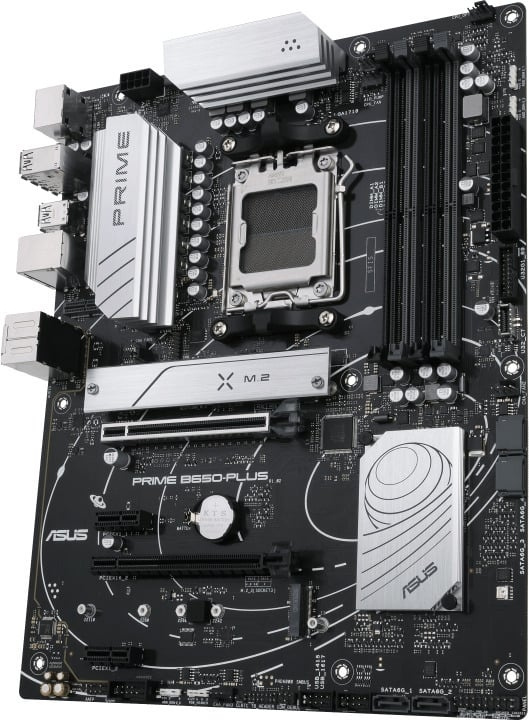

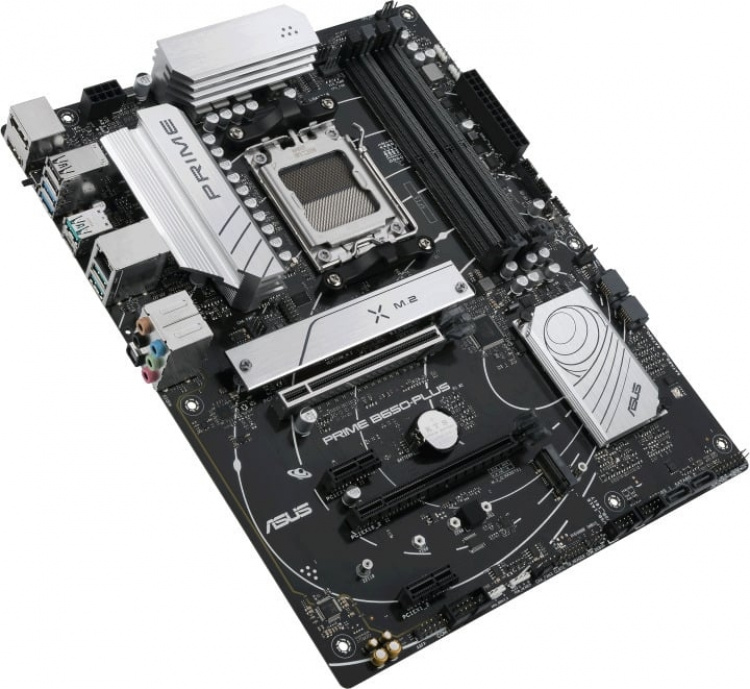

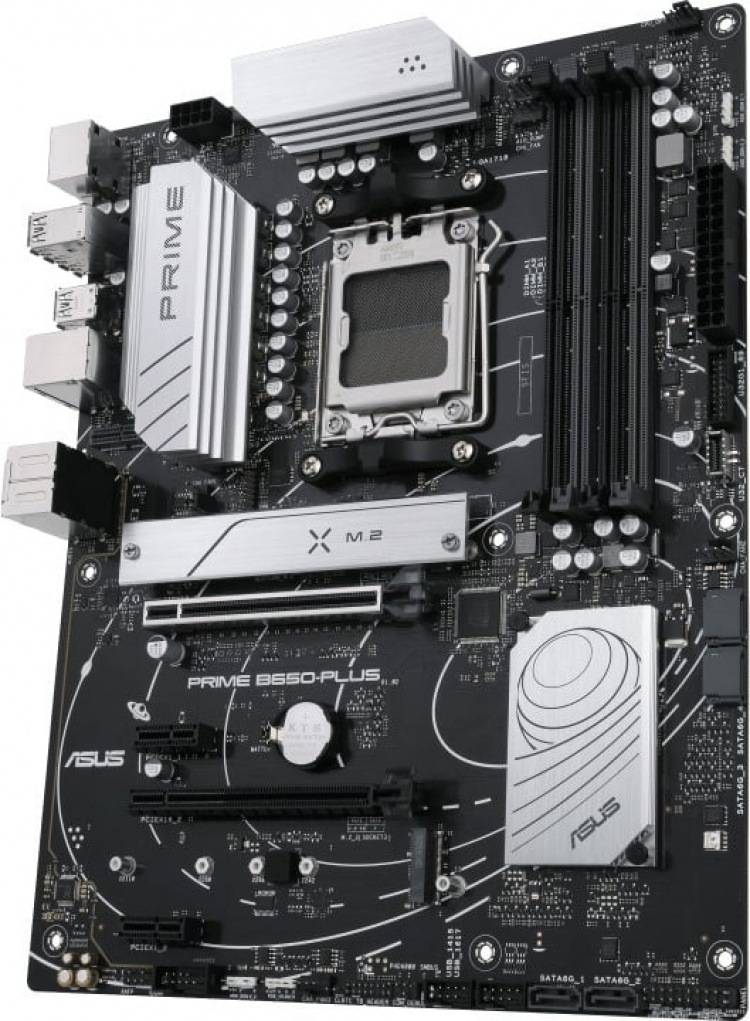

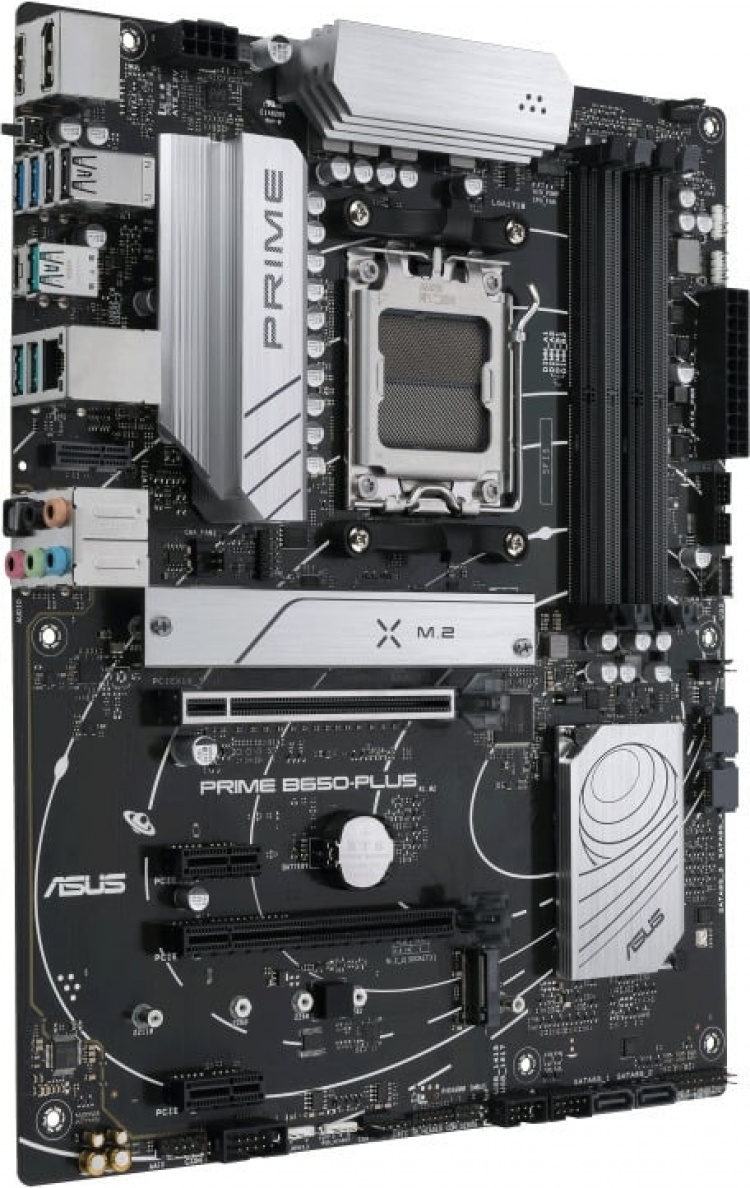

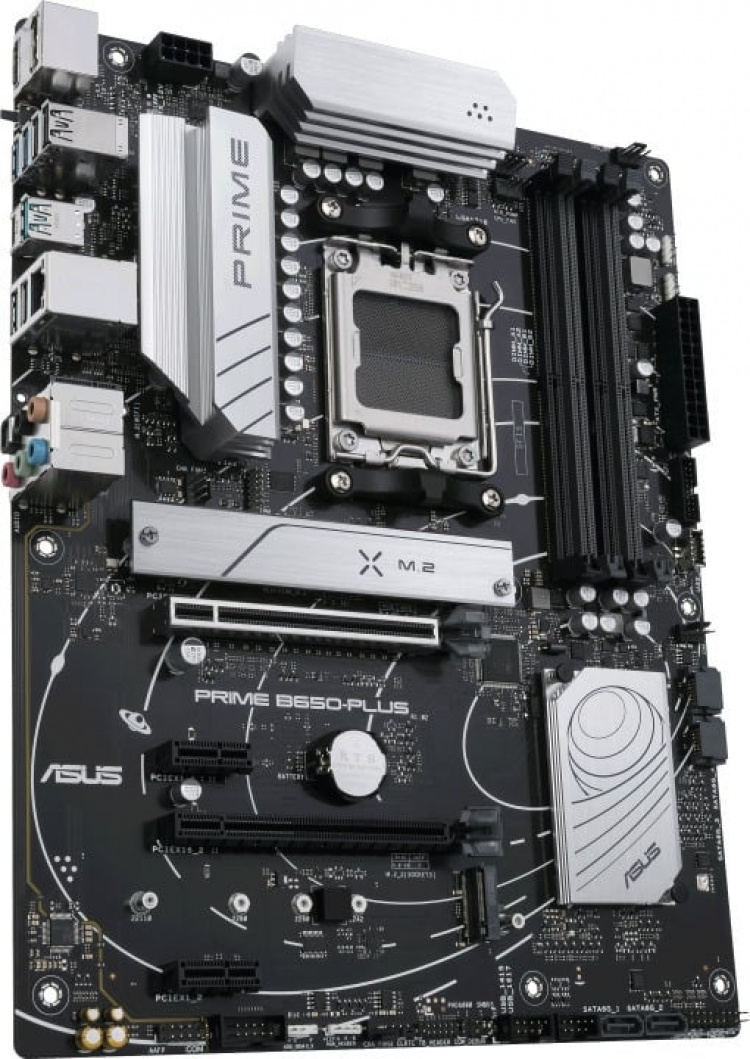

ASUS PRIME B650-PLUS-CSM is an AM5-based ATX motherboard for Ryzen 7000 series processors with PCIe 5.0 M.2 support, two M.2 interfaces, 2.5 Gb LAN, DDR5 memory support and plenty of interfaces for various needs, not forgetting Asus Aura Sync RGB support.
ASUS Prime series motherboards are expertly designed to unleash the full potential of AMD Ryzen 7000 series processors. Offering robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B650-PLUS-CSM provides users and PC builders with multiple performance optimizations through intuitive software and firmware features.
ASUS Corporate Stable Model (CSM) is a program designed to provide stable and reliable motherboards. It provides up to 36 months of product lifecycle support and 6 months of end-of-life notification to give organizations enough time to prepare for product replacements. Every ASUS CSM motherboard purchase comes with ASUS Control Center Express server-level IT management software.
Features:
- Chipset: AMD B650
- Processor Core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: ATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network interfaces:Realtek 2.5Gb Ethernet, M.2 slot (Key E PCIe, Wi-Fi module sold separately)
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 30.5 cm x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 4.0 x16 slot
- AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots
Graphics:
- 1 x DisplayPort, max 8K 60Hz
- 1 x HDMI, max 4K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 2 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

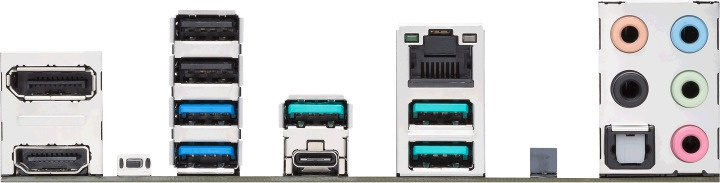

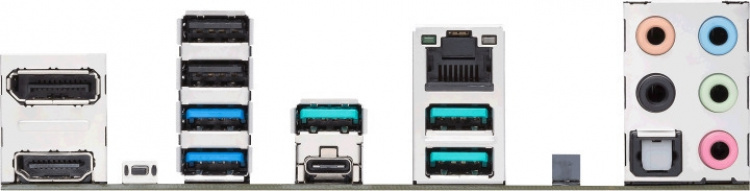

Rear panel interfaces:
- 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
- 2 x USB 3.2 Gen 1 port (2 x Type-A)
- 2 x USB 2.0 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Vertical M.2 slot (Key E)
- 1 x Realtek 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (Type-C)
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt (USB4) header
- AMD AM5 ATX motherboard
- AMD B650 chipset
- Two M.2 slots
- DDR5 support, 2.5 Gb LAN
- Supports Ryzen 7000 series CPUs
