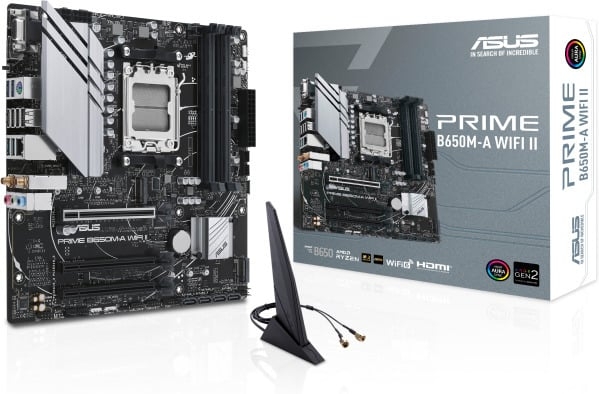

ASUS PRIME B650M-A WIFI II -mATX motherboard

ASUS PRIME B650M-A WIFI II is an AM5-based Micro ATX motherboard for Ryzen 7000 series processors with PCIe 5.0 M.2 support, two M.2 slots, 2.5 Gb LAN, high-speed Wi-Fi 6, DDR5 memory support and plenty of interfaces for various needs, not forgetting Asus Aura Sync RGB support.

ASUS Prime Series motherboards are expertly designed to unleash the full potential of AMD Ryzen 7000 series processors. Offering robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B650M-A WIFI II provides users and PC builders with multiple performance optimizations through intuitive software and firmware features.

Features:

• Chipset: AMD B650
• Processor core: AM5
• Processor support: AMD Ryzen 7000 series
• Motherboard size: Micro ATX
• Memory slots(s): 4
• Memory type: DDR5
• Maximum memory capacity(GB): 128
• Network interfaces:Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2x2, Bluetooth 5.2
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Dimensions: 24.4 cm x 24.4 cm

Expansion slots:

• AMD Ryzen 7000: 1 x PCIe 4.0 x16 slot
• AMD B650 Chipset: 2 x PCIe 4.0 x16 slot (supports x1 mode)

Graphics:

• 1 x DisplayPort, max 8K 60Hz
• 1 x VGA
• 1 x HDMI, max 4K 60Hz

Hard disk interfaces:

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots
• AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Rear panel interfaces:

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 port (2 x Type-A)
• 4 x USB 2.0 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x VGA port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x audio jacks
• 1 x BIOS FlashBack button
• 1 x PS/2 Keyboard/Mouse combo port

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin + 12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (Type-C)
• 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• AMD AM5 mATX motherboard
• AMD B650 chipset
• Two M.2 slots
• DDR5 support, Wi-Fi 6
• Supports Ryzen 7000 series CPUs
