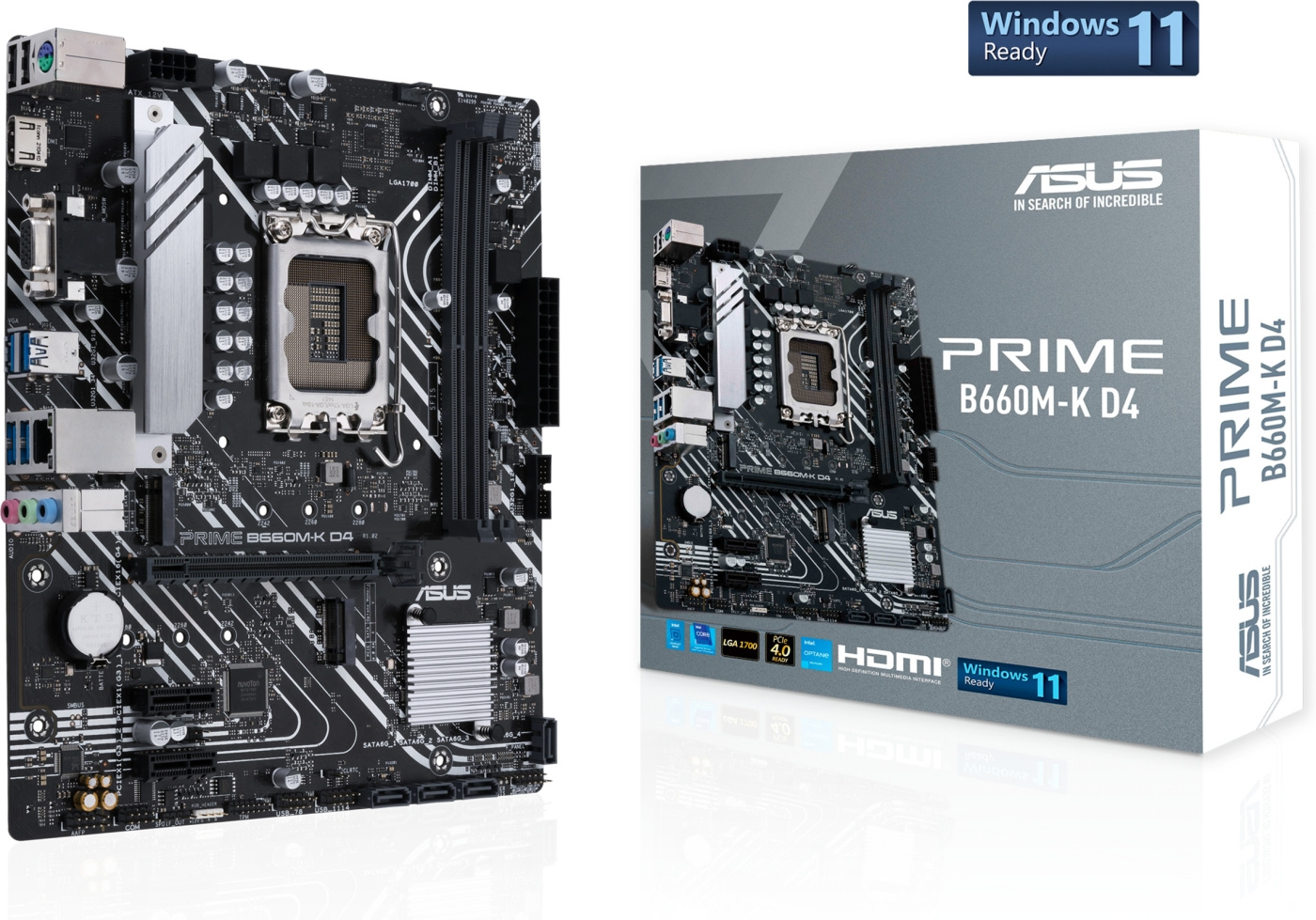

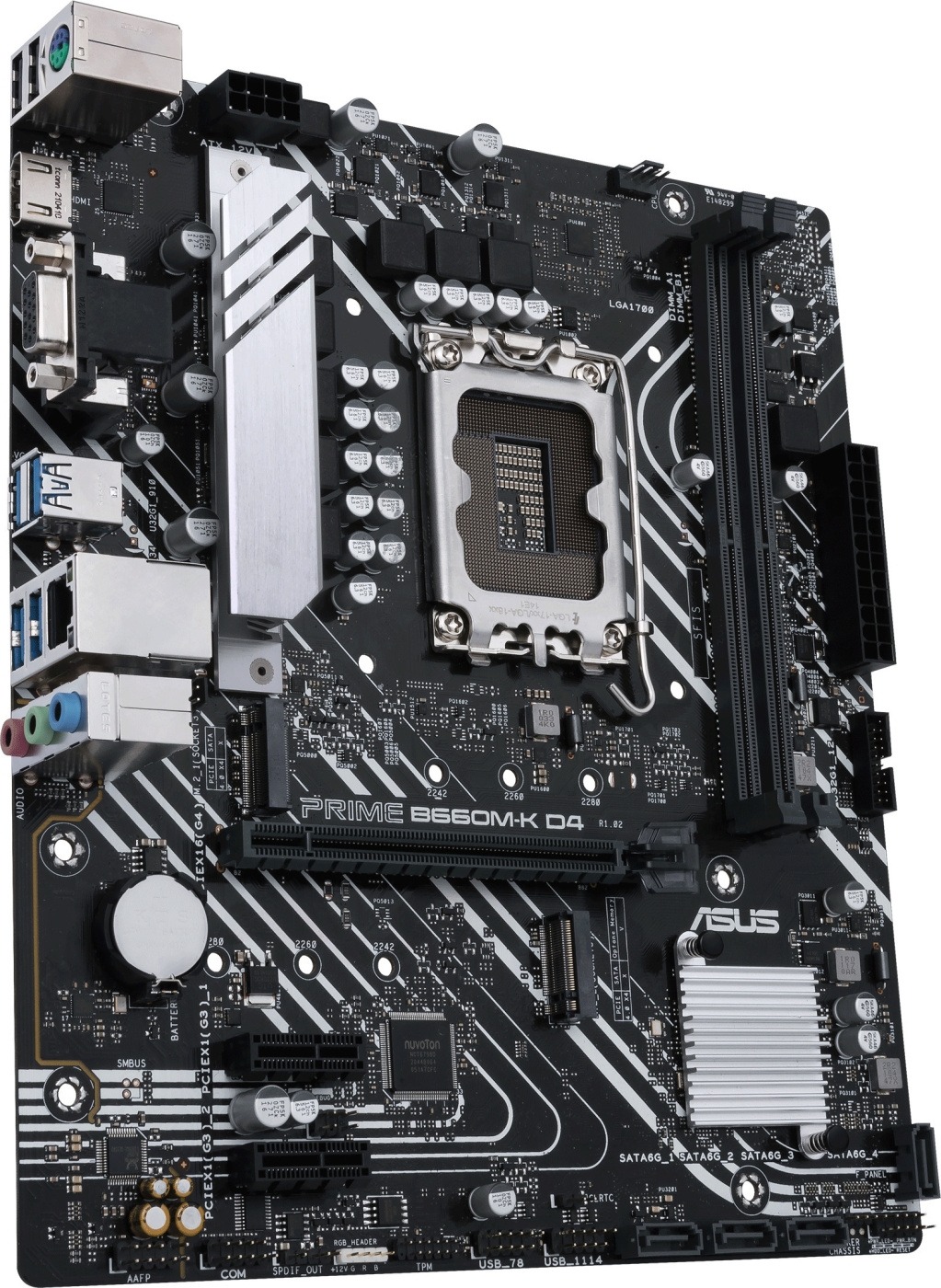

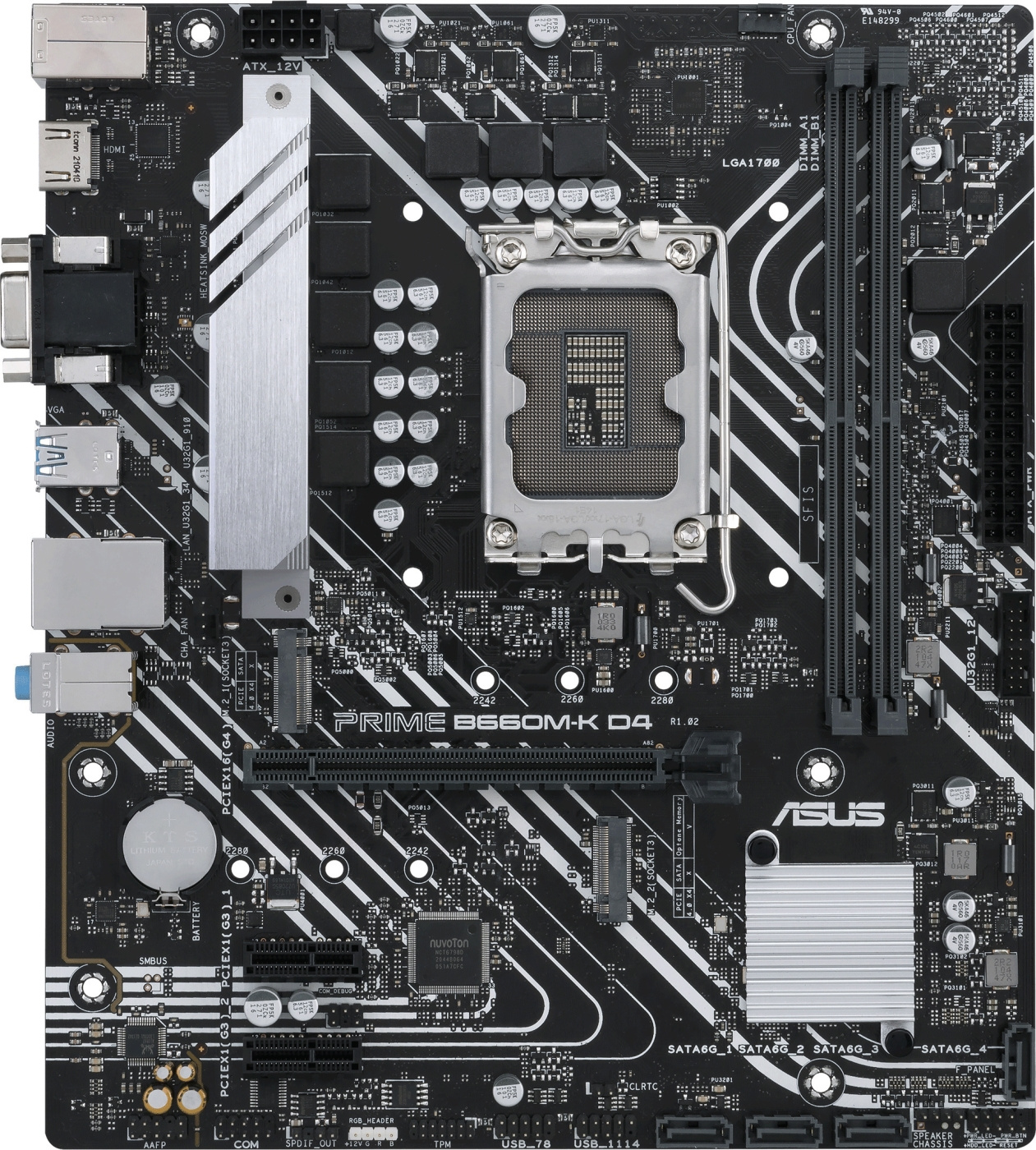

ASUS PRIME B660M-K D4 LGA 1700 mATX motherboard

Article nr: C68301
  • LGA 1700 mATX motherboard
  • Intel B660 chipset
  • Two M.2 interfaces
  • Comprehensive connectivity options
  • For Intel 12th Generation CPUs
€206.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
MicroATX motherboard with Intel B660 chipset and LGA 1700 processor deck for Intel Core, Pentium Gold and Celeron processors.

Asus PRIME B660M-K D4 is an Intel LGA 1700 motherboard with Intel B660 chipset for Intel 12th generation processors.
The PRIME B660 series motherboards offer the key features for building a high quality configuration at an affordable price. PRIME motherboards are well suited for gaming and work applications, offering high quality power supply even for the most powerful Intel Core processors.

Features:

  • Chipset: Intel B660
  • Processor core: LGA 1700
  • Processor support: 12th generation Intel Core, Pentium Gold and Celeron
  • Motherboard size: mATX
  • Memory slots (pcs): 2
  • Memory type: DDR4
  • Maximum memory capacity (GB): 64
  • Network interfaces: Realtek 1Gb Ethernet
  • Audio card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion sites

  • 1 x PCIe 4.0/3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots

Hard disk interfaces

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slots
    M.2_1 slot (Key M), type 2242/2260/2280 (Intel 12th Gen processors support PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

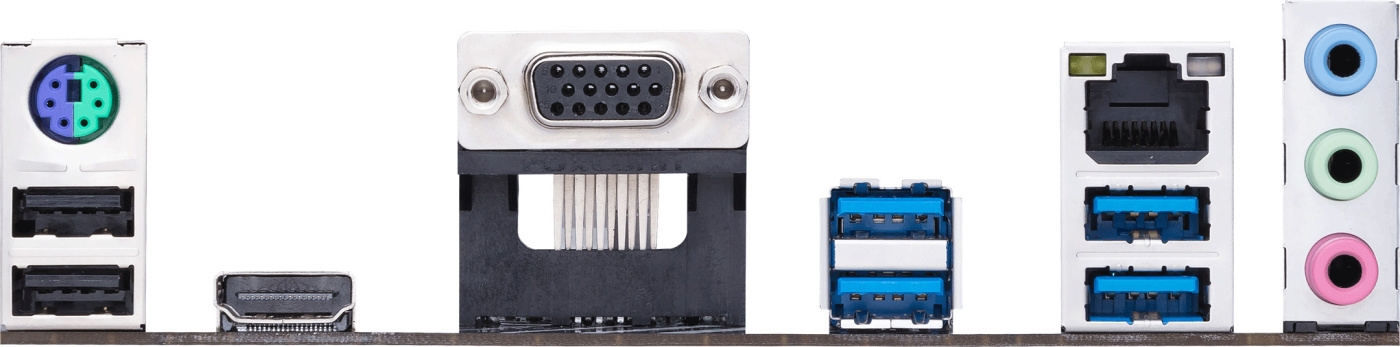

Rear panel interfaces

  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x D-Sub port1 x HDMI port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x audio jacks
  • 1 x PS/2 keyboard/mouse combo port

Internal connections

  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header


  • LGA 1700 mATX motherboard
  • Intel B660 chipset
  • Two M.2 interfaces
  • Comprehensive interface options
  • For Intel 12th generation CPUs
This text was automatically translated, errors may be present.
4711081511830EAN:
