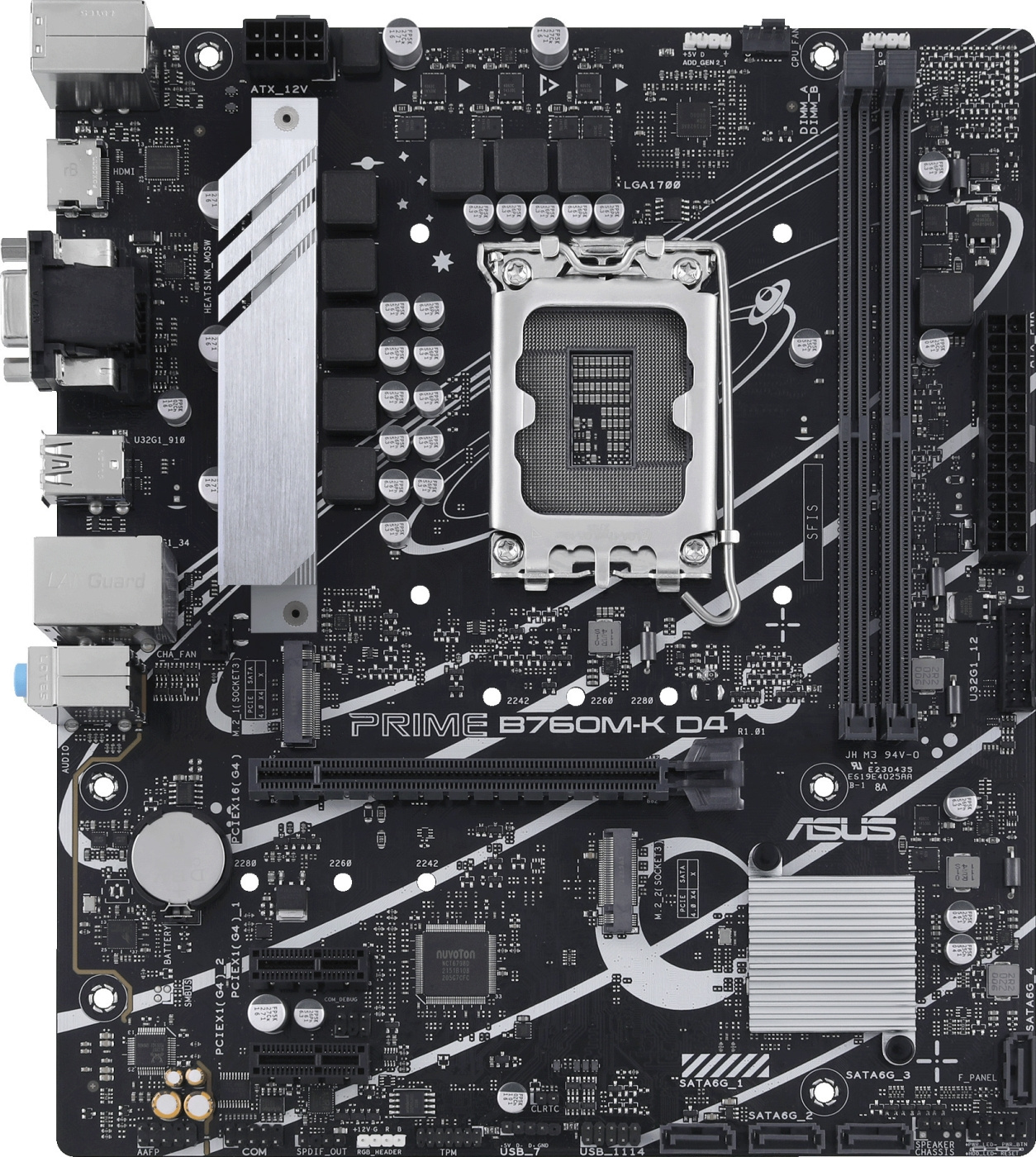

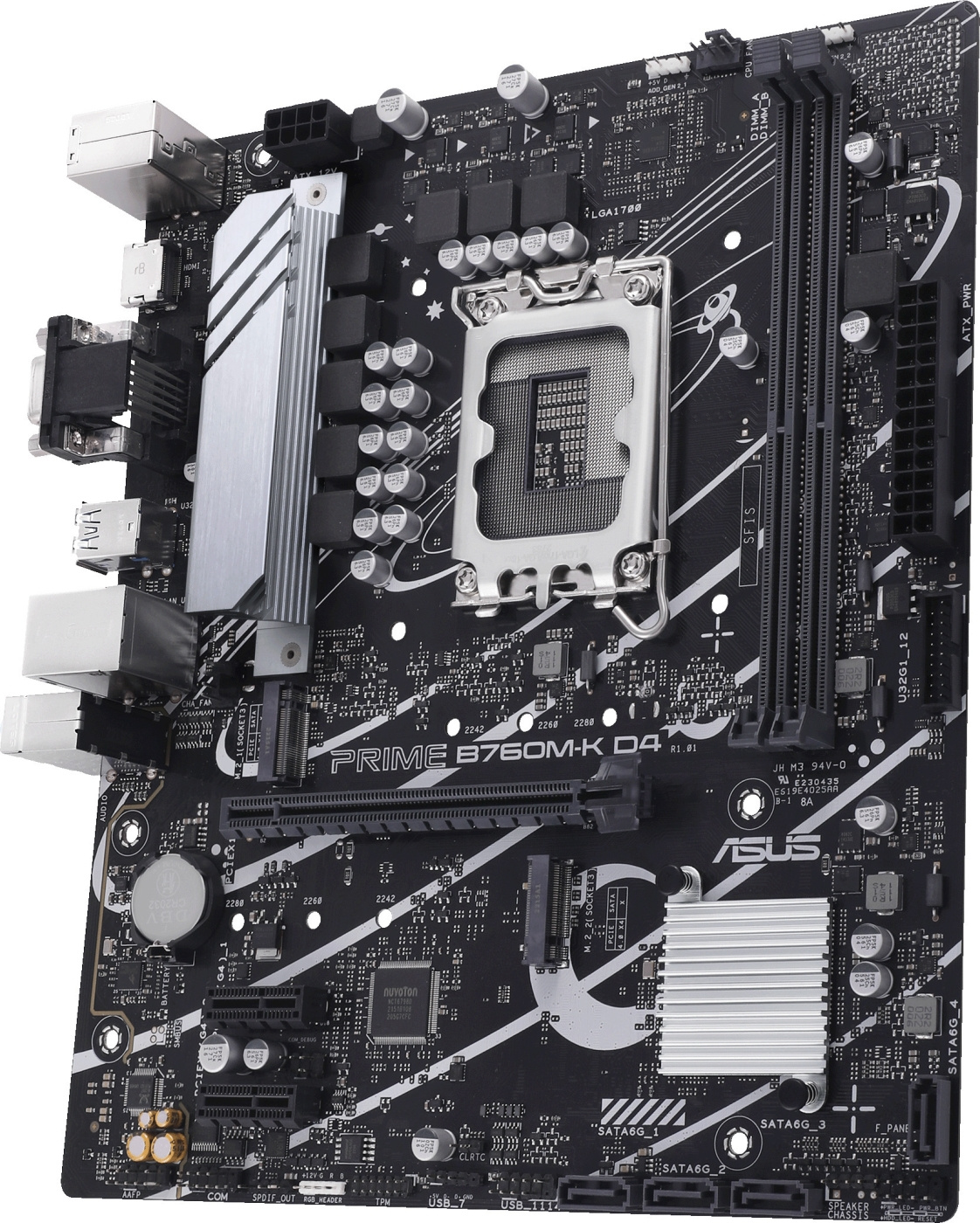

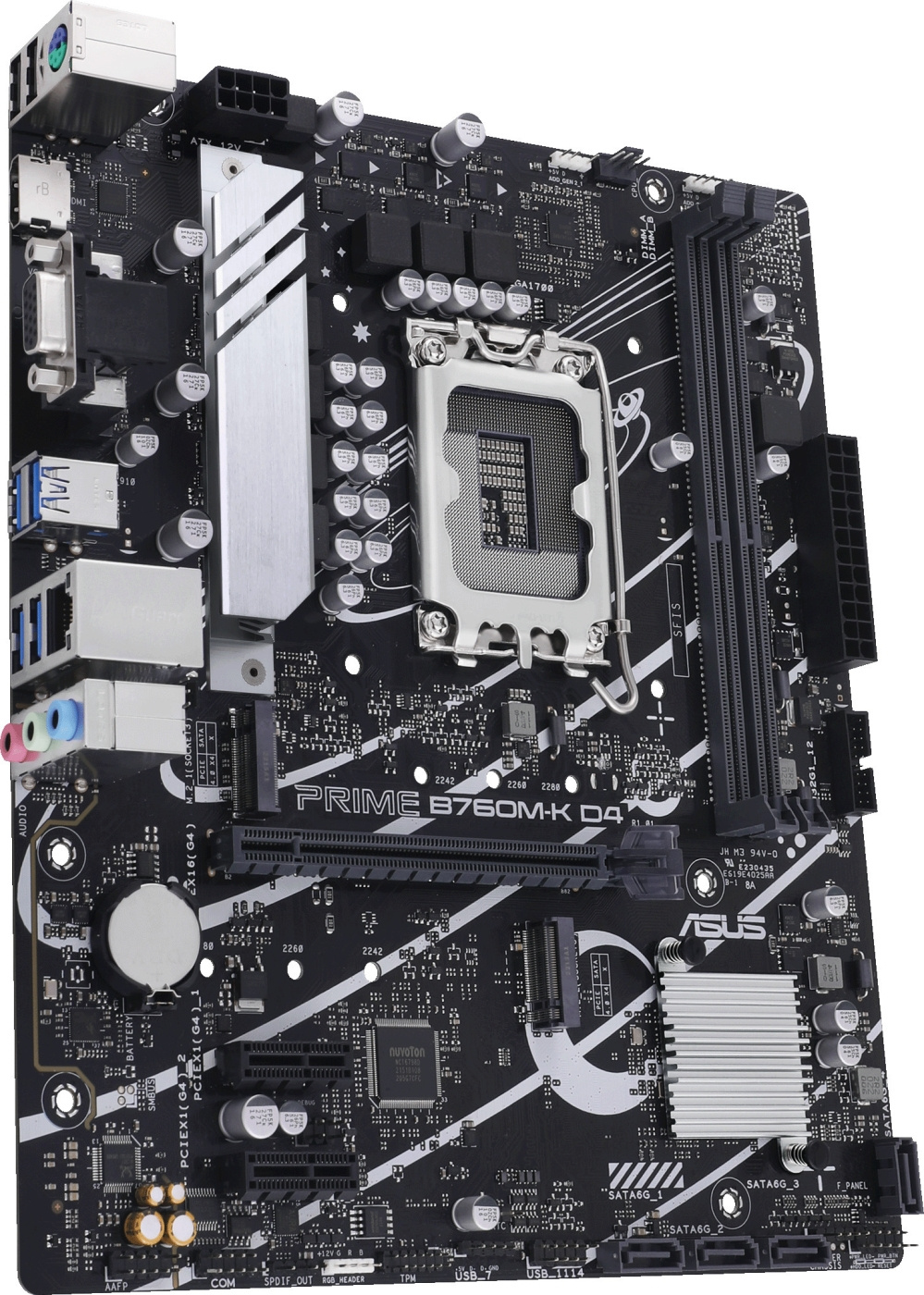

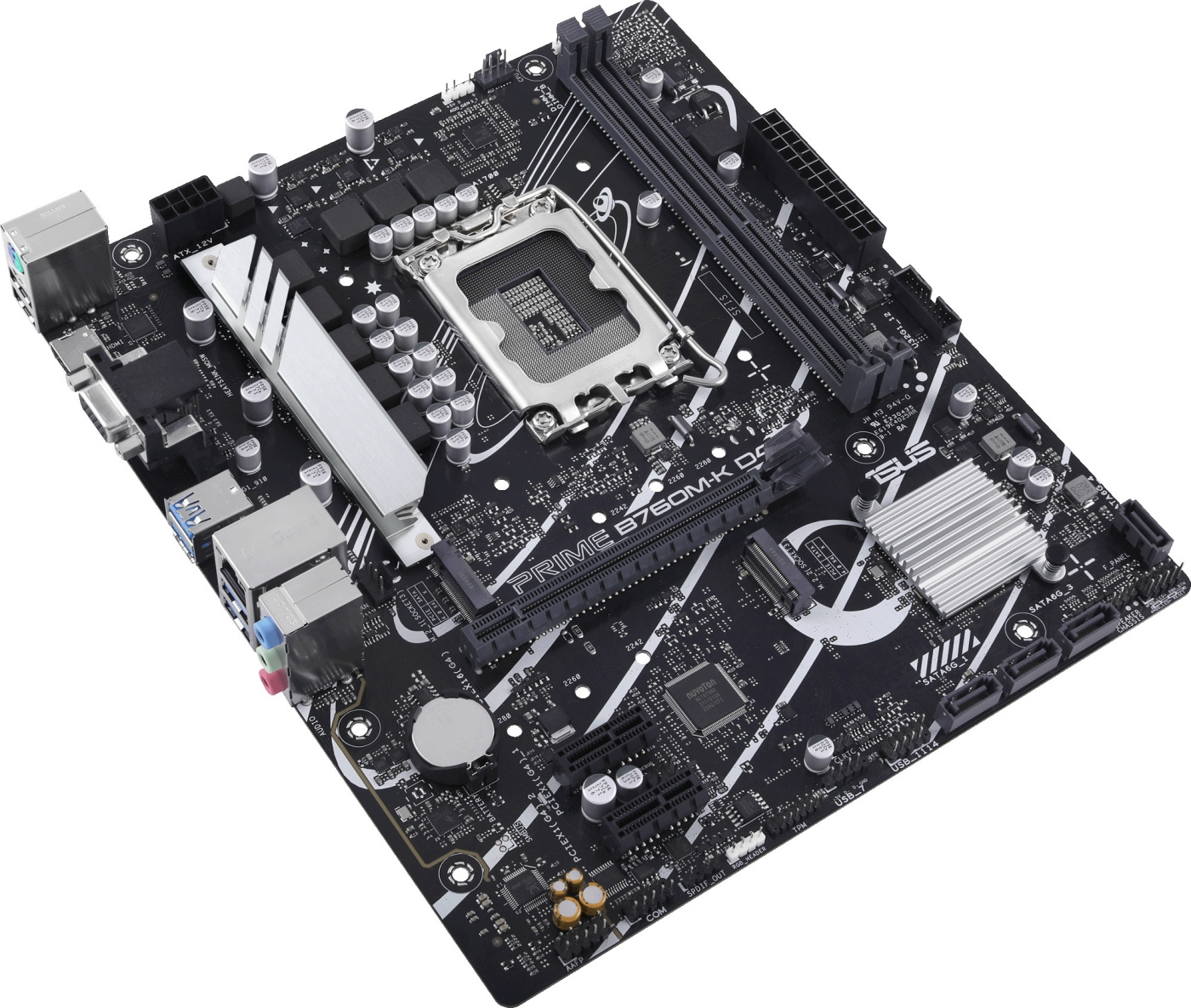

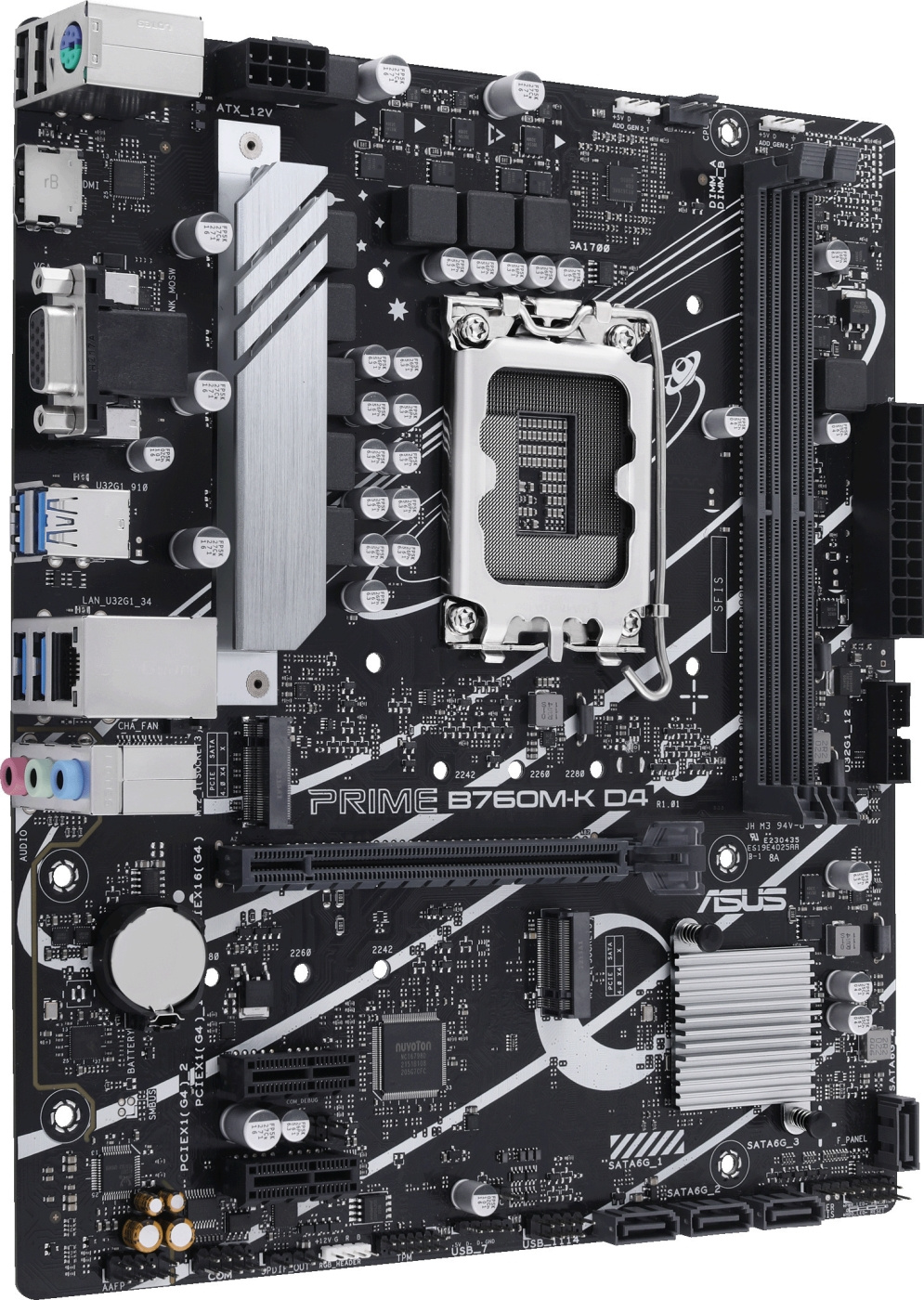

The PRIME series motherboards are expertly designed to deliver the full potential of 13th generation Intel Core processors. The Asus PRIME B760M-K D4 motherboard boasts a chunky power design, comprehensive cooling system and smart customisation options. It offers both everyday users and do-it-yourself PC builders a wide range of powerful tuning options with intuitive software and firmware features.
Asus Prime series motherboards offer the key features for building a quality configuration at an affordable price. PRIME motherboards are well suited for gaming and work applications, providing high quality power for even the most powerful Intel Core processors.
Intel LGA 1700: for 13th and 12th Gen Intel processors.
Ultra-fast connectivity: PCIe 4.0, two M.2 interfaces, Realtek 2.5Gb Ethernet and USB 3.2 Gen Type-C.
Comprehensive cooling: VRM, M.2 and PCH heat sinks, hybrid fan connectors and Fan Xpert 2+.
ASUS OptiMem II: Careful routing of vias to maintain signal integrity and improve memory stability.
Aura Sync RGB Lighting: Built-in Addressable Gen 2 headers and Aura RGB headers for RGB LED stripes, easily synchronizable with Aura Sync compatible hardware.
Features:
- Chipset: Intel B760
- Processor core: LGA 1700
- Processor support: 13th and 12th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: microATX (24.4 cm x 21.1 cm )
- Memory slots (pcs): 2
- Memory type: DDR4 (5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz), Non-ECC, Un-buffered, Dual Channel
- Maximum memory (GB): 64
- Network interfaces: 1 x Realtek 2.5Gb Ethernet
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion sites
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 x1 slots
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 2 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

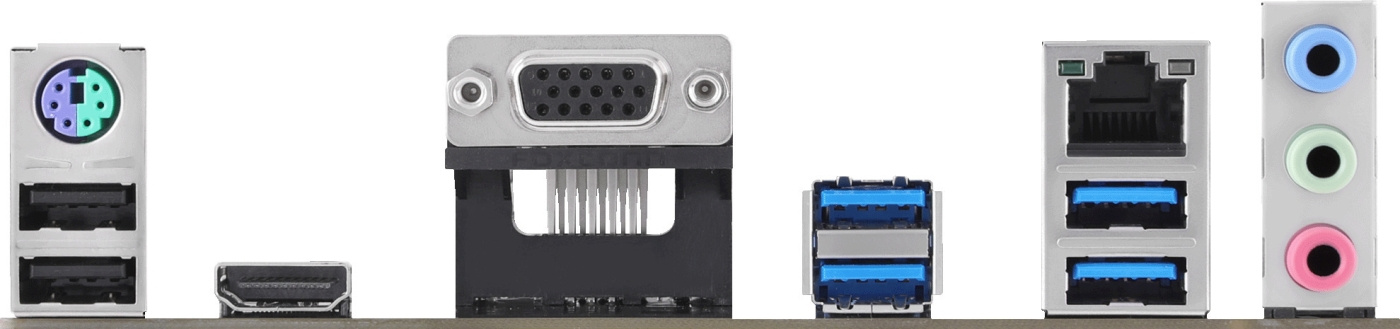

Rear panel interfaces
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x VGA port
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
- 1 x PS/2 keyboard/mouse combo port
Internal connections
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 3 additional USB 2.0 ports
- Miscellaneous
- 2 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- LGA 1700 mATX motherboard
- Intel B760 chipset
- Two M.2 interfaces
- 2.5G Ethernet LAN
- For Intel 13th generation CPUs
