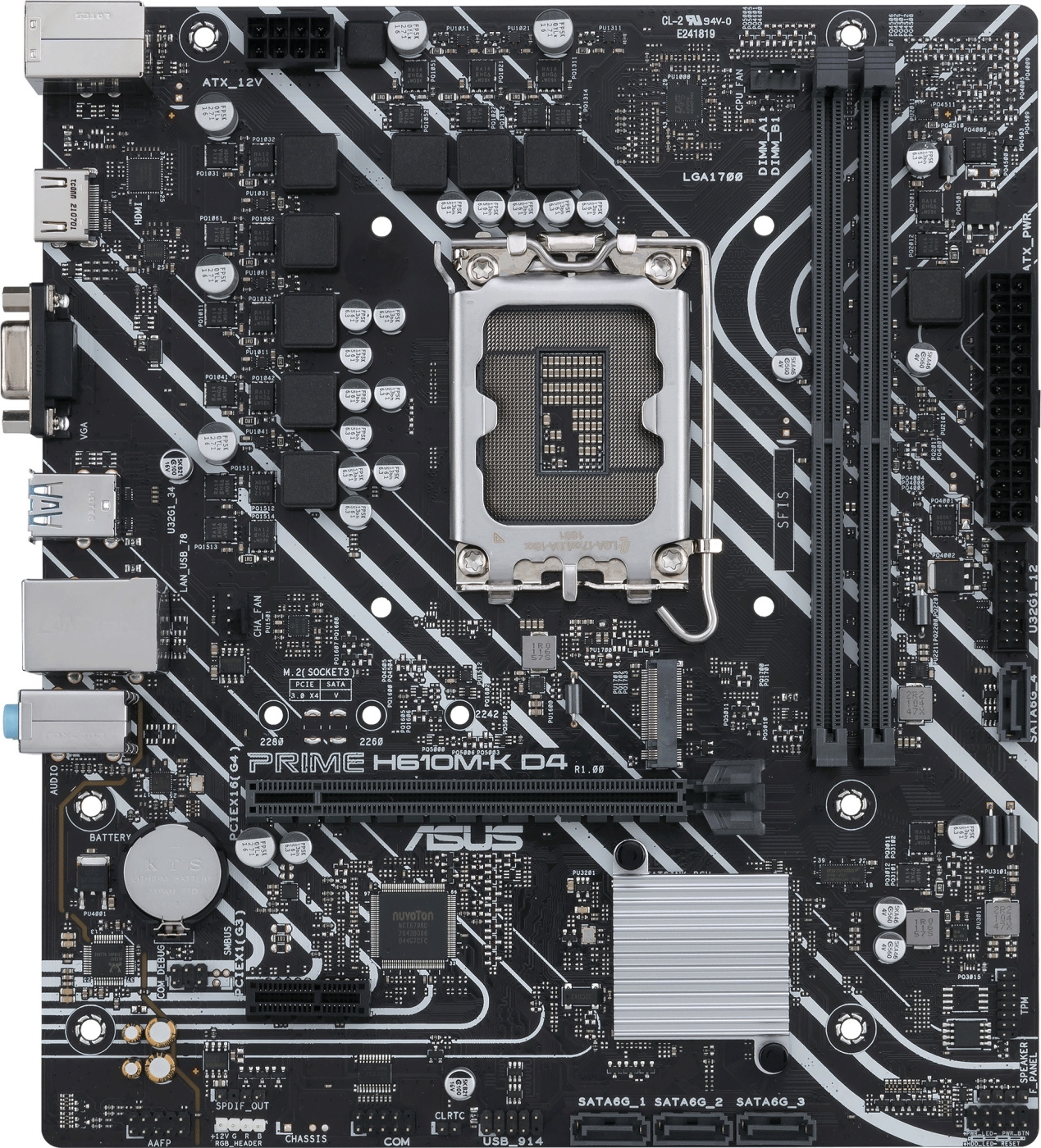

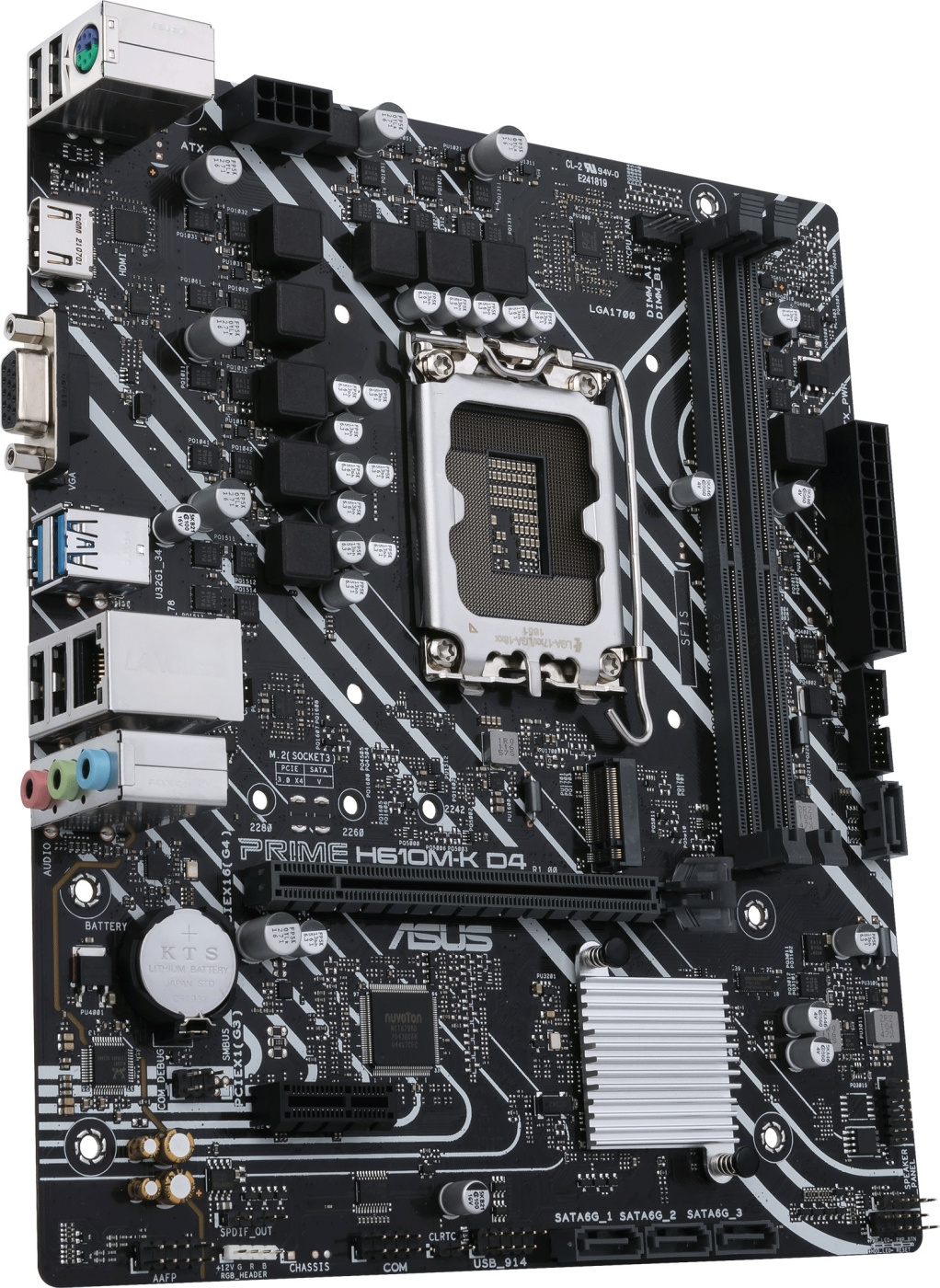

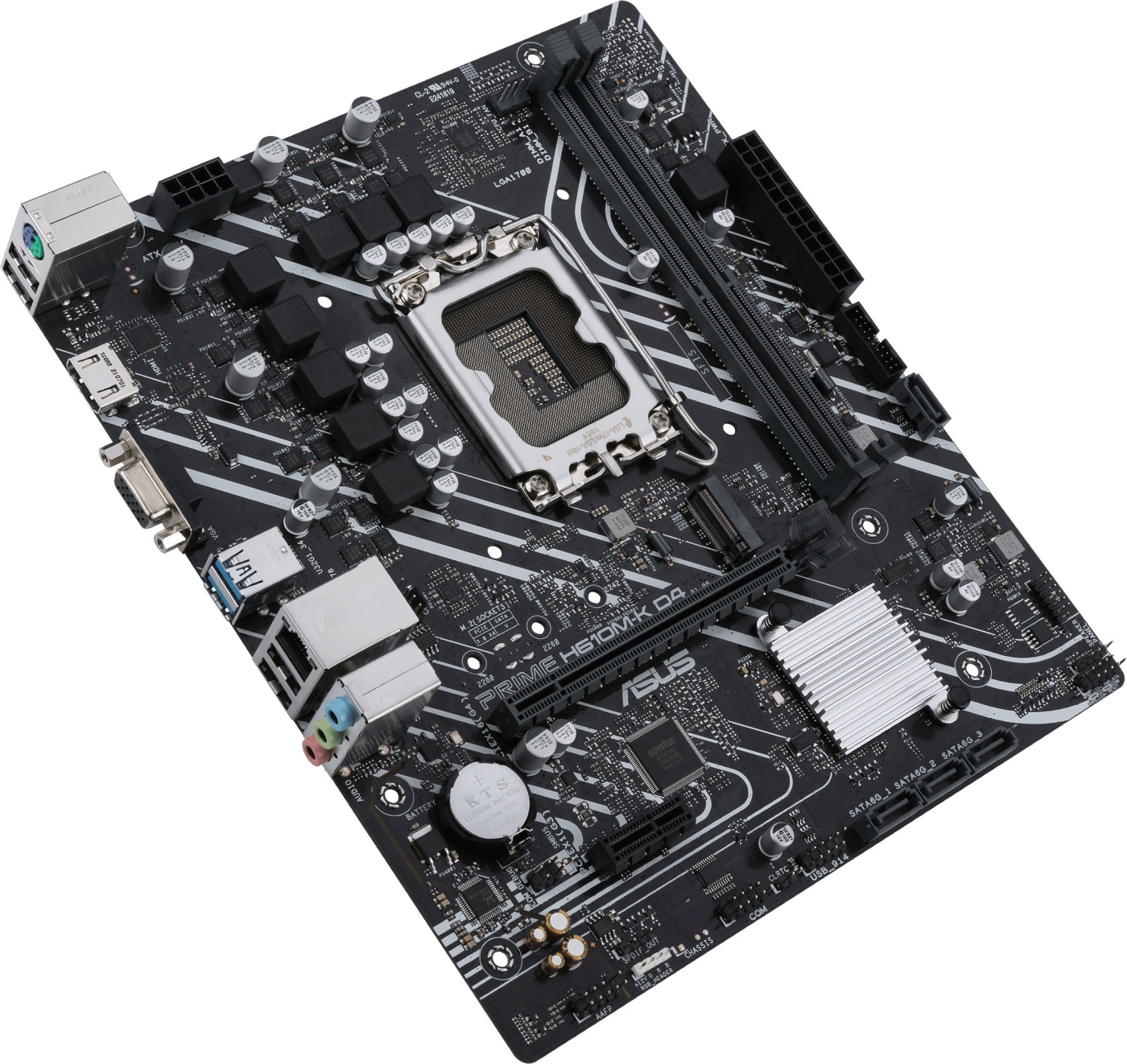

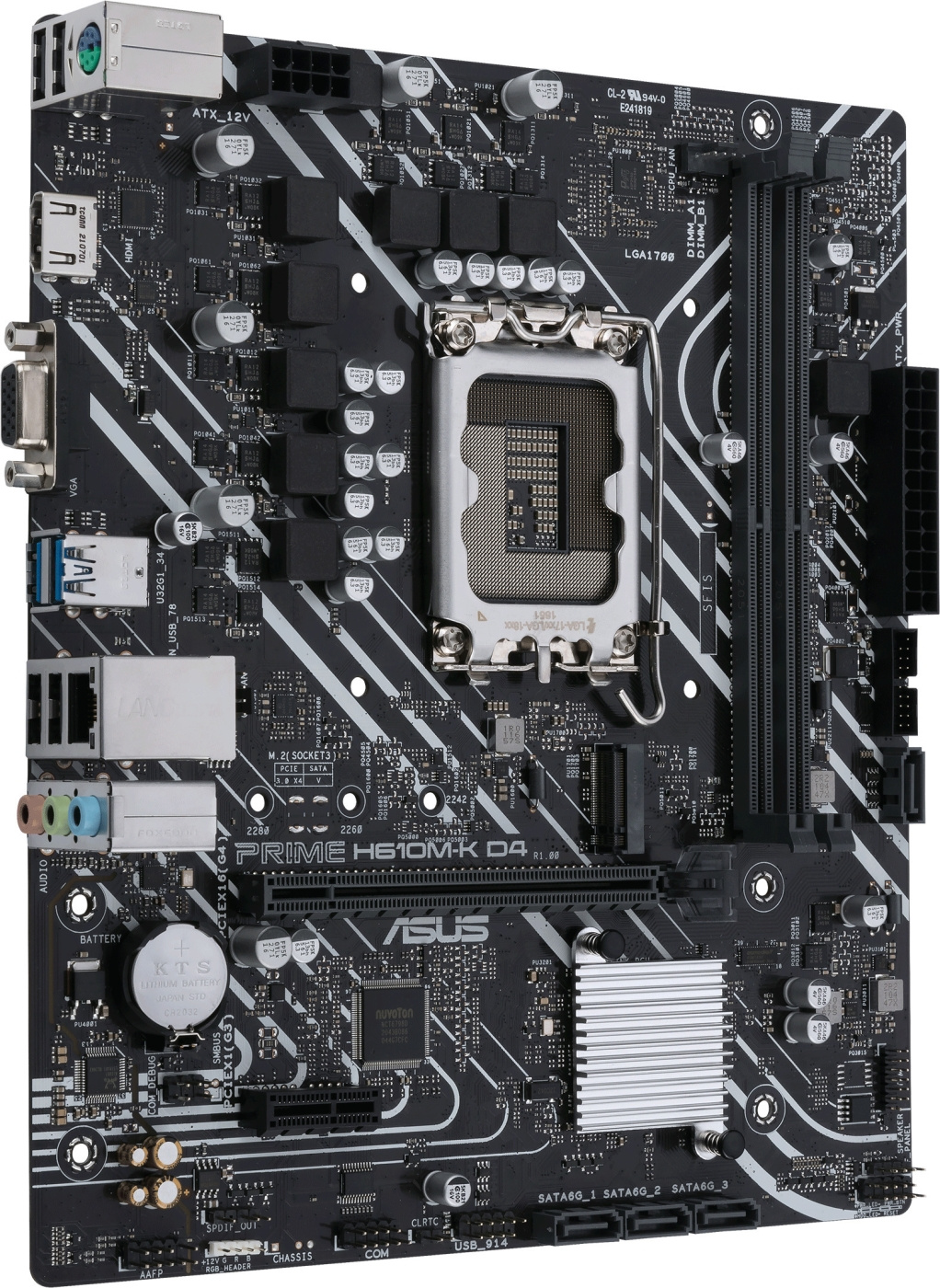

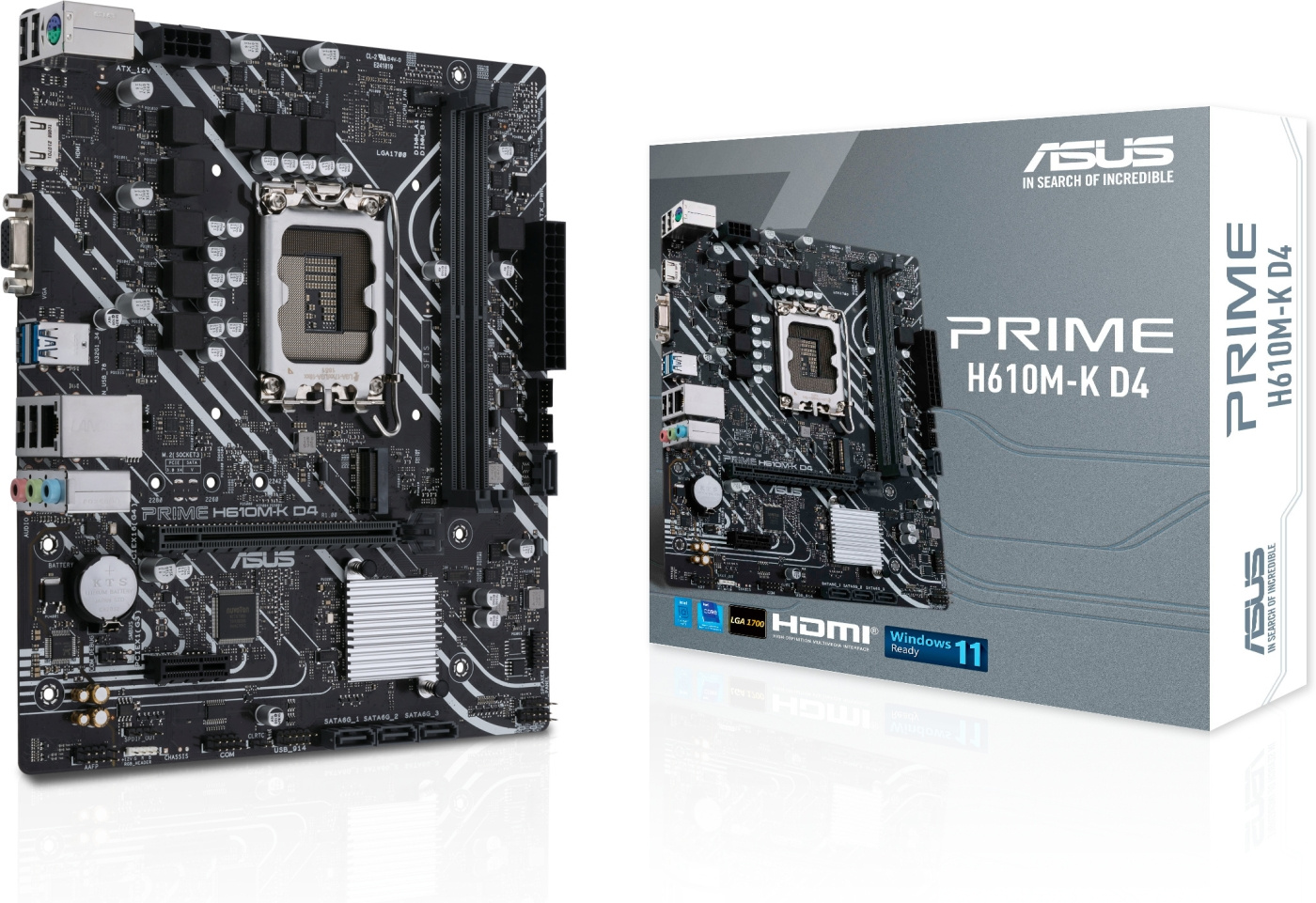

ASUS PRIME H610M-K D4 LGA 1700 mATX motherboard

Asus PRIME H610M-K D4 is an Intel LGA 1700 motherboard with Intel H610 chipset for Intel 12th generation Intel processors.
The PRIME H610 series motherboards offer the key features for building a high quality configuration at an affordable price. PRIME motherboards are well suited for gaming and work applications, offering high quality power supply even for the most powerful Intel Core processors.

Features:

• Chipset: Intel H610
• Processor core: LGA 1700
• Processor support: 12th generation Intel Core, Pentium Gold and Celeron
• Motherboard size: mATX
• Memory slots (pcs): 2
• Memory type: DDR4
• Maximum memory (GB): 64
• Network interfaces: Realtek 1Gb Ethernet
• Audio card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion sites

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Hard disk interfaces

• 4 x SATA 6Gb/s ports
• 1 x M.2 slot
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

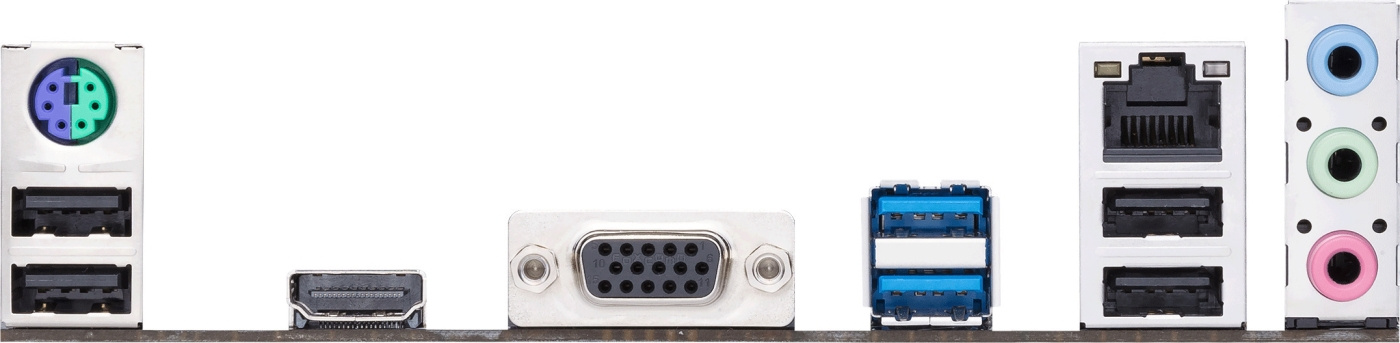

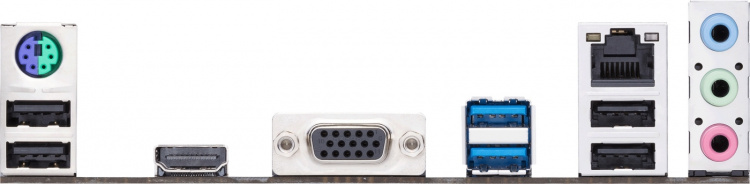

Rear panel interfaces

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x HDMI port
• 1 x Realtek 1Gb Ethernet port
• 3 x audio jacks
• 1 x PS/2 keyboard/mouse combo port

Internal connections

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS button
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• LGA 1700 mATX motherboard
• Intel H610 chipset
• One M.2 slot
• Comprehensive connectivity options
• For Intel 12th generation CPUs
