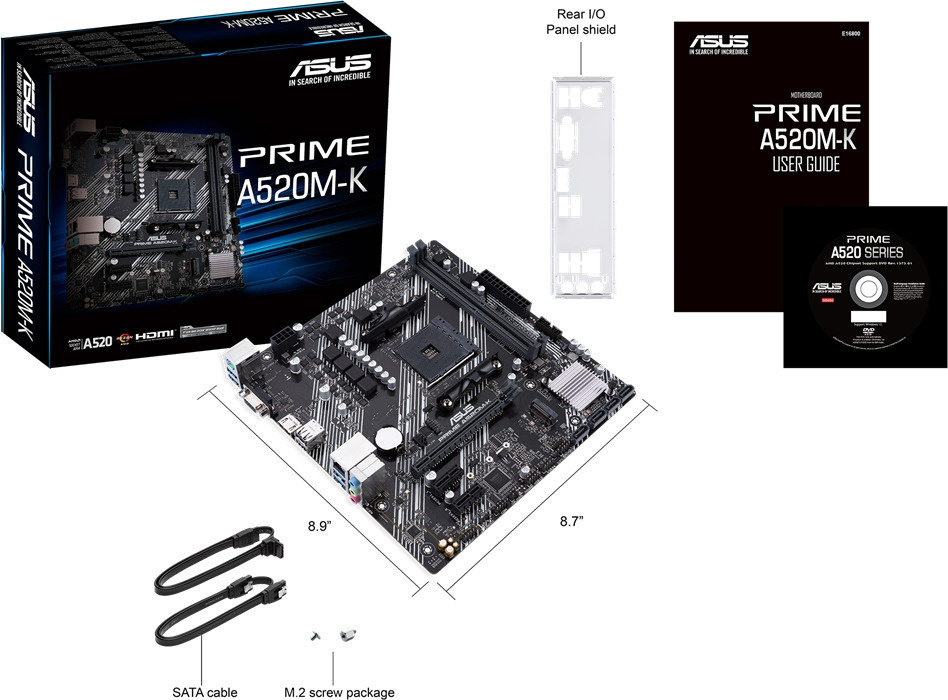

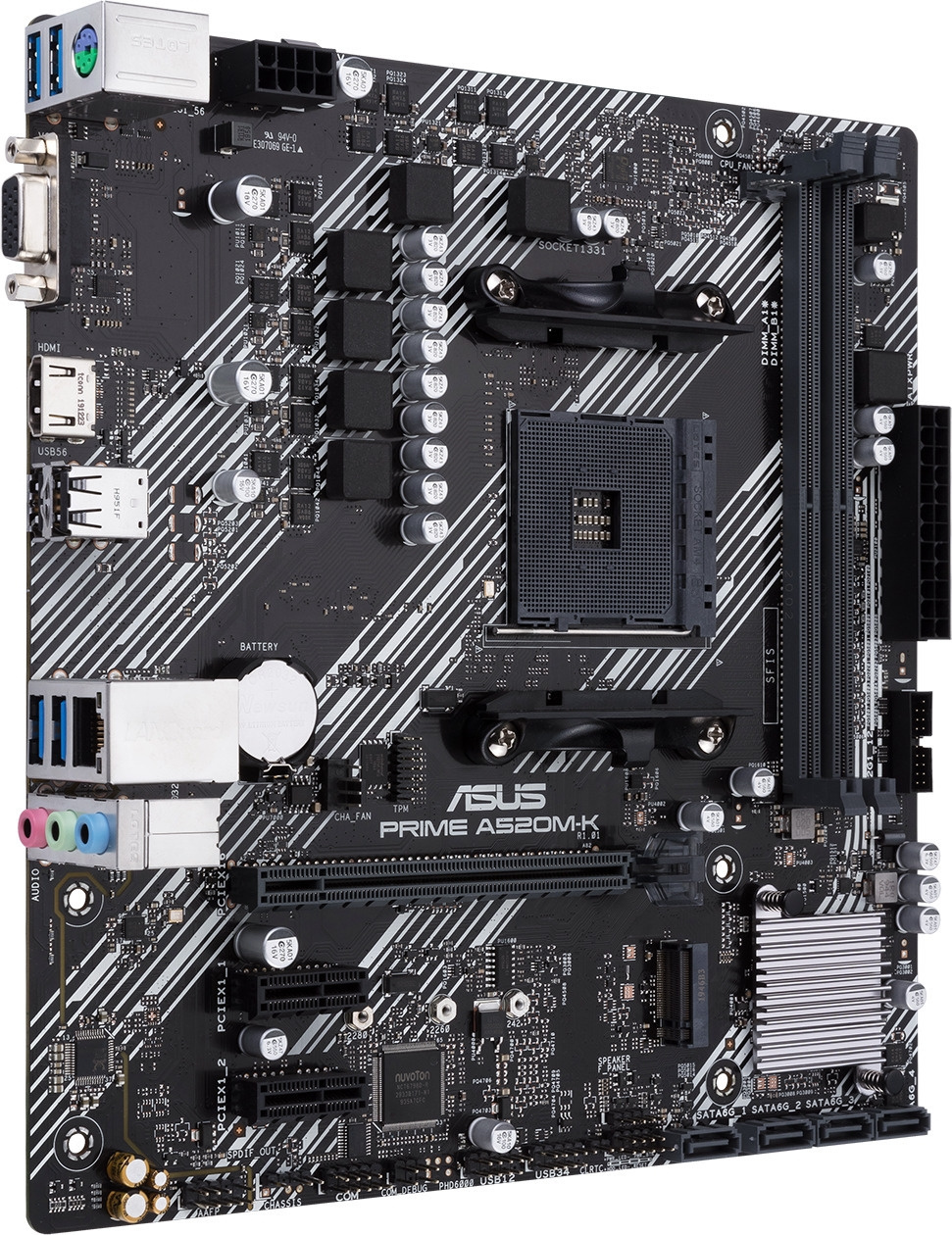

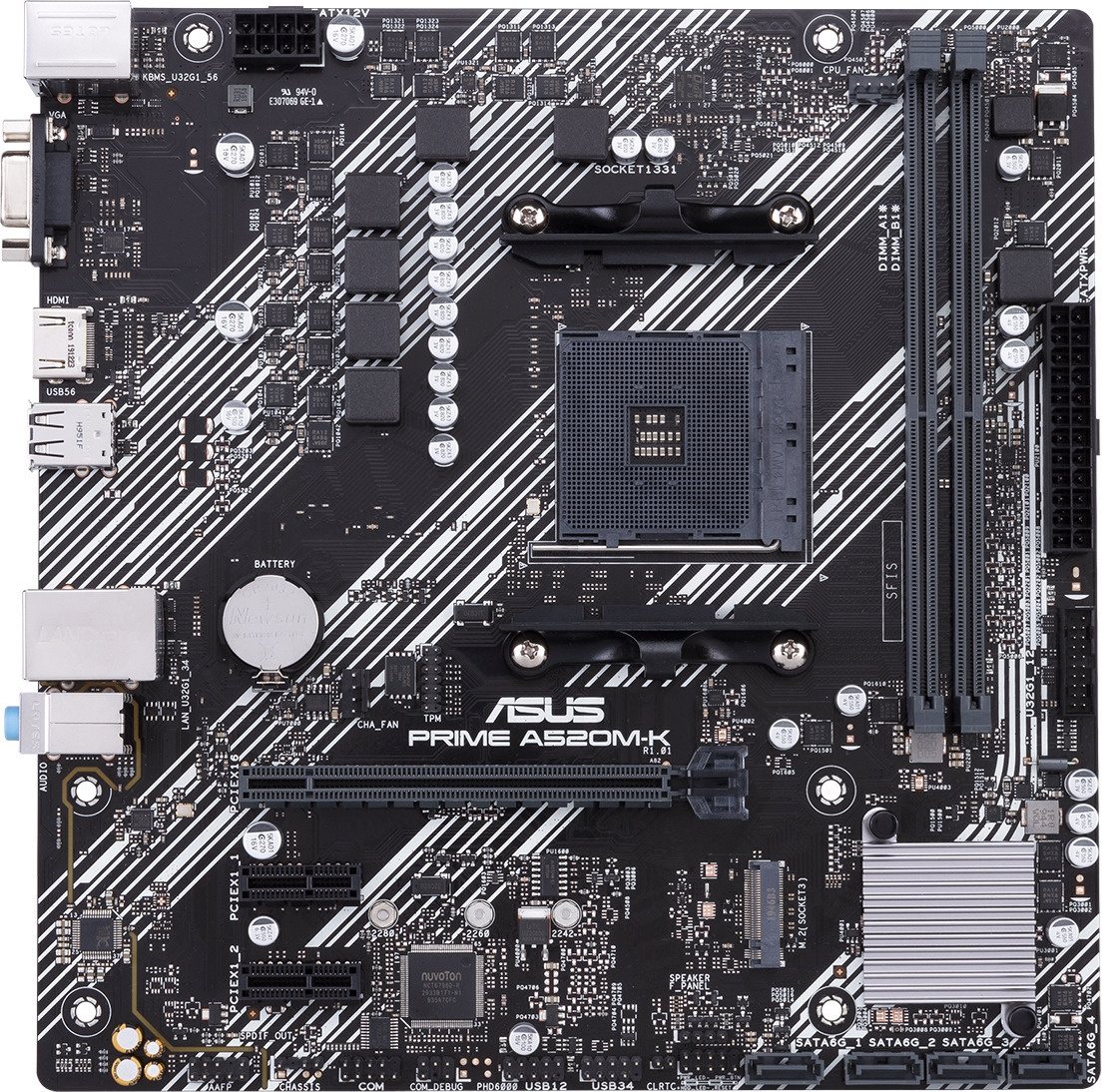

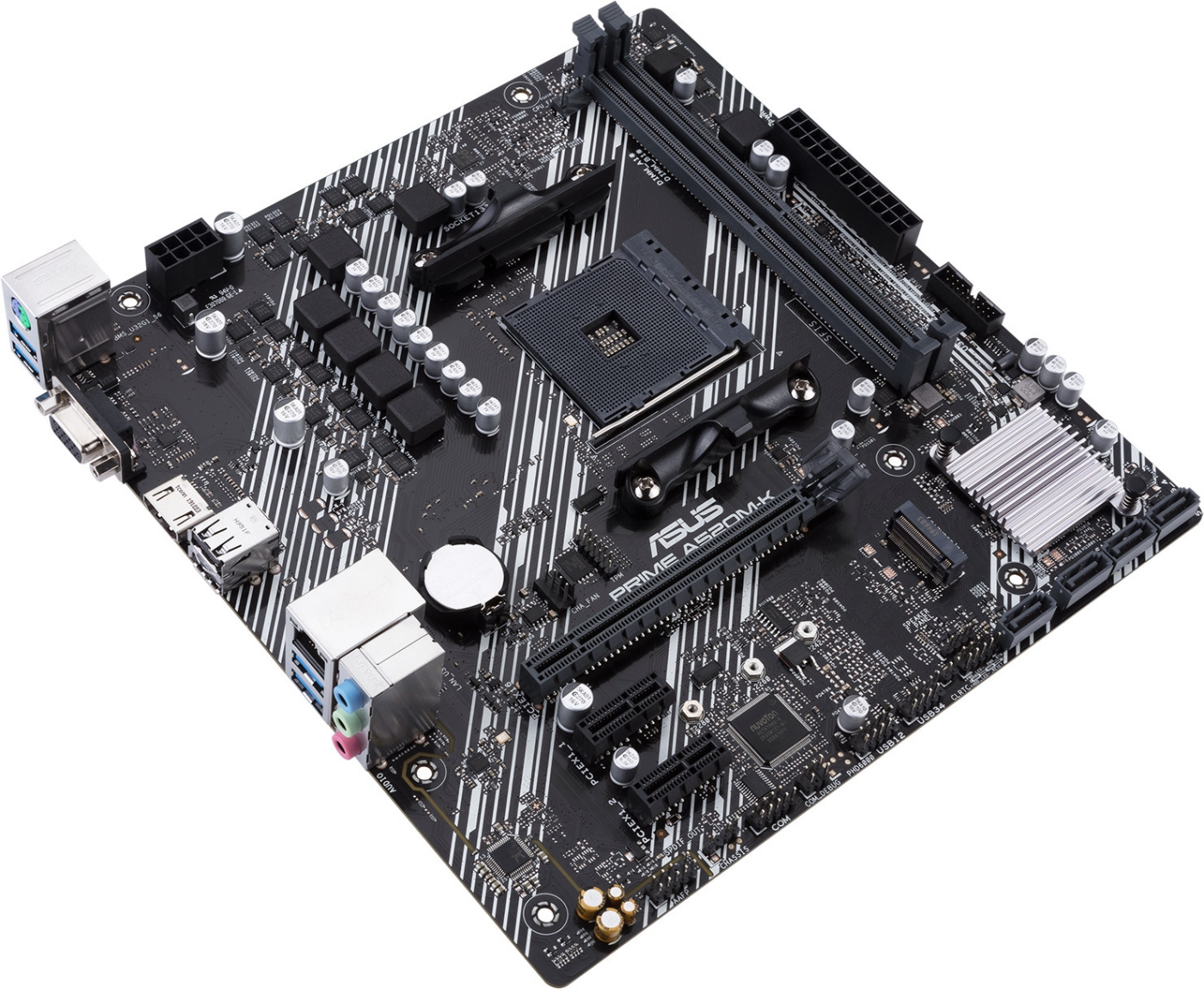

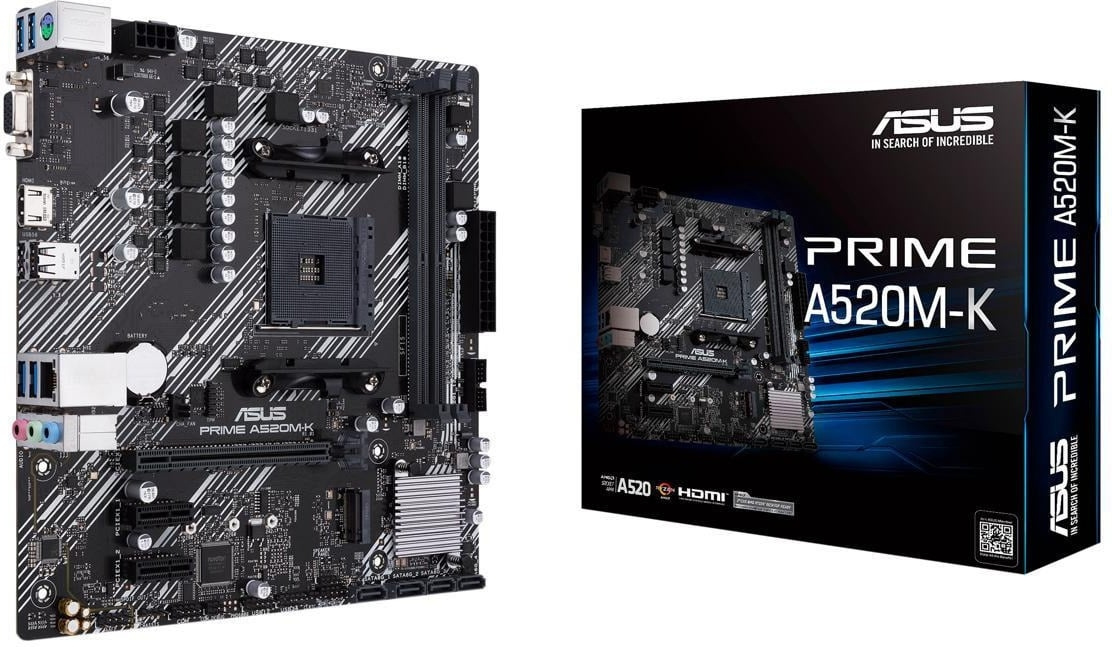

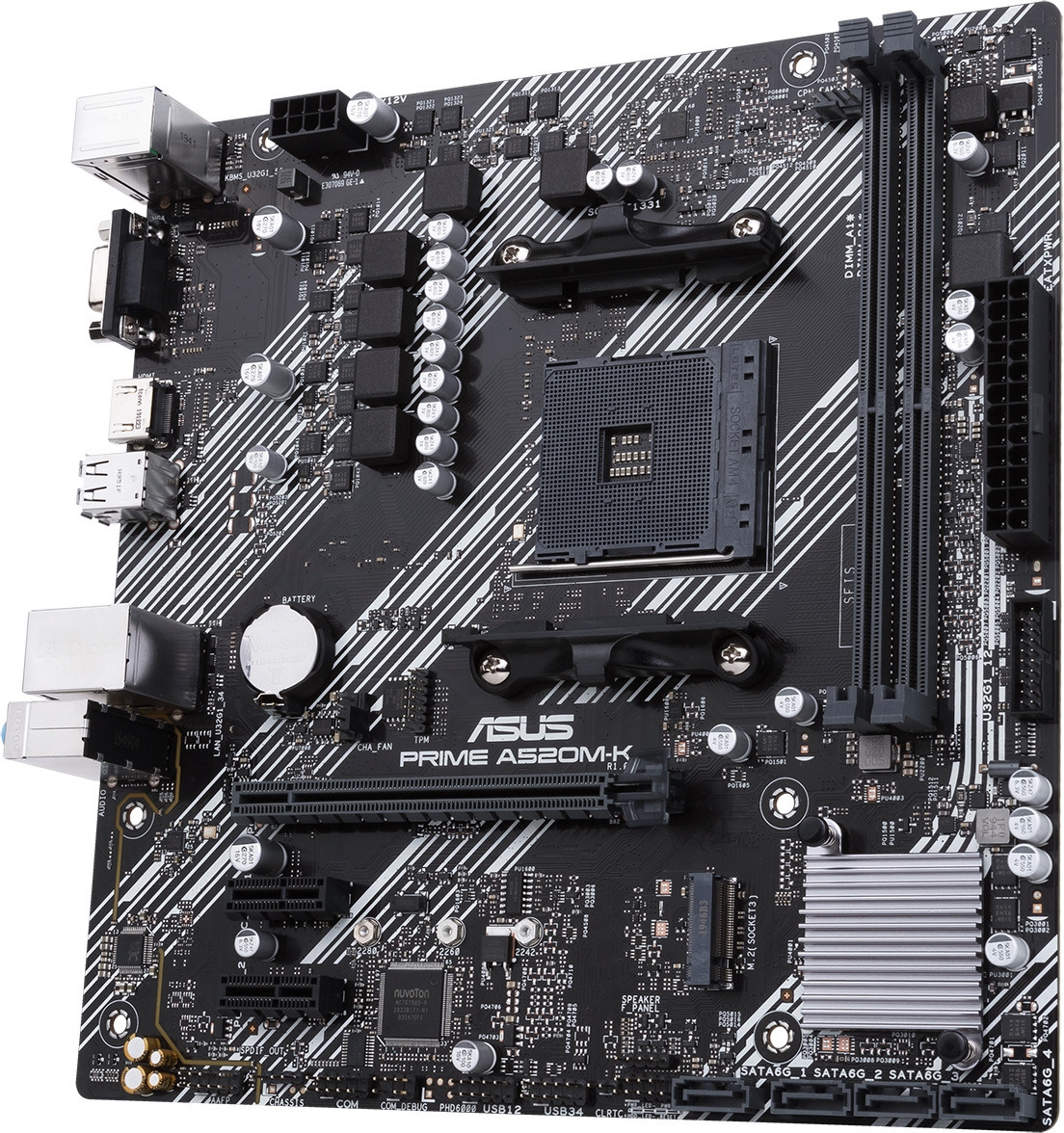

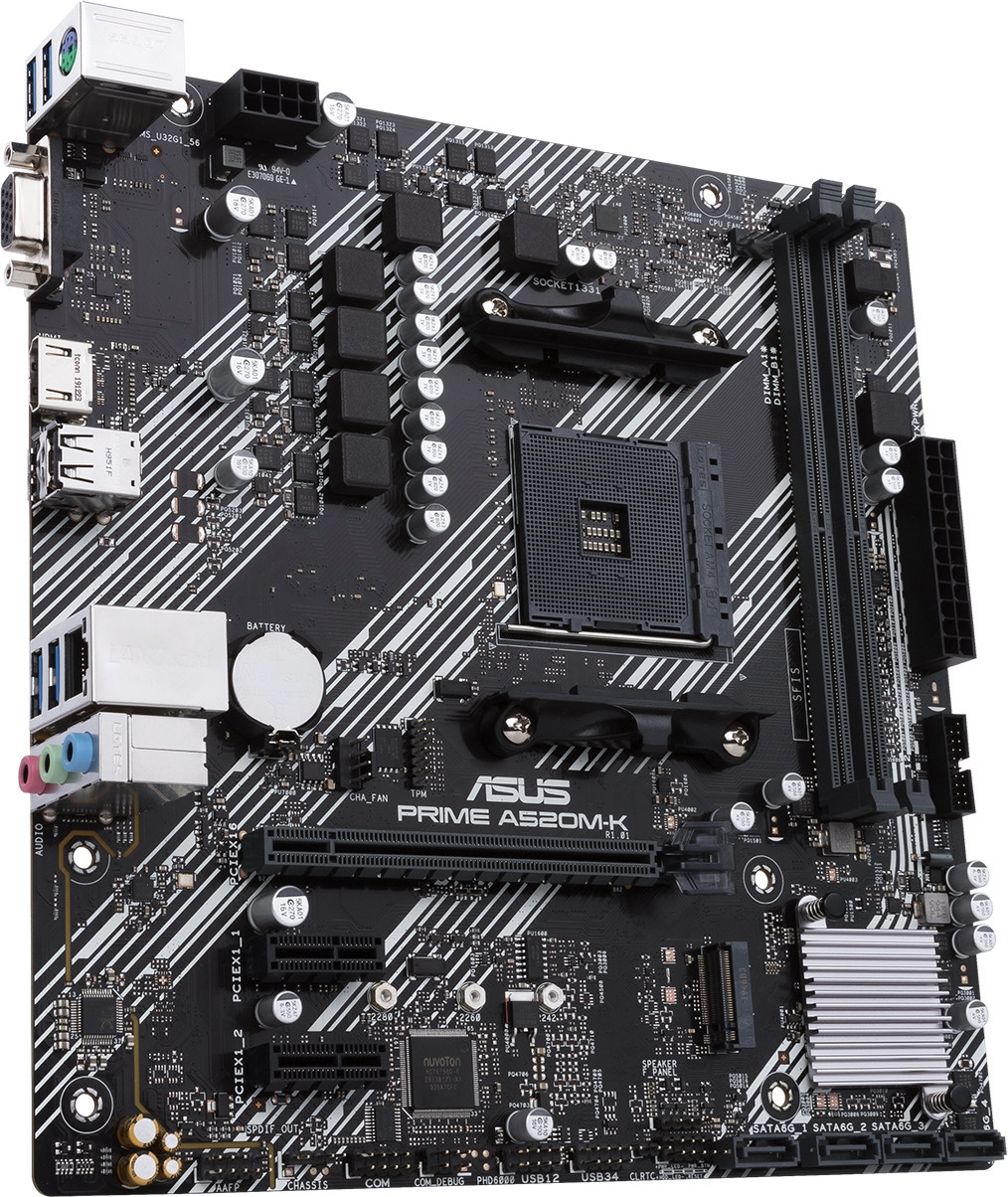

ASUS Prime PRIME A520M-K mATX motherboard

The ASUS Prime series is expertly designed to unleash the full potential of the third-generation AMD Ryzer platform. The Prime A520 series motherboards feature a robust power architecture, comprehensive cooling solutions and intelligent tuning options that provide everyday users and DIY PC builders with a range of performance installation options through intuitive software and firmware features.

Comprehensive controllers form the foundation of the ASUS Prime series. The Prime A520 motherboard includes flexible tools for tuning all parts of the system. They allow you to adjust performance settings to perfectly match the way you work - maximising productivity.

Features:

• Model
• Chipset: AMD A520
• Processor platform: AMD AM4 Socket
• Processor support: Ryzen (supports: 3rd generation Ryzen / 3rd generation Ryzen and Radeon Graphics)
• Motherboard size: mATX
• Memory slots (pcs): 2
• Memory type: DDR4 DIMM, max. max. 64GB(s) (number of DIMMs) (max. 64GB)
• LAN: Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
• Sound card: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• Expansion slots: 3rd gen AMD Ryzen and 3rd gen AMD Ryzen with Radeon Graphics Processors: 1 x PCIe 3.0 x16 (x16 mode), AMD A520 chipset: 2 x PCIe 3.0 x1
• Storage: 1 x M.2 and 4 x SATA 6Gb
• USB ports: rear: 4 x USB 3.2 Gen 1 (4 x Type-A), 2 x USB 2.0 (2 x Type-A), front: 2 x USB 3.2 Gen 1 port (2 x Type-A), 4 x USB 2.0 port (4 x Type-A)
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Control: WOL by PME, PXE
• Operating System: Windows 10 64-bit
• Form Factor: mATX Form Factor 22.6 cm x 22.1 cm

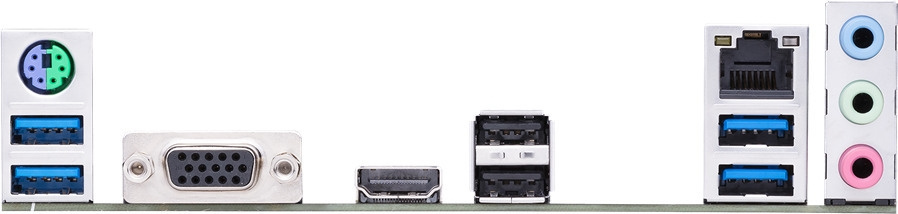

Rear I/O ports:

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 3 x audio jack(s)

Internal I/O ports:

• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector

• AM4 mATX motherboard
• AMD A520 chipset
• One M.2 slot
• Comprehensive connectivity options
