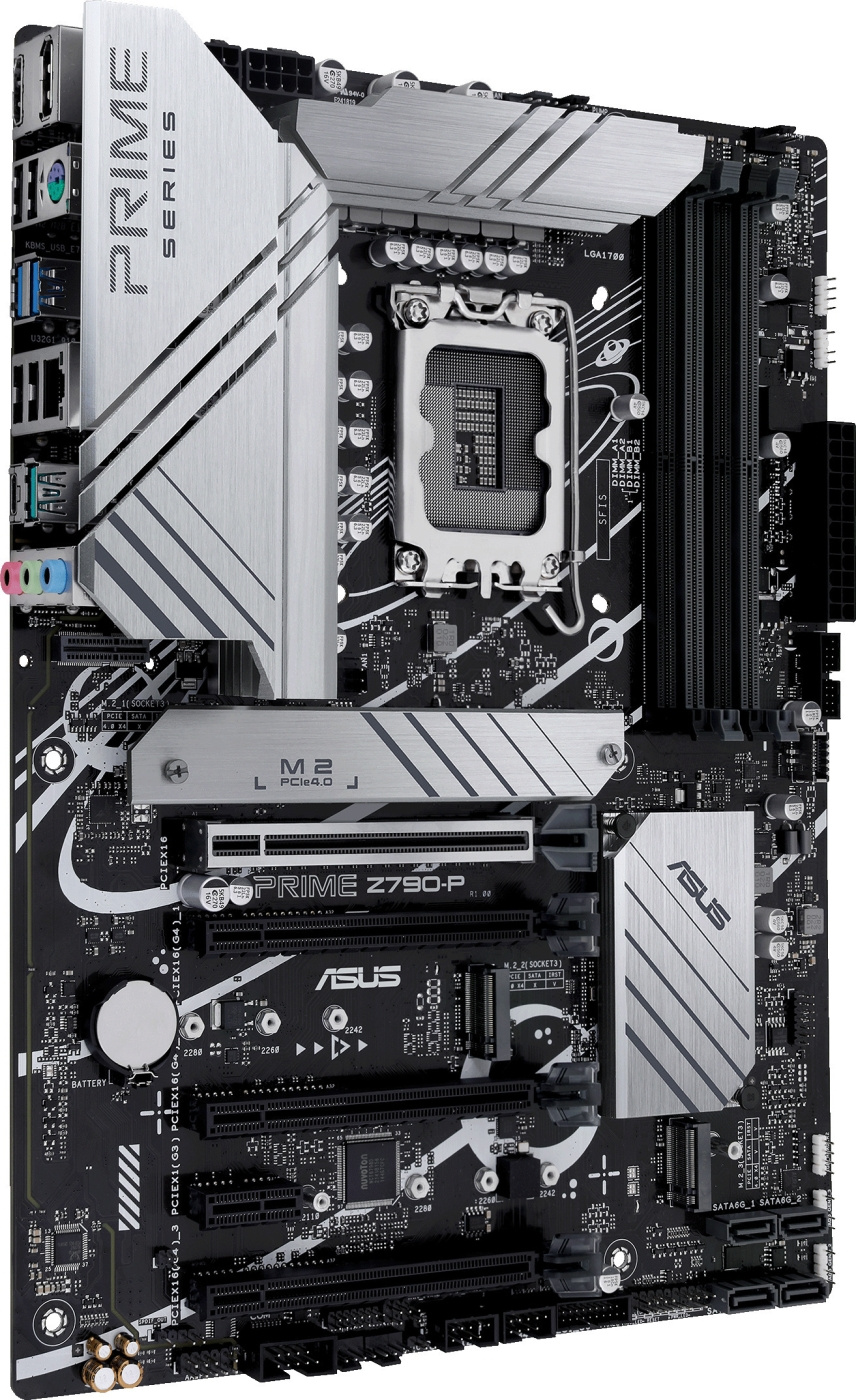

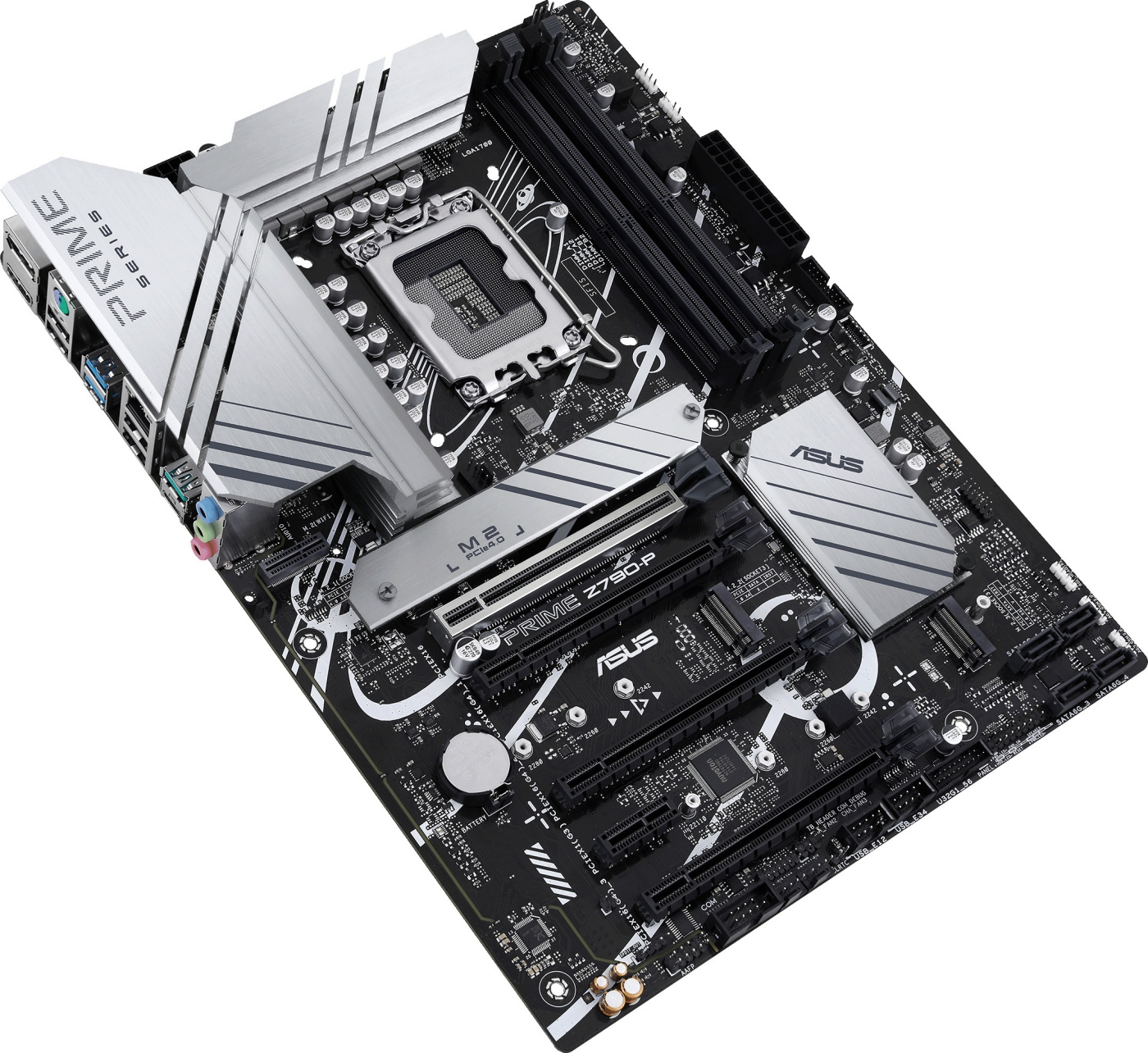

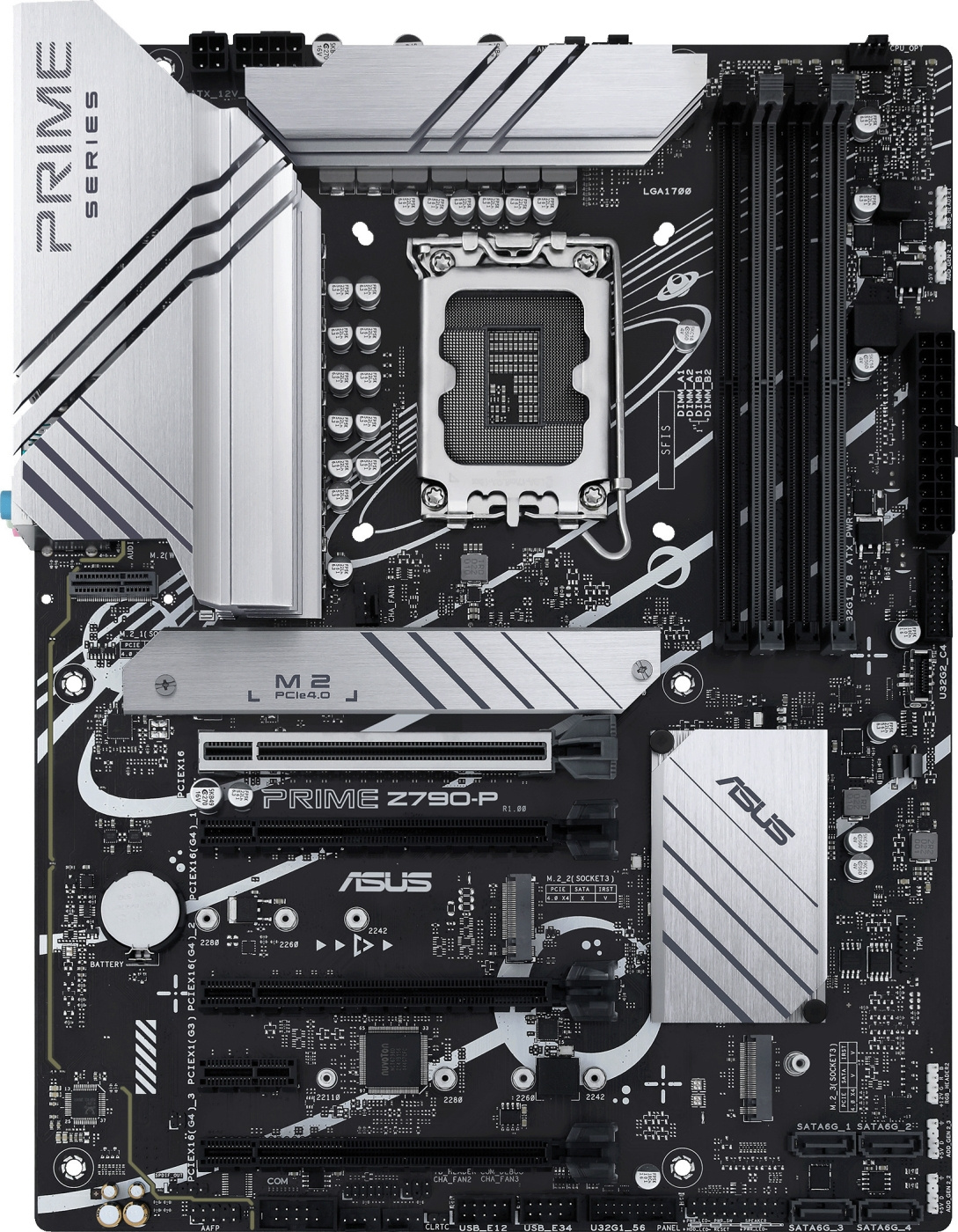

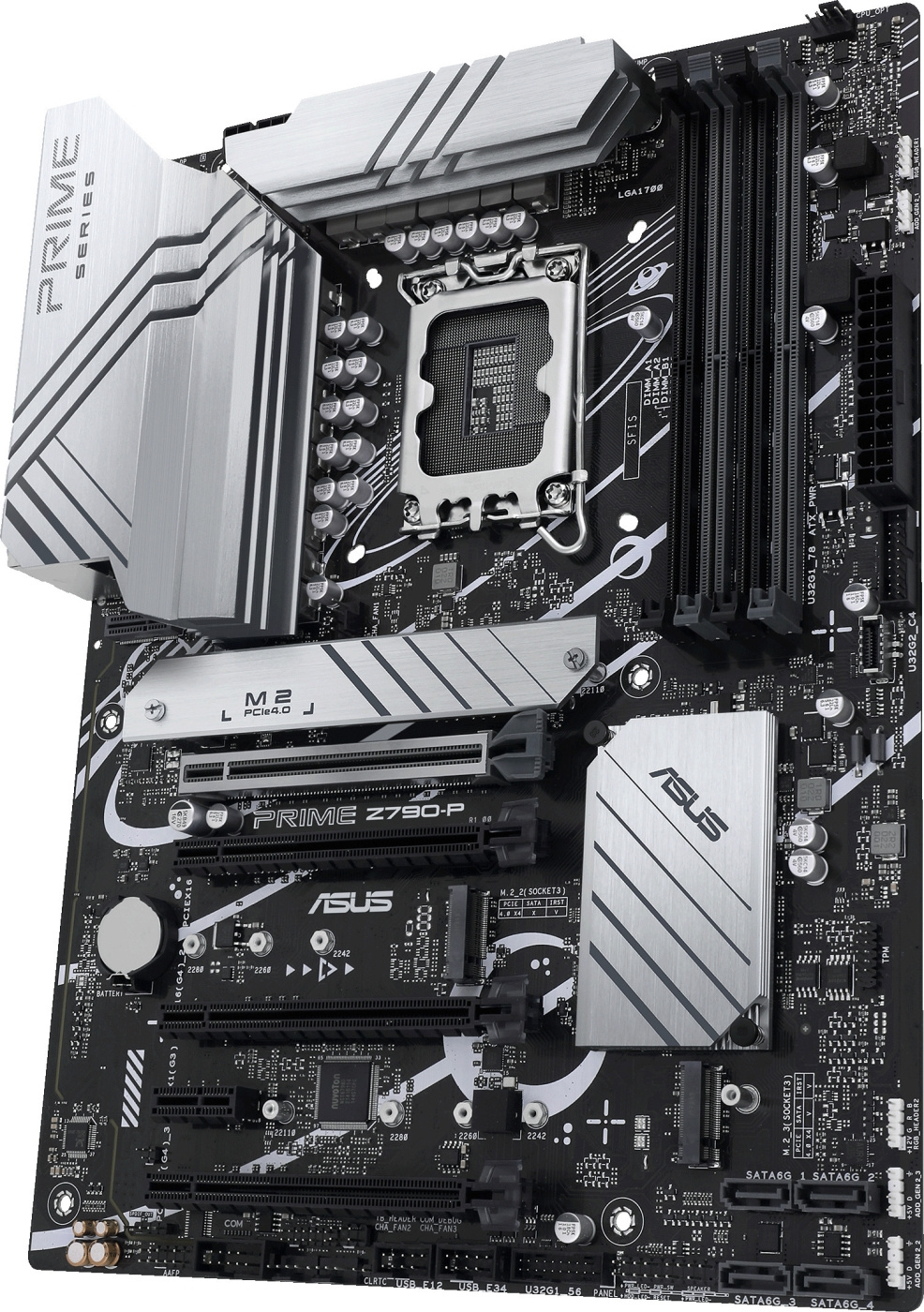

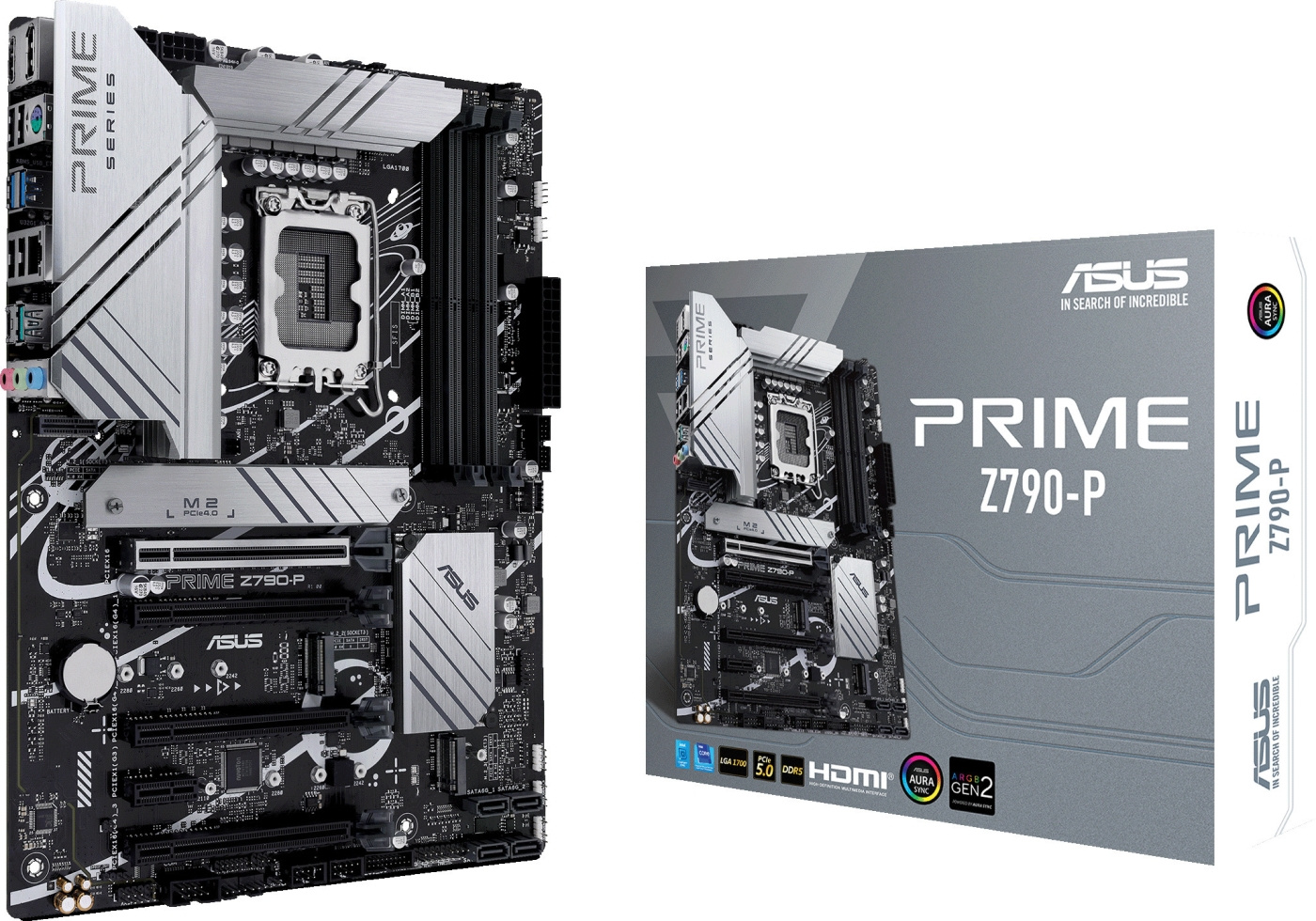

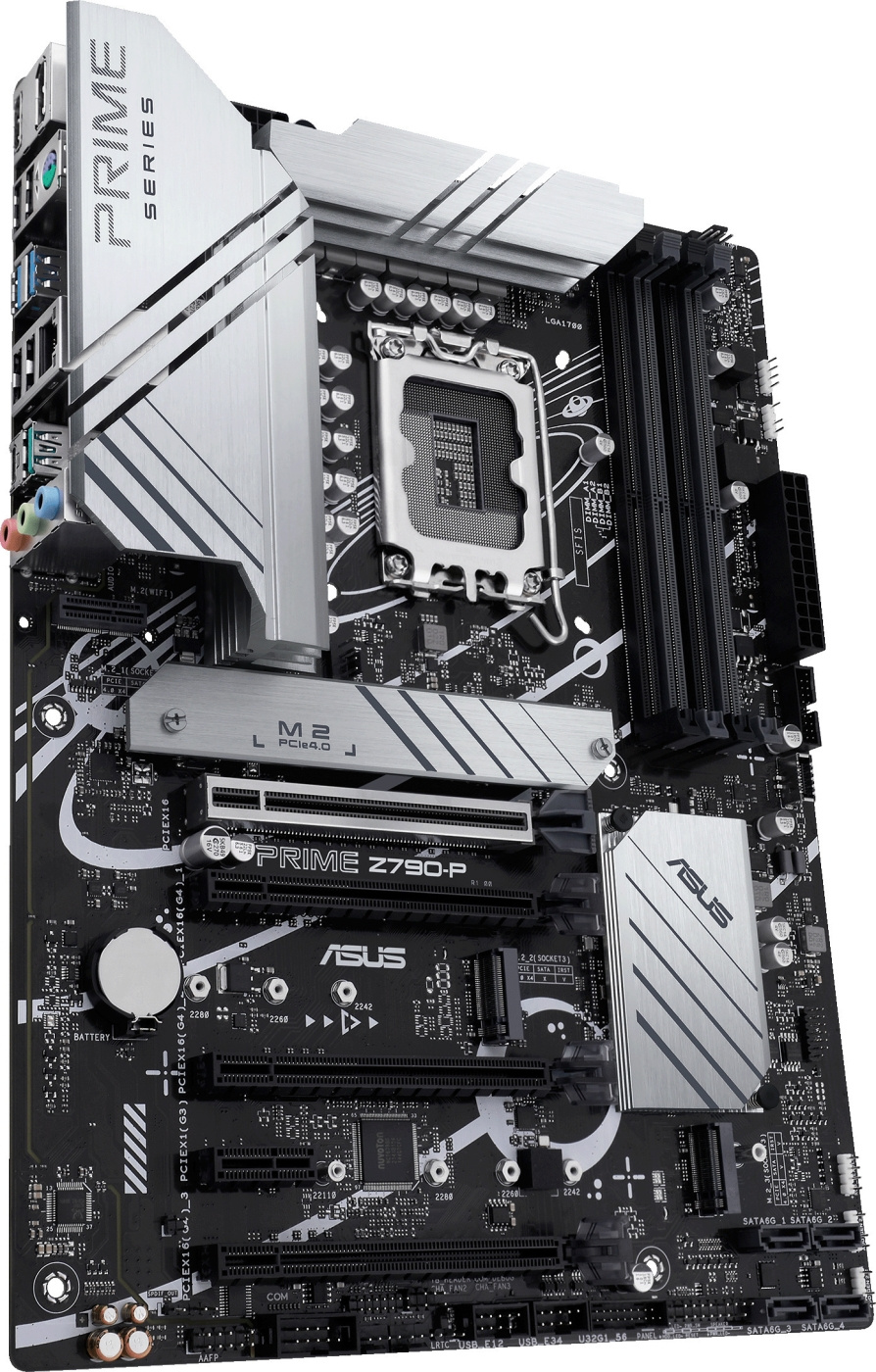

PRIME Z790-P is an Intel Z790 LGA 1700 ATX motherboard with 14+1 DrMOS power lanes, PCIe 5.0, DDR5 memory support, three M.2 slots, USB 3.2 Gen 2x2 Type-C and front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 (USB4) support and Aura Sync.
Intel LGA 1700: Supports 13th generation Intel Core processors and 12th generation Intel Core, Pentium Gold and Celeron processors.
Next generation connectivity: DDR5, PCIe 5.0, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, PCIe 4.0 M.2 and Thunderbolt 4 interface support.
Powerful network connectivity: Realtek 2.5 Gb Ethernet and LANGuard.
Comprehensive cooling: large VRM heat sinks, PCH and M.2 heat sinks, hybrid fan connectors, Fan Xpert 4 and AI Cooling II.
Features:
- Chipset: Intel Z790
- Processor core: LGA1700
- Processor support: 13th generation Intel Core, 12th generation Intel Core, Pentium Gold, Celeron series

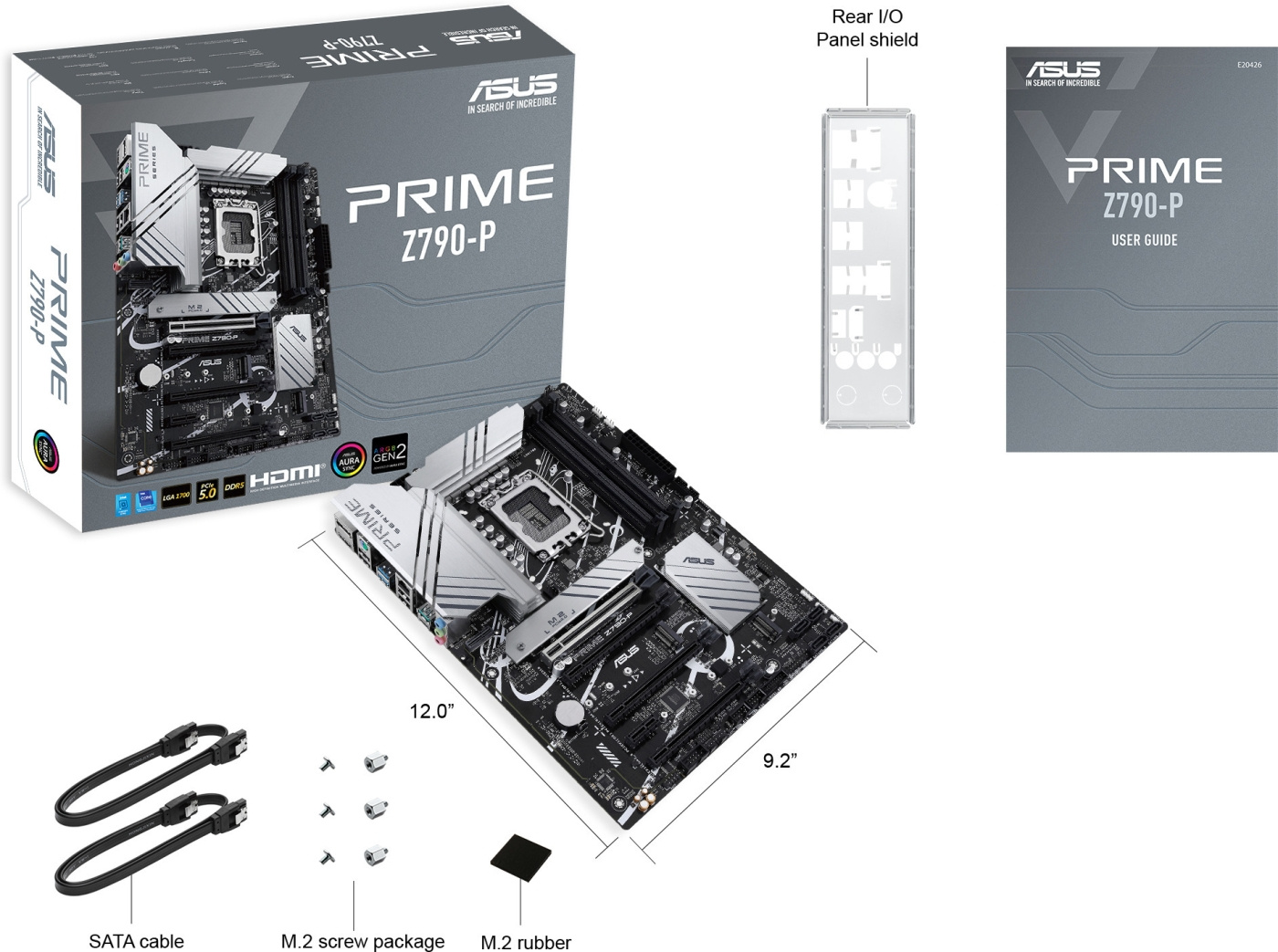

- Motherboard size: ATX, 30.5 cm x 23.4 cm
- Memory slots (pcs): 4
- Memory type: DDR5 (Dual Channel), MHz: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered
- Maximum memory (GB): 128
- Realtek 2.5Gb Ethernet
- Bluetooth
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion sites
- 1 x PCIe 5.0 x16 slot
- 3 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

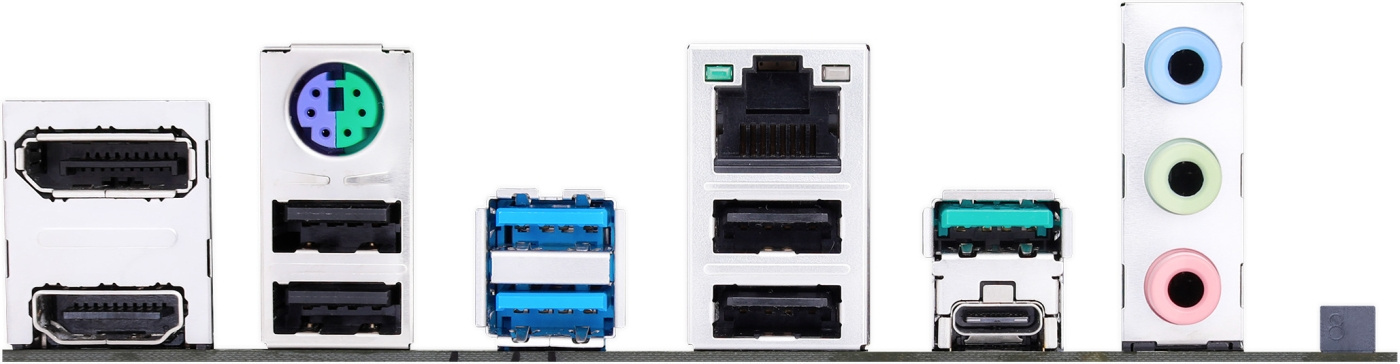

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
- 1 x PS/2 keyboard/mouse combo port
Internal connections
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header 3
x 4-pin Chassis Fan headers - Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector - Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) header
- LGA 1700 ATX motherboard
- Intel Z790 chipset
- 3 x M.2 slots, 4 x SATA
- 2.5G Ethernet
- For Intel 13th generation processors
