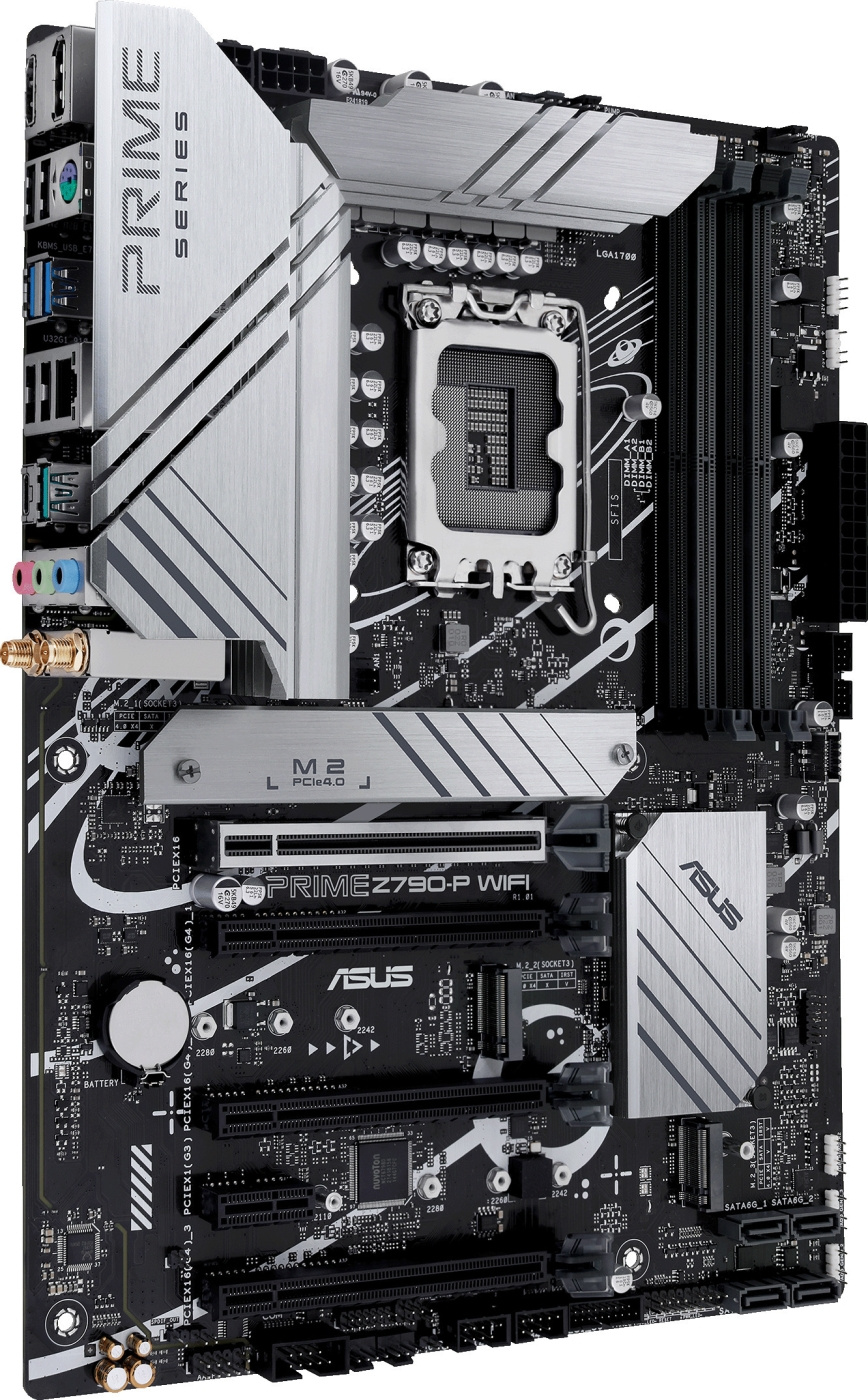

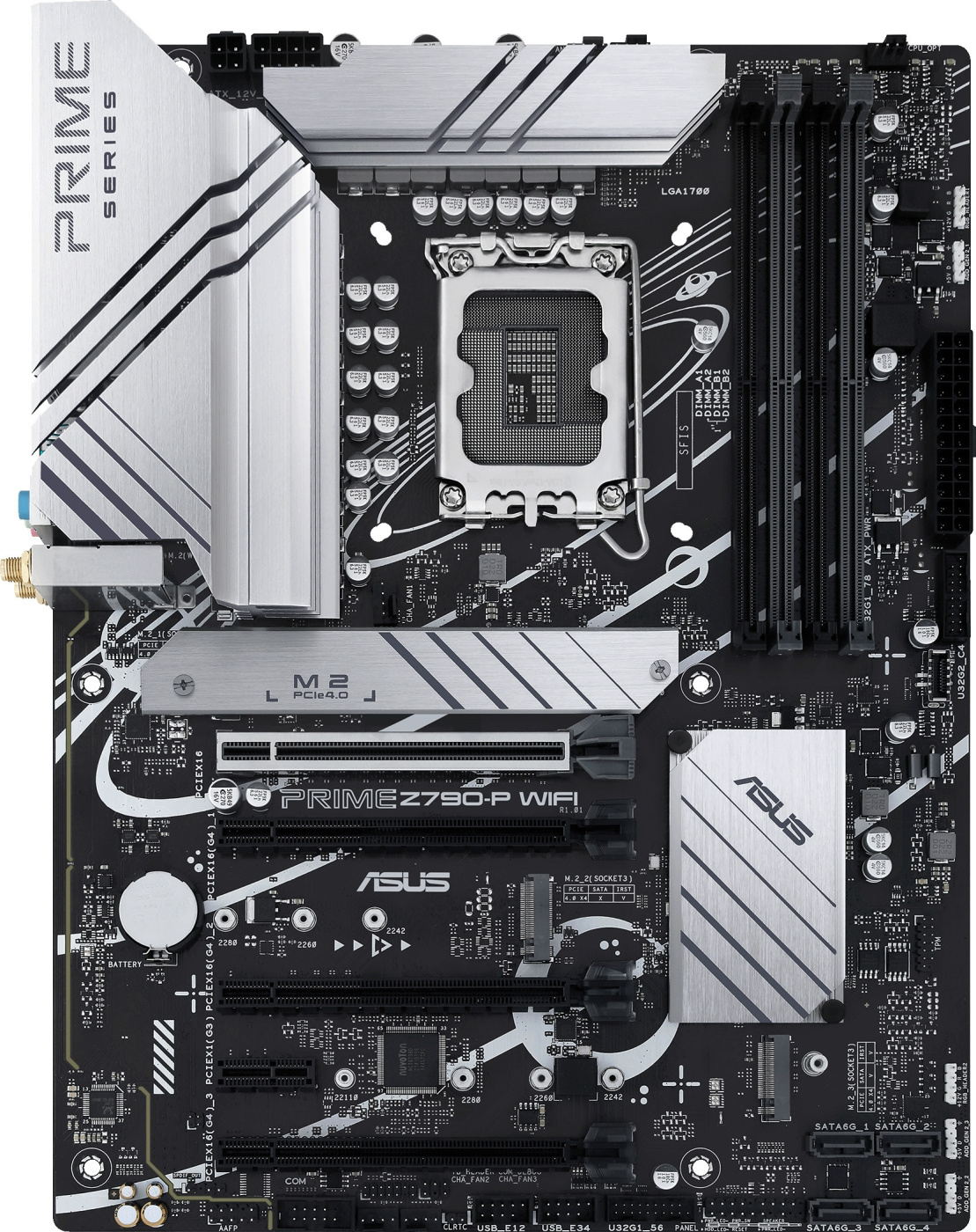

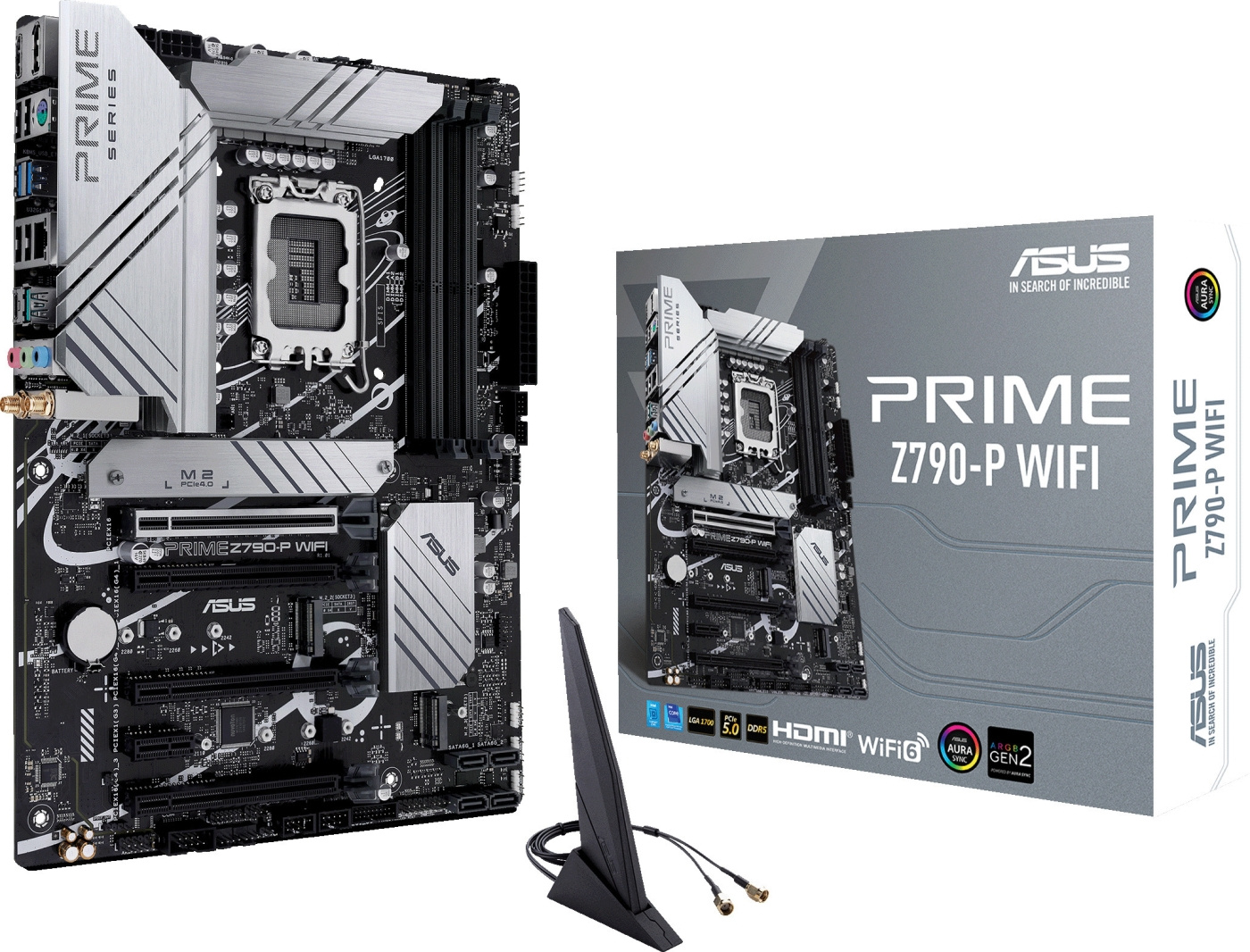

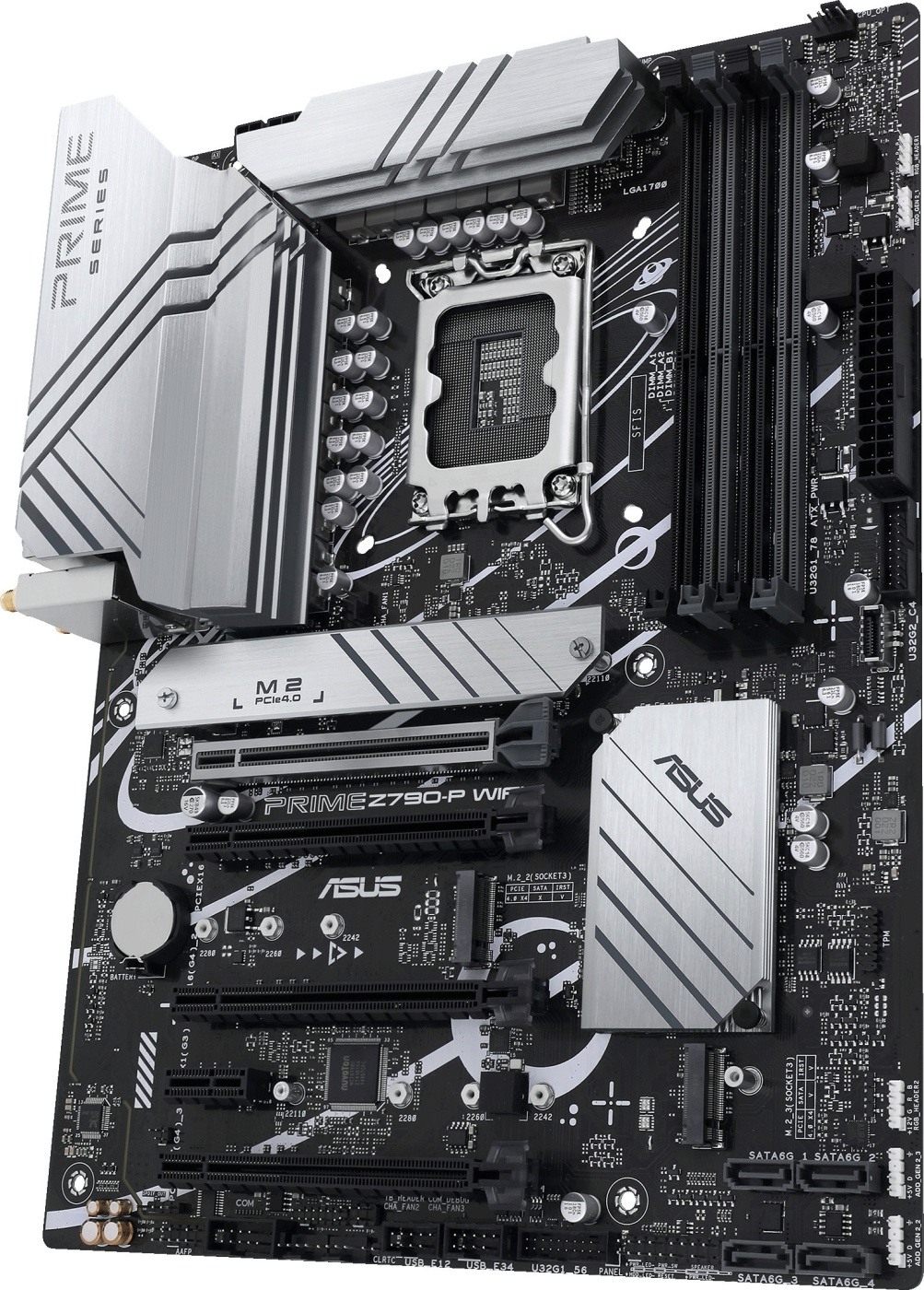

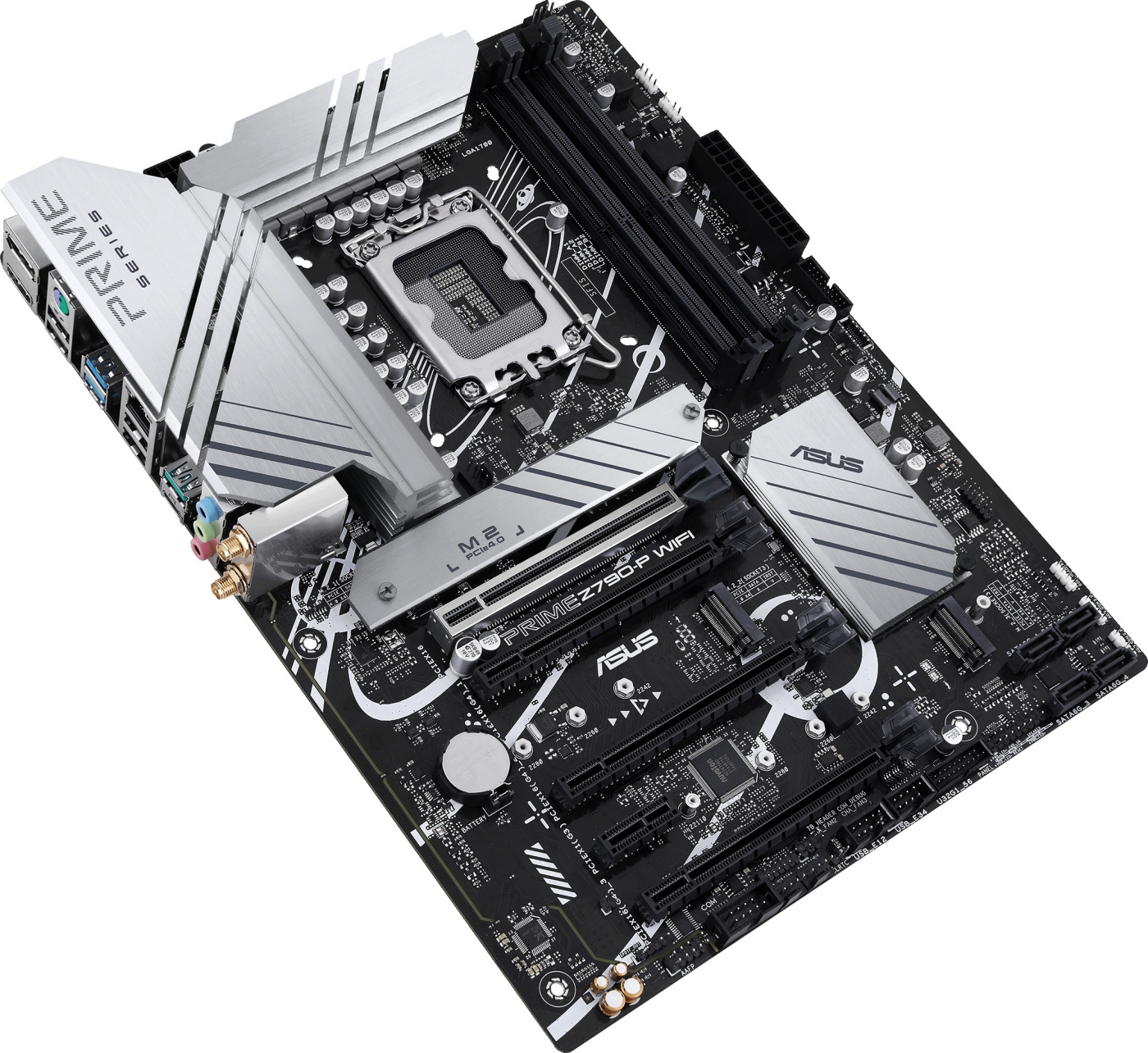

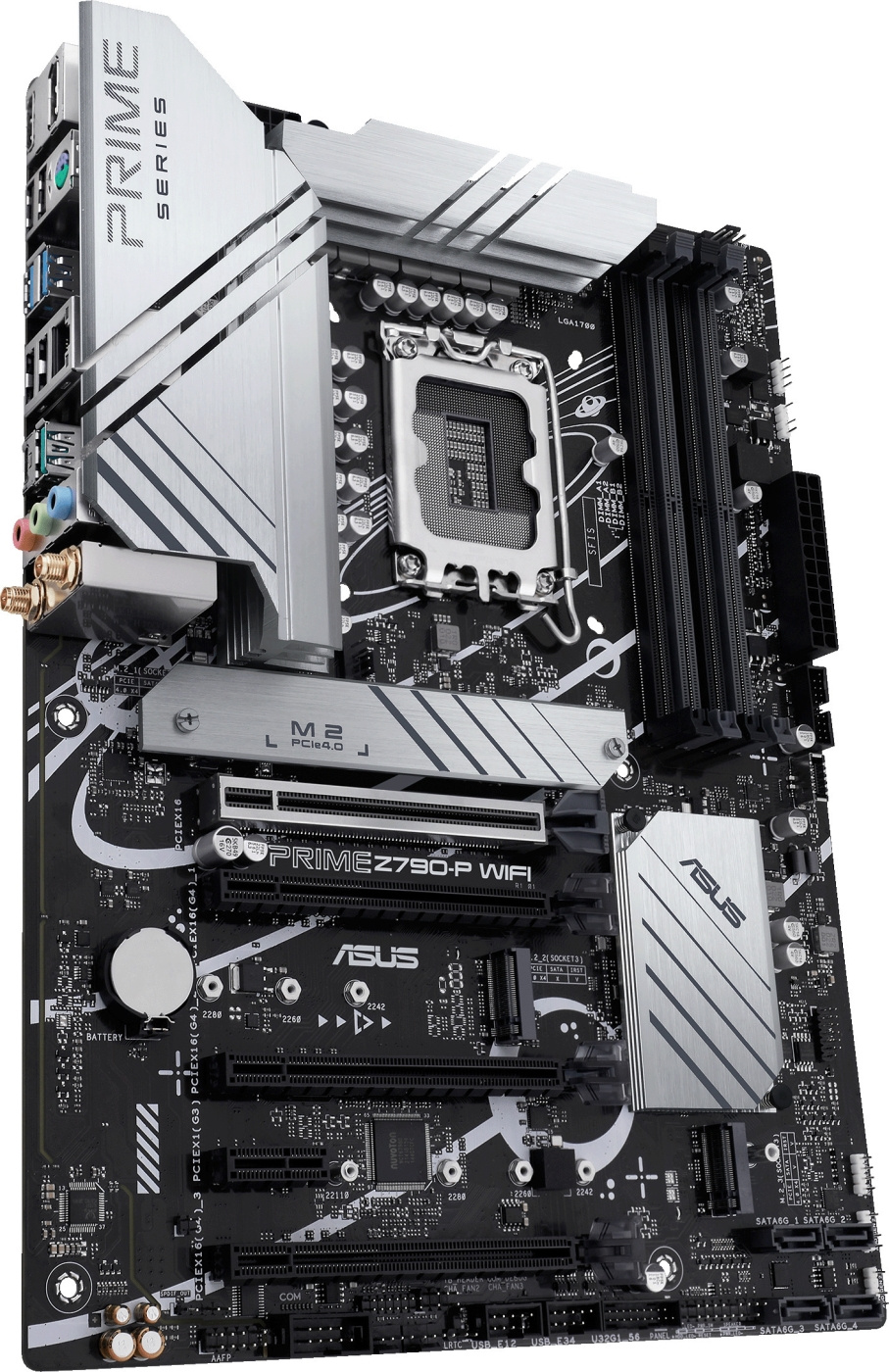

ASUS Prime series motherboards are designed to harness the full potential of 13th generation Intel Core processors. With a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z790-P WIFI offers a wide range of performance optimization options for everyday use and machine build-up with intuitive software and firmware features.
Intel LGA 1700 socket: ready for 12th and 13th generation Intel CPUs
Improved power solution: 14+1 DrMOS power supplies, 6-layer PCB, ProCool cages, alloy chokes and durable capacitors ensure stable power supply
Next generation connectivity: DDR5 memory, Intel Wi-Fi 6, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) connectivity, 3 PCIe 4.0 M.2
Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: large VRM heat sinks, flexible M.2 heat sink, PCH heat sink, hybrid fan connectors, Fan Xpert 4 and AI Cooling II
Features:
- Chipset: Intel Z790
- Processor core: LGA1700
- Processor support: 13th generation Intel Core, 12th generation Intel Core, Pentium Gold, Celeron series
- Motherboard size: ATX, 30.5 cm x 23.4 cm
- Memory slots (pcs): 4
- Memory type: DDR5 (Dual Channel), MHz: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered
- Maximum memory (GB): 128
- Network interfaces: Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), 1 x Realtek 2.5Gb Ethernet
- Bluetooth: 5.2
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Extension sites
- 1 x PCIe 5.0 x16 slot
- 3 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

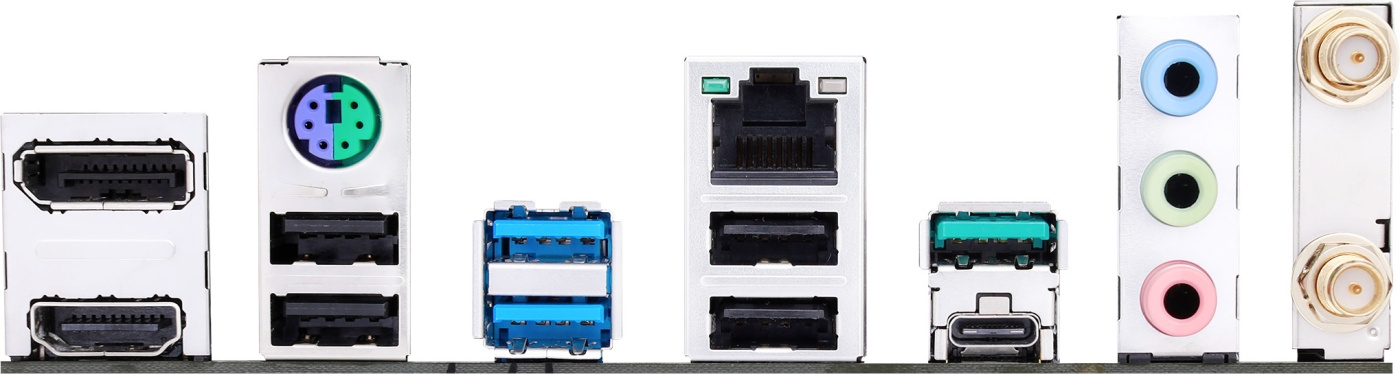

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
- 1 x PS/2 keyboard/mouse combo port
Internal connections
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers - Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector - Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt (USB4) header
- LGA 1700 ATX motherboard
- Intel Z790 chipset
- 3 x M.2 slots, 4 x SATA
- 2.5G LAN, Wi-Fi 6, BT 5.2
- For Intel 13th generation processors
