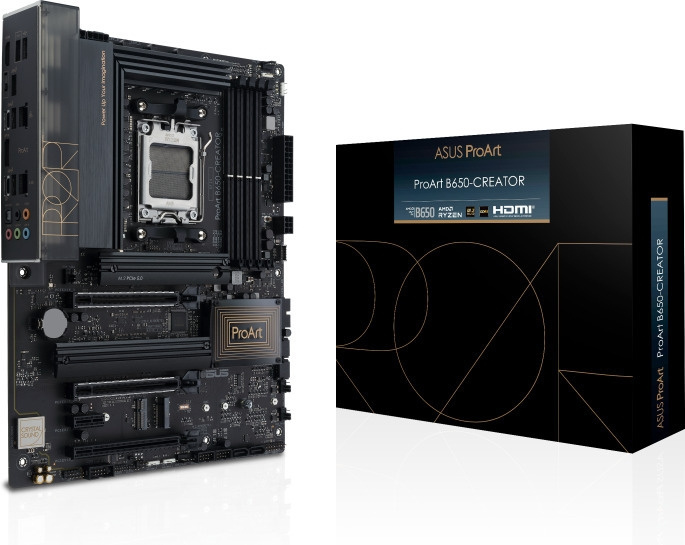

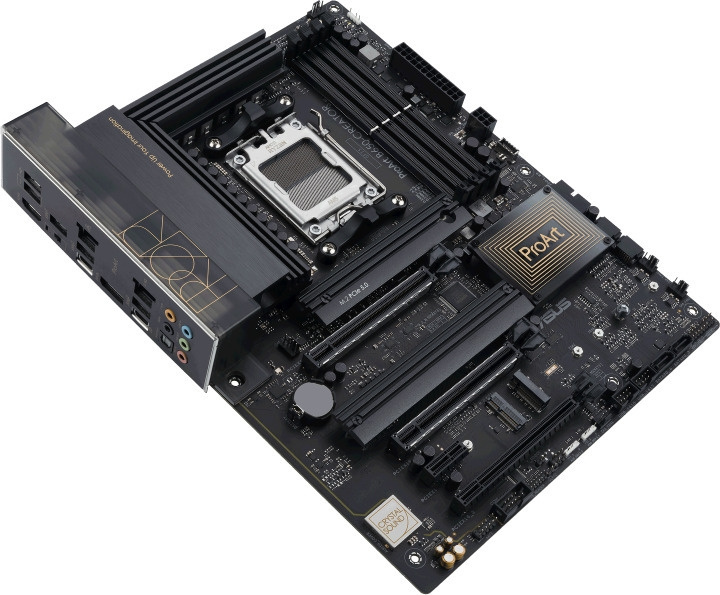

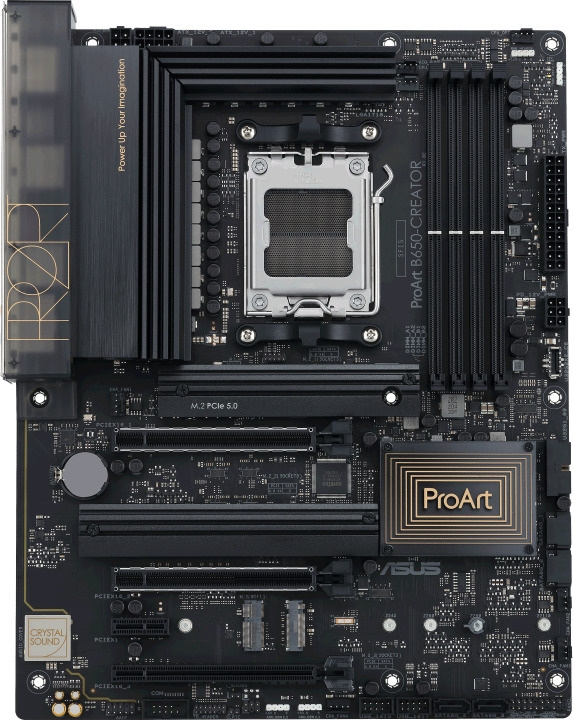

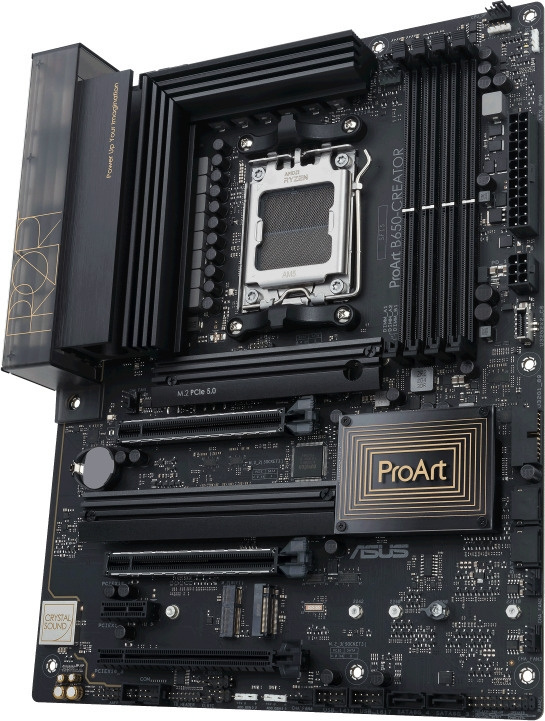

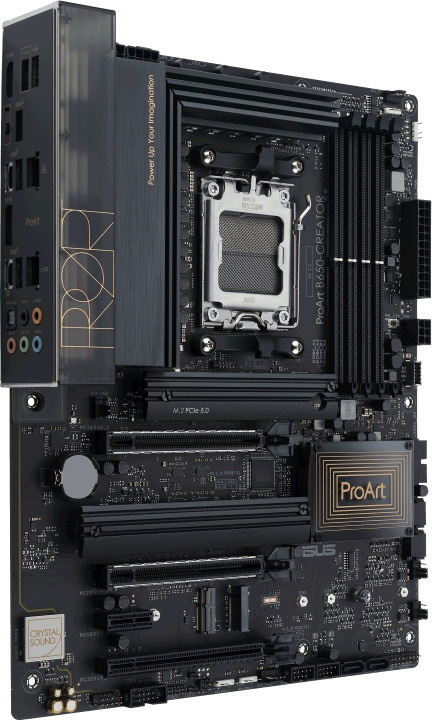

The ASUS ProArt B650-CREATOR is an AM5-based ATX gaming board for Ryzen 7000 series processors with PCIe 5.0 M.2 support, three M.2 slots, 2.5 Gb LAN, DDR5 memory support and plenty of interfaces for various needs.
The ASUS ProArt B650-CREATOR is an advanced motherboard designed for intensive content production such as virtual production, 3D rendering and 4K/8K video editing. It unlocks the performance of AMD Ryzen 7000 series processors with a robust power and cooling design, and its comprehensive connectivity includes 2.5Gb and 1Gb Ethernet, USB 3.2 Gen 2x2 Type-C connector on the rear panel with Quick Charge 4+ capability, and DisplayPort via USB-C.
Features:
- Chipset: AMD B650
- Processor core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: ATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network interfaces:Realtek 2.5 Gb & 1 Gb Intel LAN, M.2 slot (Key E)
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 30.5 x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 2 x PCIe 4.0 x16 slot
- AMD B650 Chipset: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot
Graphics:
- 1 x USB Type-C, max 8K 60Hz
- 1 x HDMI, max 4K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD B650 Chipset: M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

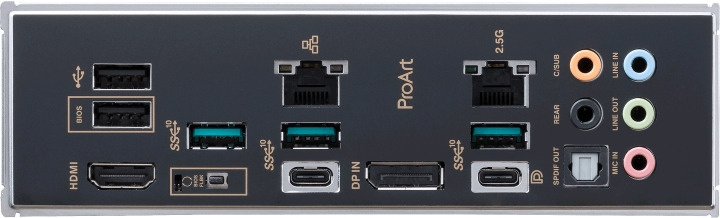

Rear panel interfaces:
- 1 x USB 3.2 Gen 2 port (1 x USB Type-C)
- 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
- 2 x USB 2.0 ports
- 1 x HDMI port
- 1 x 2.5Gb Ethernet port
- 1 x 1Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 1 x 6-pin PCIe Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x 20-5 pin System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
- AMD AM5 ATX motherboard
- AMD B650 chipset
- 3 x M.2 slots, 2.5G & 1G LAN
- DDR5 support, PCIe 5.0 M.2 support
- Supports Ryzen 7000 series CPUs
