Let your creativity flow

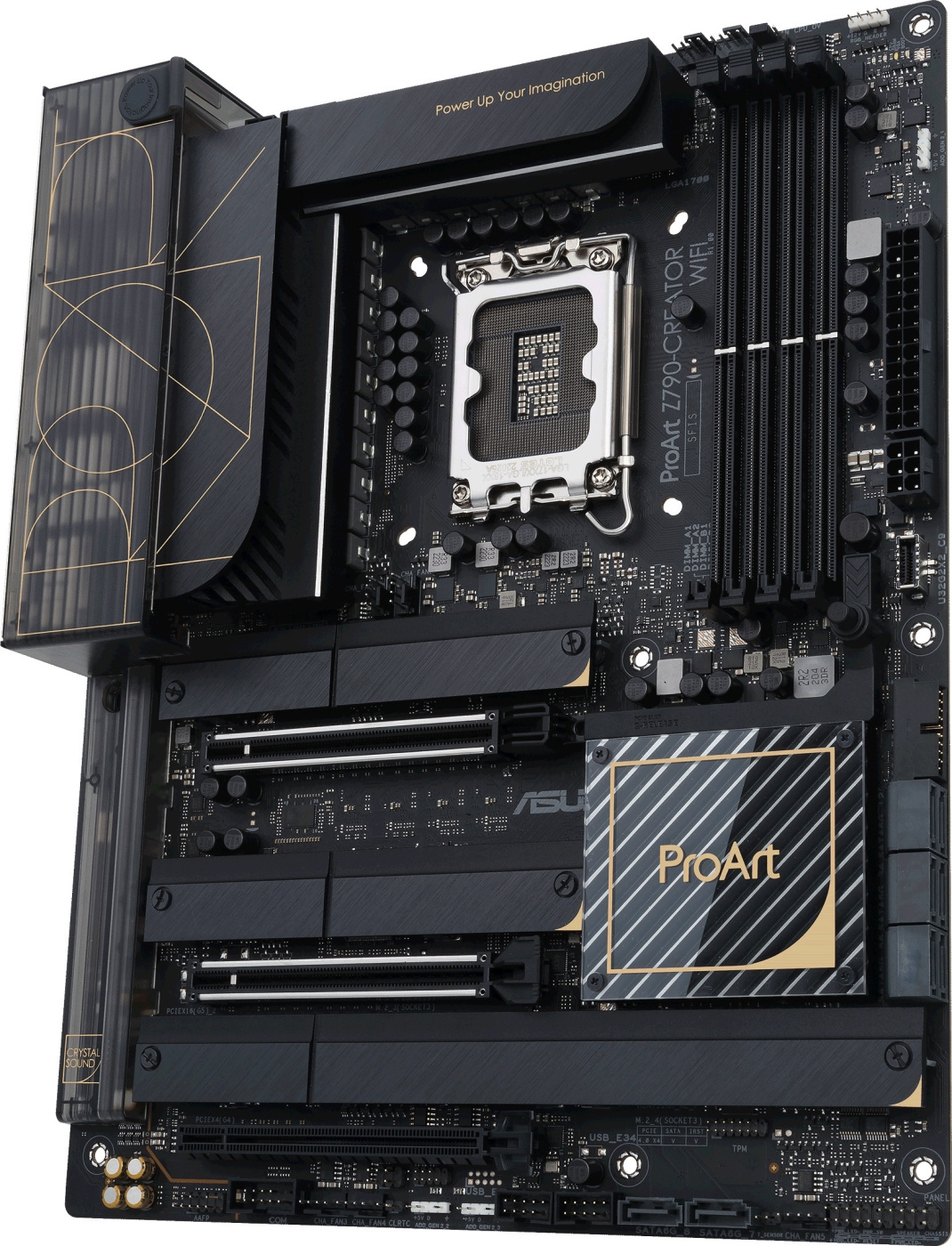

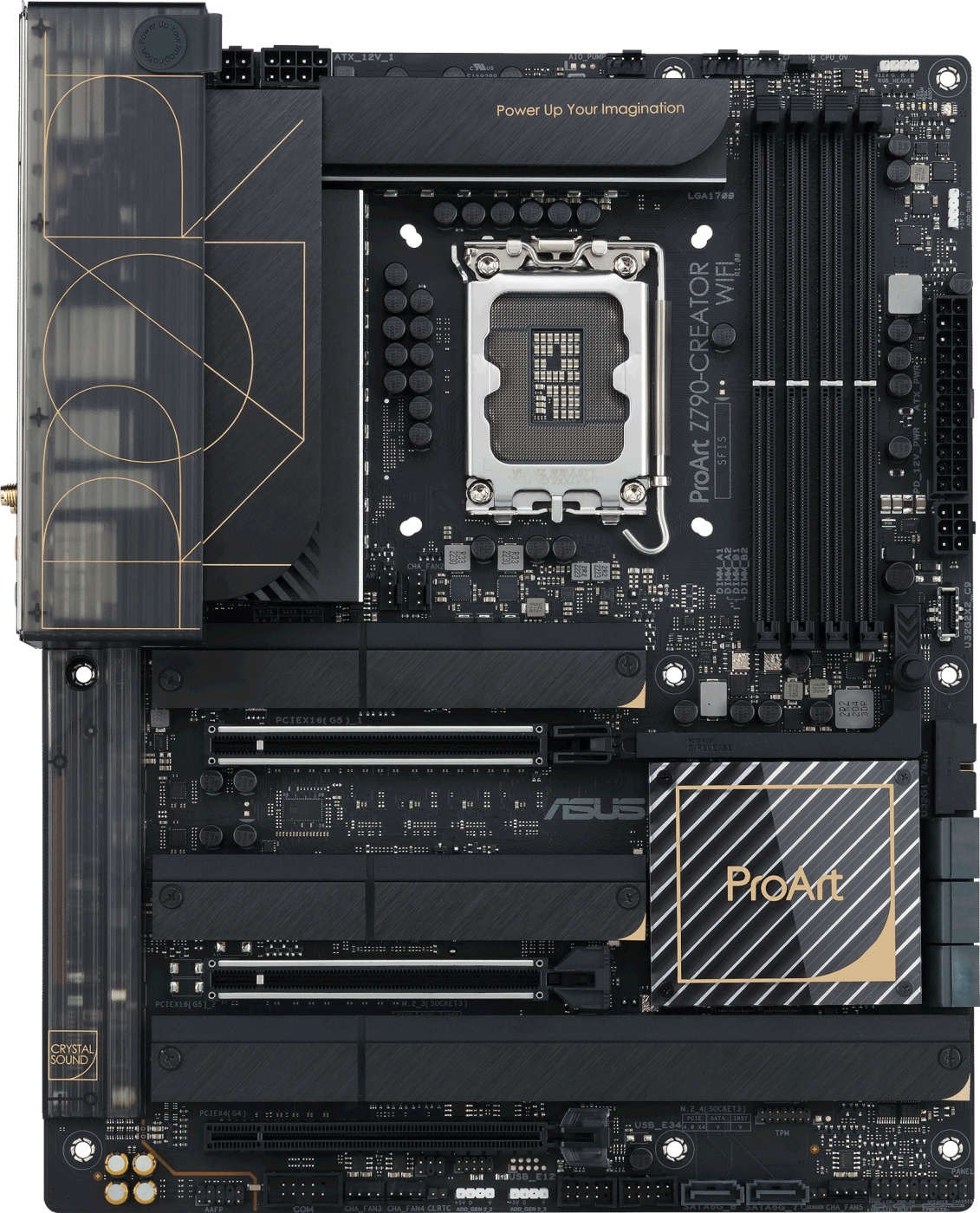

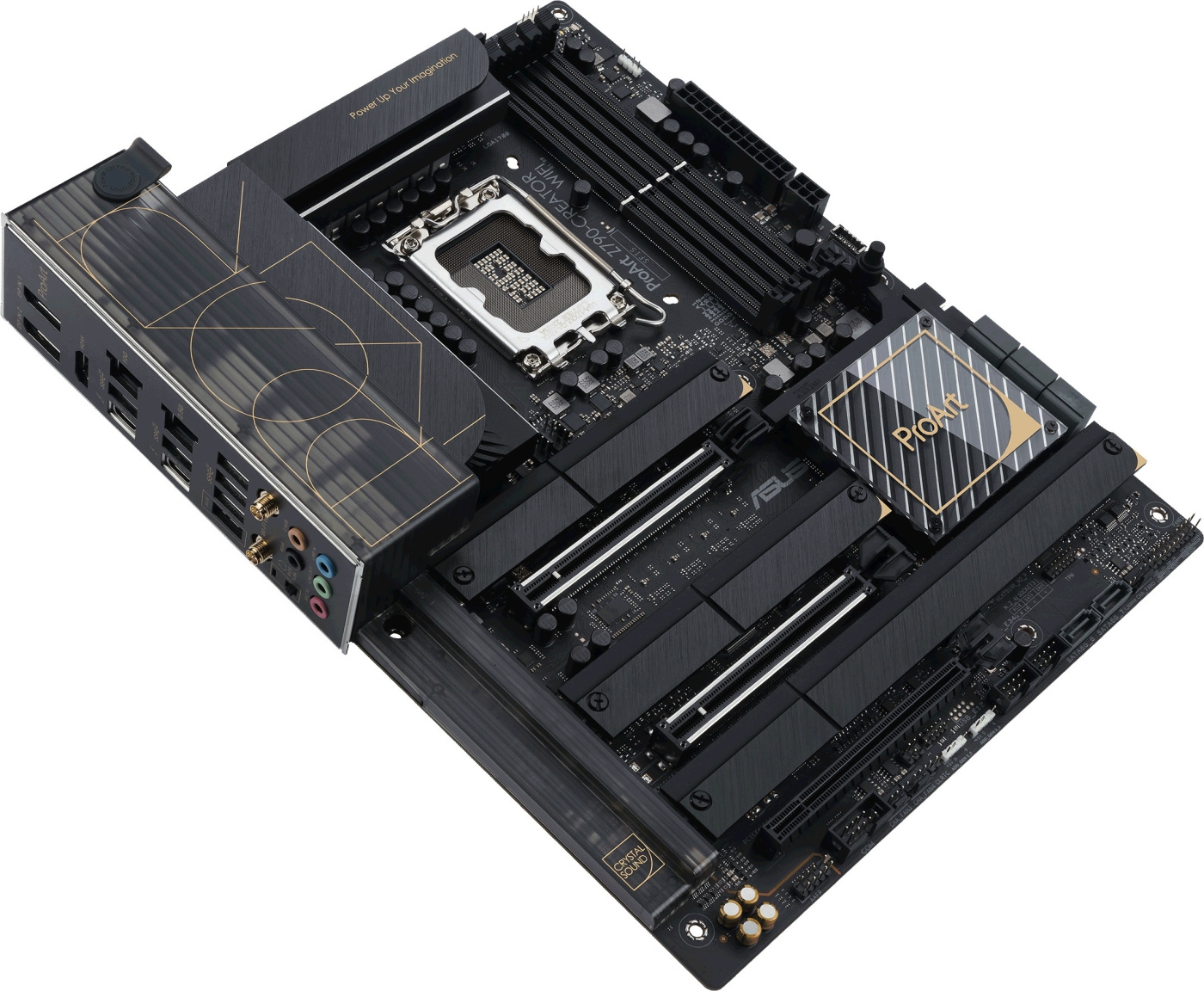

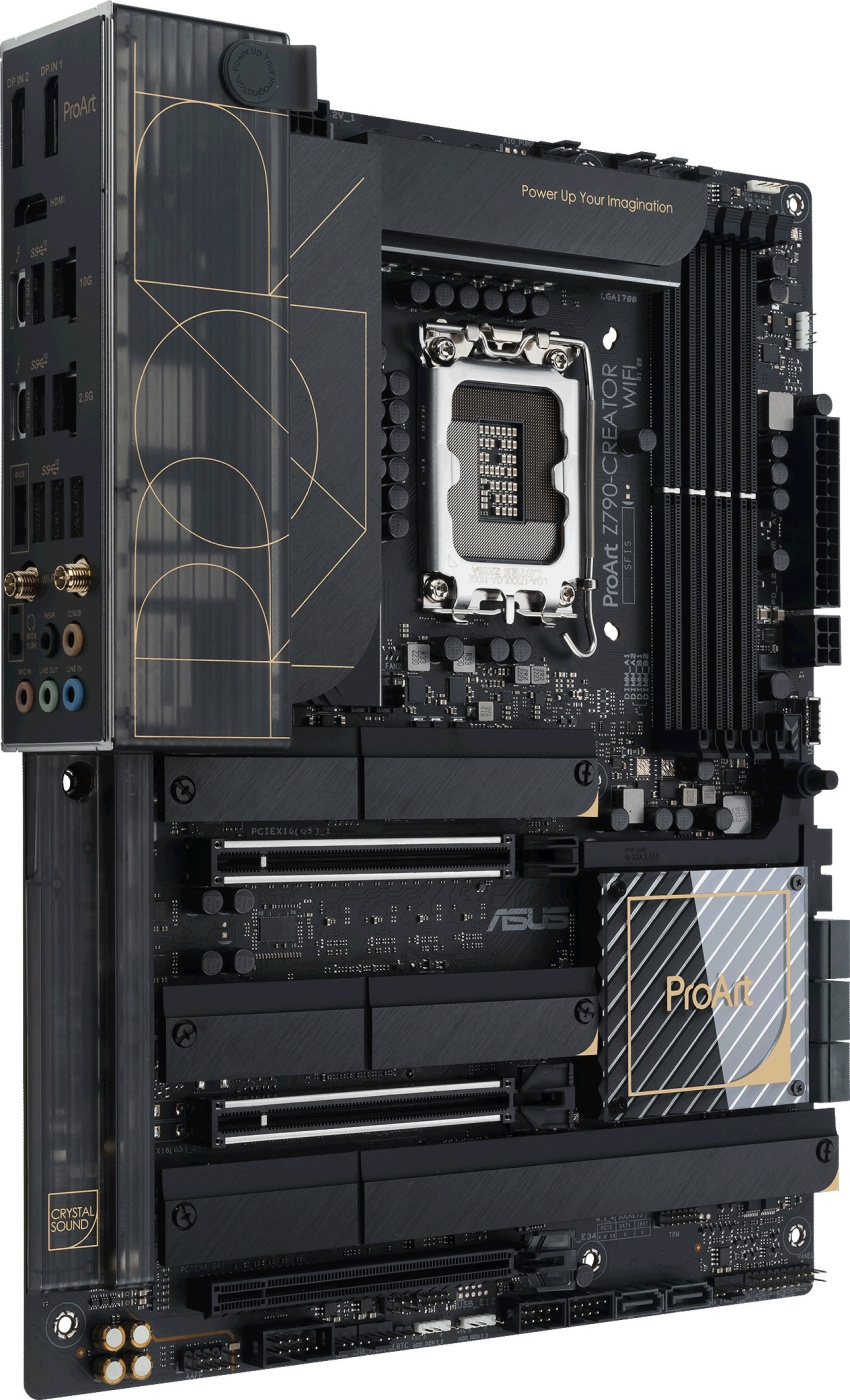

The ProArt Z790 Creator motherboard provides creative professionals with powerful hardware and software tools to speed up workflows. In addition to comprehensive, high-performance cooling and lightning-fast connectivity, this motherboard maximizes the computing power of the latest Intel Core 14th generation processors so you can create faster and get more done.
Features of the Z790 motherboard include DDR5 and PCie 5.0 support, Thunderbolt 4 (USB4), WiFi 6E, multiple USB ports and 10Gb and 2.5Gb Ethernet ports.
The ProArt Z790 Creator rounds out the lineup with the sleek design, advanced security features and reliability that ASUS motherboards are known for.
Features:
- Chipset: Intel Z790
- Processor core: LGA 1700
- Processor support: 14th / 13th / 12th generation Intel Core, Pentium Gold, Celeron series
- Motherboard size: ATX (30,5 cm x 24,4 cm)
- Memory slots (pcs): 4
- Memory type: DDR5(7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz), Non-ECC, Un-buffered
- Maximum memory (GB): 192
- Marvell AQtion 10Gb Ethernet, Intel 2.5Gb Ethernet, ASUS LANGuard, Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.3
- Sound card: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Extension sites
- 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Hard disk interfaces
- 8 x SATA 6Gb/s ports
- 4 x M.2 slots
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

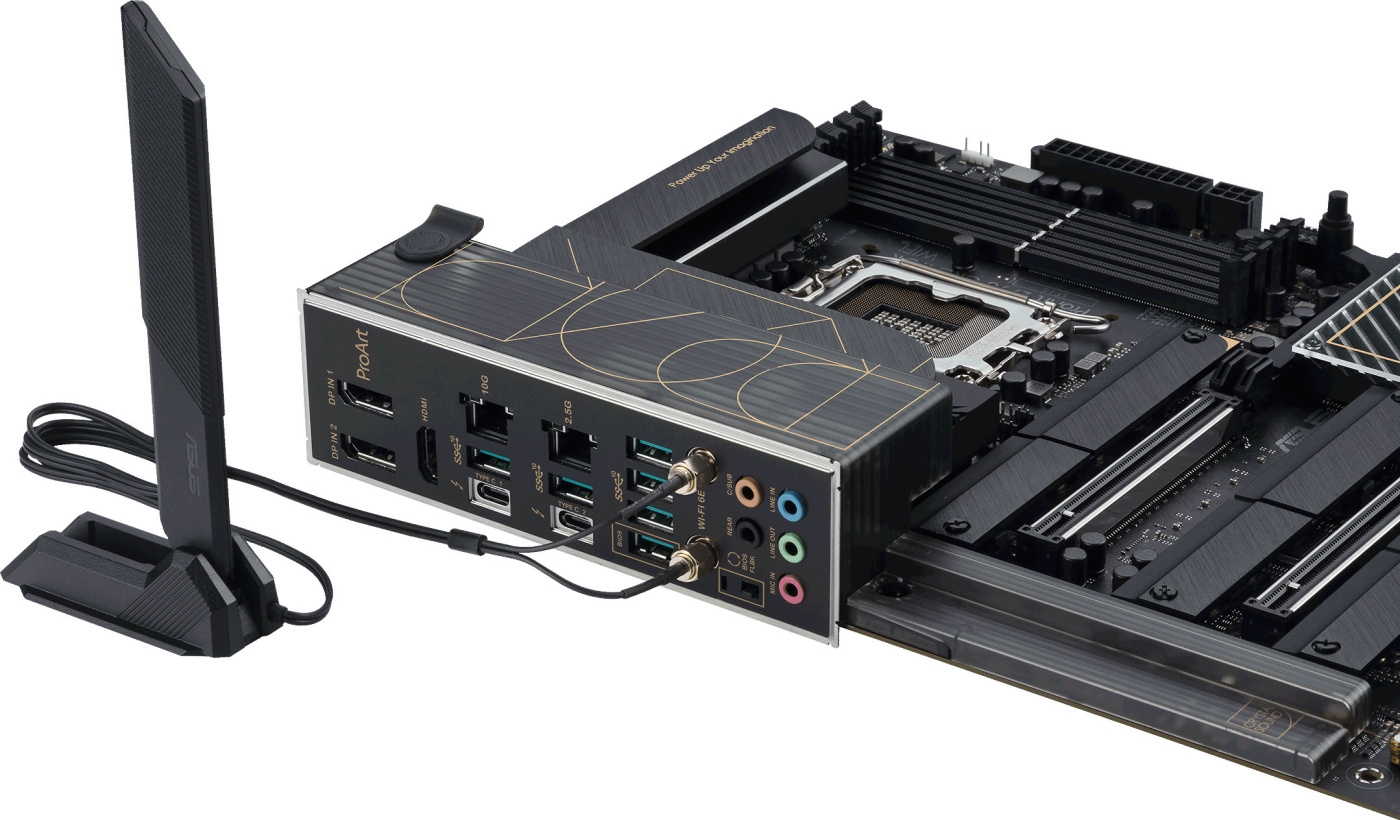

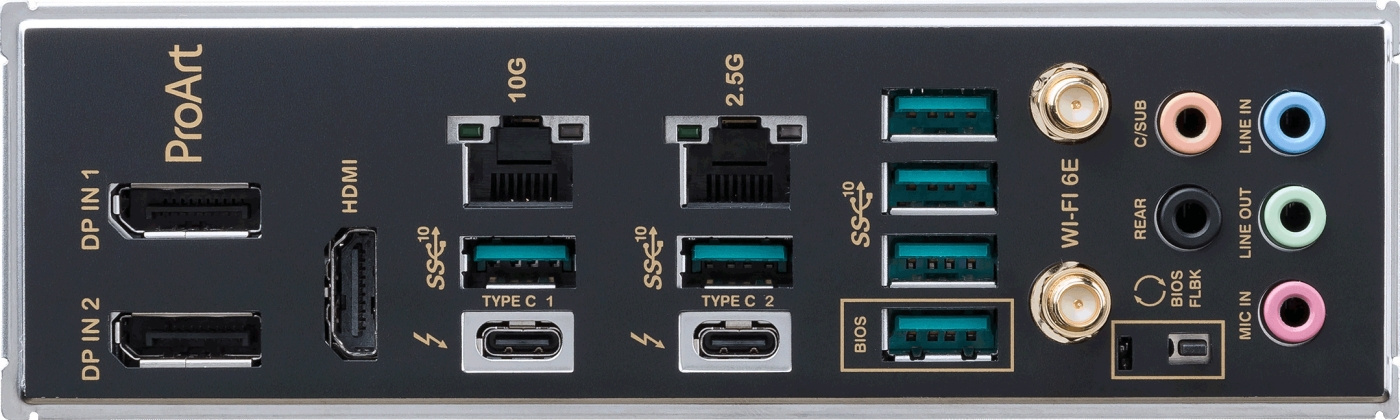

Rear panel interfaces
- 2 x Thunderbolt 4 USB Type-C port(s)
- 6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
- 2 x DisplayPort (Input only)
- 1 x HDMI port
- 1 x ASUS Wi-Fi Module
- 1 x Marvell AQtion 10Gb Ethernet port
- 1 x Intel 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x BIOS FlashBack button
Internal connections
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 5 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 1 x 6-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 8 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C)
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 header(s)
- 1 x AURA RGB header(s)
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x RTC Battery header
- 1 x Thermal Sensor header

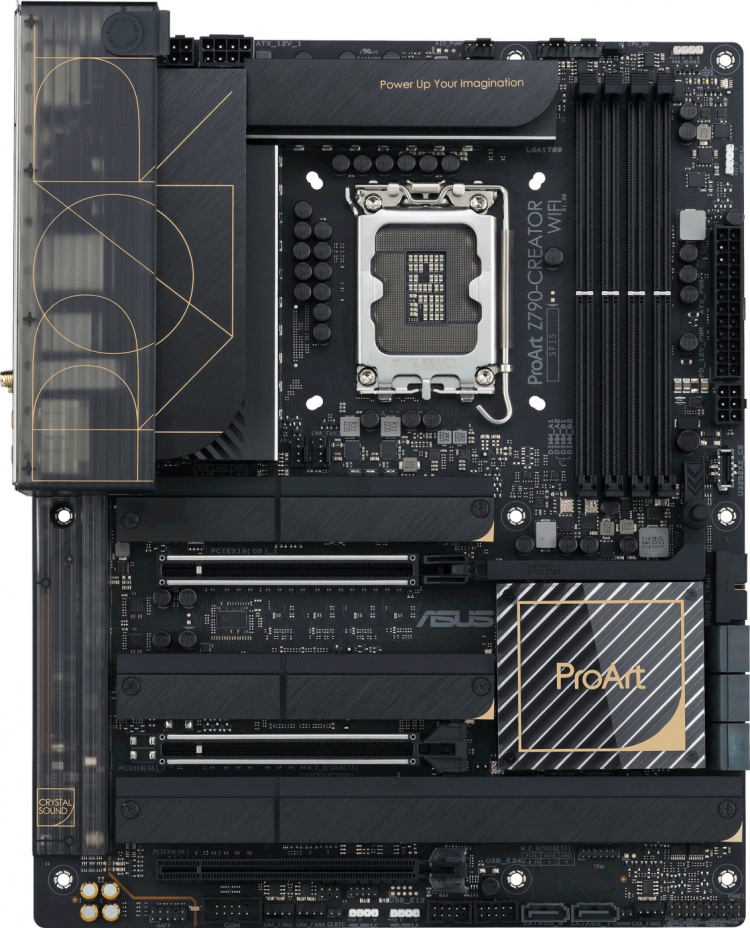

- LGA 1700 ATX motherboard
- Intel Z790 chipset
- Four M.2 interfaces
- 2.5G+10G LAN, Wi-Fi 6E, Bluetooth 5.3
- DDR5 support, PCIe 5.0, Thunderbolt 4
