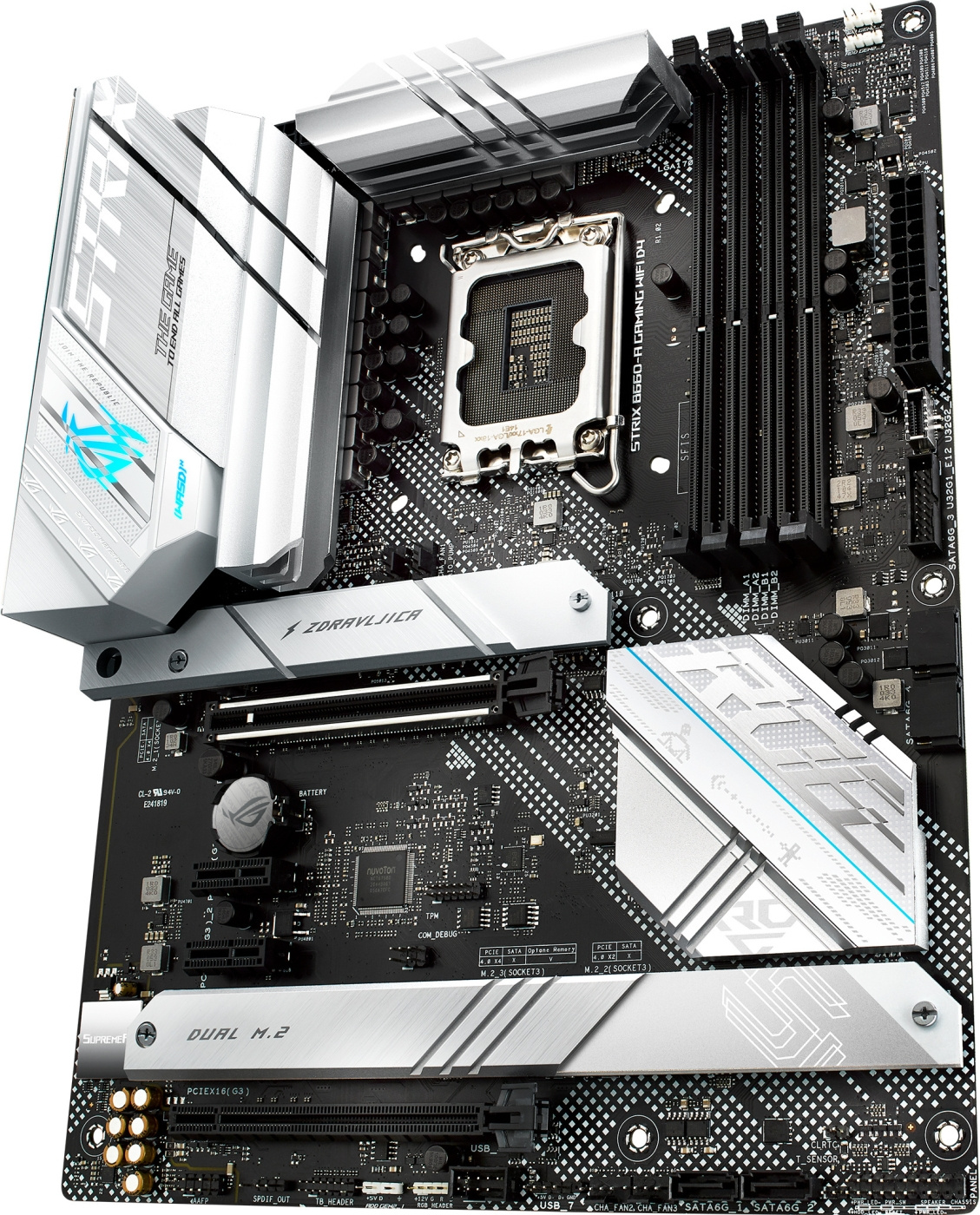

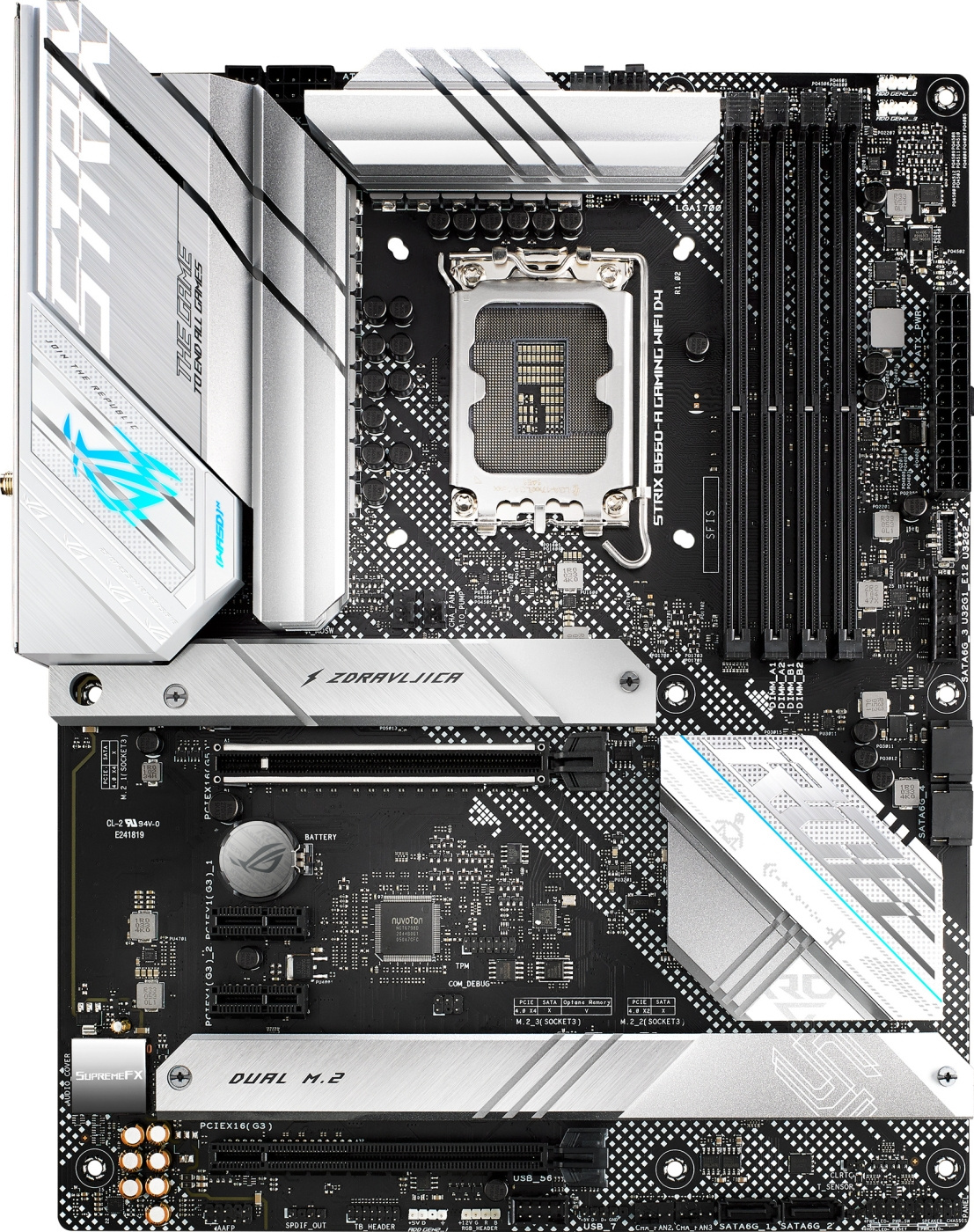

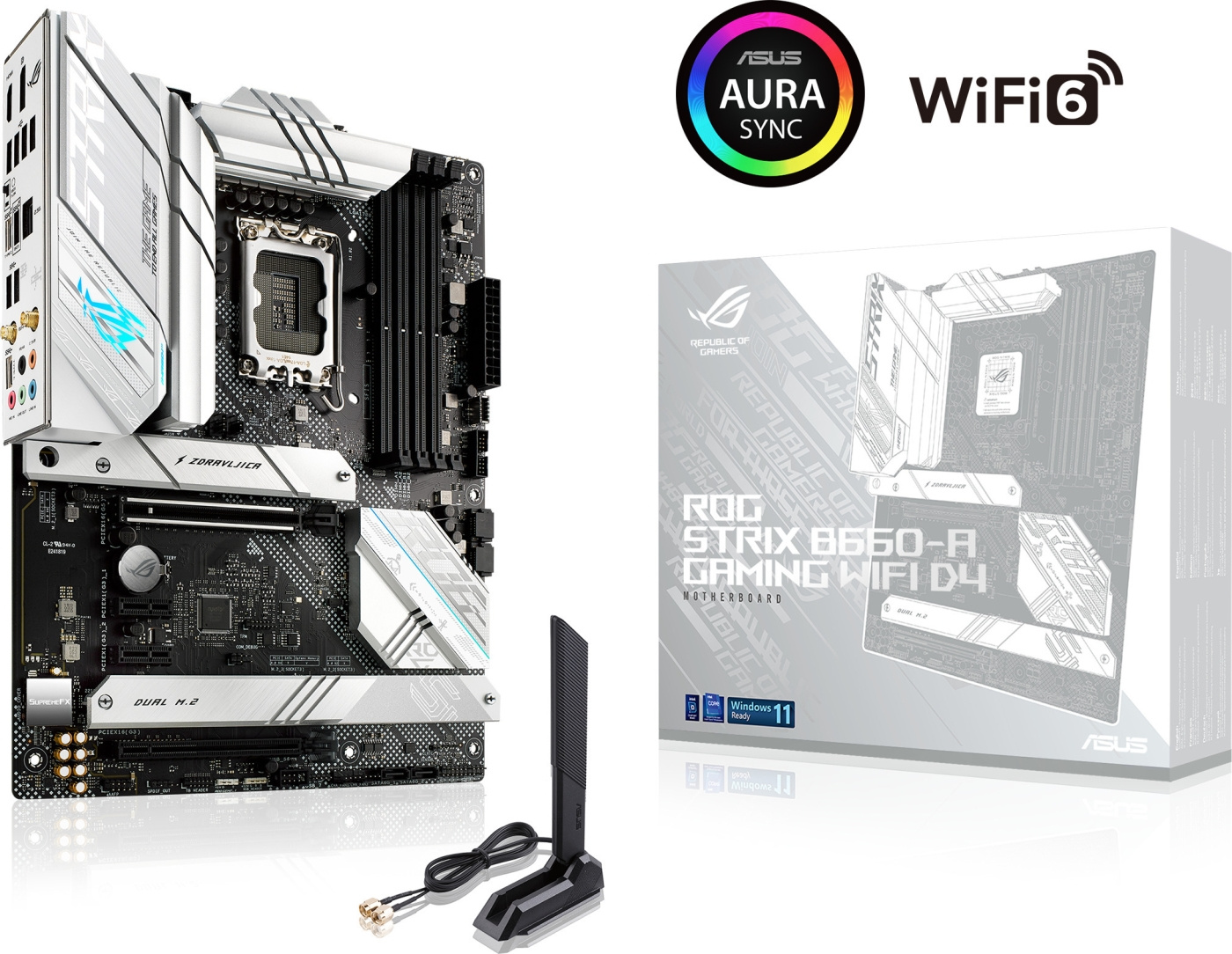

The Asus ROG STRIX B660-A GAMING WIFI D4 motherboard is designed to meet the requirements of powerful 12th generation Intel Core Alder Lake processors with improved power delivery and optimized cooling. Intel Wi-Fi 6 and PCI Express 4.0 M.2 provide high-speed data transfer and memory. The STRIX B660-F GAMING WIFI motherboard is undeniably ROG with its futuristic design elements - the colourful ROG logo and Aura Sync lighting combined with a sleek white finish give your PC build a subtle yet vibrant look. The ROG STRIX B660-A has been updated to support 12th generation Intel Core processors and new generation graphics cards.
Asus ROG Strix B660 Gaming series motherboards offer a comprehensive feature set previously only found on more expensive ROG Strix Gaming motherboards. Asus ROG Strix motherboards are an excellent choice for gamers and overclockers, and their support for RGB lighting allows you to build a spectacular configuration. The high quality power supply and its cooling allows overclocking even the most powerful Intel processors and the dedicated power connector provides power for both AIO water cooling packages and custom kits.
Features:
- Chipset: Intel B660
- Processor core: LGA 1700
- Processor support: 12th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: ATX
- Memory slots (pcs): 4
- Memory type: DDR4
- Maximum amount of memory (GB): 128
- Network interfaces: Realtek 2.5Gb Ethernet, Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
Expansion sites
- 1 x PCIe 5.0/4.0/3.0 x16 slot(s)
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280/22110
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

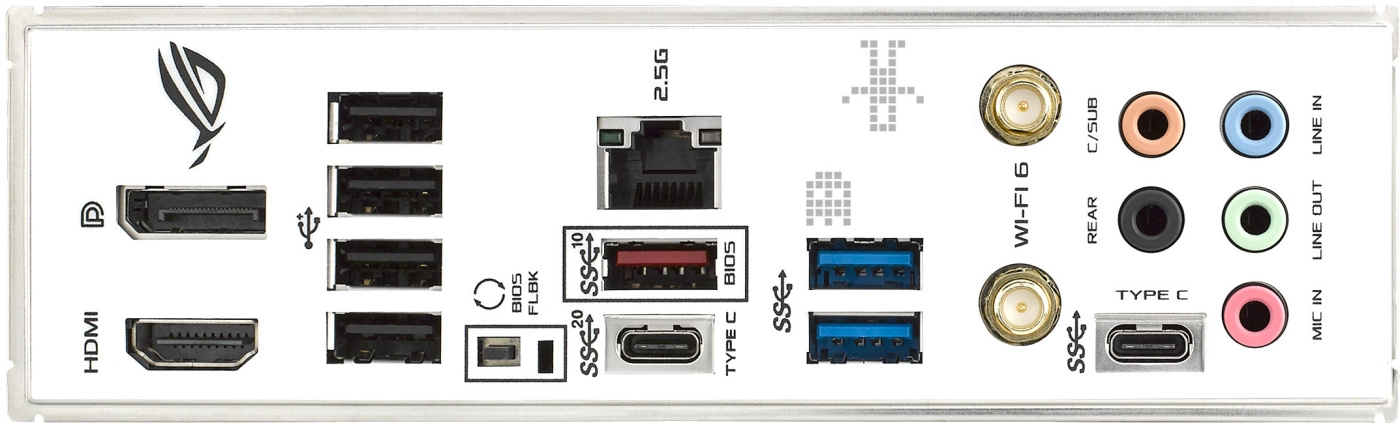

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
- 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)
- 4 x USB 2.0 port(s) (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x BIOS FlashBack button
Internal connections
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 3 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (support USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x 12-1 pin Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt header
- LGA 1700 ATX motherboard
- Intel B660 chipset
- Three M.2 interfaces
- Comprehensive connectivity options
- For Intel 12th generation CPUs
