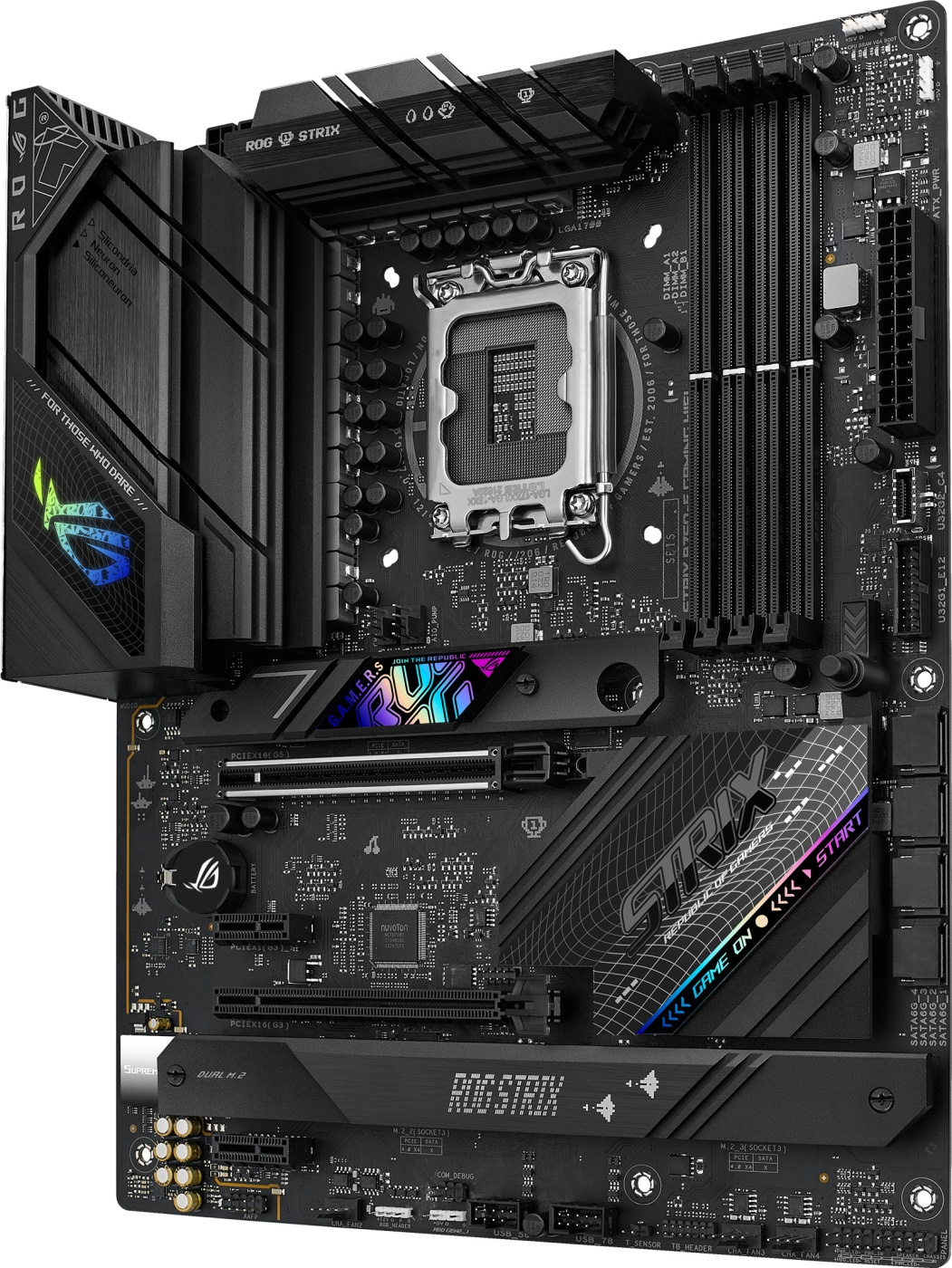

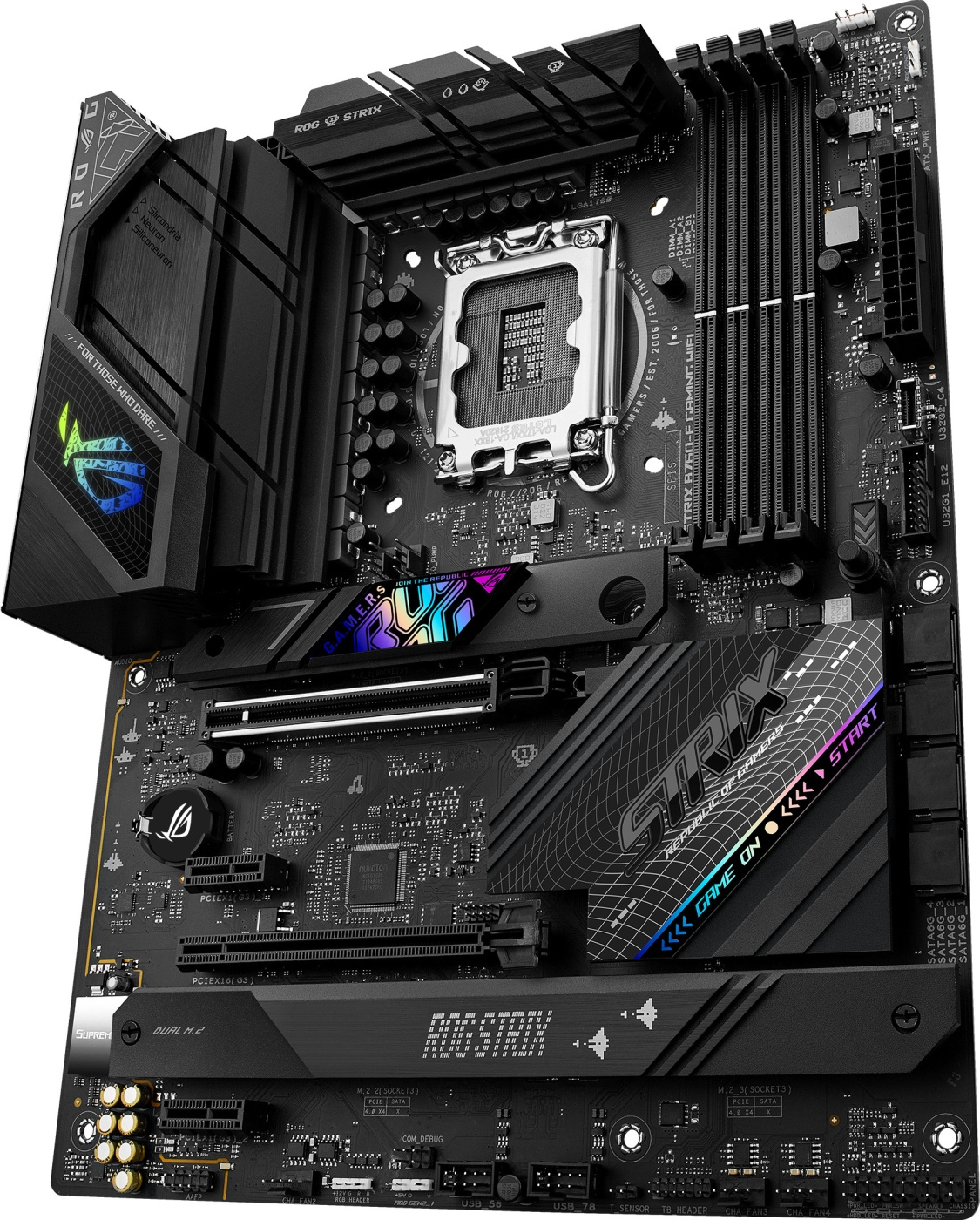

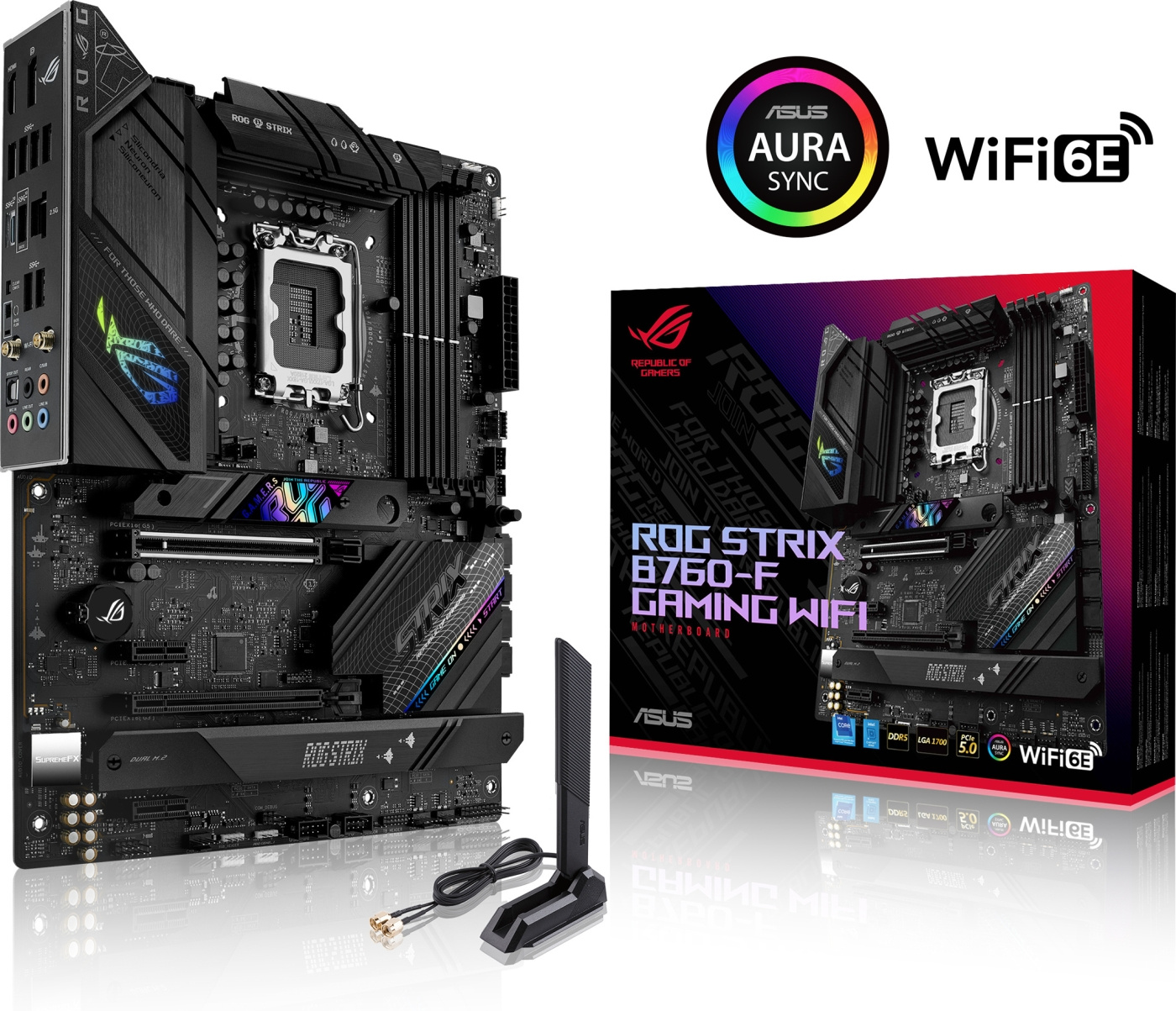

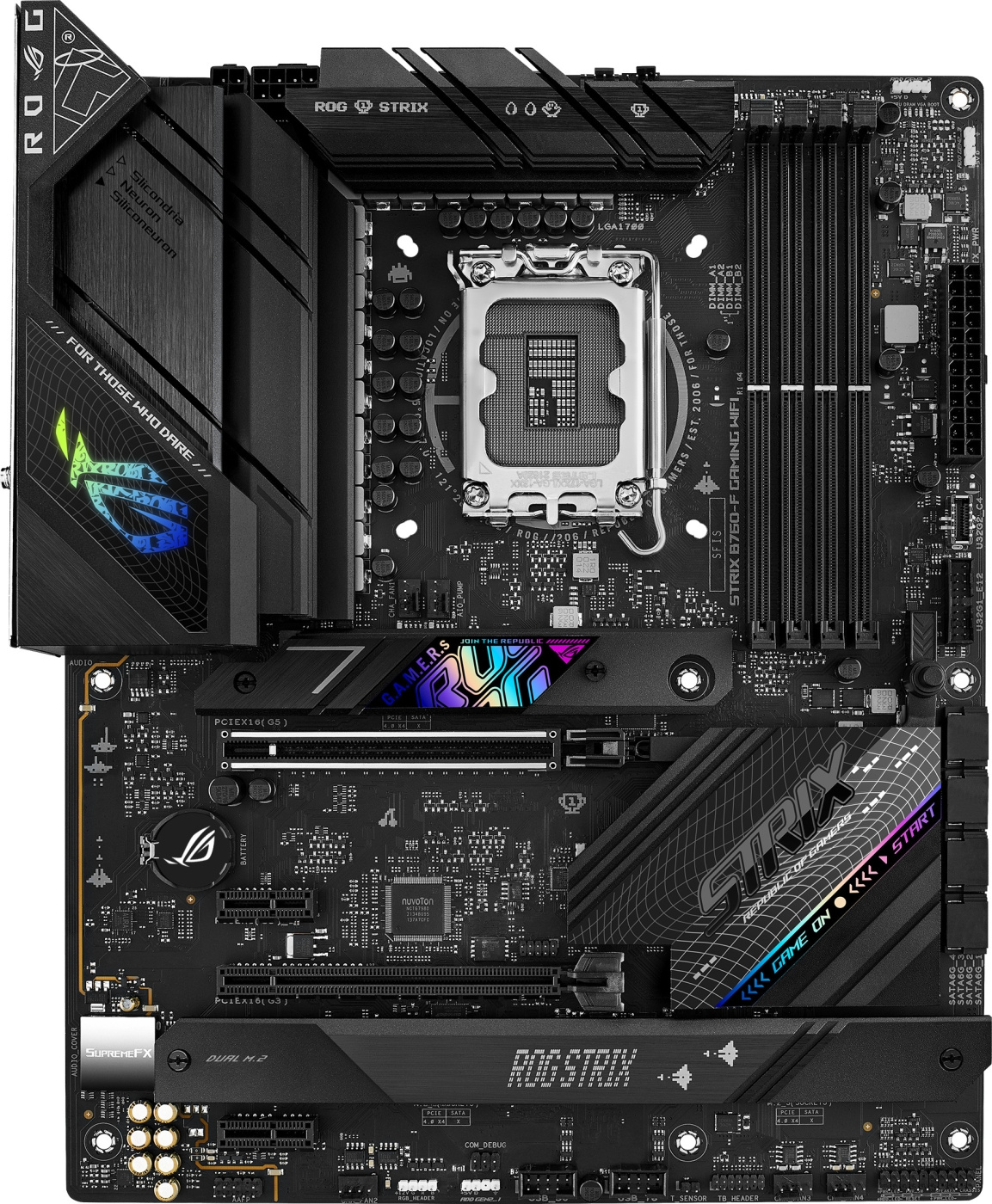

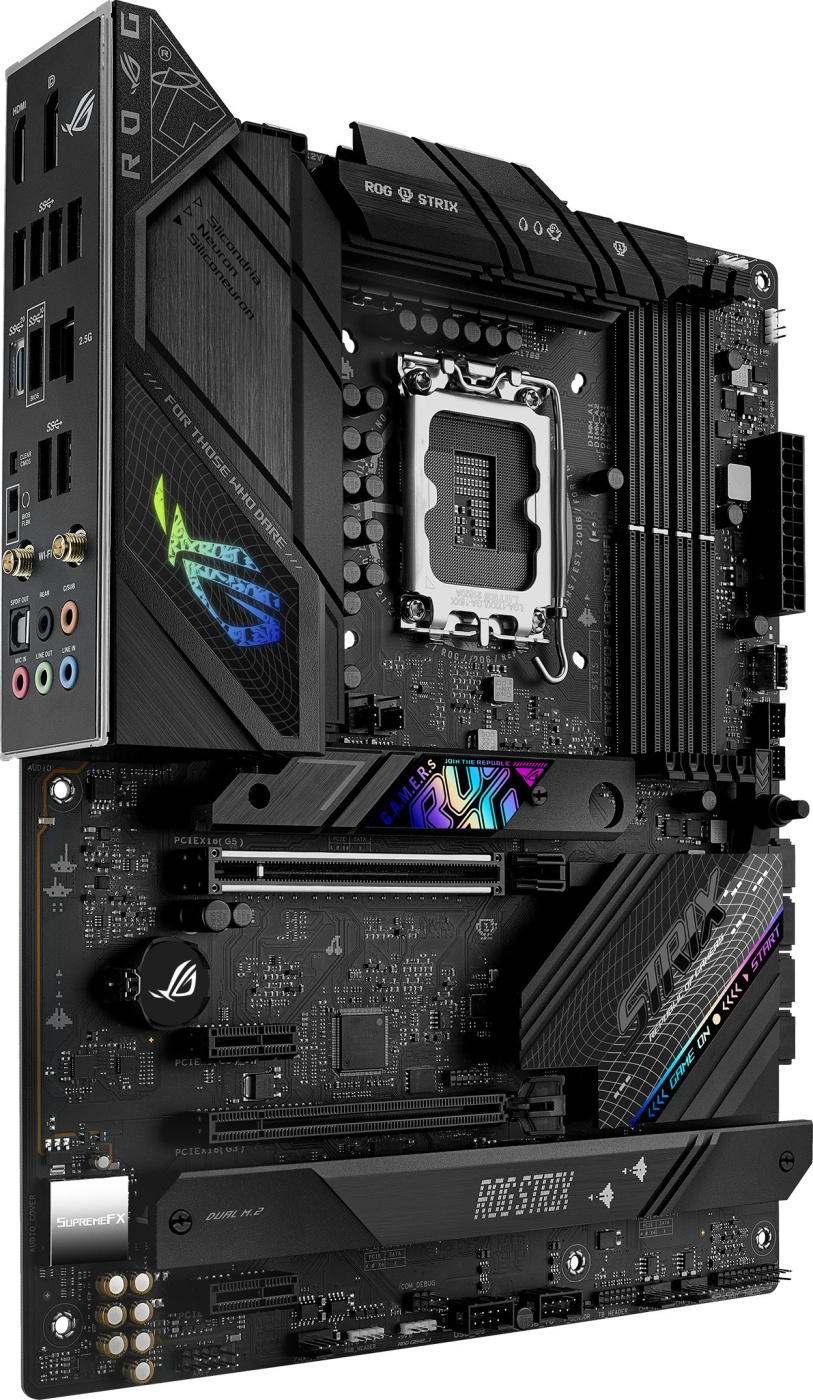

The Asus ROG STRIX B760-F GAMING WIFI motherboard is designed to meet the demands of powerful 13th and 12th generation CPUs with improved power delivery and optimized cooling. Intel Wi-Fi 6E and PCI Express 4.0 M.2 provide high-speed data transfer and memory. The STRIX 760-F GAMING WIFI motherboard is undeniably ROG with its futuristic design elements - the colourful ROG logo and Aura Sync lighting combined with a stylish brushed black finish give your PC build a subtle yet vibrant look. The ROG STRIX B760-F has been updated to support 13th generation Intel Core processors, new generation graphics cards and DDR5 memory.
The Asus ROG Strix B760 Gaming series motherboards offer a comprehensive feature set previously only found on more expensive ROG Strix Gaming motherboards. Asus ROG Strix motherboards are an excellent choice for gamers and their support for RGB lighting allows you to build a spectacular configuration. A dedicated power connector provides power for both AIO water cooling kits and custom kits.
Features:
- Chipset: Intel B760
- Processor core: LGA 1700
- Processor support: 13th and 12th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (pcs): 4
- Memory type: DDR5 (7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz), Non-ECC, Un-buffered, Dual Channel
- Maximum memory (GB): 128
- 1 x Intel 2.5Gb Ethernet, Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.3
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Expansion sites
- 1 x PCIe 5.0x16 slot (supports x16 mode)
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 1 x USB 3.2 Gen 2 port (1 x Type-A)
- 6 x USB 3.2 Gen 1 ports (6 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal connections
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt (USB4) header
- LGA 1700 ATX motherboard
- Intel B760 chipset
- Three M.2 interfaces
- 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
- For Intel 13th generation CPUs
