The ASUS ROG STRIX X670E-A GAMING WIFI is an AM5-based ATX gaming motherboard for Ryzen 7000 series processors with PCIe 5.0, four M.2 ports, 2.5 Gb Intel LAN, WiFi 6E, DDR5 memory support and plenty of interfaces for a variety of needs.
Gear up for the next generation with the stylish ROG Strix X670E-A motherboard. Its black PCB and white accents provide a stunning contrast to the silver heatsinks that highlight the premium power delivery for AMD Ryzen 7000 series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities and DDR5 support run alongside, adding uniquely tailored performance and AM5 components to configurations.
Features:
- Chipset: AMD X670
- Processor core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: ATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network connectivity: 2.5Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2x2 Dual Band, Bluetooth v5.2
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 30.5 x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 5.0/4.0/3.0 x16 slot
- AMD X670 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot
Graphics:
- 1 x DisplayPort, max 8K 60 Hz
- 1 x HDMI, max 4K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- AMD X670 Chipset: M.2_3 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

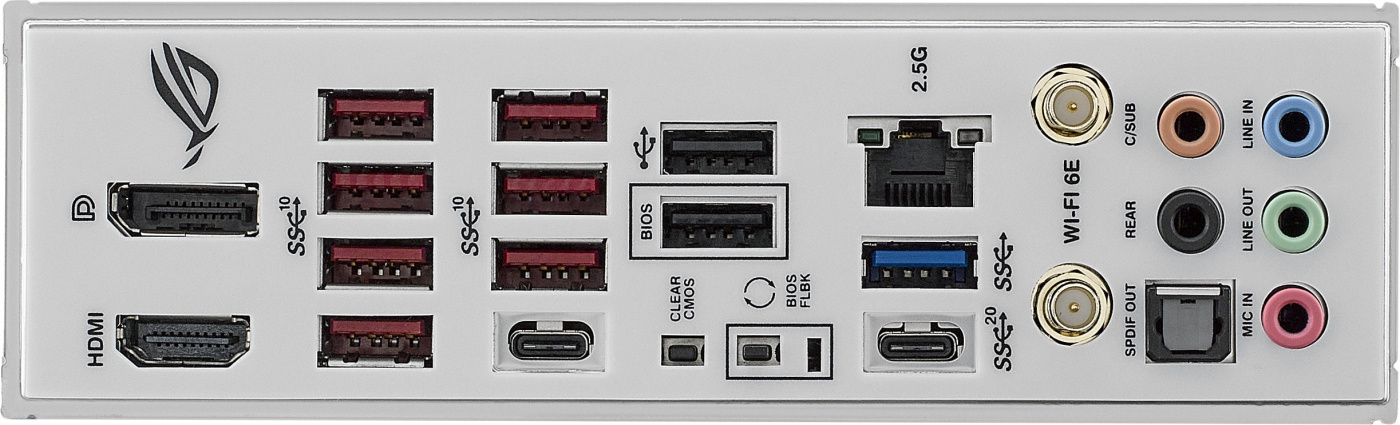

Rear panel interfaces:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel I225-V 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 5 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
- AMD AM5 ATX motherboard
- AMD X670 chipset
- Four M.2 slots, Wi-Fi 6E
- DDR5 support, PCIe 5.0 expansion slots
- Supports Ryzen 7000 series CPUs
