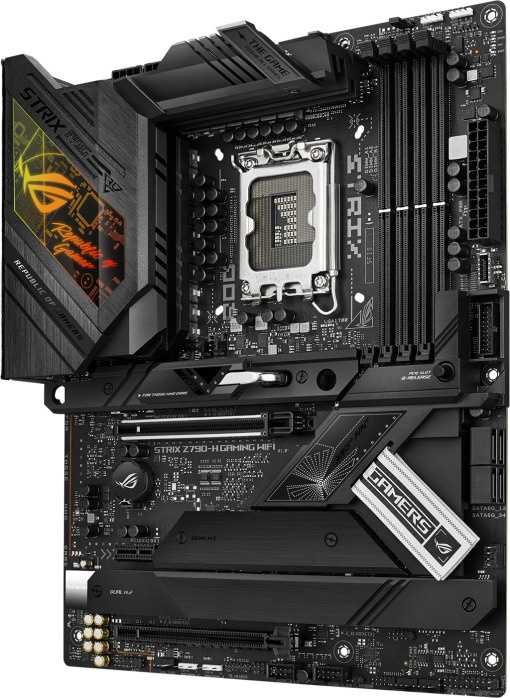

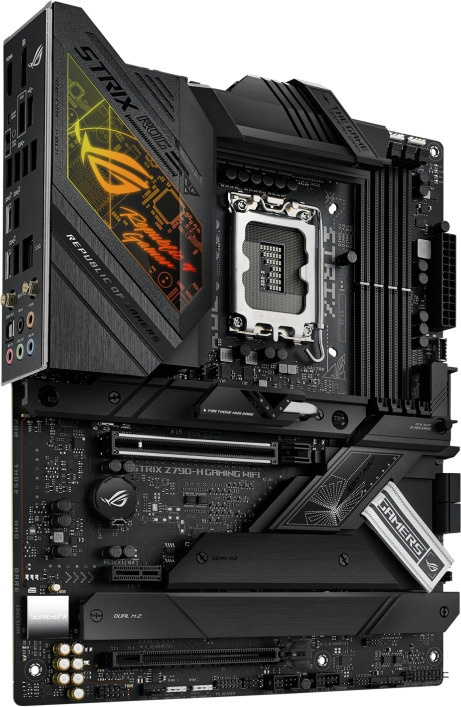

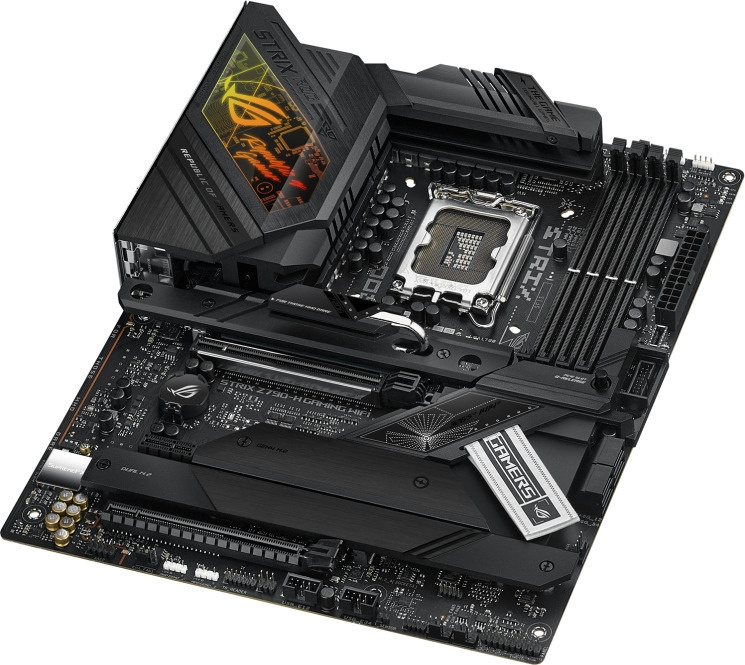

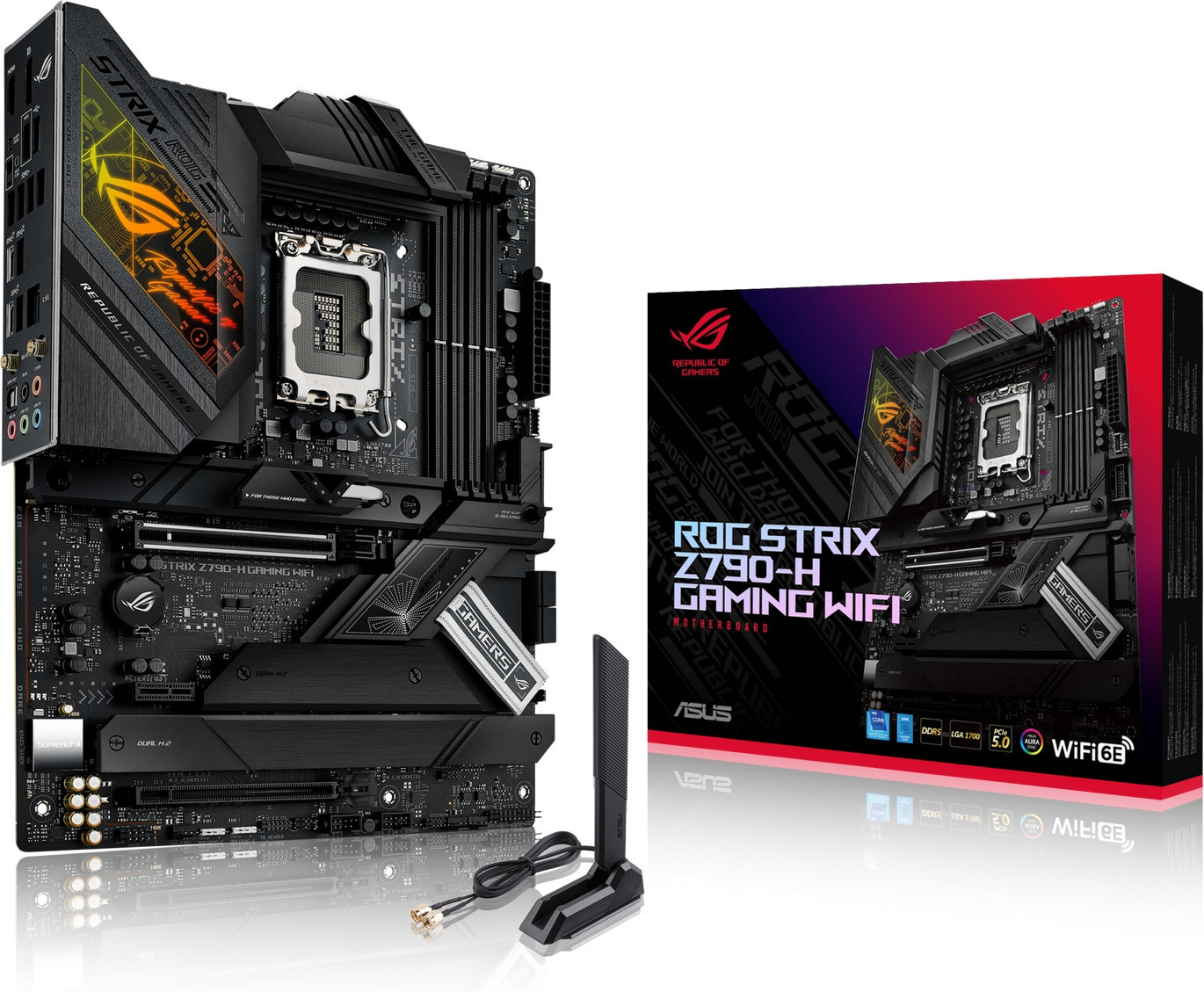

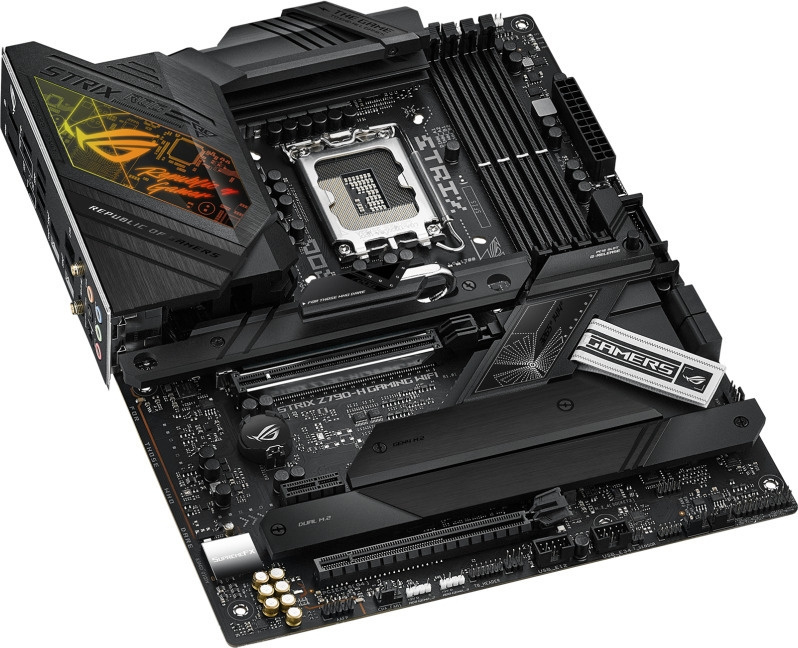

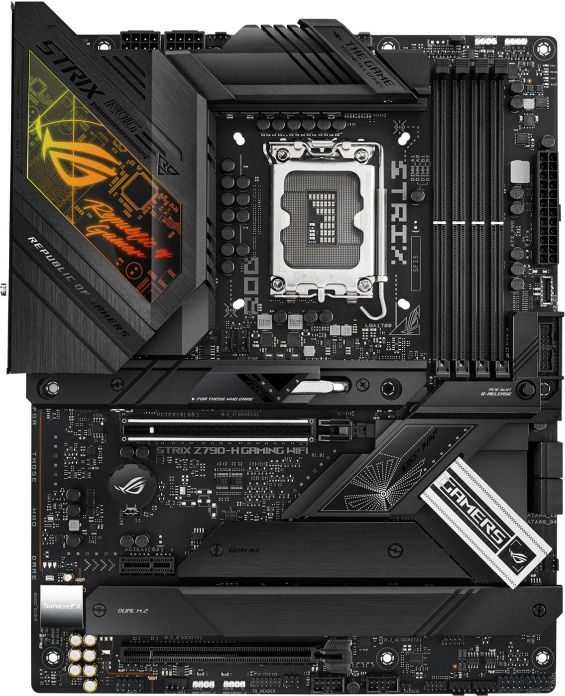

Underneath the dark heat sinks and aggressive aesthetics of the ROG Strix Z790-H, you'll find power management and overclocking features that take 14th generation Intel Core processors to a new level. This top-end power mill enables a quieter configuration with advanced power management and supports DDR5, PCIe 5.0 and Wi-Fi 6E technologies. There's enough bandwidth for everything.
Intel LGA 1700: Ready for 14th/13th generation Intel Core and 12th generation Intel Core, Pentium Gold and Celeron processors
Power efficient power solution: 16+1+2 power levels, 80A current per level, dual ProCool II power connectors, high quality alloy chokes and durable capacitors to support multi-core CPUs
Optimised VRM thermal solution: massive heat sinks, integrated I/O shield and highly heat conductive heat pads combined with an L-shaped heat pipe.
Plenty of M.2 slots: one PCIe 4.0 M.2 slot with heat sink and backplane and three PCIe 4.0 M.2 slots with heat sinks.
USB 3.2 Gen 2x2 Type-C on the rear panel and an additional connector on the front panel with PD 3.0 support up to 30W, USB 3.2 Gen 2 and Gen 1 connectors, PCIe 5.0 x16 SafeSlot, HDMI 2.1 and DisplayPort 1.4.
High-performance networking: Wi-Fi 6E (802.11ax) on the motherboard, Intel 2.5 Gb Ethernet and ASUS LANGuard.
Intelligent management: exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation from ASUS simplify setup and improve performance.
Captivating gaming sound: SupremeFX Shielding technology, S1220A codec and Savitech SV3H712 amplifier, plus DTS Sound Unbound and Sonic Studio III.
Unique customizability: only available on ASUS products, Aura Sync RGB lighting with a single RGB connector and Gen 2 connectors for addressing.
Buildable design: PCIe Slot Q-Release, M.2 Q-Latch, pre-installed I/O board, BIOS FlashBack button, BIOS FlashBack LED and Clear CMOS button.
Powerful software: 60-day AIDA64 Extreme trial subscription included, plus intuitive UEFI BIOS management view with integrated MemTest86.
Features:
- Intel Z790 chipset
- Processor core: LGA1700
- Processor support: 14th/13th generation Intel Core, 12th generation Intel Core, Pentium Gold, Celeron series
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (pcs): 4
- Memory type: DDR5 (7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz), Non-ECC, Un-buffered
- Maximum memory (GB): 192
- Network interfaces: 1 x Intel 2.5Gb Ethernet, Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax)
- Bluetooth: 5.3
- Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
Expansion sites
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
- 1 x PCIe 3.0 x1 slot
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

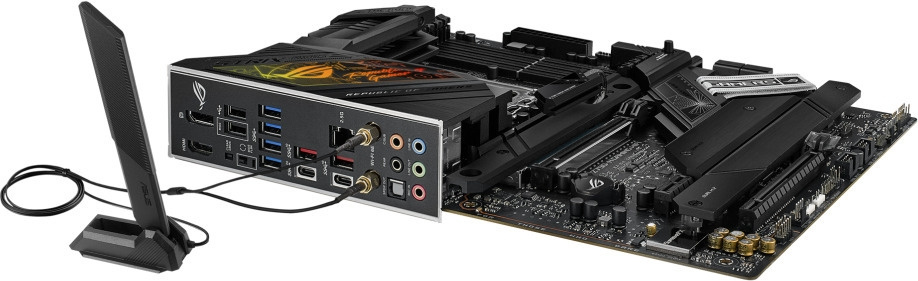

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel 2.5Gb Ethernet port
- 5 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- 1 x Clear CMOS button
Internal connections
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers - Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors - Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
- LGA 1700 ATX motherboard
- Intel Z790 chipset
- 4 x M.2 slots, 4 x SATA
- 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
- DDR5 support
